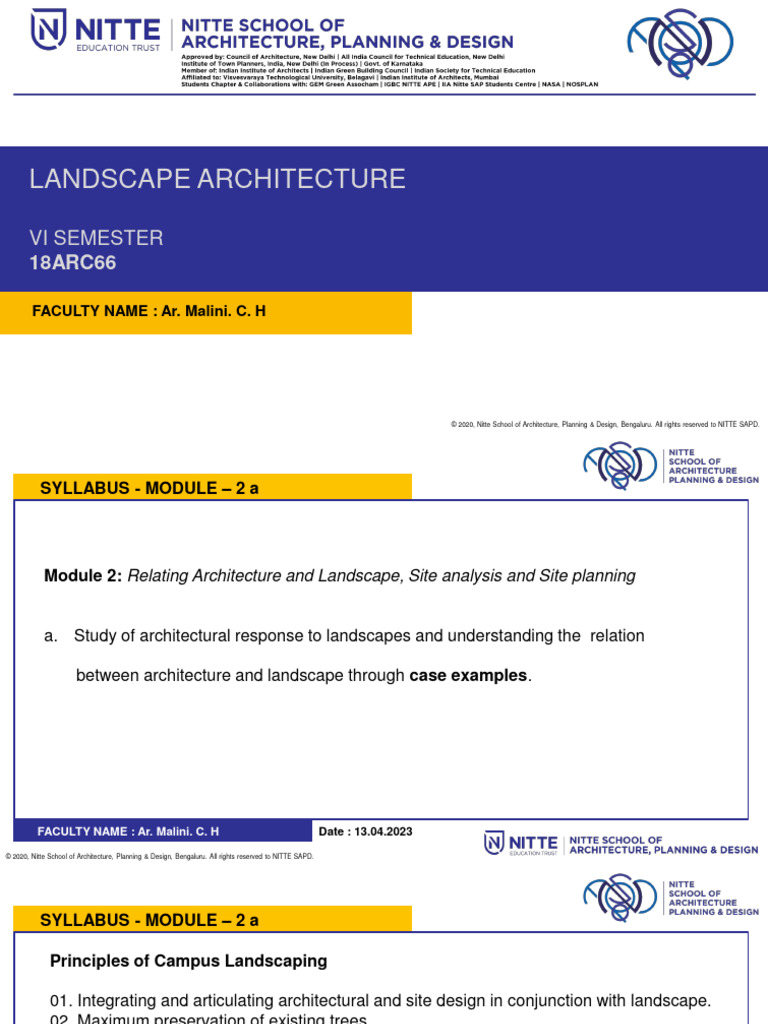

VI SEMESTER
18ARC66
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
Module 2: Relating Architecture and Landscape, Site analysis and Site planning
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
01. Integrating and articulating architectural and site design in conjunction with landscape.
02. Maximum preservation of existing trees
03. Focal or interest plantings.
04. Reinforcement of pedestrian access ways.
05. Establishment of sufficient open spaces for different activities like sports and
multipurpose use.
06. Retention of unique or particularly attractive natural features.
07. Planning for a variety of natural spaces.
08. Sensitively located seating – bench/ tables arrangements to enhance areas for study,
eating and conversation.
09. Consideration for noise in the outdoors.
10. Balance of softscape and hardscape.
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
CASE EXAMPLE :
FLAME UNIVERSITY , Pune, India
Architects : Vastu Shilpa Consultants
Area = 60 acres
The site topography resembles a saucer, a
valley surrounded by undulating hills that rise
200 m high, with the Sahyadri mountain
ranges seen one after the other.
The waterfalls, brooks, tropical species of
trees, are all natural forces forming a part of
the picturesque site.
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
Academic Spine
Master plan
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
An open to sky pedestrian 'spine' emerges as the salient design feature that
connects the various blocks, enacting as a 'breathing space'.
The classrooms, laboratories, faculty rooms, performing arts, visual arts studio and
recording studio play a part in the making of the spine.
Orientation of the spine along the north-south direction keeps a major part of the
spine in shade, creating cool spaces of repose in the hot tropical sun during the day.
The silhouette of shadows along the spine creates interesting patterns to behold.
The ideology of minimum alteration of the original topography, leads to the twists
and turns of blocks with the contours of the rolling ground. Thus the otherwise compact
planning is eased and stretched out with this approach.
Minimal footprint is achieved with the careful programming of the day-today activities in
the university. Thus achieving a reduction in add-on landscaping, and water
requirements.
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
PLAZA
The spine merges to the university plaza.
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
Plaza :
It is a confluence of FLAME’s infrastructure. It’s where the academic and recreation
spaces meet. It’s a great place for the FLAME community to come together.
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
PLAZA – KUND :
Apart from serving as a reservoir, the Kund’s serenity adds to the beauty of the
campus where students congregate casually.
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
Amphitheaters
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
Amphitheaters
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
SYLLABUS - MODULE – 2 a
© 2020, Nitte School of Architecture, Planning & Design, Bengaluru. All rights reserved to NITTE SAPD.
