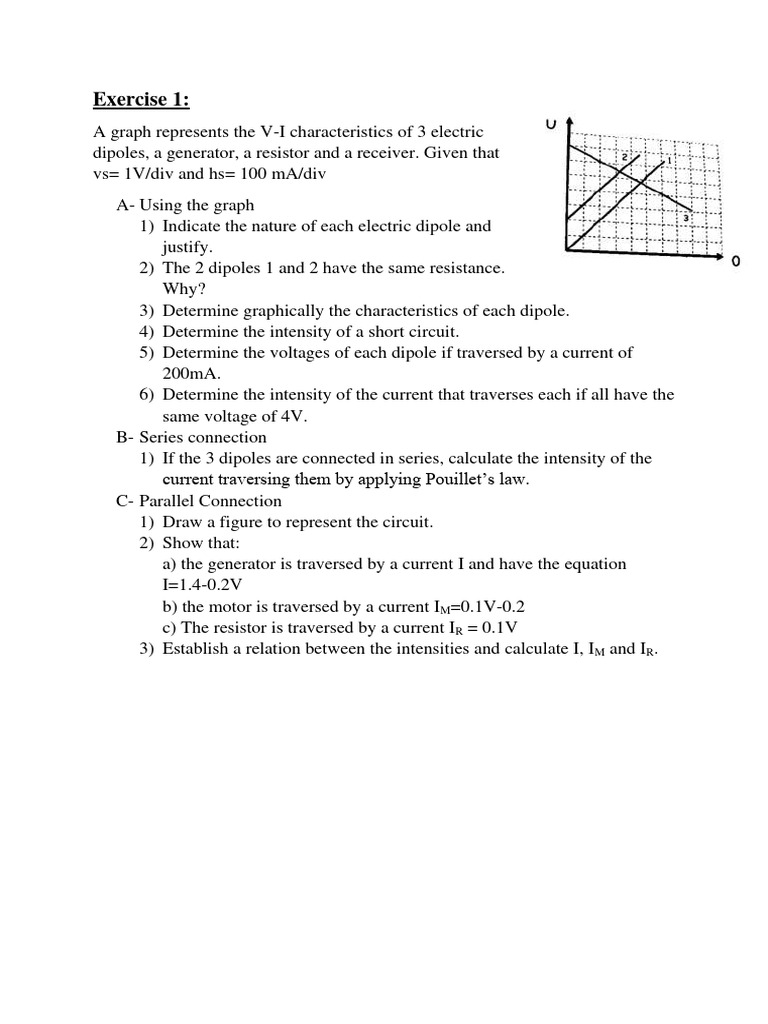

A graph represents the V-I characteristics of 3 electric
dipoles, a generator, a resistor and a receiver. Given that vs= 1V/div and hs= 100 mA/div A- Using the graph 1) Indicate the nature of each electric dipole and justify. 2) The 2 dipoles 1 and 2 have the same resistance. Why? 3) Determine graphically the characteristics of each dipole. 4) Determine the intensity of a short circuit. 5) Determine the voltages of each dipole if traversed by a current of 200mA. 6) Determine the intensity of the current that traverses each if all have the same voltage of 4V. B- Series connection 1) If the 3 dipoles are connected in series, calculate the intensity of the current traversing them by applying Pouillet’s law. C- Parallel Connection 1) Draw a figure to represent the circuit. 2) Show that: a) the generator is traversed by a current I and have the equation I=1.4-0.2V b) the motor is traversed by a current IM=0.1V-0.2 c) The resistor is traversed by a current IR = 0.1V 3) Establish a relation between the intensities and calculate I, IM and IR.
