05.06.

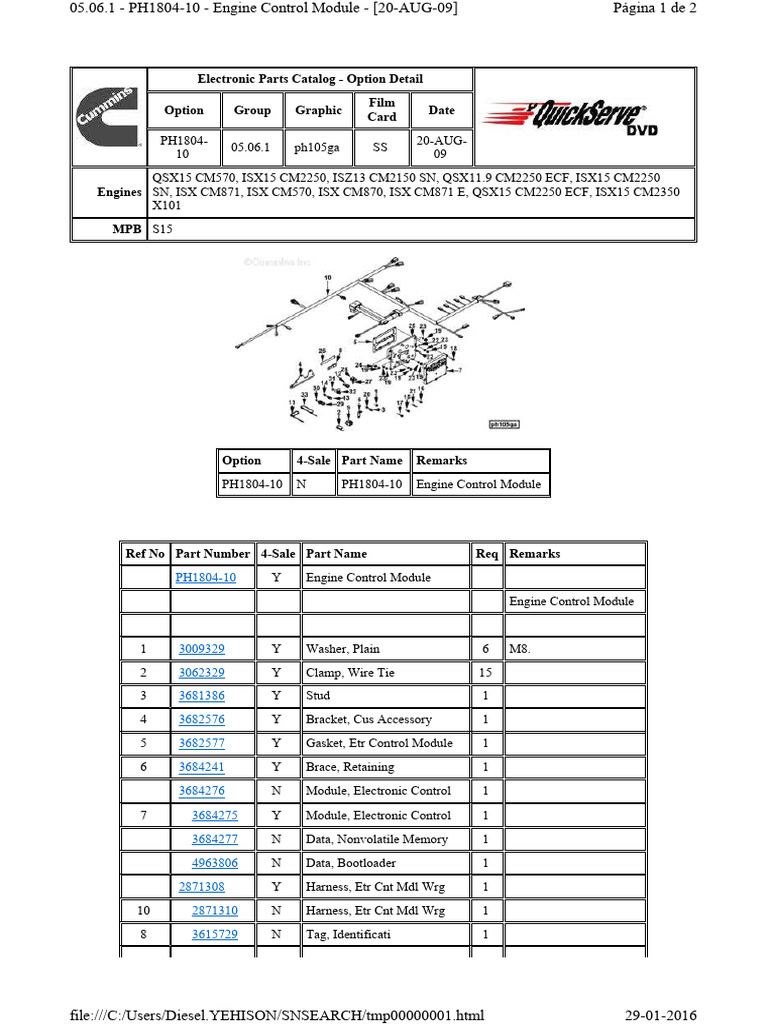

1 - PH1804-10 - Engine Control Module - [20-AUG-09] Página 1 de 2

Electronic Parts Catalog - Option Detail

Film
Option Group Graphic Date
Card
PH1804- 20-AUG-
05.06.1 ph105ga SS
10 09
QSX15 CM570, ISX15 CM2250, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, ISX15 CM2250
Engines SN, ISX CM871, ISX CM570, ISX CM870, ISX CM871 E, QSX15 CM2250 ECF, ISX15 CM2350
X101
MPB S15

Option 4-Sale Part Name Remarks

PH1804-10 N PH1804-10 Engine Control Module

Ref No Part Number 4-Sale Part Name Req Remarks

PH1804-10 Y Engine Control Module
Engine Control Module

1 3009329 Y Washer, Plain 6 M8.

2 3062329 Y Clamp, Wire Tie 15
3 3681386 Y Stud 1
4 3682576 Y Bracket, Cus Accessory 1
5 3682577 Y Gasket, Etr Control Module 1
6 3684241 Y Brace, Retaining 1
3684276 N Module, Electronic Control 1
7 3684275 Y Module, Electronic Control 1
3684277 N Data, Nonvolatile Memory 1
4963806 N Data, Bootloader 1
2871308 Y Harness, Etr Cnt Mdl Wrg 1
10 2871310 N Harness, Etr Cnt Mdl Wrg 1
8 3615729 N Tag, Identificati 1

file:///C:/Users/Diesel.YEHISON/SNSEARCH/tmp00000001.html 29-01-2016
05.06.1 - PH1804-10 - Engine Control Module - [20-AUG-09] Página 2 de 2

3062329 Y Clamp, Wire Tie 6 Not Shown In This Art

9 3658948 Y Relay 1
11 3900109 Y Clamp, Wire Tie 1
12 4076493 Y Sensor, Pressure 1 Ambient Air.
4905146 N Coolant Temp Sensor 1
13 4954905 Y Sensor, Temperature 1 Coolant or Oil or Fuel
14 Y Item not on this version.
3062329 Y Clamp, Wire Tie 6 Not Shown In This Art
15 3900630 Y Screw, Hex Flange Head Cap 5 M8 X 1.25 X 20.
16 3900631 Y Screw, Hex Flange Head Cap 2 M8 X 1.25 X 25.
17 3900678 Y Screw, Hex Flange Head Cap 5 M8 X 1.25 X 40.
18 3902114 Y Screw, Hex Flange Head Cap 6 M8 X 1.25 X 30.
19 3902662 Y Nut, Hexagon Flange 1 M10 X 1.50.
20 3910266 Y Washer, Spring 5
21 3921816 Y Screw, Hex Flange Head Cap 3 M08 x 1.25 x 45.
4076861 Y Cooler, Electronic Control 1
22 3627695 Y Seal, O Ring 2
23 4062346 Y Washer, Insulating 5
24 4062357 Y Washer, Ground 1
25 4076946 Y Cooler, Electronic Control 1
26 4083185 N Dataplate 1
4921324 Y Sensor, Prs Temperature 1 Intake manifold.
27 4903482 Y Seal, O Ring 1
28 4921325 N Sensor, Prs Temperature 1
29 4921517 Y Sensor, Pressure 1 Oil.
30 4010519 Y Seal, O Ring 1
4921599 Y Sensor, Position 2 Cam or crank.
31 4010600 Y Seal, O Ring 1
32 4921600 N Sensor, Position 1
33 4952223 Y Clamp, Wire Tie 2
3036460 Y Washer, Spring 1 Item not shown on art.
3009329 Y Washer, Plain 1 M8.

©1984-2010 Cummins Inc., Box 3005, Columbus, IN 47202-3005 U.S.A.
