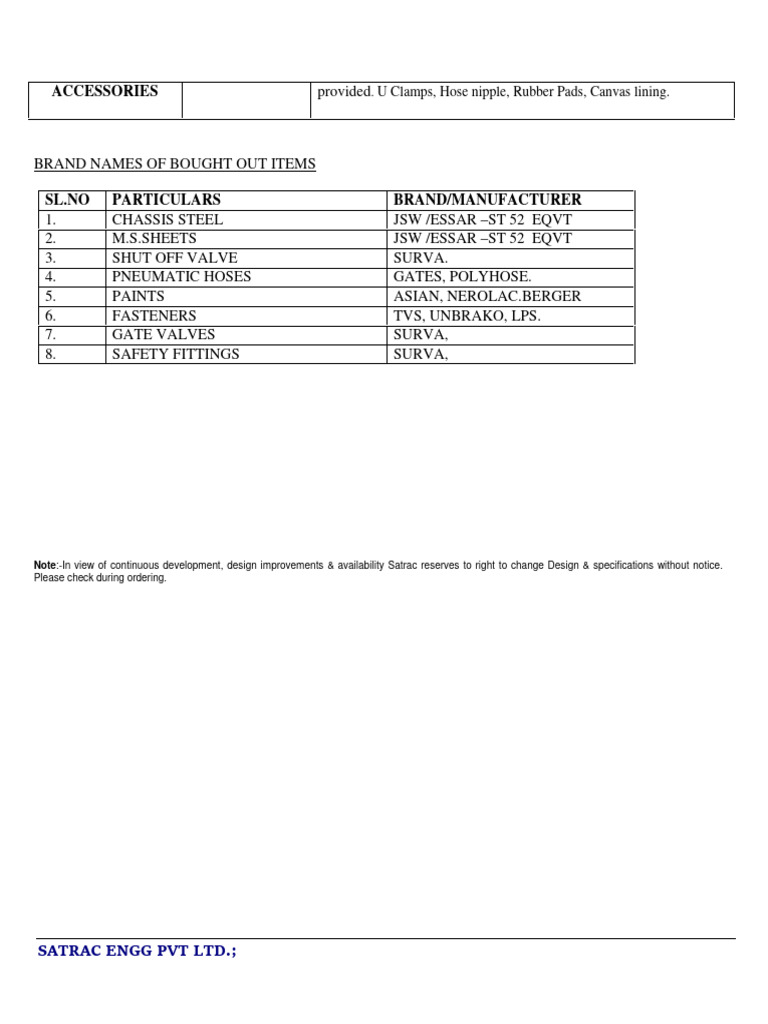

ACCESSORIES provided. U Clamps, Hose nipple, Rubber Pads, Canvas lining.

BRAND NAMES OF BOUGHT OUT ITEMS

SL.NO PARTICULARS BRAND/MANUFACTURER

1. CHASSIS STEEL JSW /ESSAR –ST 52 EQVT
2. M.S.SHEETS JSW /ESSAR –ST 52 EQVT
3. SHUT OFF VALVE SURVA.
4. PNEUMATIC HOSES GATES, POLYHOSE.
5. PAINTS ASIAN, NEROLAC.BERGER
6. FASTENERS TVS, UNBRAKO, LPS.
7. GATE VALVES SURVA,
8. SAFETY FITTINGS SURVA,

Note:-In view of continuous development, design improvements & availability Satrac reserves to right to change Design & specifications without notice.
Please check during ordering.

SATRAC ENGG PVT LTD.;

TECHNICAL SPECIFICATIONS:

ITEM SIZE DESCRIPTION

The main runner is of 4 mm thick which will be supporting a

MAIN RUNNER 5 mm Runner
bottom flange of 4 mm thick for Entire Tank Length.

Thickness: Shell - 3 MM ST 52 / Dish End -4MM –ST 52

Design: D Type design with 4 compartments.
TANK 20KL.
Discharge: Side.
Loading: 4 *530mm diameter of Man hole.
Compartments: 4 Compartments of 5000 Ltrs
Hydrostatic Pressure: 0.3 Bar
Shut off Valve: An emergency valve will be provided for Each
Compartment which will be having a locking mechanism at the rear
side.
Discharge Kappa: for 100% Unloading of fuel, kappa will be
provided for bottom of the Tank.
The chassis & tank is supported by stiffener of 5 nos on Each side.
BOX STIFFNER The Stiffener are made of box structure which will be give more
stability to the tank.

The fusible links are connected with quick release discharge Kappa,
DISCHARGE at the bottom of the tank, through which the pipe lines are
connected to the gate valves.

SHUT OFF
VALVE,MANIFOLD The Shut off valve box, manifold box & mud guard are made
BOX & stainless steel.
MUDGUARD

Two coats of metal primers will be applied. The dry film

thickness (DFT) will not be less than 30 microns. Final two coats of
PAINTING not less than 40 microns (DFT) of enamel color paint will be
SCHEME applied. . Standard quality paints and primers will be procured from
approved manufacturers. The inner surfaces of box sections will be
cleaned and painted with zinc rich epoxy primer (by Brush/spray)
to a thickness of 65 microns DFT before closing the section

STANDARD Parking lights, indicator lamps, sidelights, reflectors etc. will be

SATRAC ENGG PVT LTD.;

GENERAL SPECIFICATION:

MODEL- PETROLEUM TANKER

CAPACITY - 20KL.
GROSS VEHICLE WEIGHT (GVW)-25Tons*
*When coupled with suitable chassis, Weights mentioned are as per RTO Rules & actual may vary from model to model.
