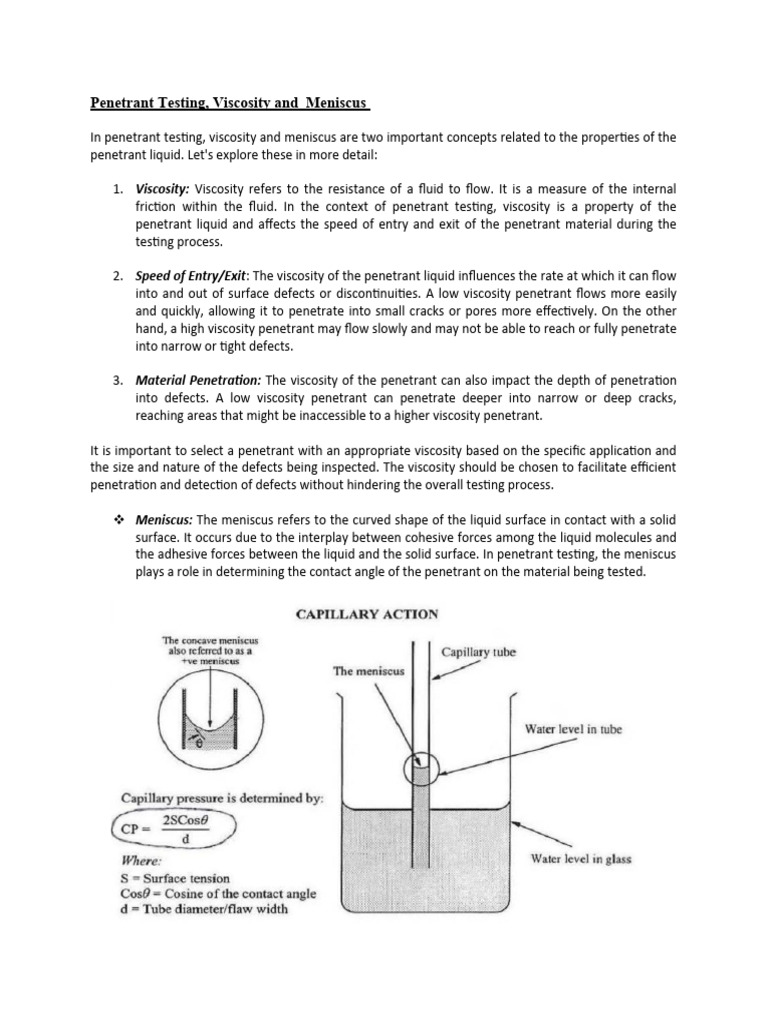

Penetrant Testing, Viscosity and Meniscus

In penetrant testing, viscosity and meniscus are two important concepts related to the properties of the
penetrant liquid. Let's explore these in more detail:

1. Viscosity: Viscosity refers to the resistance of a fluid to flow. It is a measure of the internal
friction within the fluid. In the context of penetrant testing, viscosity is a property of the
penetrant liquid and affects the speed of entry and exit of the penetrant material during the
testing process.

2. Speed of Entry/Exit: The viscosity of the penetrant liquid influences the rate at which it can flow
into and out of surface defects or discontinuities. A low viscosity penetrant flows more easily
and quickly, allowing it to penetrate into small cracks or pores more effectively. On the other
hand, a high viscosity penetrant may flow slowly and may not be able to reach or fully penetrate
into narrow or tight defects.

3. Material Penetration: The viscosity of the penetrant can also impact the depth of penetration
into defects. A low viscosity penetrant can penetrate deeper into narrow or deep cracks,
reaching areas that might be inaccessible to a higher viscosity penetrant.

It is important to select a penetrant with an appropriate viscosity based on the specific application and
the size and nature of the defects being inspected. The viscosity should be chosen to facilitate efficient
penetration and detection of defects without hindering the overall testing process.

 Meniscus: The meniscus refers to the curved shape of the liquid surface in contact with a solid
surface. It occurs due to the interplay between cohesive forces among the liquid molecules and
the adhesive forces between the liquid and the solid surface. In penetrant testing, the meniscus
plays a role in determining the contact angle of the penetrant on the material being tested.
 i. Contact Angle: The contact angle is the angle formed between the tangent to the liquid
surface at the point of contact and the solid surface. By using a shadowgraph, which is
an optical technique, the contact angle can be measured for a specific material. In
penetrant testing, a good penetrant is typically defined by having a contact angle in the
range of 6-10 degrees.

ii. Wetting: The contact angle and wetting behavior of the penetrant on the surface are
important in penetrant testing. A penetrant with a low contact angle (close to 0
degrees) exhibits good wetting on the surface, spreading evenly and effectively into
defects. This enhances the capillary action and allows the penetrant to penetrate into
fine cracks and discontinuities.

By understanding the meniscus and contact angle, engineers can assess the suitability of a penetrant for a
particular material and determine its wetting characteristics. A penetrant with an appropriate contact angle
and wetting behavior ensures effective penetration and detection of surface defects during the testing
process.
In summary, viscosity affects the speed of entry and exit of the penetrant material, while the meniscus and
contact angle play a role in the wetting behavior of the penetrant on the surface. These properties are
important considerations in selecting and evaluating penetrants for effective penetrant testing.
