Kirloskar Brothers Limited

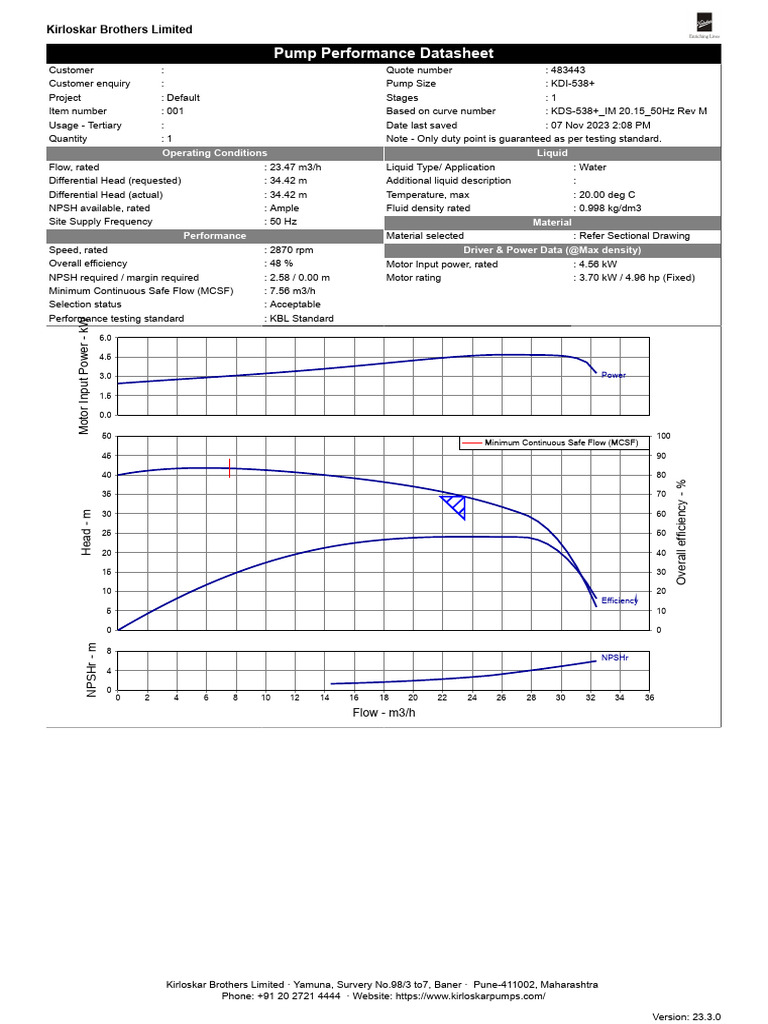

Pump Performance Datasheet

Customer : Quote number : 483443
Customer enquiry : Pump Size : KDI-538+
Project : Default Stages :1
Item number : 001 Based on curve number : KDS-538+_IM 20.15_50Hz Rev M
Usage - Tertiary : Date last saved : 07 Nov 2023 2:08 PM
Quantity :1 Note - Only duty point is guaranteed as per testing standard.
Operating Conditions Liquid
Flow, rated : 23.47 m3/h Liquid Type/ Application : Water
Differential Head (requested) : 34.42 m Additional liquid description :
Differential Head (actual) : 34.42 m Temperature, max : 20.00 deg C
NPSH available, rated : Ample Fluid density rated : 0.998 kg/dm3
Site Supply Frequency : 50 Hz Material
Performance Material selected : Refer Sectional Drawing
Speed, rated : 2870 rpm Driver & Power Data (@Max density)
Overall efficiency : 48 % Motor Input power, rated : 4.56 kW
NPSH required / margin required : 2.58 / 0.00 m Motor rating : 3.70 kW / 4.96 hp (Fixed)
Minimum Continuous Safe Flow (MCSF) : 7.56 m3/h
Selection status : Acceptable
Performance testing standard : KBL Standard
Motor Input Power - kW

6.0

4.5

3.0 Power

1.5

0.0

50 100
Minimum Continuous Safe Flow (MCSF)
45 90

40 80

Overall efficiency - %
35 70

30 60
Head - m

25 50

20 40

15 30

10 20
Efficiency
5 10

0 0
NPSHr - m

8
NPSHr
4

0
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36
Flow - m3/h

Kirloskar Brothers Limited · Yamuna, Survery No.98/3 to7, Baner · Pune-411002, Maharashtra
Phone: +91 20 2721 4444 · Website: https://www.kirloskarpumps.com/

Version: 23.3.0
