FANUC
Page 4

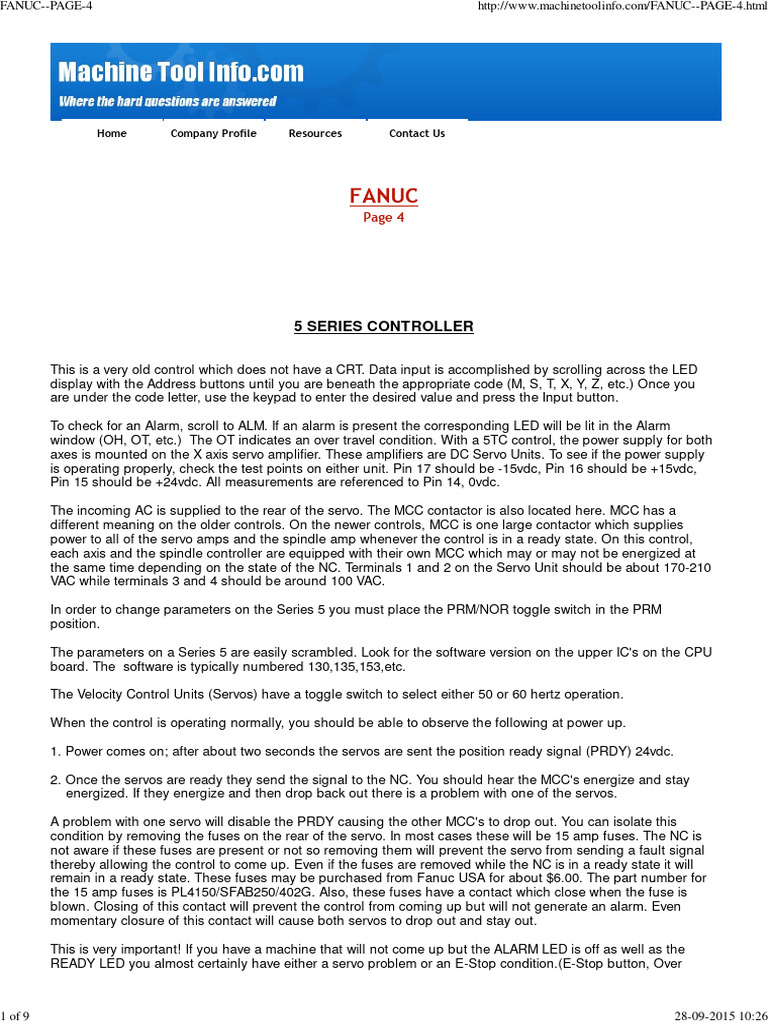

5 SERIES CONTROLLER
This is a very old control which does not have a CRT. Data input is accomplished by scrolling across the LED
display with the Address buttons until you are beneath the appropriate code (M, S, T, X, Y, Z, etc.) Once you
are under the code letter, use the keypad to enter the desired value and press the Input button.
To check for an Alarm, scroll to ALM. If an alarm is present the corresponding LED will be lit in the Alarm
window (OH, OT, etc.) The OT indicates an over travel condition. With a 5TC control, the power supply for both
axes is mounted on the X axis servo amplifier. These amplifiers are DC Servo Units. To see if the power supply
is operating properly, check the test points on either unit. Pin 17 should be -15vdc, Pin 16 should be +15vdc,
Pin 15 should be +24vdc. All measurements are referenced to Pin 14, 0vdc.
The incoming AC is supplied to the rear of the servo. The MCC contactor is also located here. MCC has a
different meaning on the older controls. On the newer controls, MCC is one large contactor which supplies
power to all of the servo amps and the spindle amp whenever the control is in a ready state. On this control,
each axis and the spindle controller are equipped with their own MCC which may or may not be energized at
the same time depending on the state of the NC. Terminals 1 and 2 on the Servo Unit should be about 170-210
VAC while terminals 3 and 4 should be around 100 VAC.
In order to change parameters on the Series 5 you must place the PRM/NOR toggle switch in the PRM
position.
The parameters on a Series 5 are easily scrambled. Look for the software version on the upper IC's on the CPU
board. The software is typically numbered 130,135,153,etc.
The Velocity Control Units (Servos) have a toggle switch to select either 50 or 60 hertz operation.
When the control is operating normally, you should be able to observe the following at power up.
1. Power comes on; after about two seconds the servos are sent the position ready signal (PRDY) 24vdc.
2. Once the servos are ready they send the signal to the NC. You should hear the MCC's energize and stay
energized. If they energize and then drop back out there is a problem with one of the servos.
A problem with one servo will disable the PRDY causing the other MCC's to drop out. You can isolate this
condition by removing the fuses on the rear of the servo. In most cases these will be 15 amp fuses. The NC is
not aware if these fuses are present or not so removing them will prevent the servo from sending a fault signal
thereby allowing the control to come up. Even if the fuses are removed while the NC is in a ready state it will
remain in a ready state. These fuses may be purchased from Fanuc USA for about $6.00. The part number for
the 15 amp fuses is PL4150/SFAB250/402G. Also, these fuses have a contact which close when the fuse is
blown. Closing of this contact will prevent the control from coming up but will not generate an alarm. Even
momentary closure of this contact will cause both servos to drop out and stay out.
This is very important! If you have a machine that will not come up but the ALARM LED is off as well as the
READY LED you almost certainly have either a servo problem or an E-Stop condition.(E-Stop button, Over
1 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
Travel, etc.) When
The information youand
on this have a true servo
subsequent pages fault, the ALARM
is intended LED willand
to supplement be reinforce
on and there will be aof1 competent
the knowledge under SV in the
machinists and technicians. The authors of this website are in no way lialble for damage or injury resulting from the
diagnostics.
improper use of the instructions contained herein.
The Series 5 control has the capability of storing just one program in battery backed RAM, but it can be a long
one ( 10 or 20 meters). This RAM board was an option that most controls were ordered without. If it is present
on a control it can be recognized as a board riding "piggy-back" on one of the two main boards.
A Series 5 control has no RS-232 ability, but there are aftermarket devices which will interface with the Tape
Reader. The tape readers Baud Rate is 300.
To return to G Code programming from Conversational programming, press the soft key at the far left of the
screen several times. When in graphics, press the PRGRM key on the keypad then use the soft key. Most
Spindle functions are controlled by the MTB. They are controlled by affecting the values of the 6000 series
parameters and by setting Diagnostic bits.
On a Mazak with a 5M control, if the control skips M Codes or does not execute them properly try replacing one
of the I/O modules particularly the M-FIN module.
6 SERIES CONTROLLER
When working on a machine with a Series 6 control it may be set up so that an over travel switch will cause a
400 series servo alarm. In this case, the PRDY LED will be turned off.
There is no keystroke combination to have the NC ignore the soft limits. The values are stored in the 140 to 160
range of parameters.
If the power supply keeps going in to fault status (red LED), you must first eliminate external causes by
removing the wires from the 5 and 24 volt terminals. The cause of the fault when the external sources have
been removed is almost always the voltage stabilizer. The stabilizer is connected to the power supply by a cable
that runs from CP1 on the power supply to CP34 on the voltage stabilizer. If you remove this
cable from either unit before turning the power on, the power supply won't fault. After the power has been on
for a while the components will warm up, then you can turn the power off, reconnect the cable and power up
again.
Some machines with Fanuc controls, particularly older controls like 5 and 6 controls will use scales on the axes
either with or without a pulse coder. On those machines not using a pulse coder they will typically have a tacho-
generator for velocity feedback. The scale may be made by a manufacturer such as Heidenhain but often it will
be a Fanuc induction scale. These are known as Inductosyn scales and sometimes referred to as resolvers. If
the axis has the scale and a pulse coder it is easier to troubleshoot servo and positioning problems. When the
axis has a scale, it uses the scale for positioning rather than the pulse coder. So if you have a positioning
problem you can detach the scale (parametrically) and use the pulse coder for positioning. If the positioning
problem goes away either the scale, its wiring or the Resolver/Inductosyn board is bad. This board conditions
the signal from these peripheral devices for use by the NC. In the case of a Series 6 control, this board plugs
into the Master Board. Also, in the case of a Series 6, the parameter for removing the scale is P316.0 for the X
axis, P316.1 for the Y axis and P316.2 for the Z axis. This is also very useful in troubleshooting axis movement
problems such as jerked or rough motion which can be caused by poor feedback. A 1 in the parameter means a
scale is used for position feedback, 0 means a pulse coder is used. On the Res/Inductosyn board, you will find
a 20 pin Honda connector for each axis. In the case of a three axis machine they are C31 for X, C34 for Y and
C37 for Z. You will also find two circular connectors at the bottom of the board for each axis. Referring to the
above example, C32 and C33 are for X, C35 and C36 are for Y and C38 and C39 are for Z. The machine can
actually be run with the scale detached and using the pulse coder but, of course, will require either Grid Shift
adjustment or re-touching of tools. Every control has this ability although the parameter numbers will vary from
control to control. When troubleshooting servo problems on an axis such as rough or jerked movement you can
swap the command and feedback cables just as you would with a machine using pulse coders. In the case of a
machine using a pulse coder for positioning an axis you must swap the command cable which in most cases
will be CN1 on the servo amplifier. In addition you must swap the feedback cable which normally runs from the
pulse coder to the axes card. The number or name of this connector varies from control to control and also by
axis. You have to swap both. Assuming the machine is standard setup such that the all axes have the same
pulse coder (resolution, etc.), and the motor directions are set the same the axis swapped with will move when
the other axis in the swap is commanded to move. This will allow you to either rule in or rule out either the
mechanical or control part of the servo system as the cause of a given problem. In the case of a machine using
the scales, the same is true with the exception that there are more cables to swap. You have to swap CN1 as
2 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
well as the 20 pin Honda connector and the two circular connectors. For example, if you had a problem with the
Z axis of a machine you could swap the Z axis with the Y axis. First swap CN1 between the two axes. Then
switch C34 with C37. Next switch C35 and C36 with C38 and C39. Anytime you swap cables, make sure you DO
NOT REFERENCE RETURN (ZRN) the machine. Obviously, this would cause problems since if the Z axis
attempts to reference return, the Y axis will be moving so the Z axis decel switch will never be reached. Another
test is to swap the feedback cables at the RES/INDUCTOSYN board and the motor leads at the servo
amplifiers. In this case when you give the command for the X axis to move, for example, the Y axis would move,
the Y feedback would be sent to the X axis feedback circuits. You will be using the X axis amplifier, axis control
board or X axis section of this board and the X axis parameters to control the Y axis. This will eliminate these
things as the cause of the problem. Another component to be aware of when these scales are used is a Fanuc
board normally found close to the scale reader. This is a pre-amplifier and can sometimes cause problem. The
reader is a four wire device. The wires are labeled A, B, C and D. Fanuc calls the reader a slider and sometimes
the term will be applied to the complete scale. C31, C33 and C35 are connected to the X, Y and Z sliders. C32,
C34 and C36 are connected to the X, Y and Z pre-amplifiers. The RES/INDUCTOSYN board Fanuc number is
A20B-0008-0461. The connectors from left to right looking at the front of the board are:
C32 C33 C35 C36 C38 C39
The Tach feedback comes in on the Honda 20 pin connectors C31 for X, C34 for Y and C37 for Z.
On a 6M control if you have certain servo alarms, particularly SV008, you can try to swap just the top board of
the drive rather than the entire drive. This can be done by removing only two cables. If you experience new
alarms, it may be necessary to change the shorting pins on the boards to make them match how they were
before the boards were swapped. This is probably due to a mismatch between either the control or the
parameters for that axis and the shorting pin configuration. When this alarm occurs an axis designation will be
displayed along with the alarm. The alarm means that the axis position deviated by an amount greater than the
value set in parameter 1829 while the axis was stopped (not moving). If the axis position deviates while in motion
the parameter where the value is stored is 1828.
The drives on this control use a single Honda 20 pin connector for both the command and feedback. This cable
goes from the drive to the Main Board.
The Grid Shift Parameters for X, Y and Z on a 6M control are 82, 83 and 84 respectively.
6M Controller
If parameter 318.7 is set to 0 the 9000 series programs will be protected and cannot be viewed or edited. If
parameter 319.7 is set to 0 the 8000 series programs are protected and cannot be viewed or edited. M-Codes
can be attached to specific programs by using parameters 320-332. Certain program numbers are assigned to
the parameters, parameter 320 is assigned to program number 9001, parameter 321 is assigned to 9002, etc.
The way this works is that, for example, if you assign a value of 70 to parameter 320, when M70 is commanded
the control will call up and execute program 9001.
To view the PC parameters on a 6M control that does not have an NC/PC button, press the PARAM button twice
then enter the number of the parameter you want to access. Press INPUT. It may be necessary to use put N in
front of the number. I.E. N2001. In order to change the value of the parameter you must put a P before the
number. I.E. P0
On machines that will controls such as the 6M which use a spindle amplifier with an orientation board, the IN
POSITION LED (LED 6) should be on whenever the spindle is within one degree of it's orientation position. If
this LED does not come on after spindle orientation is performed the SPINDLE ORIENTATION COMPLETION
SIGNAL will not be output form the CNC. In this case, any function which is waiting for this signal to turn on will
not be able to activate. If the spindle is in position but the LED is off you can adjust RV7 IN-POSITION to bring it
on.
The axis interlock signals for a 6M control are:
ITX - G96.4
ITY - G97.4
ITZ - G98.4
These are active low signals so a value of 0 will allow axis motion. In the case of a machine that uses hardware
inputs to interlock the axes:
ITX - X32.4
3 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
ITY - X33.4
ITZ - X35.4
Of course, these are the Fanuc defined and recommended addresses but the machine builder can define their
own addresses.
On a 6T control the Backlash Parameters are 115 for X and 116 for Z.
For alarm 087 on 6T control check parameter 310.5 for I/O device 1 or parameter 311.5 for I/O device 2. If set to
1, control codes are not used. In most cases setting does not matter but in a few it does.
310.5 = RSCB1
311.5 = RSCB2.
10 SERIES CONTROLLER
To monitor the Servo Current on a 10 control you must measure the voltage at pins IR and IS on the servo
amplifier. RV1 on this drive is the Gain adjustment. RV3 is the Offset adjustment. You normally will not adjust
RV2. You monitor the Servo Error at Diagnostic 3000 and adjust these pots to correct error. To make the best
parts especially circles these numbers should be the same. You should first adjust the + and - values to make
them equal one axis at a time. Then adjust to X equal Z when doing linear interpolation. If the servo error is out
of adjustment you will normally see an ellipse from 45 degrees to 225 degrees or from 275 to 135.
In order to get to the Diagnostics you must:
1. Press the LEFT CHAPTER button. (Beside the soft keys)
2. Press SERVICE.
3. Press DIAGNOS.
To search a program:
1. Select EDIT mode.
2. Press the Left Chapter button.
3. Enter the program number and press [Link]
The Servo Parameters are located in the 1600 to 1800 series.
On a Fanuc 10 control, especially on a Mori-Seiki, the Page function is not immediately obvious. There may be
four arrow over buttons. If this is the case, you page up by pressing the two upper cursor buttons at the same
time. To page down you press the two lower cursor buttons at the same time.
Also, on a 10 control the PWE is Parameter 8000.0. Go to this parameter and make it 1. The alarm cannot be
cancelled with Reset/Cancel.
On a 10 control, the TGM LED indicates a problem on the second axis of a dual amplifier. TGL indicates a
problem on the first axis. The TG of the TGL and TGM stands for Tacho Generator. This alarm can also be
caused by a problem with the pulse coder or it's cable. Also is possible for the motor to be shorted or under
excessive load, especially if the OV led comes on along with the TGM or TGL.
If on a lathe, for example, you remove the X axis pulse coder connection then turn the power on, the TGL LED
will come on. Likewise for the Z axis and TGL.
When working on a 10 control that has no display of the CRT, check the CRT/MDI power supply. This is the
bottom board of the CRT/MDI unit. There are three fuses on this board. If the 3.2 amp fuse blows, you will not
have any display. Another thing to check is the OPT. INTERFACE board. A problem with the board or the fiber
optic cables or the cables reversed will cause no display. In this case, both the Red and Green LEDs on the
Main board will possibly be off. If CP21 is disconnected at the time of NC power on, the Green LED will be on
as normal but the NC will not be ready and the main board will display A. Under normal conditions when the NC
is ready it should display 1. If you have a display of the CRT but it flickers, the CRT/MDI (bottom board) is
probably bad. This board is A02B-1001-0160. The top board is A02B-1000-0800. COP1 of the Main board goes
to COP3 of the CRT/MDI unit. COP2 of the Main board goes to COP4 of the I/O board. The three fuses on the
CRT/MDI are 3.2 amp, .3 amp and .3 amp.
4 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
If the Input Unit of a 10 control alarms on power up (Red LED on the Input Unit):
1. Disconnect output connectors (CP3, CP4, CP11, etc.) to determine if the problem is internal or external to the
input unit.
2. If the alarm does not occur with all connectors removed but occurs if CP11 is connected alone, begin
troubleshooting for a problem with the NC power supply or an output of that power supply.
3. The NC power supply can removed from the main board while leaving the cables still connected to it. Try
powering up like this. If the alarm goes away, you can assume the problem is with the main board or one
of its outputs. Re-install the power supply, remove all cables from the main board and if the alarm does not
occur, re-connect the cables one at a time until the alarm occurs, then pursue that cable. If the alarm
occurred with the power supply removed from the main board, begin eliminating cables. If the alarm occurs
with every cable removed except for CP11, the power supply is bad.
A problem in the circuit of CP24 will cause a watchdog alarm. Both the red and the green LED will be on and a
C will be displayed. CP14 goes to CP51 of the I/O board.
Fanuc 10 controllers use Keep Relays like an 18 controller.
When changing parameters, they can be changed as individual bits by highlighting the bit. You have to use the
arrow keys to move the highlight around.
On a Fanuc 10 control, if the control powers up with a screen which displays:
RAM TEST:END
ROM TEST:END
LOAD SYSTEM LABEL:END
CHECK SYSTEM LABEL:END
1. DUMP MEMORY
2. -
3. CLEAR FILE
4. SETTING
5. -
6. END IPL
?
This means the controller is powering up in IPL mode, the RAM and ROM chips are probably okay but the
parameters have most likely been lost or scrambled. In this case, type 99 at the prompt and press the INPUT
key. You will be prompted AXIS? At this time, enter the number of controlled axes on the machine and press the
INPUT button. You will then be prompted OPTION 01?, at this time you must enter the option parameters
01-032. On the hard copy of parameters, these may be in the form of an eight bit binary number but when
manually entered must be in the form of hexadecimal.
When the control is in IPL mode a 0 will be displayed on the Master Board. A 1 is displayed during normal
operation.
To send and receive data:
1. Press the PROGRAM soft key.
2. Press the + soft key (right chapter).
The READ and PUNCH soft keys are now shown. If not, look for a TEXT soft key and press it. This should only
be necessary id the [Link] soft key has been pressed.
This control has Line Driver and Line Receiver chips like a 0 control. These are soldered to the Main Board. If
Fanuc comes in and replaces them they will install sockets so that they can be more easily replaced in the
future.
There is a six pin connector on the Input Unit. The connector is labeled CP2. Two of the pins are R and S (220
volts). One pin is ground. Two pins go to a contact in the Power Supply where it is labeled CP11. When the NC
power on button is pressed, a relay in the Power Supply is energized. If everything is OK with the power supply,
it stays energized. When the button is released, the power stays on.
5 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
On most 10M controls, the incoming AC to the NC goes first to the Input Unit via the transformer
A80L-0001-0176 terminals A and B (200).These go to terminals R and S on the Input Unit. This transformer has
a number of taps on the primary. They are:
550
480
460
440
415
380
240
230
220
200
COM
Parameter 5220 is the positive stroke limit for X,Y and Z.
5221 is the negative stroke limit.
On a machine with a Fanuc 10M control, the RS-232 cable goes directly to connector CD1 on the top board of
the CRT/MDI unit (A20B-1000-0800). This connector is a 20 pin Honda female. On most machines, they use
nine of the pins on the control side, ten pins on the machine (25 pin D female) side. Below is the pin
information.
Controller side Machine side ( PC side )
N/C 1 (PG Protective Ground)
9 2 (TD Transmit Data)
8 3 (RD Receive Data)
20 4 (RTS Request to Send)
19 5 (CTS Clear to Send)
18 6 (DSR Data Set Ready)
17 7 (SG Signal Ground)
16 8 (DCD Data Carrier Detect)
5 20 (DTR Data Terminal Ready)
14 25 (BUSY Busy)
Pin 1 on the machine side is connected to the machine ground.
Pin 7 on machine side and pin 17 on Control side are connected to the shield as well as each other.
When data is being input to a 10 or 15 control, it does not flash LSK.
To search a parameter on a 10, 11 or 12 control:
1. Press the SERVICE soft key.
2. Press the PARAMETER soft key.
3. Enter the desired parameter number.
4. Press the INP-NO soft key.
5. Press the INPUT button.
The two manuals necessary to troubleshoot problems on a 10M control are the 10M Maintenance Manual
(B54815E) and the 10M Operation Appendix Manual (B54810E).
On controls with a Master Board, particularly a 10M control, a lower case "c" indicates that the board is not
communicating with the other boards through the optical link. In this case you will normally find that the green
LED on the board (LK2) and the red LED (LK1) will both be on. The status of the LEDs on the I/O board may be
green (DC4) is off and red (DC5) is on. As with many other problems on these controls, a power supply could
be the culprit. You must check the individual voltages for the proper level. Remember that these voltages have a
very tight tolerance. Usually when this alarm state occurs, the outward indication is that the display freezes
where it is, pushing any button has no effect.
6 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
If the LED display on the Main (Master) board displays what looks like a lower case "c", this is a watchdog
alarm. It has several causes but one notable cause is a problem with one or more of the regulated voltages.
These are +24v, +5v, 15v and -15v. They can be monitored at test points TJ2, TJ3, TJ4 and TJ5 respectively.
The voltage can be monitored at TJ6. Use one of the GND test points instead of the chassis ground for a
reference. There is a slight difference in the readings. There are several of these points and they are all
common to one another. These voltages must be within a very tight tolerance.
When a control is operating normally, the LED will display "1". LK1 (RED) will be off. LK2 (GRN) will be on. The
green LED (DC4) on the I/O board should also be on when things are normal. The red LED is DC5.
The part number of the Power Supply is A16B-1219-0510-01. The part number of the Input Unit is
A14B-0076-B001.
The battery pack plugs into the main board at CA6. Its pin outs are:
1 - + (White)
2 - - (Black)
3 - Empty
4 - Shield
5 - Empty
6 - Empty
To toggle between the comments and addresses in the ladder of a 10T control, press the soft key ADDRESS or
SYMBOL.
11 SERIES CONTROLLER
To access the Ladder on an 11 control, press the NC/PC button then press the PCLAD soft key.
Signal Names:
SA Servo Ready
This signal can be monitored at Diagnostic 500.6 equals 1 when the servos are ready.
A 1 in the LED display on the Master Board of the 11 control means that the control is ready. This does not
necessarily mean that the machine is ready, just the control. For example, a problem on the machine side could
have an axis interlock turned on so the machine would not be able to move but there would still be a 1 on the
display. The interlock signals (i.e. *ITX, *ITY, *ITZ, *IT4) are provide for the OEM to use for various reasons.
Many machine builders will tie their ATC ready signal to all of these inputs.
On the 11 control these signals are:
*ITX 400.4
*ITY 402.4
*ITZ 404.4
When working with the Diagnostics on an 11 control be aware that they will differ depending on the type of
interface. There are three types:
BMI (Basic Machine Interface)
FS3 (Fanuc System)
6M
To determine which you have check Parameter 2001 Bit 5 and 6.
2001.5 = 0 for BMI
2001.5 = 1 and 2001.6 = 0 for FS3
2001.5 = 1 and 2001.6 = 1 for 6M
To search for a D address:
1. Press NC/PC button
7 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
2. Press the PCDGN soft key
3. Type the address (i.e. D33)
4. Press the W Search soft key
The information in these tables is very important. Make sure after a loss of memory that this information is
correct. If the value in Address 026 of Control Data Table on an eleven control is wrong, the axes will not ZRN.
To access Data Tables:
1. Press NC/PC button
2. Press PCPRM soft key
3. Press DATA soft key
To do a Ladder search:
1. Access ladder
2. Type in address (i.e. G65.0)
3. Press W search
15 SERIES CONTROLLER
To release an axis on this control, such as a rotary table make Parameter 0012.7(RMVx) 1. This is a setting
parameter. This parameter is only valid when Parameter 1005.7(RMBx) = 1.
PWE on the Fanuc 15 works the same as on a 10 control. Parameter 8000.0 has to equal 1. If this bit will not
change, make sure you are on the Setting Page and not the Parameter Page. You cannot change the bit on the
Parameter Page unless it has already been changed on the Setting Page.
This can be a little tricky. The best method is:
1. Press the SETTING soft key.
2. Press the CHAPTER soft key.
3. Press the GENERAL soft key.
4. Press the PAGE UP button one time.
On an 11 control as well as an 18, parameter 1850 is the Grid Shift parameter. Parameter 1816 is the reference
counter capacity. Parameter 1850 should be set to the value in 1816 or less. If you are trying to adjust 1850 and
have trouble make sure 1850 is less than 1816. Also make sure you are adjusting the parameter in the correct
direction. For the vast majority of machines where reference return is in the positive direction you must increase
the value to shift the axis further away from the decel dog. Sometimes you may reach a point while adjusting
where the axis stops responding to small changes in the parameter and after increasing the value a certain
amount the axis jumps several millimeters. Again, make sure you are not in a situation where you need to
decrease the value rather than increase it. If this is not the case then you may have gone as far as you can go
with the Grid Shift and may need to either move the decel dog or the pulse coder. If the reason you
are adjusting this parameter in the first place is because you replaced the pulse coder then, of course, you
should look at it first. On most machines the pulse coder will employ a coupling that can only go two ways,
either the correct way or 180 degrees out. In this case try removing the pulse coder and putting it back on 180
degrees out relative to the motor. Parameter 1850 is a metric value and the amount that the axis moves is
dependent upon the ball screw pitch.
Next Page >>>
<<< Previous Page
8 of 9 28-09-2015 10:26
FANUC--PAGE-4 [Link]
9 of 9 28-09-2015 10:26
