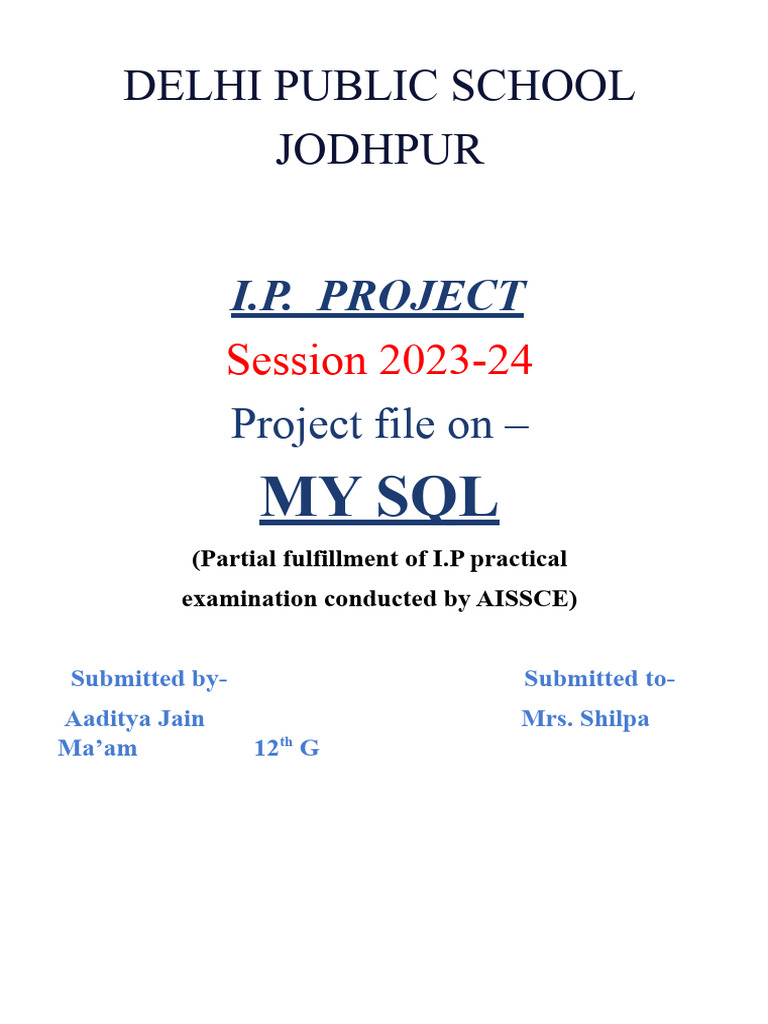

JODHPUR
I.P. PROJECT
Session 2023-24
Project file on –
MY SQL
(Partial fulfillment of I.P practical
examination conducted by AISSCE)
OBJECTIVE
THE GOAL OF THIS PROJECT IS TO
STUDY AND MAKE THE ELECTRIC
DOOR BELL
INTRODUCTION
An electric bell is a mechanical or
electronic bell that functions by means of
an electromagnet. When an electric
current is applied, it produces a repetitive
buzzing, clanging or ringing sound.
Electromechanical bells have been widely
used at railroad crossings,
in telephones, fire and burglar alarms,
as school bells, doorbells, and alarms in
industrial plants, since the late 1800s, but
they are now being widely replaced with
electronic sounders. An electric bell
consists of one or more electromagnets,
made of a coil of insulated wire around
an iron bar, which attract an iron
strip armature with a clapper.
WORKING
The most widely used form is the interrupter
bell, which is a mechanical bell that produces
a continuous sound when current is applied.
See animation, above. The bell or gong (B),
which is often in the shape of a cup or half-
sphere, is struck by a spring-loaded
arm (A) with a metal ball on the end called
a clapper, actuated by an electromagnet (E). In
its rest position the clapper is held away from
the bell a short distance by its springy arm.
When the switch (K) is closed, an electric
current passes from the battery (U) through the
winding of the electromagnet. It creates
a magnetic field that attracts the iron arm of
the clapper, pulling it over to give the bell a
tap. This opens a pair of electrical
contacts (T) attached to the clapper arm,
interrupting the current to the electromagnet.
The magnetic field of the electromagnet
collapses, and the clapper springs away from
the bell. This closes the contacts again,
allowing the current to flow to the
electromagnet again, so the magnet pulls the
clapper over to strike the bell again. This cycle
repeats rapidly, many times per second,
resulting in a continuous ringing.
The tone of the sound generated depends on
the shape and size of the bell or gong
resonator. Where several bells are installed
together, they may be given distinctive rings
by using different size or shapes of gong, even
though the strike mechanisms are identical.
Materials and
Equipment
1. 9V Battery
2. Battery cap
3. DC motor
4. 2 metal Bowl
5. Door bell switch
6. Connecting Wire
Theory
The electric bell is a simple circuit that
triggers a sound on the completion of the
circuit by pressing the button. It is this
simplicity that makes the doorbell such a
marvel. The simple devices in the doorbell but
the scientific principle of electromagnetism
into action in a useful way. The primary
working principle behind an electric bell is
electromagnetism or magnetic effect of
electric current. It is the property of
conductors to act like a magnet when an
electric current is passed through them.
PROCEDURE
1. Take a Wooden Piece
2. Attach the motor on it
3. Connect the bell with the motor
4. Connect the batteries with motor
5. Connect motor with switch
6. Electric bell is ready
PRECAUTIONS
1. CONNECT BATTERY
CAREFULLY TO THE MOTOR.
2. NO WIRE SHOULD BE
LOOSELY ATTACHED.
3. THE DISTANCE BETWEEN
TWO METAL CUPS MUST BE
GOOD ENOUGH.
BIBLIOGRAPHY
