‭LIGHTING OUTLETS‬

‭1.)‬ ‭TOTAL POWER (WATTS) = Number of lamps x 100W‬


‭= 14 x 100W‬
‭=‬‭1400 W‬
‭2.)‬ ‭TOTAL CURRENT (AMP)‬
‭I = P/E‬
‭= 1400W / 220V‬
‭=‬‭6.36 A‬
‭3.)‬ ‭TW WIRE SIZE‬ ‭=‬ ‭AWG #14‬
‭ .)‬ ‭FUSE/BREAKER AMPACITY =‬‭15A‬
4
‭5.)‬ ‭CONDUIT SIZE‬ ‭= ½”‬
‭CIRCUIT‬ ‭NO. OF‬ ‭CB‬
‭DESCRIPTION‬ ‭OUTLETS‬ ‭SWITCHES‬ ‭VOLTAGE‬ ‭WATTSS‬ ‭AMPERE‬
‭RATE‬ ‭SIZE OF WIRE & CONDUITS‬
‭NO.‬

‭L.O.‬ ‭C.O.‬ ‭SPO‬ ‭S‬ ‭S‬ ‭S‬ ‭S‬

‭2 x 2.0 mm THW WIRE IN 15 MM‬


‭220‬ ‭1400‬ ‭6.36‬ ‭15‬ ‭O PVC PIPE‬
‭LIGHT OUTLET‬
‭C1‬ ‭14‬ ‭6‬ ‭1‬ ‭1‬

‭CONVENIENCE‬ ‭2 x 3.5 mm THW WIRE IN 15 MM‬


‭C2‬ ‭5‬ ‭220‬ ‭1800‬ ‭8.18‬ ‭20‬ ‭O PVC PIPE‬
‭OUTLET‬

‭SPECIAL‬
‭2 x 2.0 mm THW WIRE IN 15 MM‬
‭C3‬ ‭PURPOSE‬ ‭2‬ ‭220‬ ‭1500‬ ‭6.8‬ ‭20‬ ‭O PVC PIPE‬
‭OUTLET‬
‭●‬ A‭ LL‬ ‭WIRING‬ ‭INSTALLATION‬ ‭HEREIN‬ ‭SHALL‬ ‭BE‬ ‭DONE‬ ‭IN‬ ‭CONFORMITY‬ ‭WITH‬ ‭THE‬ ‭LATEST‬ ‭EDITION‬ ‭OF‬ ‭THE‬ ‭PHILIPPINE‬
‭ELECTRICAL‬‭CODE‬‭WITH‬‭THE‬‭RULES‬‭AND‬‭REGULATION‬‭OF‬‭THE‬‭LOCAL‬‭ENFORCING‬‭AUTHORITIES‬‭AND‬‭REQUIREMENT‬‭TO‬
‭LOCAL COMPANY UTILITY.‬

‭●‬ A‭ LL‬ ‭WIRING‬ ‭INSTALLATION‬ ‭AND‬ ‭RUNNING‬ ‭UNDER‬ ‭FLOOR,‬ ‭UNDERGROUND‬ ‭AND‬ ‭HOLLOW‬ ‭SHALL‬ ‭BE‬ ‭IN‬ ‭PVC‬ ‭PIPE‬ ‭AND‬
‭CORRUGATED PLASTIC CONDUIT PIPE INSIDE CALLING PVC PIPE SHALL NOT BE ON EXPOSED WORKS.‬

‭●‬ ‭THE ELECTRICAL SERVICE SHALL BE 220 VOLTS‬

‭●‬ ‭THE SERVICE ENTRANCE SHALL BE RIGID CONDUIT PIPE PANEL TO THE ENTRANCE CAP‬

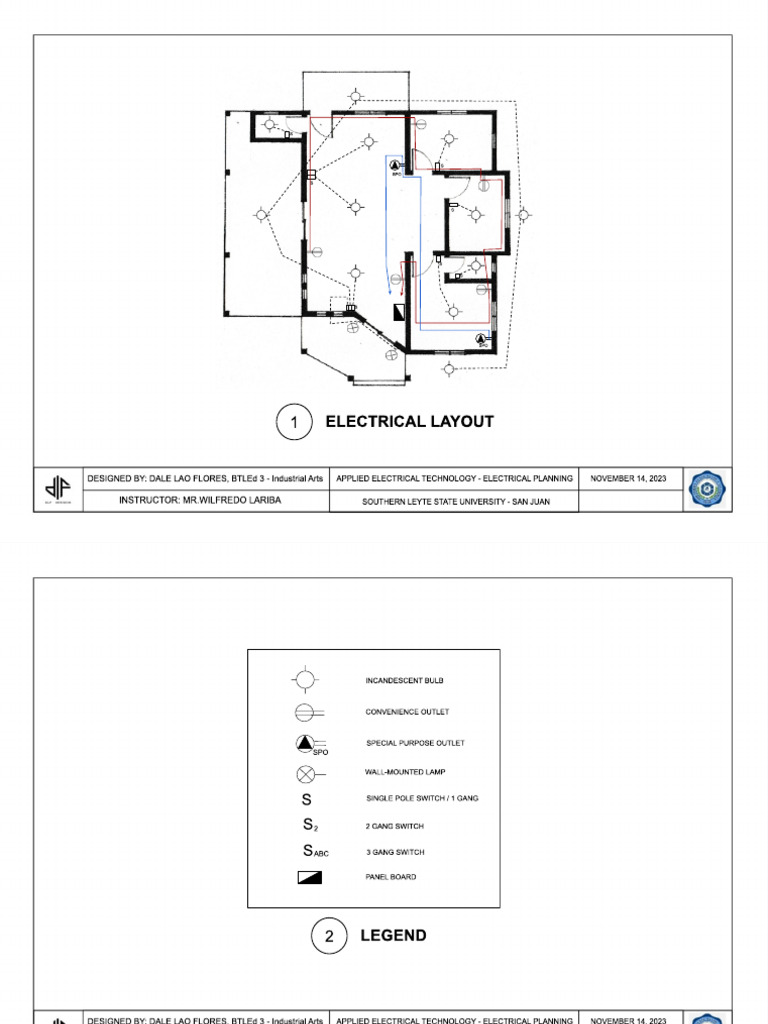

‭●‬ T‭ HE‬ ‭ELECTRICAL‬ ‭FLOOR‬ ‭LAYOUT‬ ‭AND‬ ‭THE‬ ‭GENERAL‬ ‭ELECTRICAL‬ ‭DESIGN‬ ‭SHOULD‬ ‭BE‬ ‭FOLLOWED‬ ‭AS‬ ‭CLOSELY‬ ‭AS‬
‭POSSIBLE,‬ ‭BUT‬ ‭IF‬ ‭THE‬ ‭DESIGN‬ ‭DISTURB‬ ‭THE‬ ‭PRACTICALITY‬ ‭AND‬ ‭OR‬ ‭THE‬ ‭AESTHETIC‬ ‭NEED‬ ‭OF‬ ‭THE‬ ‭PROJECT,‬ ‭MAY‬ ‭BE‬
‭SLIGHTLY CHANGE WITH THE OWNERS CONSENT AND CONTRACTORS OPTION.‬

‭●‬ A‭ LL‬ ‭MATERIALS‬ ‭AND‬ ‭WORKMANSHIP‬ ‭SHALL‬ ‭BE‬ ‭IN‬ ‭GOOD‬ ‭VALUE‬ ‭IN‬ ‭EVERY‬ ‭ASPECT‬ ‭AND‬ ‭SHALL‬ ‭CONFORM‬ ‭TO‬ ‭THE‬
‭ENGINEERING‬ ‭PRACTICE‬ ‭FOR‬ ‭SUCH‬ ‭WORK‬ ‭ALL‬ ‭MATERIALS‬ ‭TO‬ ‭BE‬ ‭USED‬ ‭SHALL‬ ‭BE‬ ‭BRAND‬ ‭NEW‬ ‭AND‬ ‭FREE‬ ‭FROM‬ ‭ANY‬
‭DEFECTS.‬
