Service Information

Document Title: Function Group: Information Type: Date:

Wiring diagram WD403 370 Service Information 27/03/2021
Profile:
A40G Volvo

Go back to Index Page

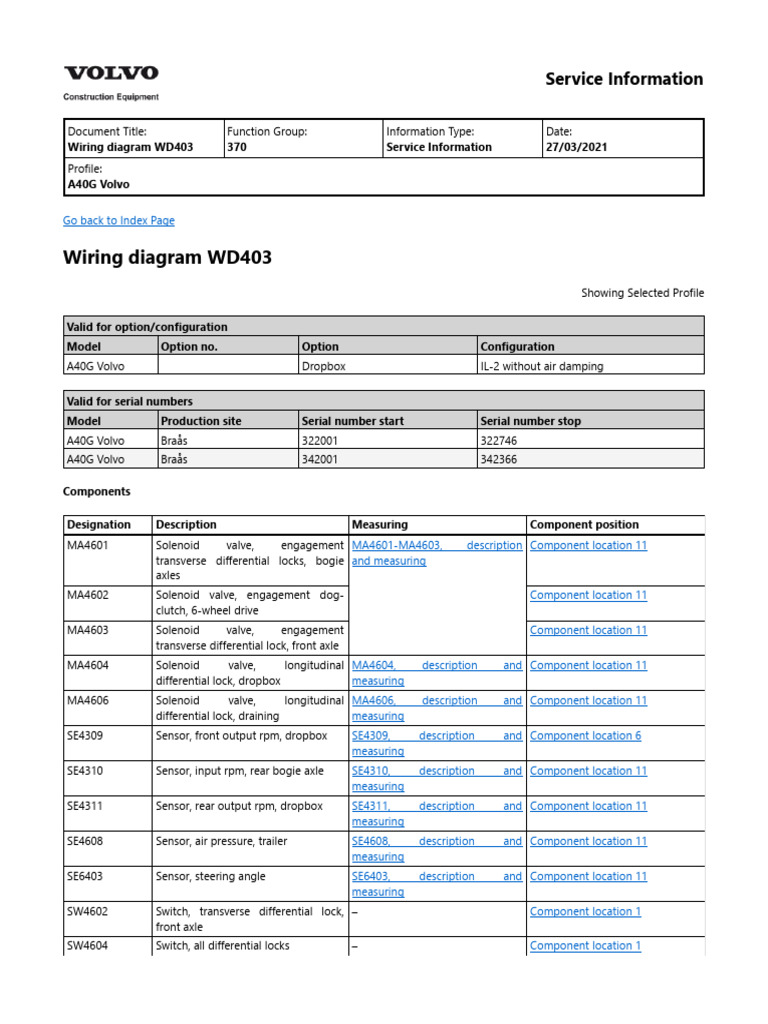

Wiring diagram WD403

Showing Selected Profile

Valid for option/configuration

Model Option no. Option Configuration
A40G Volvo Dropbox IL-2 without air damping

Valid for serial numbers

Model Production site Serial number start Serial number stop
A40G Volvo Braås 322001 322746
A40G Volvo Braås 342001 342366

Components

Designation Description Measuring Component position

MA4601 Solenoid valve, engagement MA4601-MA4603, description Component location 11
transverse differential locks, bogie and measuring
axles
MA4602 Solenoid valve, engagement dog- Component location 11
clutch, 6-wheel drive
MA4603 Solenoid valve, engagement Component location 11
transverse differential lock, front axle
MA4604 Solenoid valve, longitudinal MA4604, description and Component location 11
differential lock, dropbox measuring
MA4606 Solenoid valve, longitudinal MA4606, description and Component location 11
differential lock, draining measuring
SE4309 Sensor, front output rpm, dropbox SE4309, description and Component location 6
measuring
SE4310 Sensor, input rpm, rear bogie axle SE4310, description and Component location 11
measuring
SE4311 Sensor, rear output rpm, dropbox SE4311, description and Component location 11
measuring
SE4608 Sensor, air pressure, trailer SE4608, description and Component location 11
measuring
SE6403 Sensor, steering angle SE6403, description and Component location 11
measuring
SW4602 Switch, transverse differential lock, – Component location 1
front axle
SW4604 Switch, all differential locks – Component location 1
SW4606 Switch, ATC – Component location 1
V-ECU Vehicle control unit — Component location 5
V2-ECU Vehicle control unit 2 – Component location 5

Figure 1
See also Explanation of wiring diagrams.
