Service Information

Document Title: Function Group: Information Type: Date:

Wiring diagram WD401 370 Service Information 27/03/2021
Profile:
A40G Volvo

Go back to Index Page

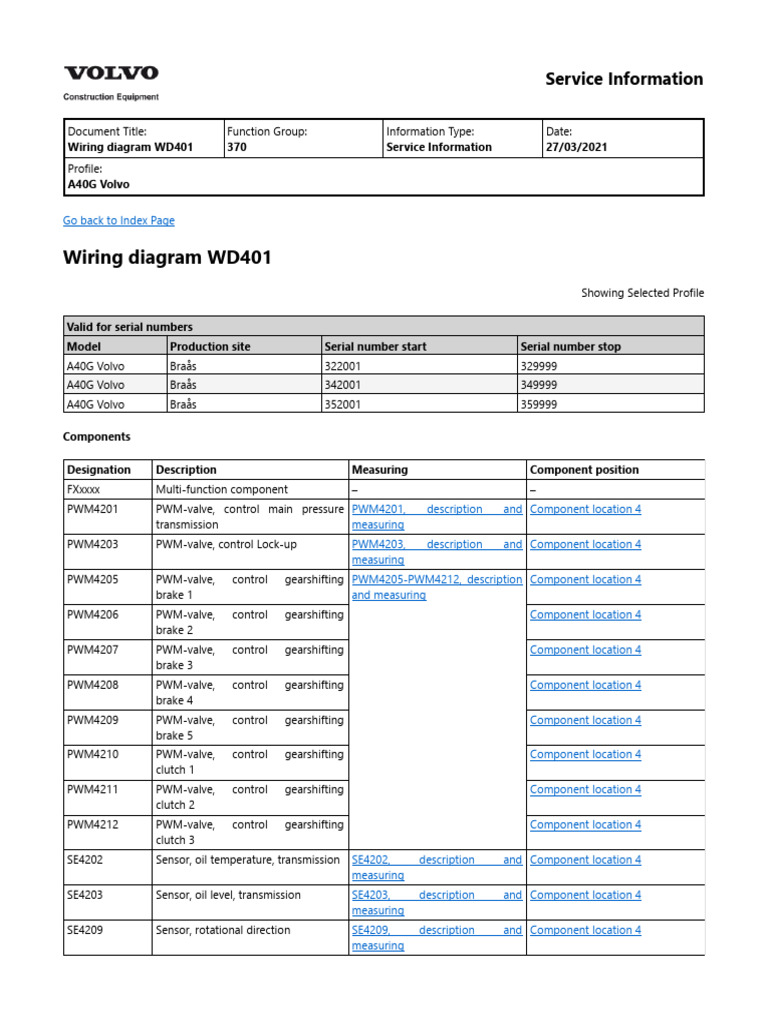

Wiring diagram WD401

Showing Selected Profile

Valid for serial numbers

Model Production site Serial number start Serial number stop
A40G Volvo Braås 322001 329999
A40G Volvo Braås 342001 349999
A40G Volvo Braås 352001 359999

Components

Designation Description Measuring Component position

FXxxxx Multi-function component – –
PWM4201 PWM-valve, control main pressure PWM4201, description and Component location 4
transmission measuring
PWM4203 PWM-valve, control Lock-up PWM4203, description and Component location 4
measuring
PWM4205 PWM-valve, control gearshifting PWM4205-PWM4212, description Component location 4
brake 1 and measuring
PWM4206 PWM-valve, control gearshifting Component location 4
brake 2
PWM4207 PWM-valve, control gearshifting Component location 4
brake 3
PWM4208 PWM-valve, control gearshifting Component location 4
brake 4
PWM4209 PWM-valve, control gearshifting Component location 4
brake 5
PWM4210 PWM-valve, control gearshifting Component location 4
clutch 1
PWM4211 PWM-valve, control gearshifting Component location 4
clutch 2
PWM4212 PWM-valve, control gearshifting Component location 4
clutch 3
SE4202 Sensor, oil temperature, transmission SE4202, description and Component location 4
measuring
SE4203 Sensor, oil level, transmission SE4203, description and Component location 4
measuring
SE4209 Sensor, rotational direction SE4209, description and Component location 4
measuring
SE4212 Sensor, input rpm, transmission SE4212, description and Component location 4
measuring
SE4213 Sensor, turbine rpm, transmission SE4213, description and Component location 4
measuring
SE4214 Monitor, oil pressure, transmission SE4214, description and Component location 4
measuring
SE4215 Sensor, range rpm, transmission SE4215, description and Component location 4
measuring
SE4218 Monitor, pressure oil filter, SE4218, description and Component location 4
transmission measuring
SE4219 Sensor, main oil pressure, SE4219, description and Component location 4
transmission measuring
SE4307 Sensor, output speed, transmission SE4307, description and Component location 4
measuring
V-ECU Vehicle control unit – Component location 5
Figure 1

See also Explanation of wiring diagrams.
