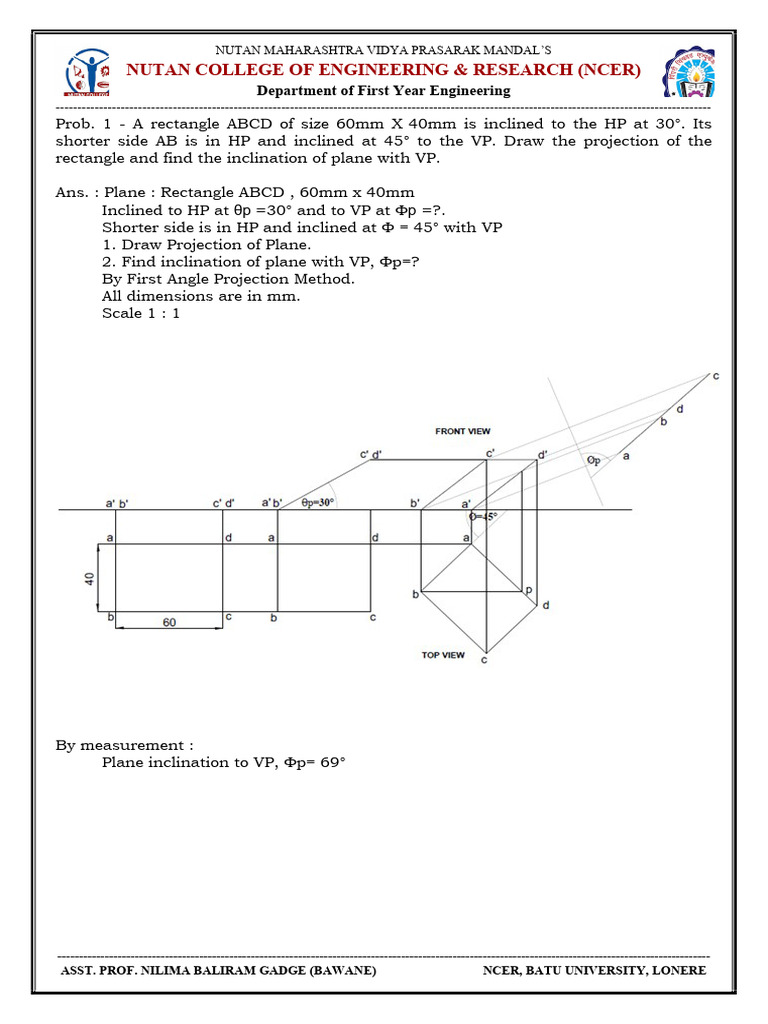

Prob. 1 - A rectangle ABCD of size 60mm X 40mm is inclined to the HP at 30°. Its
shorter side AB is in HP and inclined at 45° to the VP. Draw the projection of the
rectangle and find the inclination of plane with VP.

Ans. : Plane : Rectangle ABCD , 60mm x 40mm

Inclined to HP at θp =30° and to VP at Φp =?.
Shorter side is in HP and inclined at Φ = 45° with VP
1. Draw Projection of Plane.
2. Find inclination of plane with VP, Φp=?
By First Angle Projection Method.
All dimensions are in mm.
Scale 1 : 1

By measurement :
Plane inclination to VP, Φp= 69°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 2 - A kite diagonals of 75mm and 45mm. Diagonals intersects at a point 30mm
from an end of the major diagonal. It is rested on the HP on one end of longer
diagonal. The plane of the kite makes an angle of 45° to HP and TV of longer diagonal
is inclined at 35° to VP. Draw the projections, and find the inclination of plane with
VP.

Ans. : Plane : Kite, diagonal 75mm and 45mm, intersects at 30mm.

Inclined to HP at θp =45° and to VP at Φp =?.
longer diagonal end is in HP and its TV inclined at Φ = 35° with VP
1. Draw Projection of Plane.
2. Find inclination of plane with VP, Φp=?
By First Angle Projection Method.
All dimensions are in mm.
Scale 1 : 1

By measurement :
Plane inclination to VP, Φp= 69°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 3 - A 30°-60° set square has its shortest edge of 50mm long in the HP. The Top
View of the set square is an Isosceles Triangle. The hypotenuse of the set square is
inclined at 50° to the VP. Draw its projections and determine its inclination with the
HP.

Ans. : Plane : Right Angle Triangle, shortest edge 50mm.

Top view is an isosceles triangle,
Hypotenuse inclined to VP at Φ = 50°
1. Draw Projection of Plane.
2. Find inclination of plane with VP, Φp=? and with HP, θp =?
By First Angle Projection Method.
All dimensions are in mm.
Scale 1 : 1

By measurement :
Plane inclination to HP, θp = 55°
Plane inclination to VP, Φp = 74°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 4 - A pentagon of side 40mm is inclined to HP at an angle of 35° and resting in
HP on its one edge, which makes an angle 35° with VP. Draw the projection of the
pentagon. Also find inclination of plane with VP.
(Note: First draw pentagonal lamina and according to its position draw Axis Line).

Ans. : Plane : Pentagon, size =40mm, Resting on one edge in HP.

Plane inclined to HP at θp =35° and resting edge inclined to VP at Φ = 35°.
1. Draw Projection of Plane.
2. Find inclination of plane with VP, Φp=?
By First Angle Projection Method.
All dimensions are in mm.
Scale 1 : 1

By measurement :
Plane inclination to VP, Φp= 62°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 5 - A hexagonal plane of 40mm side has a corner on HP and its surface is
inclined at 45° to HP. Draw the projections, when diagonal through the resting corner,
makes an angle of 30° with VP. Also find inclination of surface with VP.

Ans. : Plane : Hexagon, size = 40mm.

Resting in HP on corner,
Plane inclined to HP, θp=45°,
Diagonal through resting corner inclined to VP at Φ=30°
1. Draw Projection of Plane.
2. Find inclination of plane with VP, Φp=?
By First Angle Projection Method.
All dimensions are in mm.
Scale 1 : 1

By measurement :
Plane inclination to VP, Φp = 60°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 6 - A circle of diameter 60mm is resting on one point of its diameter line on the
VP. The resting point diameter line makes an angle of 35° to HP. The plane of the
circle is inclined at 35° to the VP. Draw the projection of plane and find the inclination
made be plane with VP.

Ans. : Plane : Circle, diameter =60mm, Resting on one point of diameter in VP.
Plane inclined to VP at Φp =35° and resting point diameter inclined to HP at θ = 35°.
1. Draw Projection of Plane.
2. Find inclination of plane with HP, θp=?
By First Angle Projection Method. All dimensions are in mm.
Scale 1 : 1

By measurement :
Plane inclination to HP, θp= 67°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 7 - Fig., shows Front View and Top View of a circular plane. Find inclination of
plane with HP and VP. Also find the true shape of the plane.

By measurement :
Plane inclination to HP, θp= 45°
Plane inclination to VP, Φp= 45°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
Prob. 8 - Fig., shows Front View and Top View of a triangular plane. Find its
inclination with the HP and the VP. Also find the true shape of the plane.

By measurement :
Plane inclination to HP, θp= 46°
Plane inclination to VP, Φp= 49°

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
: Problems for Practice on Plane:

1. A rectangle ABCD of size 60mm X 40mm is inclined to the HP at 30°. Its shorter
side AB is in HP and inclined at 45° to the VP. Draw the projection of the rectangle
and find the inclination of plane with VP.

2. A kite diagonals of 75mm and 45mm. Diagonals intersects at a point 30mm from
an end of the major diagonal. It is rested on the HP on one end of longer diagonal.
The plane of the rhombus makes an angle of 45° to HP and longer diagonal is
inclined at 35° to VP. Draw the projections, and find the inclination of plane with
VP.

3. A rhombus diagonals of 50mm and 30mm. It is rested on the HP on one of its

side. The plane of the rhombus makes an angle of 35° to HP and resting edge
makes an angle of 45° to VP. Draw the projection of the rhombus. Also find
inclination of plane with VP.

4. A 30°-60° set square has its shortest edge of 50mm long in the HP. The Top View
of the set square is an Isosceles Triangle. The hypotenuse of the set square is
inclined at 50° to the VP. Draw its projections and determine its inclination with
the HP.

5. A pentagon of side 40mm is inclined to HP at an angle of 35° and resting in HP on

its one edge, which makes an angle 35° with VP. Draw the projection of the
pentagon. Also find inclination of plane with VP.
6. (Note: First draw pentagonal lamina and according to its position draw Axis Line).

7. A hexagonal plane of 40mm side has a corner on HP and its surface is inclined at
45° to HP. Draw the projections, when the diagonal through the resting corner,
makes an angle of 30° with VP. Also find inclination of surface with VP.

8. A circle of diameter 60mm is resting on one point of its diameter line on the VP.
The resting point diameter line makes an angle of 35° to HP. The plane of the
circle is inclined at 35° to the VP. Draw the projection of plane and find the
inclination made be plane with VP.

9. A rectangular plate 50mm x 80mm, is resting in HP on its smaller side. Its surface
is inclined to HP at an angle of 40°. Draw the projections, if its resting side is
inclined to VP at an angle of 25°. Find the inclination made by the plane with VP.

10. A rhombus of a longer diagonal 80mm and smaller diagonal 50mm is resting in
VP on its corner, with its longer diagonal parallel to XY. Its surface is inclined to
VP so that the corner opposite to resting corner is 50mm in front of VP. Draw the

--------------------------------------------------------------------------------------------------------------------------------------------------------
ASST. PROF. NILIMA BALIRAM GADGE (BAWANE) NCER, BATU UNIVERSITY, LONERE
 NUTAN MAHARASHTRA VIDYA PRASARAK MANDAL’S
NUTAN COLLEGE OF ENGINEERING & RESEARCH (NCER)
Department of First Year Engineering
-------------------------------------------------------------------------------------------------------------------------------------------------------
projections, if the diagonal line passing through the resting corner is inclined to
HP at an angle of 25°. Find the inclinations made by the plane with HP and VP.

11. A hexagonal plate of side 50mm is resting in HP on one of its corner. Then, its
surface is inclined to HP at an angle of 37°. Draw the projections, if the top view of
a diagonal line passing through the resting corner and its opposite corner is
inclined to VP at an angle of 40°. Find the inclination made by the plane with VP.

12. A front view of a triangular plate ABC appears as an equilateral triangle of side
50mm, with its side AB in HP, while its top view corners A, B and C are 30mm,
50mm and 15mm in-front of VP. Draw the projections and find the inclinations
made by the plate with HP and VP. Also draw the true shape of the plate.

13. A hexagonal plate, base side 50mm, is resting in HP on one of its corner with its
side parallel to VP. Then, its surface is inclined to HP so that the corner opposite
to resting corner is 51mm above HP. Draw the projections, if its top view line
passing through resting corner and its opposite corner, is inclined to VP at an
angle of 35°. Also find the inclination made by the plate with VP.

--------------------------------------------------------------------------------------------------------------------------------------------------------
