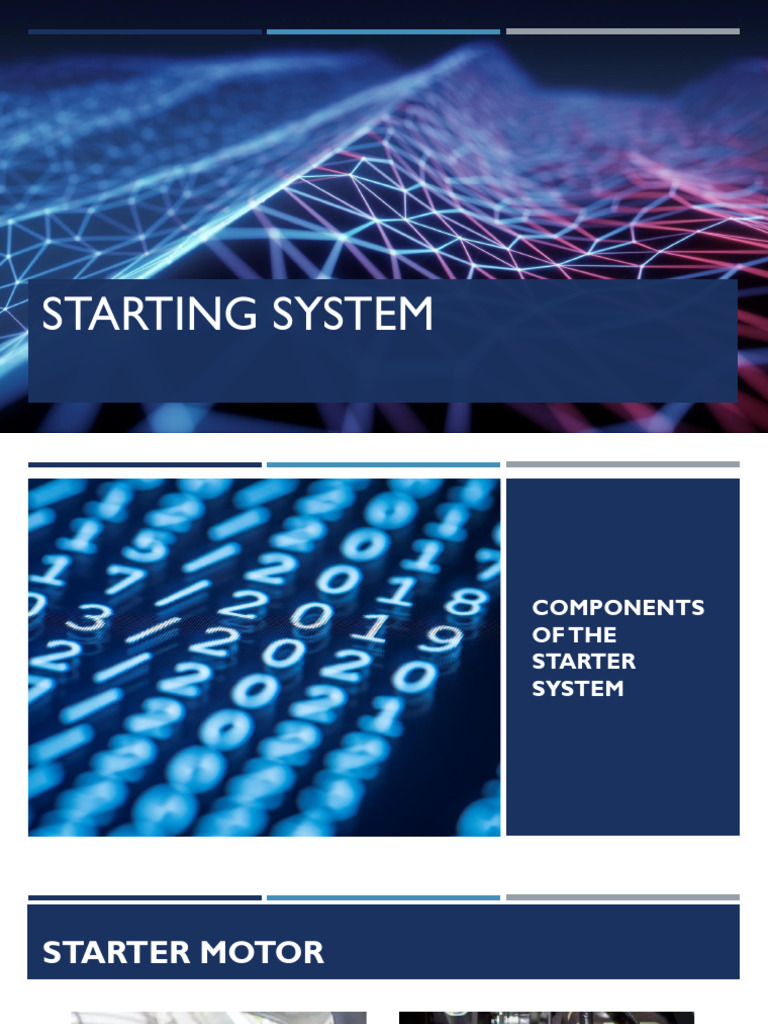

COMPONENTS OF THE STARTER SYSTEM STARTER MOTOR STARTER MOTOR
A starter is a mechanism used to rotate an internal-
combustion engine to begin the operation of the engine under its own control. Starters can be hydraulic, pneumatic, or mechanical. The starter can also be another internal-combustion engine in the case of very big engines. PURPOSE
The purpose of the starting system is to provide
the torque needed to achieve the necessary minimum cranking speed. As the starter motor starts to rotate the flywheel, the crankshaft is turned, which then starts piston movement. BATTERY
An automotive battery is a rechargeable battery that
is used to start a motor vehicle. Its main purpose is to provide an electric current to the electricity- powered starting motor, which in turn starts the chemically powered internal combustion engine that propels the vehicle. Once the engine is running, power for the car's electrical systems is still supplied by the battery, with the alternator charging the battery as demands increase or decrease. BATTERY CABLE
Battery cable is used to power your electrical system
and is sized according to the American Wire Gauge, or AWG for short, specification for electrically conductive cables. Battery cable must be sized to the needs of your electrical system, too small of a cable will cause excess heat that could pose a hazard IGNITION SWITCH
The ignition switch is a more complex electrical
component that must read the anti-theft coding in the key before the electrical systems in the vehicle are triggered so that the vehicle can start or allow the automatic transmission to be driven out of the park. SOLENOID
A solenoid is a type of electromagnet, the purpose of
which is to generate a controlled magnetic field through a coil wound into a tightly packed helix. The coil can be arranged to produce a uniform magnetic field in a volume of space when an electric current is passed through it. NEUTRAL SAFETY SWITCH
It's a safety system that only allows you to start your
engine when either Park or Neutral has an automatic transmission.The aim of the neutral safety switch is to prevent the car from starting while in gear, making it suddenly launch forward. PLUNGER
At the end of the pull in coil, the plunger is located.
Its only purpose is one that links the pull movement to the drive lever in the coil. This part, in other words, just acts as a connecting rod. This plunger material, however, is also strong because it will connect the pull with strong movement in the coil pull. CONTACTOR SWITCH
An electrically operated switch used for switching an
electrical power circuit is a contactor. A contactor, such as a 24-volt coil electromagnet operating a 230- volt motor switch, is usually operated by a circuit that has a much lower power level than the switched circuit. PINION
A rack and pinion steering system are composed of a
pinion with a rack. By translating a rotating motion into linear motion, the machine operates. Instead of the recirculating ball steering used in larger trucks, bigger SUVs, and other heavy-duty vehicles, most cars, small trucks, and SUVs come fitted with a rack and pinion system. FLY WHEEL
To keep your car's engine running, it provides mass
for rotational inertia. Otherwise, if you take your foot off the accelerator, the engine stalls. This equilibrates the engine. To smooth out the rough feeling triggered by even a small imbalance, a flywheel is precisely weighted to the crankshaft of the car. CRANKSHAFT
It is basically the internal combustion engine's
backbone. The crankshaft is responsible for the engine's proper operation and for translating a linear movement into a rotational movement. STARTER MOTOR
A starter is a mechanism used to rotate an internal-
combustion engine to begin the operation of the engine under its own control. Starters can be hydraulic, pneumatic, or mechanical. The starter can also be another internal-combustion engine in the case of very big engines. PLANETARY GEAR
This is the basis of your automatic transmission, and
this helps you to adjust the gear ratio of your car without the need for a clutch to be engaged or disengaged. HOW THE SYSTEM WORKS HOW THE SYSTEM WORKS PROBLEMS
AND
TROUBLESHOOTING BATTERY CHARGE
Your starting system will experience abnormal
stresses if the battery is in low or poor state.
TROUBLEHOOTING: In measuring battery Voltage,
12V or greater are the ideal Voltage. Always make sure that your battery are properly tested and is 75% charged. BAD IGNITION SWITCH This is a part that will wear over time and if you begin to experience issues pertaining to trouble turning the key, have flickering dash lights when you turn the key or if the car has no reaction at all when you turn the key your car may be suffering from an ignition issue.
TROUBLEHOOTING: First ensure that all of the
electrical systems are intact, such as fuses, relays and circuits replace the ignition switch. FAILED STARTER
A failed starter will often produce a loud single click,
or a series of click, click, click when you turn the key.
TROUBLEHOOTING: Corrosion creates resistance
in the wire and if your starter is only getting 9-10 volts, it won’t perform as needed.You can fix it by using a DVM or voltmeter to fix this voltage drop. FAULTY ALTERNATOR
The battery will be drained of its power as it takes
over powering the accessories the alternator normally would during vehicle operation and the next time you go to start the car it won't fire.
TROUBLEHOOTING: You can either repair it
yourself or take it to a repair shop FUEL SYSTEM ISSUE
rough idle, power depreciation and of course cause
your car not to start, a clogged fuel filter that won't allow gas to get to the engine, a failed fuel pump or dirty fuel injectors.
TROUBLEHOOTING: you should know what the
problem is, therefore a diagnosis is needed whether it is Fuel Pump failure, dirty fuel filter or faulty fuel injectors MAINTENANCE ENGINE OPERATION CONDITION
Keeping the engine in good running condition is
essential to ensure efficient operation of the starting system. Simply put an engine in poor condition is harder to start, and this shortens the life of the starter motor. An engine that starts easily results in fewer turns of the starter motor, and therefore, a longer life for the starter. WIRES AND CABLES
For any type of vehicle electrical system, it’s
important to keep all connection points clean. Road dirt and grease create resistance that interferes with electrical current flow.
