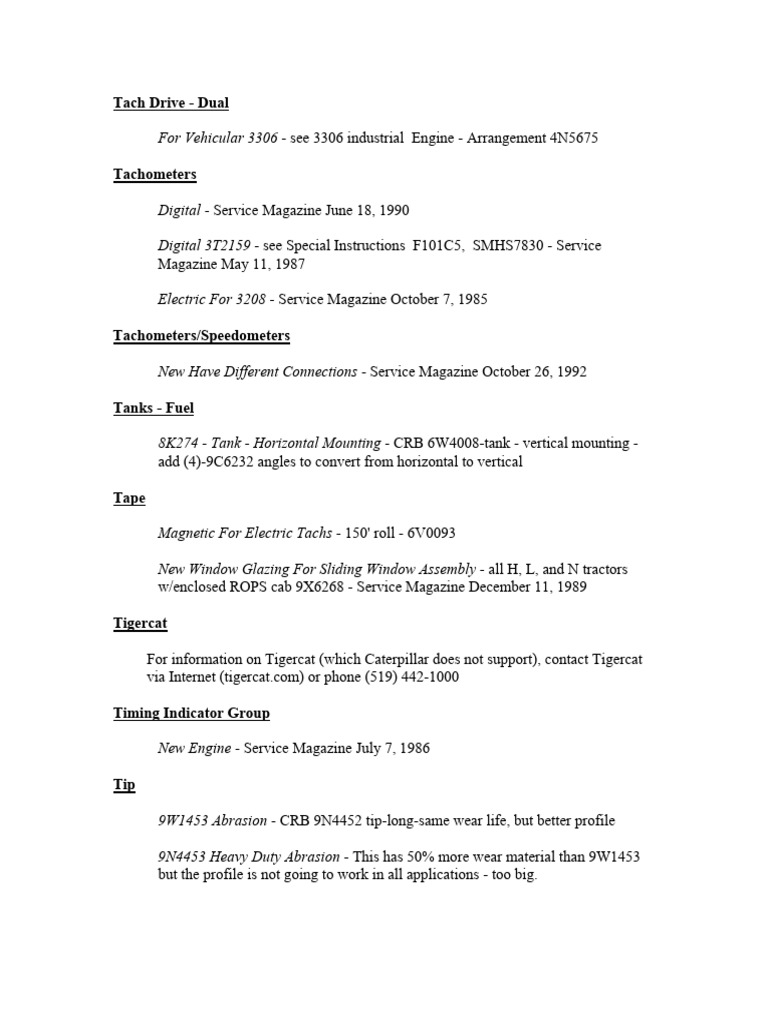

Tachometers
Tachometers/Speedometers
Tanks - Fuel
Tape
New Window Glazing For Sliding Window Assembly - all H, L, and N tractors
w/enclosed ROPS cab 9X6268 - Service Magazine December 11, 1989
Tigercat
For information on Tigercat (which Caterpillar does not support), contact Tigercat
via Internet (tigercat.com) or phone (519) 442-1000
Tip
9W1453 Abrasion - CRB 9N4452 tip-long-same wear life, but better profile
9N4453 Heavy Duty Abrasion - This has 50% more wear material than 9W1453
but the profile is not going to work in all applications - too big.
New Retainer For 4/5" Heavy Duty Tips - GET 90-17 November 16, 1990 - New
H.D. tips have larger pin hole than standard tips - Use 6Y9459 retainer. The same
6Y2527 pin should still be used. (3G9549 retainer should still be used
w/standard tip)
Tips - Sharp
Tires
For 4-Wheel Drive Backhoe Loaders - Goodyear I.D. codes: SIZE CODE # -
10.50 x 20 123-892-417 - 12.50/80 x 18 170-604-113 - Service Magazine June
5, 1989
For 214B & M318 -- Barum O.E.M. Tires - See Service Magazine of May 9, 1994
- Also see Service Magazine -- Feb. 3, 1997
Tool
For Installing Duo-Cone Seals In Track Rollers & Idlers - Tractors & Track
Loaders - Service Magazine June 2, 1986
Fabricated -3054 & 3056 Engines / 3064 & 3066 Engines - Service Magazine
September 27, 1993 Pages 15-17
Tool Box
7V5596 - D4E - not in RH doors on new tractors - just have tray assembly beside
seat - window washer bottle attaches to bracket on the door
Tool Kit
3Z2041; 3Z2042 - Order from Ritter Engineering direct - attn Mark Rial Ph.
(312)239-6300 - timer for this system is Ritter number 572-057-000
Track
Track Loaders
D10 84W - Bracket that support caps (9P9252) go on is part of complete support
that is part of frame assembly (7G0135 & 4). If problem is cracking of bracket
engineering leave it alone or weld. The crack tends to relieve the stress and deters
any further cracking. Complete support should not be serviced due to alignment
and machining required.
Track Shoes
Transfer Group
963 - 6V5345
Travel Alarm
Switch For 'E' Series Excavators - is P/O servo & pilot lines called pressure
switch - EL300 4NF1-up page 2070A item 71
Trichlorothane
5A5379 - 3F6448 trunnion no longer has the 'hat' or shoulder on the trunnion per
Engineering. This extra portion was not needed. Same for 2J5462-trunnion P/O
2J8613-trunnion group
Trunnion Plate
Tube
Tube Assembly
631C 67M - Oil Filler - Not shown with case and covers group - is shown with
steer gear group on page 255. SEFP 1024
2P1706 - Needs to remove elbow fitting from block and replace with 5K9248
straight fitting (like on compressor end). Tube configuration has changed again as
of 2-18-82. 2W8188 is new part number.
Tube - LOC
Tubes - Inner
For Front Tires - 416, 426, 428 - W/4-WD - TIB January 27, 1988
Turbo Baffles
3406 B/C Truck Engines - #1073186 #1073187 - Service Magazine May 17, 1993
Turbo Cartridge Group
1N3088 - Shows a lock plate 1N3259 which is not correct. Correct lock plate is
7W0468 which engineering had to release to make correction. They did not
change EDS record because 1N3088 is CRB 4W1225 which shows the new
7W0468.
9N6325 and 1W2431 will not fit on turbo (1W3310, 9N6568 gp) shown in book.
These were released for larger turbo. Smaller one takes 1W7735 adapter and
1W5455 clamp. These are for straight line out of turbo.
Turbochargers Changed
Turbos - Reman
Acceptable Cores for Remanufactured ABB Turbo Cartridges (3500 Series Engines) -
The following is a complete list of acceptable cores for Remanufactured ABB turbo
cartridges used on 3500 series engines.
Also. . .we'd like to remind you that it is absolutely necessary to attach the turbo serial
number plate to these cores. In most cases, the serial number is the only way to identify
the core. Therefore, NO CREDITS WILL BE ISSUED TO CORES WITH MISSING
SERIAL NUMBER PLATES. Serial number plates are attached to compressor wheel
housings on Older units. They need to be removed and returned with cores. On newer
units, serial number plates are attached to the bearing housing and no removal will be
necessary.
Reman
Acceptable Cores
Cartridges
0R6559 7E0684, 7C4334 or 2W7224
0R6560 7E0685, 7C4335 or 4W9133
0R6561 7E0687, 7C4336 or 7W3520
0R6562 4P6027
0R6563 7E2732 or 9Y1672
0R6564 7E2734 or 9Y1674
0R6565 7E0356, 9Y2736, or9Y7006
For more information on this product, refer to IRM number REM 92-22 dated
September 1, 1992
Reman Cartridges - Off size bearing in IRM 80-21
Twist Drills
Tyrone Pump
Last Update:
02/01/05
