  • Pump Data Sheet

Epsilon 10.6.2.

2

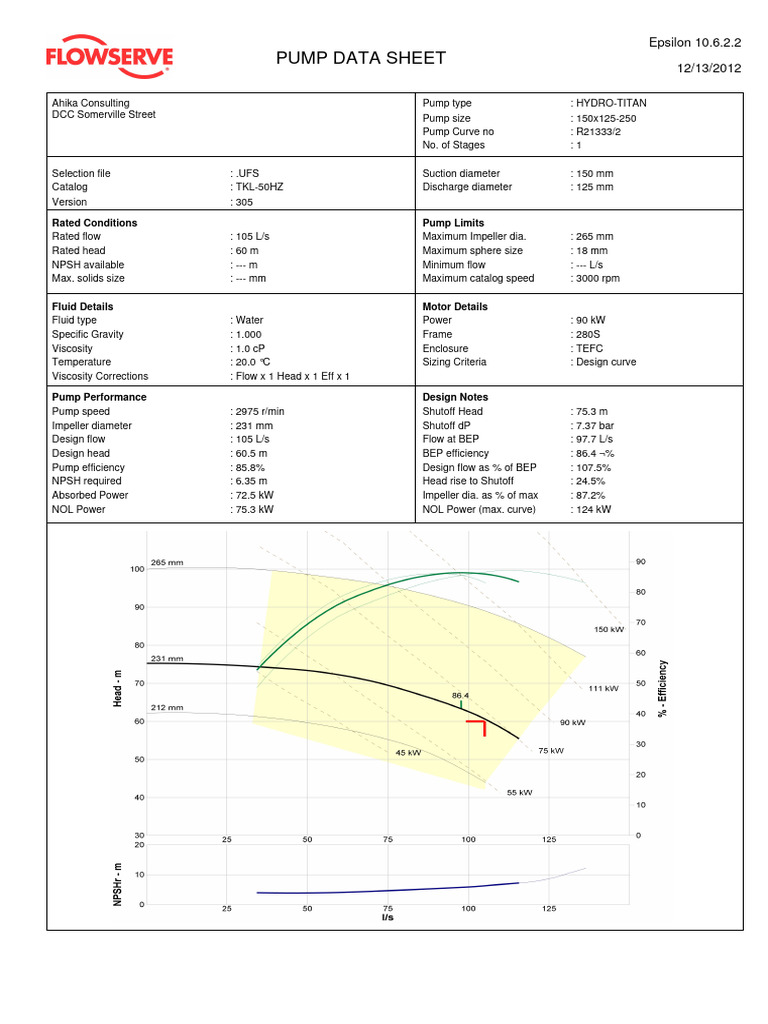

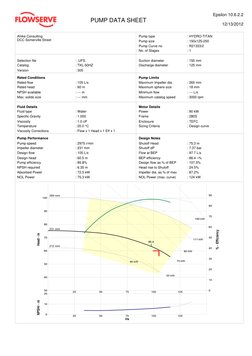

PUMP DATA SHEET
12/13/2012

Ahika Consulting Pump type : HYDRO-TITAN


DCC Somerville Street Pump size : 150x125-250
Pump Curve no : R21333/2
No. of Stages :1

Selection file : .UFS Suction diameter : 150 mm


Catalog : TKL-50HZ Discharge diameter : 125 mm
Version : 305

Rated Conditions Pump Limits


Rated flow : 105 L/s Maximum Impeller dia. : 265 mm
Rated head : 60 m Maximum sphere size : 18 mm
NPSH available : --- m Minimum flow : --- L/s
Max. solids size : --- mm Maximum catalog speed : 3000 rpm

Fluid Details Motor Details


Fluid type : Water Power : 90 kW
Specific Gravity : 1.000 Frame : 280S
Viscosity : 1.0 cP Enclosure : TEFC
Temperature : 20.0 °C Sizing Criteria : Design curve
Viscosity Corrections : Flow x 1 Head x 1 Eff x 1

Pump Performance Design Notes


Pump speed : 2975 r/min Shutoff Head : 75.3 m
Impeller diameter : 231 mm Shutoff dP : 7.37 bar
Design flow : 105 L/s Flow at BEP : 97.7 L/s
Design head : 60.5 m BEP efficiency : 86.4 ¬%
Pump efficiency : 85.8% Design flow as % of BEP : 107.5%
NPSH required : 6.35 m Head rise to Shutoff : 24.5%
Absorbed Power : 72.5 kW Impeller dia. as % of max : 87.2%
NOL Power : 75.3 kW NOL Power (max. curve) : 124 kW
