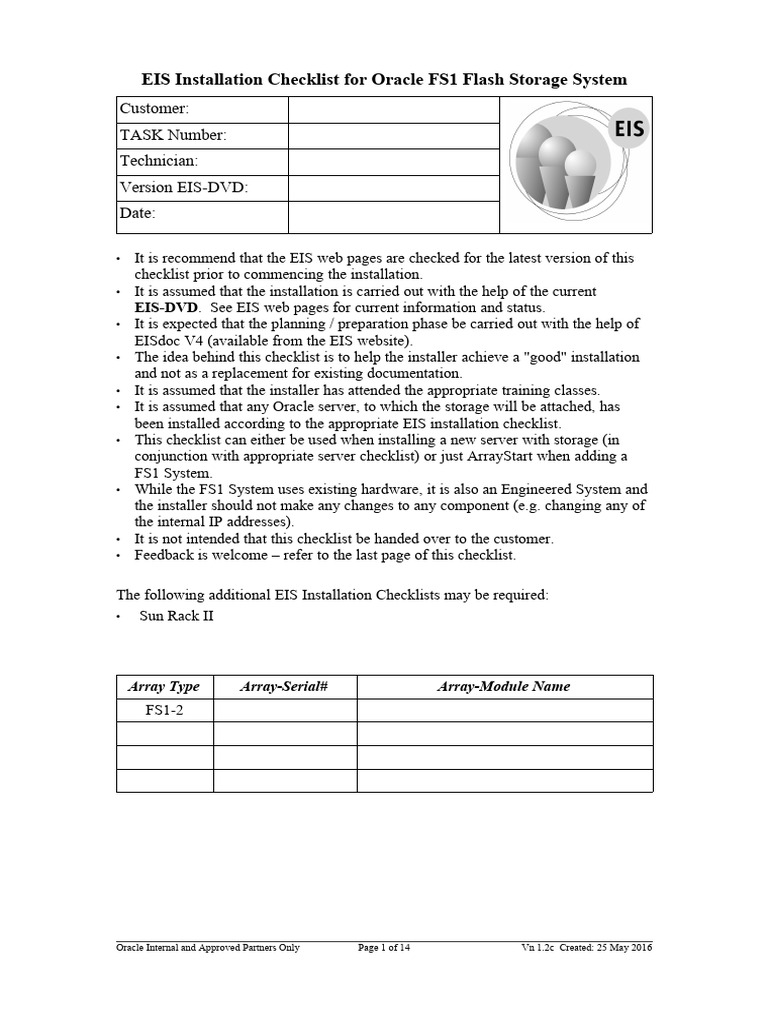

EIS Installation Checklist for Oracle FS1 Flash Storage System

Customer:
TASK Number:
Technician:
Version EIS-DVD:
Date:

• It is recommend that the EIS web pages are checked for the latest version of this
checklist prior to commencing the installation.
• It is assumed that the installation is carried out with the help of the current
EIS-DVD. See EIS web pages for current information and status.
• It is expected that the planning / preparation phase be carried out with the help of
EISdoc V4 (available from the EIS website).
• The idea behind this checklist is to help the installer achieve a "good" installation
and not as a replacement for existing documentation.
• It is assumed that the installer has attended the appropriate training classes.
• It is assumed that any Oracle server, to which the storage will be attached, has
been installed according to the appropriate EIS installation checklist.
• This checklist can either be used when installing a new server with storage (in
conjunction with appropriate server checklist) or just ArrayStart when adding a
FS1 System.
• While the FS1 System uses existing hardware, it is also an Engineered System and
the installer should not make any changes to any component (e.g. changing any of
the internal IP addresses).
• It is not intended that this checklist be handed over to the customer.
• Feedback is welcome – refer to the last page of this checklist.

The following additional EIS Installation Checklists may be required:

• Sun Rack II

Array Type Array-Serial# Array-Module Name

FS1-2

Oracle Internal and Approved Partners Only Page 1 of 14 Vn 1.2c Created: 25 May 2016
 INFORMATION: ACRONYMS
Cable Management Arm, a mechanical device that manages data and
CMA power cables for Controllers and Pilots that allow FS1 components to be
moved into and out of their service positions.
Drive Enclosures – Just a Bunch Of Disks (JBOD) devices with up to 24
DE
Hard Disk Drives.
IOM Input Output Module, the SAS interface to the Drive Enclosure.
Power Cooling Units, a combination of a Power Supply and Fan into a
PCU
single part.
Power Distribution Unit, the rack component that distributes power
PDU
from customer outlet to rack components.
Universal Serial Bus, interface used for keyboard attachment for Pilots
USB
and Controllers.
Private Management Interface, the network connections between Pilots
PMI
and Controllers.
RU Rack Unit, 1.75” of vertical space in rack.
SAS Serial Attached SCSI, SCSI protocol used by FS1 systems.

Task Comment Check

PREPARATION
For an overview of the activities carried out during the installation of this
product via the EIS Methodology, refer to the EIS-Deliverables page within
the EIS website for the Oracle FS1 Flash Storage System.
Read documentation according to the The documents referenced are located at:
storage to be installed: http://docs.oracle.com/cd/E57980_01/index.htm
• Release Notes,
• Hardware Installation Guide for
Oracle FS1 Flash Storage System,
• Site Preparation Guide,
• Rack Unpacking Instructions.

EIS Site-Audit Report complete? EISdoc V4:

File EIS-DOCS-SiteAudit-FS1-2.odt
This is extremely critical for the
following:
• Power connections inside the Rack,
• Location of FS1 components,
• Network connections

FAB/EIS-ALERT info reviewed?

Oracle Internal and Approved Partners Only Page 2 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check
EIS Installation Configuration Plan & EISdoc V4:
Test Procedures Plan complete? Use appropriate BUILD & TPP
templates, inserted into “Master” files:
EIS-BUILD-Storage-FS1.odt
EIS-TPP-Storage-FS1.odt
The EIS TPP for the FS1 must be
performed and completed after the install.
Determine the latest FS1-2 SW version. MOS Document ID 1967797.1 – FS
System: Current Recommended
This will be required for the actions on Software/Firmware Matrix.
page 11 of this checklist.
Determine which Oracle FS1 Flash Refer to the Sales Order. Determine if this
Storage System options have been will be not racked or the rack mounted
option.
ordered from the Sales Order.
Non-Oracle rack to be used? • Must be EIA-310-D standard
compliant.
• Must have adequate space for the
following:
• 2 Pilots = 1 RU each
• 2 Controllers = 2 RUs each
• X Performance DE = 2 RUs each
• X Capacity DE = 4 RUs each
• Dual PDUs
See the EIS Site-Audit Report for
details.
• All DEs MUST be installed.
Prepare for Delivery. The delivery company will contact the
customer contact with delivery date and
time details. The Oracle FSE should
contact the customer to obtain that
information when available.
Tools for Working with the FS1-2
Administration Tools:
• Workstation or laptop with PuTTY software
• Ethernet cable
Physical Tools:
• LED headlamp or flashlight
Not Racked:
• 12 mm wrench
• Phillips screwdriver
• 2 or more people capable of lifting 45 kilos / 99lbs over their
head or a genie lift.
Racked:
• A bag of necessary tools is attached to the rack as part of the
contents of BOM.
The product documentation is available at:
http://docs.oracle.com/cd/E57980_01/index.htm

Oracle Internal and Approved Partners Only Page 3 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check

UNPACKING
Oversee the delivery of the FS1-2. It is the responsibility of the delivery
company to unpack and roll the rack into
place into the data center. The Oracle
FSE should be present for oversight to
ensure that the delivery company follows
proper procedure (e.g. doesn't roll it over a
rough floor).
Save customer information packet There will be a customer information
called “System Record”. packet called “System Record” in a plastic
bag attached to the front of the door panel.
This packet will contain the labels with
the system serial numbers that must be
saved for entitlement purposes.
Verify delivery. • Inspect packaging for shipping damage
• Verify inventory packing list matches
delivered items.
Acclimatise to inside ambient Refer to EIS standard “Acclimatisation of
temperature. Oracle Hardware Products”.

Unpack the FS1 system. • Refer to unpacking instructions.

• Verify packing list with contents.
Note: If the customer is receiving more
• Inventory and inspect all hardware for
than one not racked FS1-2 at the same physical damage.
site boxes should be grouped according • Move FS1 into customer data center.
to system serial number. Do not
unpack these boxes until you are ready
to install to avoid mix and match of
parts.
Verify all packing material has been Fans & air vents must be free to operate.
removed, i.e. nothing is blocked.

Oracle Internal and Approved Partners Only Page 4 of 14 Vn 1.2c Created: 25 May 2016
 Task
COMPONENT ASSEMBLY – NOT RACKED
The Not Racked option is for customer supplied racks. Racked system
installations skip to the “FS1 System Power Up” section after completing
Inter-Rack cabling if applicable.
NOTE: All components that were ordered MUST be installed before power
up. This includes the Drive Enclosures that the customer may not need at the
time of install.
Improve accessibility to rack.
Confirm Controllers have identical
hardware. Physical inspection is only
done externally.
Note: Both controllers have to be
identical or one of them will not boot.
Component assembly and placement.
Attach World Wide node Number
(WWnN) and System Serial Number
(SSN) labels.
Cabling
Oracle Internal and Approved Partners Only
Comment Check
• Remove front and rear doors
• If possible, remove left and right side
panels
Confirm the following items via physical
inspection:
• HBA cards and slots
• ESM Modules and slots
Refer to the Hardware Installation Guide
for Oracle FS1 Flash Storage System
regarding the below:
It is critical that the components be
reassembled in the same logical locations
as was done in the manufacturing process.
See box labels for this information.
• Sharing with other equipment
• Multiple racks
• Cable length limitations
• Pilots = 1U
• Controllers = 2U
• Performance Drive Enclosures = 2U
• Capacity Drive Enclosures = 4U
SSN:
• Top left inside Rack
• Front left side Rack near Pilots.
WWnN:
• Front of chassis on bottom Controller
to the right of component SSN label.
Refer to the Hardware Installation Guide
for Oracle FS1 Flash Storage System
regarding the below:
• SAS cabling between Controllers and
Drive Enclosures
• Power Cables
• Private Interface Cables
• Network cables
• Stress relief (CMAs)
• Secure data cables with velcro strips –
do not use tie-wraps
Page 5 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check
Power Cabling. Some racks have sequencers that control
order of output power to the components.
Ensure the following power up sequence:
• Drive Enclosures
• Controllers
• MaxRep (if applicable)
• Pilots
Pilot Cabling. Perform pilot cabling to the below
specifications:
• NET0 to other Pilot NET0
• NET1 to Controller NET3
• NET2 to other Pilot NETMGT
• NETMGT to other Pilot NET2
• SERMGT to other Pilot SERMGR via
Null Modem cable
Controller Network and Serial ports See diagram below. Ports identified from
left to right.
Controller Ports

Controller Cabling
Perform controller cabling to the below specifications:
Management Ports:
• SER MGT = unused
• NET MGT = Connect to Opposite Controller’s Cluster Interconnect Network
port (↔)
• Serial 0 = unused
• Serial 1 = unused
• Network = Connect to opposite Controller’s NET MGT
Network Ports:
NET 3 = PMI connection to Pilot NET 1 (Controller 1 to Pilot 1, 2 to 2)
• NET 2 = PMI connection to opposite Controller’s NET 2
• NET 1 = NAS Host port
• NET 0 = NAS Host port

Oracle Internal and Approved Partners Only Page 6 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check
Controller/Drive Enclosure cabling. Refer to the Hardware Installation Guide
for Oracle FS1 Flash Storage System.
regarding the below:
• There are three types of SAS Cables:
• Controller to Controller
• Controller to IOM
• IOM to IOM
• Balance Enclosures evenly across
HBAs. The HBAs on Controller 1
connect to IOM 0 on the DEs. The
HBAs on Controller 2 connect to IOM
1 on the DEs.
• IOM Port 0 is always the “ingress”
IOM port to the DE. Ports 1 and 2 are
always “egress” ports from the DE.
• A single HBA port can only support
one string, which is a maximum of 5
DEs.
• A string is limited to 5 DEs. The DEs
support the use of 3 IOM ports. No
DE can be more than 3 hops from a
controller HBA.
• IOMs in 2U (Performance) DEs are
inverted making the port orientation
the opposite when going left to right.
IOMs in 4U (Capacity) and DEs are
orientated the same.
• Use same SAS HBA slot/port from
each Controller to the same DE string.
• Refer to the Build Map that is created
by manufacturing and shipped with
each not racked system. This is to be
used in conjunction with the cable
labels on the cables.

Oracle Internal and Approved Partners Only Page 7 of 14 Vn 1.2c Created: 25 May 2016
 DRIVE ENCLOSURE CABLING DIAGRAM

Oracle Internal and Approved Partners Only Page 8 of 14 Vn 1.2c Created: 25 May 2016
 Task
FS1 SYSTEM POWER UP
Items below are specific to an Oracle supplied Rack; if your install involves
non-Oracle Racks some comments may require adaptation on the part of the
installer. Be extremely careful when working with PDUs that you do not
power off any equipment already in production.
Attach the Rack Doors and Panels
Attach the Rack Side Panels.
Position Rack into final location.
Connect FS1 to datacenter room power
source.
Pre-Power on checks.
Oracle Internal and Approved Partners Only
Comment Check
• Based on the type of door hinge,
reassemble the hinges and reattach the
doors.
• Reattach the door grounding straps on
the rear door.
• Lock the front and back doors to the
rack (optional).
• Hang the top of the panel on the top
of the rack frame and then latch the
panel to close it. If the racks are
bayed, you must only install the outer
two panels.
• Secure the panel appropriately using
one of the following options:
• Engage the latch handle(s) and
snap the panel into place.
• Screw the panels to the rack
frame at the top and bottom.
• Lock both side panels (optional).
• Lower levelling feet to data center
floor (you will need a 12 mm
wrench).
• Use a bubble level to adjust feet to
make system level and plumb.
• Ensure PDU circuit breakers are off.
• Connect the PDUs to a facility power
source. If the facility's main circuit
breakers are off, turn them on to
supply power to the PDUs.
• Check all cables so there is no stress
placed on other cables.
• Confirm redundant PCUs for each
component go to different PDUs.
• Verify that all Drives (Pilot & DEs)
and ESMs (Controller) did not
become dislodged in shipping. Reseat
as necessary.
• Connect laptop to pilot 1 NET3
• Set laptop IP to 10.0.0.10
• Gateway to 10.0.0.1
• Netmask to 255.255.255.0
Page 9 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check
Power on system. Refer to the Hardware Installation Guide
for Oracle FS1 Flash Storage System for
more details.
• Turn on power switches for all DEs.
• Power on only one PDU and confirm
that each Pilot, Controller and DE has
power.
• Power on the second PDU within 5
minutes.
• Verify power up order, Drive
Enclosures should be first, Controllers
second and then Pilots last.
Verify LEDs status. • Verify that the Fault LEDs are off.
• Verify all Drive Enclosures and all
Controllers have unique IDs.
CONFIRM DE NUMBERING
The DE hardware has a DE ID label on • Lower DE numbers should be below
the rear of the unit. The purpose of this higher DE numbers.
label is to ensure the customer mounts • This may be modified via GUI:
From the System Tab, expand
and cables the DE as configured at the Hardware then select Drive
factory during Not Racked Installs. Enclosures. In the main window,
However, the DE ID display is right click on the Drive Enclosure
configurable by the customer through Then select Modify Chassis Display
the software. These labels are to be Number.
used during installation only, they
Racked systems may not have this label.
should than be removed. At this point When a racked system is powered on, the
all references to DE numbering should 7 segment display will show the DE ID.
be performed via the software. However they should still be lowest # on
bottom and higher going upwards.
The labels should be temporary labels When powering on, if the DE numbers are
and only come with Not Rack systems. out of order or do not match the temporary
DE labels there is one of two problems:
The purpose is to allow the installer to • The DEs are wired incorrectly, but
properly identify the DE, by number, installed in the correct physical
after its removed from the box. This is locations.
necessary so the DE can be installed in • The DEs are installed in the wrong
the correct physical location. order, but the wiring in actually
It would be advisable to wait until the correct.
machine is wired and powered on The root cause MUST be identified. It is
before removing the label. This allows NOT acceptable to simply change the DE
numbers to “look good”. The problem
the installer to verify the 7 segment will not be solved. Use the fscli
display matches the label. If not, the command below:
system is wired incorrectly and can # fscli topology -download
NOT be left in that state. -topoMap filename.txt

The wiring MUST be corrected before
the installation is complete. It is not
acceptable to simply change the DE
number to match the location.
Use the output to verify the DE wiring
topology. Once the wiring is proven
correct, the customer is free to modify the
DE 7 segment displays as desired.

Oracle Internal and Approved Partners Only Page 10 of 14 Vn 1.2c Created: 25 May 2016
 Task
CONFIGURATION
Establish a temporary network between
laptop and Pilot1.
Connect a cable to the Active Pilot.
If not already installed, download and
Install GUI client to laptop.
Verify System Serial Number
Network settings.
Optional: upgrade to latest SW version.
Oracle Internal and Approved Partners Only
Comment Check
• Default IP addresses:
• 10.0.0.2 – Shared IP
• 10.0.0.3 – pilot1 IP
• 10.0.0.4 – pilot2 IP
• Confirm pilot1 default IP can be
reached via “ping ”.
• Point browser to 10.0.0.2
• Go to Management Software and
download proper versions of GUI for
platform being used.
• Install GUI and login with as default
administrator:
• Login: administrator
• Password: pillar
• If passwords are expired, refer to
MOS Document ID 1964478.1.
• If a pop-up window appears
asking about configuring ASR –
select the dismiss until later
option.
Verify System Serial Number displayed
under System Information matches Rack
Stickers and Sales Order.
• If using DHCP, get Pilot MAC
addresses.
• If not using DHCP, manually update
network settings after you have
performed the TPP activity of testing
a LUN. Leave the below as “default”
until this activity is performed.
• Shared IP address
• Pilot IP addresses
• Netmask
• Gateway
• NTP Server IP
• Admin email address
• Primary/Secondary DNS servers.
• Using the CMA, connect Pilots to
customer LAN and confirm access.
• The FS1-2 Software & version will
have been obtained during the
PREPARATION phase on page 3.
• If this FS1 system will use MaxRep, it
is recommended that all systems run
the same SW if possible.
• MOS Document ID 1968129.1 – FS
System: FS1-2 Upgrade R6.x to R6.x
Procedures.
Page 11 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check
Install GUI and CLI on customer • Point browser at shared IP,
system. • Download GUI and CLI that matches
customer platform,
• Install GUI and CLI.
Update System Information. • System Name
• Description
• Location
• Contact Name
• Phone Number
• Asset Number
• Set NTP Server or System Time (In
the GUI click on System tab >>
Global Settings >> SystemTime >>
Actions, and then Modify.
• Confirm System Serial Number
agrees between the GUI and on HW.
Set Controller Service Type. • Systems tab >>Hardware >>
Controllers
• Right click on Controllers and select
Modify Controller Service Type.
• Select SAN Only,
• Select Restart and then select OK
Confirm Hardware: • From the System Tab, Expand HW,
then select Controllers, right click on
Controller 1. In new popup click on
the individual components and
compare with Controller 2.
• Confirm that each DE has the same
drive type and capacity.
Note: This is not possible to do this for the
pilots from the GUI.
Check the system status. The system status is displayed in the
bottom left corner of the status bar of the
GUI. A round green circle indicates that
all hardware components in the Oracle
FS1 system have successfully started and
are operating normally.
Check for Administrator If there is an Administrator Action or
Actions/Alerts: Alert present, there will be a small
flashing triangle on the bottom of the GUI
screen, next to the System Status icon.
Resolve all Topology Validation Alerts
before proceeding to Private Interface
Validation Testing.

Oracle Internal and Approved Partners Only Page 12 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check
Modify administrator and pillar • Log in as administrator or pillar
accounts • Select System tab >> Global
Settings and select Administrator
Accounts
• Right click on user and select modify
• Enter appropriate values in white
spaces.
Password ageing can be disabled by
entering zero in the Password Duration
field.
Confirm FSCLI topology. • Gather a topology output using fscli.
See MOS Document ID 1970990.1
How to Read and Interpret the FS1-2
CLI Topology Command.
• Confirm Controller 1 WWN ends in 0
and attaches only to IOM 0s in all
Drive Enclosures.
• Confirm Controller 2 WWN ends in 1
and attaches only to IOM 1s in all
Drive Enclosures.
• If Controllers appear backwards,
confirm the SAS cabling is correct.
• If cabling is correct, a COD reset
is necessary to resolve. See MOS
Document ID 2029729.1 How to
Perform a System COD Reset.
This document is currently
Oracle-Internal only.

Oracle Internal and Approved Partners Only Page 13 of 14 Vn 1.2c Created: 25 May 2016
 Task Comment Check

VERIFY SERVICEABLE INSTALLATION

Verify browser access to FS1. This is performed by logging into the FS1
system.
Configure Call-Home. • Refer to the Section Configure Call-
Home for ASR in the Oracle FS1-2
Flash Storage System Installation
Guides.
• Contact SR owner to confirm.
Attach host cabling. • Host connections are made to
Controller HBAs in slots 1/4/5.
• NET0 & NET1 are optional NAS
connections.
Note: NAS is not available for this product
at G.A.
Optional PDU connections (racked Configure PDU monitoring Units – refer
systems only): to the EIS installation checklist for Sun
Rack II.

Task Comment Check

VERIFICATION & HANDOVER
Restart => everything OK? Restart system via GUI.

Perform Installation Assessment tests as EISdoc V4 – completed during preparation

described in the EIS Test Procedures of installation.
Plan (TPP).
Inform the Customer that once the FS1 • Refer to the Section Configure Call-
is included in a Support Contract that Home for ASR and Activate ASR in the
Oracle FS1-2 Flash Storage System
their Customer User Administrator Installation Guides.
(CUA) should configure the system for • MOS Document ID 1329200.1 – How
ASR: to Manage and Approve Pending ASR
Assets in My Oracle Support.
Complete documentation and hand over EISdoc V4:
to customer. File EIS-DOCS-Operational Handover-
Document.odt
Short briefing: on the configuration and
basic FS1 Administration tasks are
reviewed with customer.

Copies of the checklists are available on the EIS web pages or on the EIS-DVD. We recommend that
you always check the web pages for the latest version.

Comments & RFEs welcome. Oracle staff should mail to EIS-SUPPORT_WW_GRP@oracle.com .

Partners should mail to: SUPPORT-PARTNER-QUESTIONS_WW_GRP@oracle.com .

Oracle Internal and Approved Partners Only Page 14 of 14 Vn 1.2c Created: 25 May 2016
