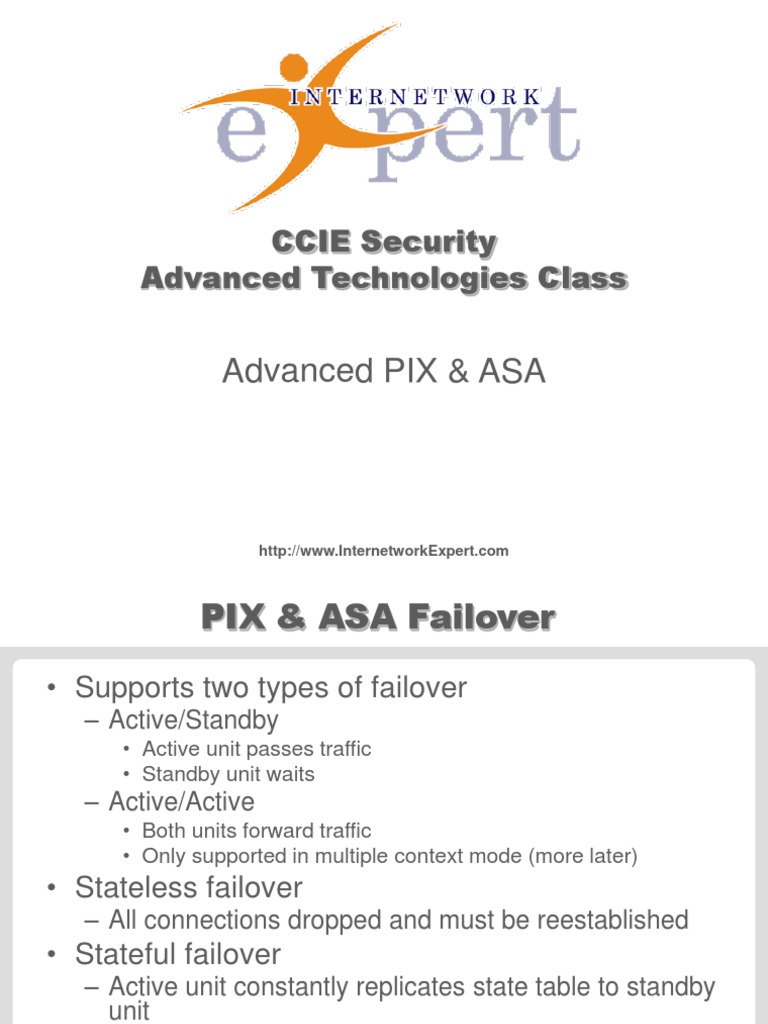

CCIE Security
Advanced Technologies Class
Advanced PIX & ASA
http://www.InternetworkExpert.com
PIX & ASA Failover
• Supports two types of failover
– Active/Standby
• Active unit passes traffic
• Standby unit waits
– Active/Active
• Both units forward traffic
• Only supported in multiple context mode (more later)
• Stateless failover
– All connections dropped and must be reestablished
• Stateful failover
– Active unit constantly replicates state table to standby
unit
• NAT / TCP / UDP / IKE & IPsec SA / ARP / etc.
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Active / Standby Failover
• Standby tracks active unit
• When active fails roles are reversed
– Active becomes standby
– Standby becomes active
• Standby assumes MAC and IP address of
previous active unit
• Make sure to save active config in
notepad first – order of operations
problem can overwrite your config with
a blank one!
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Active / Standby Primary Config
• Configure active / standby IPs
– ip address [active_addr] [netmask]
standby standby_addr
• Designate primary unit
– failover lan unit primary
• Specify failover interface
– failover lan interface…
• Assign IP to failover link
– failover interface ip [name] [active_addr]
[netmask] standby standby_addr
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Active / Standby Primary Config (cont.)
• Stateful failover
– failover link…
• Define monitoring policy
– monitor-interface
– failover interface-policy
• Enable failover
– failover
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Active / Standby Secondary Config
• Specify failover interface
– failover lan interface…
• Assign IP to failover link
– failover interface ip [name] [active_addr]
[netmask] standby standby_addr
• Designate primary unit
– failover lan unit secondary
• Stateful failover
– failover link…
• Enable failover
– failover
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Virtual Firewalls
• ASA supports security “contexts” which
separates device into multiple virtual
firewalls
• Similar to VRF operation on router
– Behaves as multiple physical devices
• Allows multiple managed service offerings
from single physical box
• Multiple context mode does not support
routing protocols or VPN
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Context Overview
• Context mode is enabled with the “mode multiple” global
command
– Reboots device
– Blank config
• Switching contexts
– changeto…
• System context
– Underlying context that controls physical interface parameters
• Admin context
– Default context when single mode converts to multi mode
– Users logged into admin context can access all other contexts
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
System Context
• System context used to create new contexts and
defines interface parameters
• Configure physical interfaces
• Define contexts
– context…
• Assign interfaces to context
– allocate-interface…
• Specify config storage
– config-url…
• “changeto” context to configure it
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
User Defined Contexts
• User defined context are allowed to
configure interfaces per system context
config
• Overlapping interfaces should use unique
IP addresses and either
– Unique MAC addresses
– Unique NAT mappings
• Management connections to user defined
contexts can only access themselves
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Context Resources
• Resources can be limited on a per context
basis
– conns / xlates / management sessions
• Define “class” in system context
• Make context a “member” of class in
context subconfiguration mode
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Context Example
AAA/CA
Server
DMZ
Context ASA1
E0/1.10 Outside
Inside128 Inside128 E0/0 R2
E0/0
E0/1.128 ASA1
Inside125
SW2 E0/1.125
E0/1 Context
Inside125
R5
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Active / Active Failover
• In multiple context mode one unit can be
active for contextA and second unit can be
active for contextB
• Enabled in system context mode
failover group 1
primary
preempt
failover group 2
secondary
preempt
context contextA
join-failover-group 1
context contextB
join-failover-group 2
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Modular Policy Framework (MPF)
• MQC-like configuration that replaces “fixup” commands
– Define class-map
– Define policy-map
– Apply service policy
• No in/out direction like MQC, just interface application
• MPF defaults
– policy-map global_policy
• Applies to all interfaces
• Matches “default-inspection-traffic”
• New interface policy overrides global_policy
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
MPF L3/L4 Class-Maps
• Can categorize traffic based on
– Access-list
– TCP / UDP ports
– DSCP
– IP precedence
– RTP ports
– IP flow
– Tunnel-group
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Regular Expression Class-Maps
• Used for application level inspection
– http URL / FTP filenames / etc.
• Uses IOS regular expression syntax
– Cisco Security Appliance Command Line
Configuration Guide, Version 7.2
• Configuring the Firewall
– Using Modular Policy Framework
» Creating a Regular Expression
• Example
– regex UNIVERCD "univercd“
– class-map type regex match-any DOCCD
• match regex UNIVERCD
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Application Inspection Maps
• Used to match application specific information
– i.e. specific DNS query / HTTP URL / FTP filename
• Define traffic in inspection class-map
– class-map type inspect…
• Define actions in inspection policy-map
– policy-map type inspect…
• Call class
• Define action (i.e. reset)
• Create normal class-map
• Create normal policy-map
• Call inspection policy from class-map policy-map
subconfiguration mode
• Apply service-policy to interface
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
TCP Maps
• Enables or disables TCP specific
inspections
– Maximum segment size (mss)
– Checksum verification
– Urgent flag
– TCP options
• Option 19 dropped by default, required for BGP
MD5 authentication
• tcp-map TCPMAP1…
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
MPF QoS
• MPF supports output LLQ and input / output
policing
• Low Latency Queue
– No bandwidth cap like MQC, only queue-limit
policy-map LLQ
class LLQ_CLASS
priority
!
priority-queue outside
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
MPF QoS (cont.)
• Policing can be inbound and outbound
• Example:
– Police LAN-to-LAN tunnel to 1.2.3.4 to 1Mbps
outbound
tunnel-group 1.2.3.4 type ipsec-l2l
!
class-map TUNNEL1
match flow ip destination-address
match tunnel-group 1.2.3.4
!
policy-map OUTSIDE
class TUNNEL1
police output 1000000
!
service-policy OUTSIDE interface outside
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
Transparent Firewall
• Layer 3 routed firewall has inside and outside
interfaces on separate subnets
• Traffic between interfaces is routed based on
IPv4 header
• Transparent firewall has inside and outside
interfaces on same subnet
• Traffic bridged based on CAM table
• Same outside to inside traffic filtering policy
• Exceptions with ACLs and MPF
• firewall transparent command
• Global management IP should be in same
subnet as inside/outside interfaces
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
ARP Spoofing
• PIX / ASA in transparent mode forwards all ARP
by default
• Network attack can occur by host impersonating
another’s MAC address “ARP Spoofing”
• ARP inspection allows static ARP to be checked
as ARP transits
– If static match and wrong address, drop
– If no static match drop or forward
• Configuration
– arp dmz 1.2.3.4 1234.5678.9abc
– arp-inspection inside enable [flood | no-flood]
Copyright © 2007 Internetwork Expert, Inc
www.InternetworkExpert.com
MAC Learning
• In transparent mode PIX / ASA learns
MAC addresses like a normal transparent
bridge
• MAC learning can be disabled and
replaced with static entries
• Prevents unauthorized hosts on the
segment
• Configuration
– mac-address-table static…
– mac-learn [inside|outside] disable
