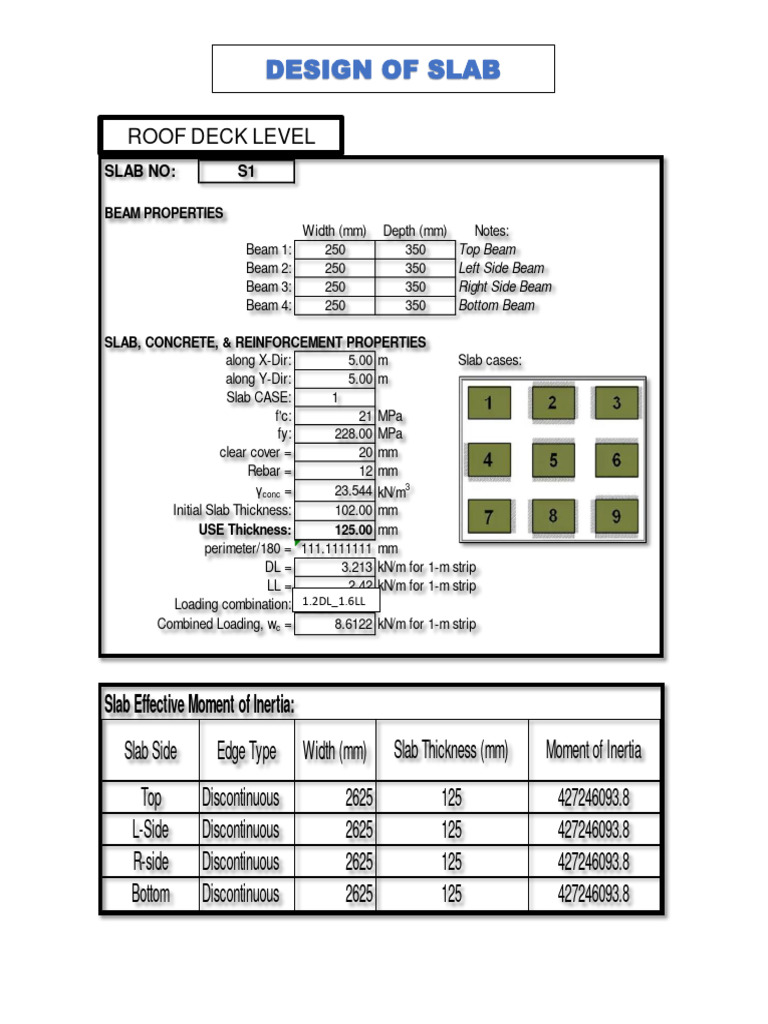

DESIGN OF SLAB

ROOF DECK LEVEL


SLAB DESIGN
SLAB NO: S1

BEAM PROPERTIES
Width (mm) Depth (mm) Notes:
Beam 1: 250 350 Top Beam
Beam 2: 250 350 Left Side Beam
Beam 3: 250 350 Right Side Beam
Beam 4: 250 350 Bottom Beam

SLAB, CONCRETE, & REINFORCEMENT PROPERTIES


along X-Dir: 5.00 m Slab cases:
along Y-Dir: 5.00 m
Slab CASE: 1
f'c: 21 MPa
fy: 228.00 MPa
clear cover = 20 mm
Rebar = 12 mm
γconc = 23.544 kN/m3
Initial Slab Thickness: 102.00 mm
USE Thickness: 125.00 mm
perimeter/180 = 111.1111111 mm
DL = 3.213 kN/m for 1-m strip
LL = 2.42 kN/m for 1-m strip
Loading combination: 1.4DL 1.2DL_1.6LL
+ 1.7LL
Combined Loading, wc = 8.6122 kN/m for 1-m strip

Slab Effective Moment of Inertia:


Slab Side Edge Type Width (mm) Slab Thickness (mm) Moment of Inertia
Top Discontinuous 2625 125 427246093.8
L-Side Discontinuous 2625 125 427246093.8
R-side Discontinuous 2625 125 427246093.8
Bottom Discontinuous 2625 125 427246093.8
Beam Effective Moment of Inertia:
Slab
Slab Side Edge Type Width (mm) Depth (mm) Moment of Inertia
Thickness
Top Discontinuous 250 350 125.00 1285807292
L-Side Discontinuous 250 350 125.00 1285807292
R-side Discontinuous 250 350 125.00 1285807292
Bottom Discontinuous 250 350 125.00 1285807292

Calculation of af
For Beam For Slab
Slab Side af
Ib Is Direction Lx Ly
Top 1285807292 427246093.8 3.00952381 L (m) 5.00 5.00
L-Side 1285807292 427246093.8 3.00952381 af 6.019048 6.0190476
R-side 1285807292 427246093.8 3.00952381 af L2 150.4762 150.47619
Bottom 1285807292 427246093.8 3.00952381 Ratio 1
afm 3.00952381 Status OK!

Calculation of β:
Lx Clear (mm) = 4750
Ly Clear (mm) = 4750
β= 1 Minimum Thickness Required = 101.6349 mm
SLAB NO: S1

SLAB DESIGN CALCULATION


Thickness = 125.00 mm

Moment coefficients:
Along Short Direction:
Neg Moment, Cs = 0.000
DL Pos Moment, Cs = 0.036
LL Pos Moment, Cs = 0.036

Along Long Direction:


Neg Moment, Cb = 0.000
DL Pos Moment, Cb = 0.036
LL Pos Moment, Cb = 0.036

Calculation of Slab Moments in both directions:


Along Short Direction: Along Long Direction:
@ Continuous edge: @ Continuous edge:
-Mu = 0 kN.m -Mu = 0 kN.m
@ Midspan: @ Midspan:
DL +Mu = 2.8917 kN.m DL +Mu = 2.8917 kN.m
LL +Mu = 2.178 kN.m LL +Mu = 2.178 kN.m
Total +Mu = 7.75098 kN.m Total +Mu = 7.75098 kN.m
@ Discontinuous edge: @ Discontinuous edge:
-Mu = 2.58366 kN.m -Mu = 2.58366 kN.m
DESIGN OF SLAB REINFORCEMENT
ALONG SHORT DIRECTION:
NO CONTINUOUS EDGE!
@ Continuous edge: @ Midspan: @ Discontinuous edge:
-Mu = 0.0000 kN.m +Mu = 7.7510 kN.m -Mu = 2.5837 kN.m
d= 99 mm d= 99 mm d= 99 mm
a= 0.59 a= 0.59 a= 0.59
b= -1 b= -1 b= -1
c= 0 c = 0.041843 c = 0.01394772
w1 = 1.694915254 w1 = 1.651985 w1 = 1.68085083
w2 = 0 w2 = 0.042931 w2 = 0.01406443
use, w = 0 use, w = 0.042931 use, w = 0.01406443
ρ= 0 ρ = 0.003954 ρ = 0.00129541
ρmin = 0.006140351 ρmin = 0.00614 ρmin = 0.00614035
use ρ = 0.006140351 use ρ = 0.00614 use ρ = 0.00614035
As = 607.8947368 mm2 As = 607.8947 mm2 As = 607.894737 mm2
Required Spacing, S: Required Spacing, S: Required Spacing, S:
S = 186.0475649 mm S = 186.0476 mm S = 186.047565 mm
say S = 180 mm say S = 180 mm say S = 180 mm
USE, S = 210 mm USE, S = 210 mm USE, S = 210 mm
Col Strip Col Strip Col Strip
Spacing = 315 mm Spacing = 315 mm Spacing = 315 mm

SLAB NO: S1

ALONG LONG DIRECTION:


NO CONTINUOUS EDGE!
@ Continuous edge: @ Midspan: @ Discontinuous edge:
-Mu = 0 kN.m +Mu = 7.75098 kN.m -Mu = 2.58366 kN.m
d= 87 mm d= 87 mm d= 87 mm
a= 0.59 a= 0.59 a= 0.59
b= -1 b= -1 b= -1
c= 0.00000 c = 0.054182 c = 0.01806072
w1 = 1.69492 w1 = 1.638881 w1 = 1.67665787
w2 = 0 w2 = 0.056035 w2 = 0.01825739
use, w = 0 use, w = 0.056035 use, w = 0.01825739
ρ= 0 ρ = 0.005161 ρ= 0.0016816
ρmin = 0.006140351 ρmin = 0.00614 ρmin = 0.00614035
use ρ = 0.006140351 use ρ = 0.00614 use ρ = 0.00614035
As = 534.2105263 mm2 As = 534.21 mm2 As = 534.210526 mm2
Required Spacing, S : Required Spacing, S: Required Spacing, S:
S= 211.709298 mm S = 211.7093 mm S = 211.709298 mm
say S = 210 mm say S = 210 mm say S = 210 mm
USE, S = 220 mm USE, S = 220 mm USE, S = 220 mm
Col Strip Col Strip Col Strip
Spacing = 330 mm Spacing = 330 mm Spacing = 330 mm
Check for maximum spacing:
Max Spacing, Smax = 2t or 450
Smax = 250 mm
Non-critical Smax = 3t or 450

Smax = 375 mm

Check for Spacing of temp. bar or placement bar:


Max Spacing, Smax = 5t or 450
Smax = 450 mm

Check the adequacy of the design Slab thickness:


using max. moment = 7.75098 kN.m
2
provided As = 628.318531 mm
provided ρ = 0.00634665
provided w = 0.06890651
req'd d = 78.7643781 mm
Status: OK!
THIRD FLOOR LEVEL SLAB DESIGN
SLAB NO: S1

BEAM PROPERTIES
Width (mm) Depth (mm) Notes:
Beam 1: 250 350 Top Beam
Beam 2: 250 350 Left Side Beam
Beam 3: 250 350 Right Side Beam
Beam 4: 250 350 Bottom Beam

SLAB, CONCRETE, & REINFORCEMENT PROPERTIES


along X-Dir: 5.00 m Slab cases:
along Y-Dir: 5.00 m
Slab CASE: 1
f'c: 21 MPa
fy: 228.00 MPa
clear cover = 20 mm
Rebar = 12 mm
γconc = 23.544 kN/m3
Initial Slab Thickness: 102.00 mm
USE Thickness: 125.00 mm
perimeter/180 = 111.1111111 mm
DL = 3.213 kN/m for 1-m strip
LL = 2.42 kN/m for 1-m strip
Loading combination: 1.4DL 1.2DL_1.6LL
+ 1.7LL
Combined Loading, wc = 8.6122 kN/m for 1-m strip

Slab Effective Moment of Inertia:


Slab Side Edge Type Width (mm) Slab Thickness (mm) Moment of Inertia
Top Discontinuous 2625 125 427246093.8
L-Side Discontinuous 2625 125 427246093.8
R-side Discontinuous 2625 125 427246093.8
Bottom Discontinuous 2625 125 427246093.8
Beam Effective Moment of Inertia:
Slab
Slab Side Edge Type Width (mm) Depth (mm) Moment of Inertia
Thickness
Top Discontinuous 250 350 125.00 1285807292
L-Side Discontinuous 250 350 125.00 1285807292
R-side Discontinuous 250 350 125.00 1285807292
Bottom Discontinuous 250 350 125.00 1285807292

Calculation of af
For Beam For Slab
Slab Side af
Ib Is Direction Lx Ly
Top 1285807292 427246093.8 3.00952381 L (m) 5.00 5.00
L-Side 1285807292 427246093.8 3.00952381 af 6.019048 6.0190476
R-side 1285807292 427246093.8 3.00952381 afL2 150.4762 150.47619
Bottom 1285807292 427246093.8 3.00952381 Ratio 1
afm 3.00952381 Status OK!

Calculation of β:
Lx Clear (mm) = 4750
Ly Clear (mm) = 4750
β= 1 Minimum Thickness Required = 101.6349 mm
SLAB NO: S1

SLAB DESIGN CALCULATION


Thickness = 125.00 mm

Moment coefficients:
Along Short Direction:
Neg Moment, Cs = 0.000
DL Pos Moment, Cs = 0.036
LL Pos Moment, Cs = 0.036

Along Long Direction:


Neg Moment, Cb = 0.000
DL Pos Moment, Cb = 0.036
LL Pos Moment, Cb = 0.036

Calculation of Slab Moments in both directions:


Along Short Direction: Along Long Direction:
@ Continuous edge: @ Continuous edge:
-Mu = 0 kN.m -Mu = 0 kN.m
@ Midspan: @ Midspan:
DL +Mu = 2.8917 kN.m DL +Mu = 2.8917 kN.m
LL +Mu = 2.178 kN.m LL +Mu = 2.178 kN.m
Total +Mu = 7.75098 kN.m Total +Mu = 7.75098 kN.m
@ Discontinuous edge: @ Discontinuous edge:
-Mu = 2.58366 kN.m -Mu = 2.58366 kN.m
DESIGN OF SLAB REINFORCEMENT
ALONG SHORT DIRECTION:
NO CONTINUOUS EDGE!
@ Continuous edge: @ Midspan: @ Discontinuous edge:
-Mu = 0.0000 kN.m +Mu = 7.7510 kN.m -Mu = 2.5837 kN.m
d= 99 mm d= 99 mm d= 99 mm
a= 0.59 a= 0.59 a= 0.59
b= -1 b= -1 b= -1
c= 0 c = 0.041843 c = 0.01394772
w1 = 1.694915254 w1 = 1.651985 w1 = 1.68085083
w2 = 0 w2 = 0.042931 w2 = 0.01406443
use, w = 0 use, w = 0.042931 use, w = 0.01406443
ρ= 0 ρ = 0.003954 ρ = 0.00129541
ρmin = 0.006140351 ρmin = 0.00614 ρmin = 0.00614035
use ρ = 0.006140351 use ρ = 0.00614 use ρ = 0.00614035
As = 607.8947368 mm2 As = 607.8947 mm2 As = 607.894737 mm2
Required Spacing, S: Required Spacing, S: Required Spacing, S:
S = 186.0475649 mm S = 186.0476 mm S = 186.047565 mm
say S = 180 mm say S = 180 mm say S = 180 mm
USE, S = 210 mm USE, S = 210 mm USE, S = 210 mm
Col Strip Col Strip Col Strip
Spacing = 315 mm Spacing = 315 mm Spacing = 315 mm

SLAB NO: S1

ALONG LONG DIRECTION:


NO CONTINUOUS EDGE!
@ Continuous edge: @ Midspan: @ Discontinuous edge:
-Mu = 0 kN.m +Mu = 7.75098 kN.m -Mu = 2.58366 kN.m
d= 87 mm d= 87 mm d= 87 mm
a= 0.59 a= 0.59 a= 0.59
b= -1 b= -1 b= -1
c= 0.00000 c = 0.054182 c = 0.01806072
w1 = 1.69492 w1 = 1.638881 w1 = 1.67665787
w2 = 0 w2 = 0.056035 w2 = 0.01825739
use, w = 0 use, w = 0.056035 use, w = 0.01825739
ρ= 0 ρ = 0.005161 ρ= 0.0016816
ρmin = 0.006140351 ρmin = 0.00614 ρmin = 0.00614035
use ρ = 0.006140351 use ρ = 0.00614 use ρ = 0.00614035
As = 534.2105263 mm2 As = 534.21 mm2 As = 534.210526 mm2
Required Spacing, S : Required Spacing, S: Required Spacing, S:
S= 211.709298 mm S = 211.7093 mm S = 211.709298 mm
say S = 210 mm say S = 210 mm say S = 210 mm
USE, S = 220 mm USE, S = 220 mm USE, S = 220 mm
Col Strip Col Strip Col Strip
Spacing = 330 mm Spacing = 330 mm Spacing = 330 mm
Check for maximum spacing:
Max Spacing, Smax = 2t or 450
Smax = 250 mm
Non-critical Smax = 3t or 450

Smax = 375 mm

Check for Spacing of temp. bar or placement bar:


Max Spacing, Smax = 5t or 450
Smax = 450 mm

Check the adequacy of the design Slab thickness:


using max. moment = 7.75098 kN.m
2
provided As = 628.318531 mm
provided ρ = 0.00634665
provided w = 0.06890651
req'd d = 78.7643781 mm
Status: OK!
SECOND FLOOR LEVEL
SLAB DESIGN
SLAB NO: S1

BEAM PROPERTIES
Width (mm) Depth (mm) Notes:
Beam 1: 250 350 Top Beam
Beam 2: 250 350 Left Side Beam
Beam 3: 250 350 Right Side Beam
Beam 4: 250 350 Bottom Beam

SLAB, CONCRETE, & REINFORCEMENT PROPERTIES


along X-Dir: 5.00 m Slab cases:
along Y-Dir: 5.00 m
Slab CASE: 1
f'c: 21 MPa
fy: 228.00 MPa
clear cover = 20 mm
Rebar = 12 mm
γconc = 23.544 kN/m3
Initial Slab Thickness: 102.00 mm
USE Thickness: 125.00 mm
perimeter/180 = 111.1111111 mm
DL = 3.213 kN/m for 1-m strip
LL = 2.42 kN/m for 1-m strip
Loading combination: 1.4DL 1.2DL_1.6LL
+ 1.7LL
Combined Loading, wc = 8.6122 kN/m for 1-m strip

Slab Effective Moment of Inertia:


Slab Side Edge Type Width (mm) Slab Thickness (mm) Moment of Inertia
Top Discontinuous 2625 125 427246093.8
L-Side Discontinuous 2625 125 427246093.8
R-side Discontinuous 2625 125 427246093.8
Bottom Discontinuous 2625 125 427246093.8
Beam Effective Moment of Inertia:
Slab
Slab Side Edge Type Width (mm) Depth (mm) Moment of Inertia
Thickness
Top Discontinuous 250 350 125.00 1285807292
L-Side Discontinuous 250 350 125.00 1285807292
R-side Discontinuous 250 350 125.00 1285807292
Bottom Discontinuous 250 350 125.00 1285807292

Calculation of af
For Beam For Slab
Slab Side af
Ib Is Direction Lx Ly
Top 1285807292 427246093.8 3.00952381 L (m) 5.00 5.00
L-Side 1285807292 427246093.8 3.00952381 af 6.019048 6.0190476
R-side 1285807292 427246093.8 3.00952381 af L2 150.4762 150.47619
Bottom 1285807292 427246093.8 3.00952381 Ratio 1
afm 3.00952381 Status OK!

Calculation of β:
Lx Clear (mm) = 4750
Ly Clear (mm) = 4750
β= 1 Minimum Thickness Required = 101.6349 mm
SLAB NO: S1

SLAB DESIGN CALCULATION


Thickness = 125.00 mm

Moment coefficients:
Along Short Direction:
Neg Moment, Cs = 0.000
DL Pos Moment, Cs = 0.036
LL Pos Moment, Cs = 0.036

Along Long Direction:


Neg Moment, Cb = 0.000
DL Pos Moment, Cb = 0.036
LL Pos Moment, Cb = 0.036

Calculation of Slab Moments in both directions:


Along Short Direction: Along Long Direction:
@ Continuous edge: @ Continuous edge:
-Mu = 0 kN.m -Mu = 0 kN.m
@ Midspan: @ Midspan:
DL +Mu = 2.8917 kN.m DL +Mu = 2.8917 kN.m
LL +Mu = 2.178 kN.m LL +Mu = 2.178 kN.m
Total +Mu = 7.75098 kN.m Total +Mu = 7.75098 kN.m
@ Discontinuous edge: @ Discontinuous edge:
-Mu = 2.58366 kN.m -Mu = 2.58366 kN.m
DESIGN OF SLAB REINFORCEMENT
ALONG SHORT DIRECTION:
NO CONTINUOUS EDGE!
@ Continuous edge: @ Midspan: @ Discontinuous edge:
-Mu = 0.0000 kN.m +Mu = 7.7510 kN.m -Mu = 2.5837 kN.m
d= 99 mm d= 99 mm d= 99 mm
a= 0.59 a= 0.59 a= 0.59
b= -1 b= -1 b= -1
c= 0 c = 0.041843 c = 0.01394772
w1 = 1.694915254 w1 = 1.651985 w1 = 1.68085083
w2 = 0 w2 = 0.042931 w2 = 0.01406443
use, w = 0 use, w = 0.042931 use, w = 0.01406443
ρ= 0 ρ = 0.003954 ρ = 0.00129541
ρmin = 0.006140351 ρmin = 0.00614 ρmin = 0.00614035
use ρ = 0.006140351 use ρ = 0.00614 use ρ = 0.00614035
As = 607.8947368 mm2 As = 607.8947 mm2 As = 607.894737 mm2
Required Spacing, S: Required Spacing, S: Required Spacing, S:
S = 186.0475649 mm S = 186.0476 mm S = 186.047565 mm
say S = 180 mm say S = 180 mm say S = 180 mm
USE, S = 210 mm USE, S = 210 mm USE, S = 210 mm
Col Strip Col Strip Col Strip
Spacing = 315 mm Spacing = 315 mm Spacing = 315 mm

SLAB NO: S1

ALONG LONG DIRECTION:


NO CONTINUOUS EDGE!
@ Continuous edge: @ Midspan: @ Discontinuous edge:
-Mu = 0 kN.m +Mu = 7.75098 kN.m -Mu = 2.58366 kN.m
d= 87 mm d= 87 mm d= 87 mm
a= 0.59 a= 0.59 a= 0.59
b= -1 b= -1 b= -1
c= 0.00000 c = 0.054182 c = 0.01806072
w1 = 1.69492 w1 = 1.638881 w1 = 1.67665787
w2 = 0 w2 = 0.056035 w2 = 0.01825739
use, w = 0 use, w = 0.056035 use, w = 0.01825739
ρ= 0 ρ = 0.005161 ρ= 0.0016816
ρmin = 0.006140351 ρmin = 0.00614 ρmin = 0.00614035
use ρ = 0.006140351 use ρ = 0.00614 use ρ = 0.00614035
As = 534.2105263 mm2 As = 534.21 mm2 As = 534.210526 mm2
Required Spacing, S : Required Spacing, S: Required Spacing, S:
S= 211.709298 mm S = 211.7093 mm S = 211.709298 mm
say S = 210 mm say S = 210 mm say S = 210 mm
USE, S = 220 mm USE, S = 220 mm USE, S = 220 mm
Col Strip Col Strip Col Strip
Spacing = 330 mm Spacing = 330 mm Spacing = 330 mm
Check for maximum spacing:
Max Spacing, Smax = 2t or 450
Smax = 250 mm
Non-critical Smax = 3t or 450

Smax = 375 mm

Check for Spacing of temp. bar or placement bar:


Max Spacing, Smax = 5t or 450
Smax = 450 mm

Check the adequacy of the design Slab thickness:


using max. moment = 7.75098 kN.m
2
provided As = 628.318531 mm
provided ρ = 0.00634665
provided w = 0.06890651
req'd d = 78.7643781 mm
Status: OK!

You might also like
