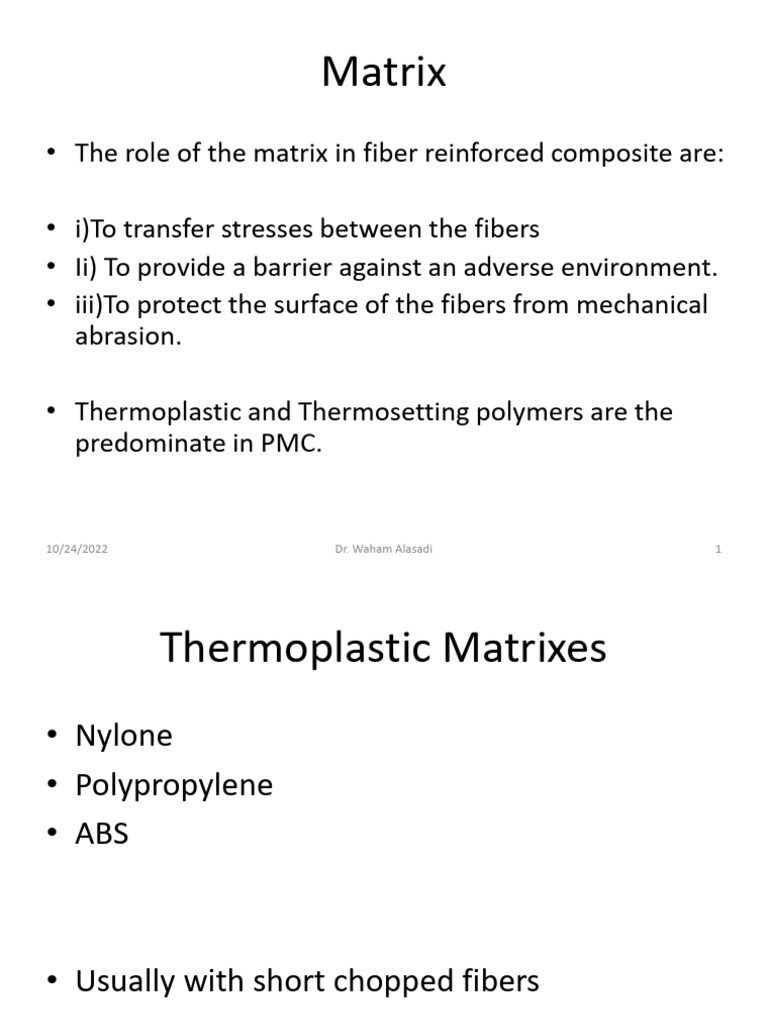

The document discusses the role and types of matrices in fiber reinforced composites. Thermoplastic and thermosetting polymers are the main matrix materials. Thermoplastics like nylon and polypropylene are typically used with short chopped fibers, while thermosetting resins like polyester, epoxy, and vinyl ester are commonly used. The curing process of thermosets involves chemical reactions, heat evolution, and viscosity increases until gelation occurs when the material can no longer flow. Cure kinetics are visualized using time-temperature transformation diagrams. Different manufacturing techniques are used to produce composites depending on the application. Adhesion between the fiber and matrix is important for properties and occurs through mechanisms like wetting
The document discusses the role and types of matrices in fiber reinforced composites. Thermoplastic and thermosetting polymers are the main matrix materials. Thermoplastics like nylon and polypropylene are typically used with short chopped fibers, while thermosetting resins like polyester, epoxy, and vinyl ester are commonly used. The curing process of thermosets involves chemical reactions, heat evolution, and viscosity increases until gelation occurs when the material can no longer flow. Cure kinetics are visualized using time-temperature transformation diagrams. Different manufacturing techniques are used to produce composites depending on the application. Adhesion between the fiber and matrix is important for properties and occurs through mechanisms like wetting
The document discusses the role and types of matrices in fiber reinforced composites. Thermoplastic and thermosetting polymers are the main matrix materials. Thermoplastics like nylon and polypropylene are typically used with short chopped fibers, while thermosetting resins like polyester, epoxy, and vinyl ester are commonly used. The curing process of thermosets involves chemical reactions, heat evolution, and viscosity increases until gelation occurs when the material can no longer flow. Cure kinetics are visualized using time-temperature transformation diagrams. Different manufacturing techniques are used to produce composites depending on the application. Adhesion between the fiber and matrix is important for properties and occurs through mechanisms like wetting
Curing and Gelation • Cure is defined as a process for changing the properties of a resin via chemical reaction.
Occur during cure
• Chemical reaction • Heat evolution (heat of reaction) • Evolution of any volatiles • Increase in viscosity • Gelation • Vitrification 10/24/2022 Dr. Waham Alasadi 4 Curing and Gelation • Viscosity of the system rises until gelation occurs. (materials will no longer flow). WHY? • Two phases exist (gel phase & sol phase). • The sol phase can be extracted with solvents. • The amount of sol phase decreases as the reaction progresses further. • Finally, vitrification (hardening) occurs.
10/24/2022 Dr. Waham Alasadi 5
The Time Temperature transformation diagram (TTT) • TTT diagram can be use to visualize and compare cure of thermosetting systems. • TTT diagrams mark the times four main events occur during isothermal cure at various temperature. • Gelation • Vitrification • Full cure • Devitrification
10/24/2022 Dr. Waham Alasadi 6
TTT
10/24/2022 Dr. Waham Alasadi 7
TTT • Gelation: The incipient formation of an infinite molecular network and the system will no longer flow. • Vitrification: The Tg of the forming polymer rises above the temperature of cure, and the polymer become more and more cross-linked. • Full cure: highest attainable degree of cure. • Devitrification: The Tg decreases through the isothermal temperature, (degradation). 10/24/2022 Dr. Waham Alasadi 8 Manufacturing Technique • Hand lay-up / wet lay up • Spray lay up • Filament winding • Pultrusion • Vacuum Bagging/ aoutoclave molding • Resin Transfer molding • Compression molding
10/24/2022 Dr. Waham Alasadi 9
Interface in Composite Materials • To say that composites consists of matrix and fiber is only partially correct.
• In order for composite to be form fiber and
matrix have to be in some way connected.
• The quality of the connection determines
many properties such as strength, toughness. 10/24/2022 Dr. Waham Alasadi 10 Theories of adhesion • Adhesion can be attributed to five main mechanisms, which can occur at the interface either in isolation or in combination to form bond.
1- Adsorption and wetting • If two electrically neutral surfaces are brought sufficiently close together, there will be physical attraction, by considering the wetting of the solid surface via liquids.
• If two solids brought together, the roughness
of the surface on an atomic scale prevent the surface coming into contact except at some points.
10/24/2022 Dr. Waham Alasadi 12
Two solid surfaces
10/24/2022 Dr. Waham Alasadi 13
Adsorption and wetting • Wetting can be understood in terms of two simple Eqs. 1- Dupre Eq. for thermodynamic work of adhesion. •
• Where γ1 is the surface free energy of the solid, γ2 is
the surface tension of a liquid and γ12 is the interfacial tension between solid and the liquid.
• This eq. can be related to physical situation of liquid
drop on solid surface using Young eq. 10/24/2022 Dr. Waham Alasadi 14 2- Young’s equation
10/24/2022 Dr. Waham Alasadi 15
Contact Angle
10/24/2022 Dr. Waham Alasadi 16
Work of Adhesion • A value for work of adhesion can be obtained be combining eq 1 and 2.
10/24/2022 Dr. Waham Alasadi 17
Critical surface tension • The critical surface tension is the highest liquid surface tension that can completely wet a specific solid surface.
• Therefore, the best wetting occurs with a solid with high
surface energy and liquid with a low surface energy.
• Thus, glass and graphite with theoretically calculated
surface energy of 560 mj/m2 and 70 mj/m2 respectively will be readily wetted by polyester and epoxy resins with surface energy of 35 mj/m2 and 43 mj/m2 respectively.
• It will be difficult to wet polyethylene, which has a critical
surface energy of 31 mj/m2 with these resins.
10/24/2022 Dr. Waham Alasadi 18
Affecting Factors • Surface contamination. • Presence of entrapped air and other gases at the solid surface. • The occurrence of large shrinkage stress during the curing process leading to displacement at the surface. 10/24/2022 Dr. Waham Alasadi 19 10/24/2022 Dr. Waham Alasadi 20 2- Interdiffusion • It is to form a bond between two polymer surfaces by the diffusion of the polymer molecules on one into other surface of molecular network.
10/24/2022 Dr. Waham Alasadi 21
2- Interdiffusion • The strength of the bond depend on:
• 1- number of molecules involved
• 2- the amount of molecular entanglement • 3- presence of solvents and plasticizing agents • 4- fiber precoated with polymer before incorporating into the polymer matrix.
10/24/2022 Dr. Waham Alasadi 22
3- Electrostatic Attraction • Attraction forces occur between two surface when one surface carries a net positive charge and the other surface curries a net negative charge. • The strength of the interface is depend on the density of the charge. • In most cases electrostatic attraction is unlikely to make major contribution to the final bond strength of fiber-matrix.
10/24/2022 Dr. Waham Alasadi 23
3- Electrostatic Attraction • Electrostatic forces could have an important role in the way coupling agents working. • Some time the surface of glass fiber may exhibit anionic or cationic properties depending on the oxides of the glass.
10/24/2022 Dr. Waham Alasadi 24
4- Chemical Bonding • Chemical bonding offers the main explanation for the use of coupling agents on glass, and carbon fibers in polymer matrix. • The strength of the bond depends on number and type of bonds. • The processes of chemical bonding and breakage might need form of energy in some cases.
10/24/2022 Dr. Waham Alasadi 25
5- Mechanical Adhesion • Some bonding may occur purely be mechanical interlocking of two surfaces. •
10/24/2022 Dr. Waham Alasadi 26
5- Mechanical Adhesion • The strength of this interface is unlikely to be high unless there are a large number of re-entrant angles on the fiber surface. • Roughness of the surface might has a significant effect on the mechanical adhesion strength. • Resin shrinkage during curing of thermosetting polymers, different thermal expansion of the fiber and matrix can have a negative effect on the final adhesion characteristics.
