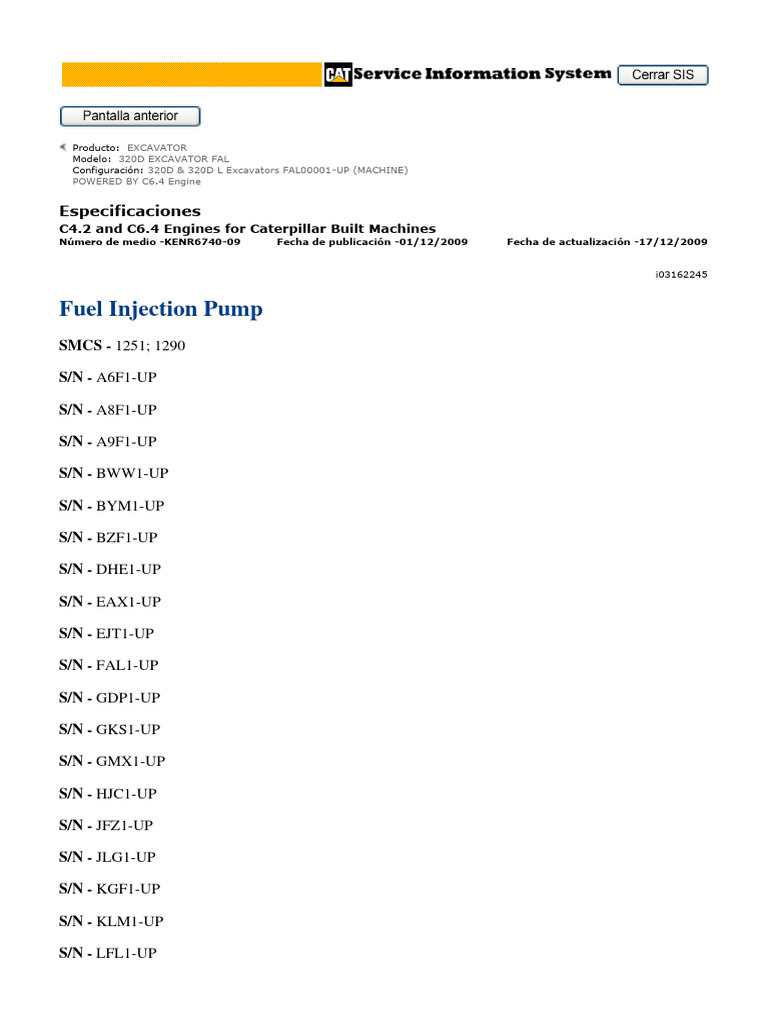

Producto: EXCAVATOR
Modelo: 320D EXCAVATOR FAL
Configuración: 320D & 320D L Excavators FAL00001-UP (MACHINE)
POWERED BY C6.4 Engine

Especificaciones
C4.2 and C6.4 Engines for Caterpillar Built Machines
Número de medio -KENR6740-09 Fecha de publicación -01/12/2009 Fecha de actualización -17/12/2009

i03162245

Fuel Injection Pump


SMCS - 1251; 1290

S/N - A6F1-UP

S/N - A8F1-UP

S/N - A9F1-UP

S/N - BWW1-UP

S/N - BYM1-UP

S/N - BZF1-UP

S/N - DHE1-UP

S/N - EAX1-UP

S/N - EJT1-UP

S/N - FAL1-UP

S/N - GDP1-UP

S/N - GKS1-UP

S/N - GMX1-UP

S/N - HJC1-UP

S/N - JFZ1-UP

S/N - JLG1-UP

S/N - KGF1-UP

S/N - KLM1-UP

S/N - LFL1-UP
S/N - MCH1-UP

S/N - MDT1-UP

S/N - NAS1-UP

S/N - PBD1-UP

S/N - PBE1-UP

S/N - PCX1-UP

S/N - PHH1-UP

S/N - PHX1-UP

S/N - RAC1-UP

S/N - SED1-UP

S/N - SPN1-UP

S/N - TAE1-UP

S/N - TDH1-UP

S/N - WFD1-UP

S/N - XCK1-UP

S/N - YDS1-UP

S/N - ZGB1-UP

S/N - ZMF1-UP
Illustration 1 g01590853

(1) Torque for the solenoid valve group ... 70 ± 5 N·m (50 ± 4 lb ft)

(2) Torque for two plugs ... 60 ± 6 N·m (44 ± 4 lb ft)

(3) Torque for the plug ... 15 ± 2 N·m (11 ± 1 lb ft)

(4) Use the following procedure to tighten the bolt:

1. Tighten the bolt to 5 N·m (45 lb in).

2. Rotate the bolt for an angle of 18.8 ± 1.0 degrees.

3. Final torque for the bolt must be 12 ± 2 N·m (105 ± 18 lb in).

(5) Before assembly, lubricate three seals with clean engine oil.
Illustration 2 g01590855

(6) Torque for two plugs ... 40 ± 3 N·m (30 ± 2 lb ft)

(7) Torque for the bolt ... 12 ± 3 N·m (105 ± 27 lb in)

(8) Torque for the bolt ... 9 ± 1 N·m (80 ± 9 lb in)

(9) Torque for five bolts ... 30 ± 2 N·m (22 ± 1 lb ft)

(10) Use the following procedure to tighten four bolts:

1. Tighten the bolts to 5 N·m (45 lb in).

2. Rotate the bolts for an angle of 19.9 ± 1.0 degrees.

3. Final torque for the bolts must be 12 ± 2 N·m (105 ± 18 lb in).


Illustration 3 g01590859

(11) Torque for the connector ... 25.0 ± 2.5 N·m (18 ± 2 lb ft)

(12) Torque for the connector ... 25.0 ± 2.5 N·m (18 ± 2 lb ft)

(13) Torque for the connector ... 25.0 ± 2.5 N·m (18 ± 2 lb ft)

(14) Torque for the connector ... 25.0 ± 2.5 N·m (18 ± 2 lb ft)
