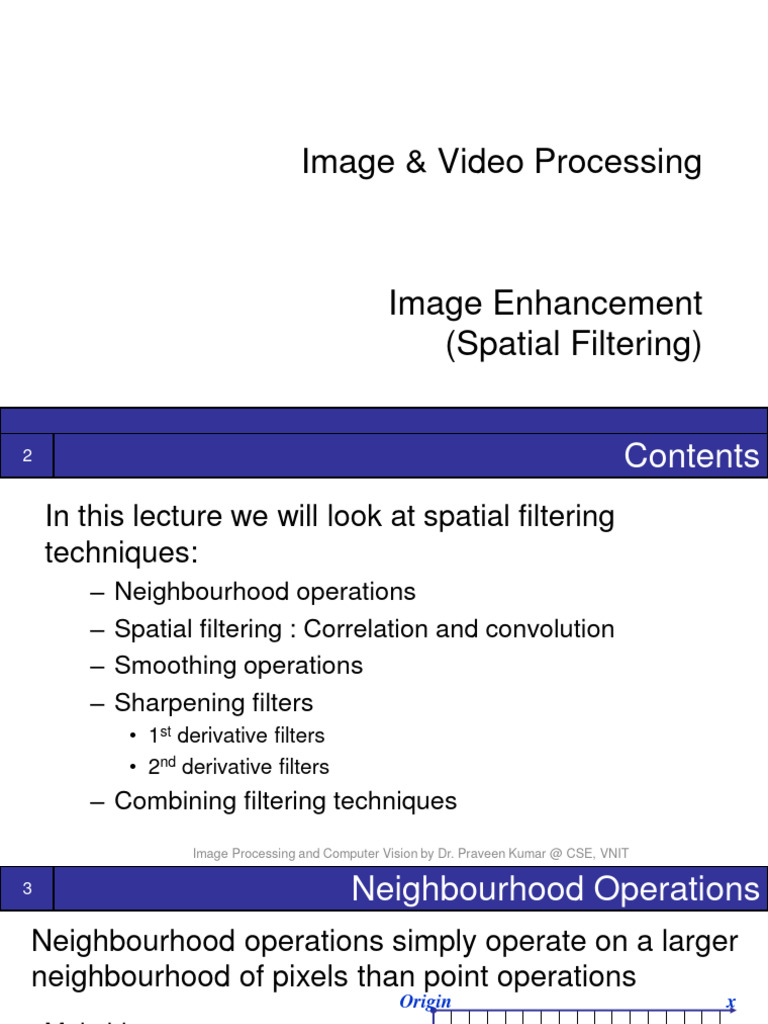

Image & Video Processing

Image Enhancement
(Spatial Filtering)
2 Contents
In this lecture we will look at spatial filtering
techniques:
– Neighbourhood operations
– Spatial filtering : Correlation and convolution
– Smoothing operations
– Sharpening filters
• 1st derivative filters
• 2nd derivative filters
– Combining filtering techniques
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
3 Neighbourhood Operations
Neighbourhood operations simply operate on a larger
neighbourhood of pixels than point operations
Origin x
Main idea
– Define a neighborhood of a pixel
– Define an operation on pixels in the
neighborhood (x, y)
Neighbourhood
– Output pixel value = result of the
operation

y Image f (x, y)
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
5 The Spatial Filtering Process
Origin x
a b c r s t
d e f u v w
g h i * x y z
Original Image Filter
Simple 3*3 e 3*3 Filter Pixels
Neighbourhood
eprocessed = v*e +
r*a + s*b + t*c +
y Image f (x, y) u*d + w*f +
x*g + y*h + z*i
This is repeated for every pixel in the original image to generate the filtered image
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
6 Linear Spatial Filtering
• Create a filter or mask w, size m x n
• Apply to image f, size M x N
• Compute the sum of products of mask coefficients with corresponding
pixels under mask
• Slide mask over image, apply at each point
m/ 2 n/ 2

g(x, y) =   w(s, t) f (x + s, y + t)
s=−m/ 2 t =−n/ 2
Also called “cross-correlation”
= w(x, y)  f (x, y)
• It is a linear operation
w(x, y)  ( a f (x, y)) = a w(x, y)  f (x, y)
w(x, y) ( f (x, y) + g(x, y)) = w(x, y)  f (x, y) + w(x, y)  g(x, y)

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
8 Smoothing Spatial Filters
One of the simplest spatial filtering operations we can
perform is a smoothing operation
– Simply average all of the pixels in a neighbourhood
around a central value
– Especially useful 1/
9
1/
9
1/
9
in removing noise
from images 1/
9
1/
9
1/
9 Simple
– Also useful for 1/ 1/ 1/
averaging
highlighting gross
9 9 9
‘box’ filter
detail
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
9 Averaging in 1D
Replace each pixel with an average of all the values
in its neighborhood – a moving average:

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
10 Averaging in 2D

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
11 What Happens At The Edges!
At the edges of an image we are missing
pixels to form a neighbourhood
Origin x
e e

e
e

e e e
y Image f (x, y)
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
12 What Happens At The Edges! (cont…)
There are a few approaches to dealing with missing edge
pixels:
– Omit missing pixels
• Can add extra code and slow down processing
– Pad the image
• Typically with either all white or all black pixels
– Replicate border pixels
– Truncate the image
– Allow pixels wrap around the image
• Can cause some strange image artefacts

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
13
What Happens At The Edges!

Averaged Image:
Zero Padding

Original Averaged Image:


Image Replicate Edge Pixels

Averaged Image:
Wrap Around Edge Pixels

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
14 Image Smoothing Example
The image at the top left
is an original image of
size 500*500 pixels
The subsequent images
show the image after
filtering with an averaging
filter of increasing sizes
– 3, 5, 9, 15 and 35
Notice how detail begins
to disappear

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
15 Another Smoothing Example
By smoothing the original image we get rid of lots
of the finer detail which leaves only the gross
features for thresholding

Original Image Smoothed Image Thresholded Image

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
16 Averaging as noise removal
Why Averaging
would help to
remove noise?

Original Image Image After


With Noise Averaging Filter
Assumptions:
1. The true value of the pixel is similar to the true value of the
nearby pixels
2. Noise is random and independent
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
17 Quiz
Q: If noise is just a function added to an image, we
could remove the noise by subtracting the noise
again – that is the operation is reversible?
a) True
b) True but we don’t know the noise function so we
can’t actually do the subtraction.
c) False. Additive noise destroys information in the
image and there is no way to recover it.

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
18 Weighted Smoothing Filters
More effective smoothing filters can be generated by
allowing different pixels in the neighbourhood different
weights in the averaging function
– Pixels closer to the 1/
16
2/
16
1/
16

central pixel are more 2/ 4/ 2/


16 16 16
important
– Often referred to as a 1/
16
2/
16
1/
16
weighted averaging
Weighted
averaging filter
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
19 Gaussian – an important smoothing filter
Notes:
• 1D
1
0.9
0.8  is the standard
2 0.7
deviation
h(x) = 1 e − 2x 2 0.6

0.5

2
0.4 Values should sum to 1
0.3
0.2 Mask size should be at
least ±3
0.1

0
-10 -8 -6 -4 -2 0 2 4 6 8 10

• 2D − x +y2
2 2

h(x, y) = 1 e 2 0.01

2 2 0.008

0.006

0.004

0.002

0 30 40
40 20 30

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
20 Smoothing with a Gaussian

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
21 Smoothing with not a Gaussian

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
22 Gaussian filters
Variance (𝝈𝟐) or standard deviation (𝝈) – determines
extent of smoothing

σ = 2 with 30 x 30 kernel σ = 5 with 30 x 30 kernel


Note: Size of kernel or mask is not necessarily variance
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
23 Matlab
>> fsize = 31;
>> sigma = 5;
>> h = fspecial(‘gaussian’, fsize, sigma);

>> surf(h);

>> imagesc(h);
im outim
>> outim = imfilter(im, h);
>> imshow(outim);
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
24 Varying Sigma
for sigma=1:3:10
h = fspecial('gaussian’, fsize, sigma);
out = imfilter(im, h);
imshow(out); pause;
end

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
25 Quiz
When filtering with a Gaussian, which is true:
A.The sigma is most important – it defines the blur
kernel’s scale with respect to the image.
B.The kernel size is most important – because it
defines the scale.
C.Altering the normalization coefficient does not
effect the blur, only the brightness.
D. A and C.

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
26
Filters as Templates
• Another use of filters can be as templates of certain
“interesting” regions in an image (like some object,
shape etc)
• By doing a spatial correlation of the filter/template
with the image one can localize/detect those
“interesting” areas in an image by looking at strong
responses of the filter at various locations in the

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
27 Vector representation of correlation
• Correlation is a sum of m/ 2 n/ 2

products of c(x, y) =   w(s,t) f (x + s, y + t)


s=−m/ 2 t =−n/ 2
corresponding terms
= w(x, y)  f (x, y)
• We can think of
correlation as a dot
product of vectors w c = w1 f1 + w2 f 2 + +w f
mn mn

and f mn
=  wk f k = w T f
• If images w and f are k=1
similar, i.e vectors are
aligned, then the
correlation score c is high
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
28 Template matching - A toy example

Template (mask)

Scene Correlation map

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
29 Weaknesses of correlation
Suppose we correlate a 1D filter:

With the 1D signal:

We get the result:

What is the problem?

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
30 Solution
• SSD – take sum of squared difference

• Normalized cross correlation


wT f
c= where w = w12 + w2 + w 3 ++ w N
2 2 2

w f

• result is between 0..1 (for positive valued images)


• can get better precision by subtracting off means, then
result is between -1 .. +1
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
31 Normalized cross correlation

c = normxcorr2(onion,peppers);
figure, surf(c), shading flat;

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
32 Line Detection
How can we detect straight lines in a binary image ?

Following masks can extract lines that are one pixel


thick and in a particular direction

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
33 Line Detection (cont…)
Binary image of a wire
bond mask

After Result of
processing thresholding
with -45° line filtering result
detector

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
34 Template matching

What if the template is not identical to


some sub-image in the scene?

Template
Scene

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
35 Template matching

Match can be meaningful, if general


appearance, scale and orientation is right

Template
Scene

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
36 Quiz
Which of the following case would template matching work?

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
37 Correlation and Convolution
• Correlation
m/2 n/2
g(x, y) =  
s=−m/ 2 t=−n/ 2
w(s, t) f (x + s, y + t)

= w(x, y)  f (x, y)
• Convolution is very similar
• Convolution to correlation, except that
m/ 2 n/ 2 we flip one of the functions
g(x, y) =   w(s,t) f (x − s, y − t)
• For symmetric filters it
s=−m/ 2 t=−n/ 2

= w(x, y)  f (x, y) makes no difference


– Note that • Also a linear operation
m/2 n/2 m/2 n/2

 
s=−m/ 2 t=−n/ 2
w(s,t) f (x − s, y − t) =  
s=−m/2 t=−n/ 2
w(−s, −t) f (x + s, y + t)

– So to implement convolution we can reflect w(x,y) and then do correlation


Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
38 Properties
• Convolution is
– Commutative
f*g=g*f
– Associative
f * (g * h) = (f * g) * h
– Distributive
f * (g + h) = f * g + f * h

• Correlation is distributive but not commutative or associative


• Convolution of a filter h(x,y) with an impulse (x,y) yields h(x,y)

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
39 Convolving with two Gaussians
• You can convolve a function with a Gaussian, then convolve again
with a Gaussian. The effect is the same as convolving with a single,
larger Gaussian
• Why? Since convolution is associative

g1 ( g2  f ) = (g1  g2 ) f
− x2 − x2
• and if
g1 = 1 e 212
, g2 = 1 e 2 22
2 1 2 2 i.e., it is a Gaussian

2
then − x with standard
e ( )
1  12+ 22
g1  g 2 =
2 deviation
2 ( +  2
1
2
2 )  new = 12 +  22

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
40 Computational Complexity
• If an image is NxN and a kernel (filter) is WxW,
how many multiplies do you need to compute a
convolution?
• You need O(N*N*W*W) = O(N2W2 )
• This can get huge if W is big enough

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
41 Separable kernels (filter masks)
• If a 2D convolution kernel can be separated into two 1D kernels,
the operation is much faster
– If h(x, y) = h1(x)h2 ( y)
– then h(x, y)  f (x, y) = h1 (x)  (h2 ( y)  f (x, y) )
• Namely, do a 1D correlation with h2(y) along the individual columns
of the input image, then do a 1D correlation with h1(x) along the
rows of the result from the previous step
• If h(x,y) is nxn, and f(x,y) is NxN
– Cost of a 2D correlation?
– Cost of two 1D correlations?

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
42 Non Linear Filters

Spatial filters that are based on ordering of the pixel


values that make up the neighbourhood operated
on by the filter
Useful spatial filters include
– Max and min filter
– Median filter
– Adaptive median filter

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
43 Max and Min Filter
Max Filter:

fˆ ( x, y) = max {g ( s, t )}
( s ,t )S xy

Min Filter:
fˆ ( x, y ) = min {g ( s, t )}
( s ,t )S xy

Max filter is good for pepper noise and min is


good for salt noise
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
44 Noise Removal Examples (cont…)

Image Image
Corrupted Corrupted
By Pepper By Salt
Noise Noise
Result Of Result Of
Filtering Filtering
Above Above
With A 3*3 With A 3*3
Max Filter Min Filter
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
45 Median Filter
Median Filter:
fˆ ( x, y) = median{g ( s, t )}
( s ,t )S xy

Excellent at removing salt and pepper noise without much


modifying the original pixel values as other smoothing filters

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
46 Median Filter
Median Filter:
– Doesn’t blur sharp edges in the image

12 12

10
10

8
8

6
6

4
2

2
0

-2 0
0 5 10 15 20 25 30 35 40 45 50 0 5 10 15 20 25 30 35 40 45 50

median filtered, filter width=7

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
47 Averaging Filter Vs. Median Filter Example

Original Image Image After Image After


With Noise Averaging Filter Median Filter

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
48 Noise Removal Examples

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
49 Noise Removal Examples

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
50 Noise Removal Examples (contd)

Image Result of 1
Corrupted Pass With A
By Salt And 3*3 Median
Pepper Noise Filter

Result of 2 Result of 3
Passes With Passes With
A 3*3 Median A 3*3 Median
Filter Filter

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
51 Adaptive Median Filtering
• The median filter performs relatively well on
impulse noise as long as the spatial density of the
impulse noise is not large
• The adaptive median filter can handle much more
spatially dense impulse noise with less distortion
• The key insight in the adaptive median filter is that
the filter size changes depending on the
characteristics of the image region

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
52 Adaptive Median Filtering (cont…)
The adaptive median filter has following purposes:
– Remove spatially dense impulse noise
– Reduce distortion
First examine the following notation:
– zmin = minimum grey level in Sxy
– zmax = maximum grey level in Sxy
– zmed = median of grey levels in Sxy
– zxy = grey level at coordinates (x, y)
– Smax =maximum allowed size of Sxy
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
53 Adaptive Median Filtering (cont…)
Level A: A1 = zmed – zmin
A2 = zmed – zmax
If A1 > 0 and A2 < 0, Go to level B
Else increase the window size
If window size ≤ Smax repeat level A
Else output zmed
Level B: B1 = zxy – zmin
B2 = zxy – zmax
If B1 > 0 and B2 < 0, output zxy
Else output zmed
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
54 Simple Adaptive Median Filtering Example

Using only
level B and
filter 7 x 7

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
55 Adaptive Median Filtering Examples

Image corrupted by salt Result of filtering with a 7 Result of adaptive median


and pepper noise with * 7 median filter filtering with Smax = 7
probabilities Pa = Pb=0.25

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
56 Image sharpening
How about sharpening the image to highlight fine detail
– Remove blurring from images
– Highlight discontinuities (edges etc.)
How can you accomplish Sharpening by spatial filters?

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
57 Unsharp masking & Highboost filtering

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
58 Spatial Differentiation
• Image differentiation can help enhance edges
and other discontinuities (such as noise)
• Differentiation measures the rate of change of a
function.
• Thus, the strength of a derivative operator at any
location should be proportional to the degree of
discontinuity of the image at that location.

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
59 Spatial Differentiation
For 2D function, f(x,y), the partial derivative is defined as:
 f ( x , y) f (x +,y) − f(x ,y )
= lim
x  →0

For discrete data, we can approximate using finite
differences:
f (x, y)
 f (x +1, y) − f (x, y)
• Right difference x
f (x, y)
 f (x , y) − f (x-1, y)
• Left difference x
f
• Central difference  ( f (x +1) − f (x −1)) / 2
x

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
60 2nd Derivative
The formula for the 2nd derivative of a function is as
follows:

2 f
= f ( x + 1, y ) + f ( x − 1, y ) − 2 f ( x, y )
 x
2

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
61 1D example
Let’s consider a
simple 1
dimensional
example

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
63 The Laplacian
The first sharpening filter we will look at is the Laplacian
which is defined as follows:  2
f  2
f
2
 f = +
 x2
2 y
where the partial 2nd order derivative in the x direction is
defined as follows:
2 f
= f ( x + 1, y ) + f ( x − 1, y ) − 2 f ( x, y )
 x
2

and in the y direction as follows:


2 f
= f ( x, y + 1) + f ( x, y − 1) − 2 f ( x, y )
 y Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
2
64 The Laplacian as a Filter
So, the Laplacian can be given as follows:
2 f = [ f ( x + 1, y) + f ( x − 1, y)
+ f ( x, y + 1) + f ( x, y − 1)]
− 4 f ( x, y)
We can easily build a filter based on this
0 1 0
1 -4 1
0 1 0
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
65 Variants On The Simple Laplacian

There are lots of slightly


different versions of the
Laplacian that can be
used:

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
66 The Laplacian (cont…)
Applying the Laplacian to an image we get a new
image that highlights edges and other discontinuities

Original Laplacian Laplacian


Image Filtered Image Filtered Image
Scaled for Display
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
67 But That Is Not Very Enhanced!
We have to do more work in order to
get our final image
Subtract the Laplacian result from the
original image to generate our final
sharpened enhanced image
Laplacian
g ( x, y) = f ( x, y) −  f 2
Filtered Image
Scaled for Display

Q: Why Subtract and not add?


Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
68 Laplacian Image Enhancement

- =
Original Laplacian Sharpened
Image Filtered Image Image

Important to keep in mind which variant of Laplacian


is used to decide whether to add or subtract
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
69 Laplacian Image Enhancement

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
70 Simplified Image Enhancement
The entire enhancement can be combined into a
single filtering operation
g ( x, y) = f ( x, y) −  f 2

= f ( x, y) − [ f ( x + 1, y) + f ( x − 1, y)
+ f ( x, y + 1) + f ( x, y − 1)
− 4 f ( x, y)]
= 5 f ( x, y) − f ( x + 1, y) − f ( x − 1, y)
− f ( x, y + 1) − f ( x, y − 1)
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
71 Simplified Image Enhancement (cont…)
This gives us a new filter which does the whole job for
us in one step

0 -1 0
-1 5 -1
0 -1 0

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
72 Simplified Image Enhancement (cont…)

Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT
73 Summary
• We discussed various spatial domain image
enhancement techniques for
- contrast stretching
- removal of different types of noise
- Image smoothing and sharpening
• We also discussed using spatial filters as templates
for detecting objects and interesting shapes
• Next we will discuss methods for detecting edges
for image representation
Image Processing and Computer Vision by Dr. Praveen Kumar @ CSE, VNIT

You might also like
