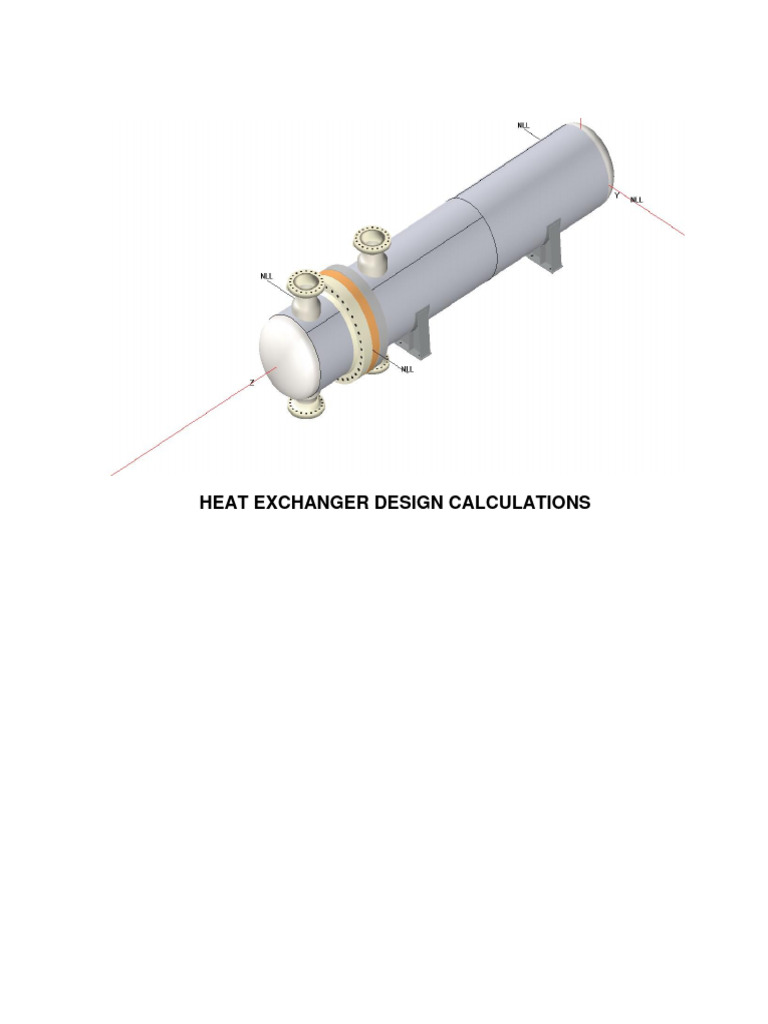

HEAT EXCHANGER DESIGN CALCULATIONS

Shell #1

ASME Section VIII Division 1, 2023 Edition Metric


Component Cylinder
Material SA-516 70 (II-D Metric p. 20, ln. 45)
Impact Fine Grain Maximize MDMT/
Normalized PWHT
Tested Practice No MAWP
No Yes Yes Yes No
Design Design Design
Pressure (kgf/cm2) Temperature (°C) MDMT (°C)
Internal 61 145
0
External 1.05 145
Static Liquid Head
Condition Ps (kgf/cm2) Hs (mm) SG
Operating 0.06 612.5 1
Test horizontal 0.17 1,744.5 1
Dimensions
Inner Diameter 1,219 mm
Length 2,551 mm
Nominal Thickness 40 mm
Inner 3 mm
Corrosion
Outer 0 mm
Weight and Capacity
Weight (kg) Capacity (liters)
New 3,057.54 1,879.28
Corroded 2,835.21 1,908.66
Radiography
Longitudinal seam Full UW-11(a) Type 1
Left Circumferential
Full UW-11(a) Type 1
seam
Right Circumferential
Full UW-11(a) Type 1
seam

104/199
Results Summary
Governing condition Internal pressure
Minimum thickness per UG-16 1.5 mm + 3 mm = 4.5 mm
Design thickness due to internal pressure (t) 30.29 mm
Design thickness due to external pressure (te) 10.55 mm
Maximum allowable working pressure (MAWP) 81.97 kg/cm2
Rated MDMT -39.51 °C

UCS-66 Material Toughness Requirements


Governing thickness, tg = 40 mm
Exemption temperature from Fig UCS-66M Curve D = -24.81°C
tr = 61.06*612.5 / (1,407.21*1 - 0.6*61.06) = 27.29 mm
Stress ratio = tr*E* / (tn - c) = 27.29*1 / (40 - 3) = 0.7375
Stress ratio longitudinal = 790.171*1 / (1,407.208*1) = 0.5615
Reduction in MDMT, TR from Fig UCS-66.1M = 14.7°C
MDMT = max[ MDMT - TR, -48] = max[ -24.81 - 14.7 , -48] = -39.51°C
Material is exempt from impact testing at the Design MDMT of 0°C.

Design thickness, (at 145 °C) UG-27(c)(1)

t = P*R / (S*E - 0.60*P) + Corrosion


= 61.06*612.5 / (1,407.21*1.00 - 0.60*61.06) + 3
= 30.29 mm

Maximum allowable working pressure, (at 145 °C) UG-27(c)(1)

P = S*E*t / (R + 0.60*t) - Ps
= 1,407.21*1.00*37 / (612.5 + 0.60*37) - 0.06
= 81.97 kg/cm2

External Pressure, (Corroded & at 145 °C) UG-28(c)

L / Do = 5,520.58 / 1,299 = 4.2499


Do / t = 1,299 / 7.55 = 171.9997

From table G: A = 0.000133


From table CS-2 Metric: B = 136.0435 kg/cm2

Pa = 4*B / (3*(Do / t))


= 4*136.04 / (3*(1,299 / 7.55))
= 1.05 kg/cm2

Design thickness for external pressure Pa = 1.05 kg/cm2

ta = t + Corrosion = 7.55 + 3 = 10.55 mm

105/199
% Extreme fiber elongation - UCS-79(d)

EFE = (50*t / Rf)*(1 - Rf / Ro)


= (50*40 / 629.5)*(1 - 629.5 / infinity)
= 3.1771%

The extreme fiber elongation does not exceed 5%.

Allowable Compressive Stress, Hot and Corroded- ScHC, (table CS-2


Metric)
A = 0.125 / (Ro / t)
= 0.125 / (649.5 / 37)
= 0.007121
B = 1,217.9 kg/cm2
S = 1,407.2 / 1.00 = 1,407.2 kg/cm2
ScHC = min(B, S) = 1,217.9 kg/cm2

Allowable Compressive Stress, Hot and New- ScHN, (table CS-2 Metric)
A = 0.125 / (Ro / t)
= 0.125 / (649.5 / 40)
= 0.007698
B = 1,218.9 kg/cm2
S = 1,407.2 / 1.00 = 1,407.2 kg/cm2
ScHN = min(B, S) = 1,218.9 kg/cm2

Allowable Compressive Stress, Cold and New- ScCN, (table CS-2 Metric)
A = 0.125 / (Ro / t)
= 0.125 / (649.5 / 40)
= 0.007698
B = 1,218.9 kg/cm2
S = 1,407.2 / 1.00 = 1,407.2 kg/cm2
ScCN = min(B, S) = 1,218.9 kg/cm2

Allowable Compressive Stress, Cold and Corroded- ScCC, (table CS-2


Metric)
A = 0.125 / (Ro / t)
= 0.125 / (649.5 / 37)
= 0.007121
B = 1,217.9 kg/cm2
S = 1,407.2 / 1.00 = 1,407.2 kg/cm2
ScCC = min(B, S) = 1,217.9 kg/cm2

Allowable Compressive Stress, Vacuum and Corroded- ScVC, (table


CS-2 Metric)
A = 0.125 / (Ro / t)
= 0.125 / (649.5 / 37)
= 0.007121

106/199
B = 1,217.9 kg/cm2
S = 1,407.2 / 1.00 = 1,407.2 kg/cm2
ScVC = min(B, S) = 1,217.9 kg/cm2

ASME Section VIII Division 1 UG-80(a) Out-of-Roundness


(Dmax - Dmin) shall not exceed 1% of D
When the cross section passes through an opening or within 1
I.D. of the opening,
(Dmax - Dmin) shall not exceed 1% of D + 2% of the inside
diameter of the opening

ASME Section VIII Division 1 UG-80(b) Out-of-Roundness


Measured deviation shall not exceed the maximum permissible deviation e
L / Do = 5,520.58 / 1,299 = 4.2499
Do / t = 1,299 / 37 = 35.1078
Lower curve factor = 0.3
y1 (L / Do = 4.2499) = 30
Upper curve factor = 0.4
y2 (L / Do = 4.2499) = 43.1131
CF = (35.1078 - 30) / (43.1131 - 30)*(0.4 - 0.3) + 0.3 = 0.339
e = CF*t = 0.339*37 = 12.54 mm

ASME Section VIII Division 1 Figure UG-29.2


Chord length = 2*arc length determined from Figure UG-29.2
Curve factor = 0.39
y1 (L / Do = 4.2499) = 36.9106
CF = 0.39
Arc = CF*Do = 0.39*1,299 = 506.61 mm
Chord=2*Arc=2*506.61= 1,013.22 mm

107/199
