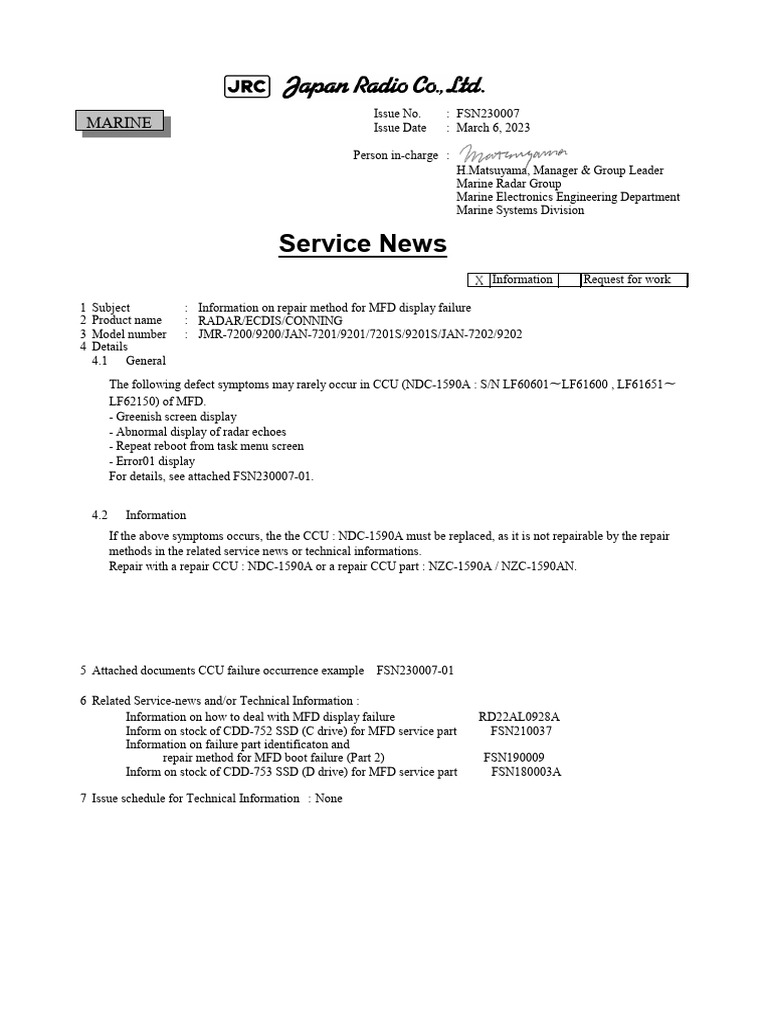

Issue No.

: FSN230007
MARINE Issue Date : March 6, 2023

Person in-charge :
H.Matsuyama, Manager & Group Leader
Marine Radar Group
Marine Electronics Engineering Department
Marine Systems Division

Service News
X Information Request for work

1 Subject : Information on repair method for MFD display failure

2 Product name : RADAR/ECDIS/CONNING
3 Model number : JMR-7200/9200/JAN-7201/9201/7201S/9201S/JAN-7202/9202
4 Details
4.1 General

The following defect symptoms may rarely occur in CCU (NDC-1590A : S/N LF60601～LF61600 , LF61651～
LF62150) of MFD.
- Greenish screen display
- Abnormal display of radar echoes
- Repeat reboot from task menu screen
- Error01 display
For details, see attached FSN230007-01.

4.2 Information
If the above symptoms occurs, the the CCU : NDC-1590A must be replaced, as it is not repairable by the repair
methods in the related service news or technical informations.
Repair with a repair CCU : NDC-1590A or a repair CCU part : NZC-1590A / NZC-1590AN.

5 Attached documents CCU failure occurrence example FSN230007-01

6 Related Service-news and/or Technical Information :

Information on how to deal with MFD display failure RD22AL0928A
Inform on stock of CDD-752 SSD (C drive) for MFD service part FSN210037
Information on failure part identificaton and
repair method for MFD boot failure (Part 2) FSN190009
Inform on stock of CDD-753 SSD (D drive) for MFD service part FSN180003A

7 Issue schedule for Technical Information : None

 FSN230007-01
CCU failure occurrence example
Occurrence Display example
1 Greenish screen display

2 Abnormal display of radar echoes

3 Repeat reboot from task menu

screen

↓
Reboot

4 Error01 display
