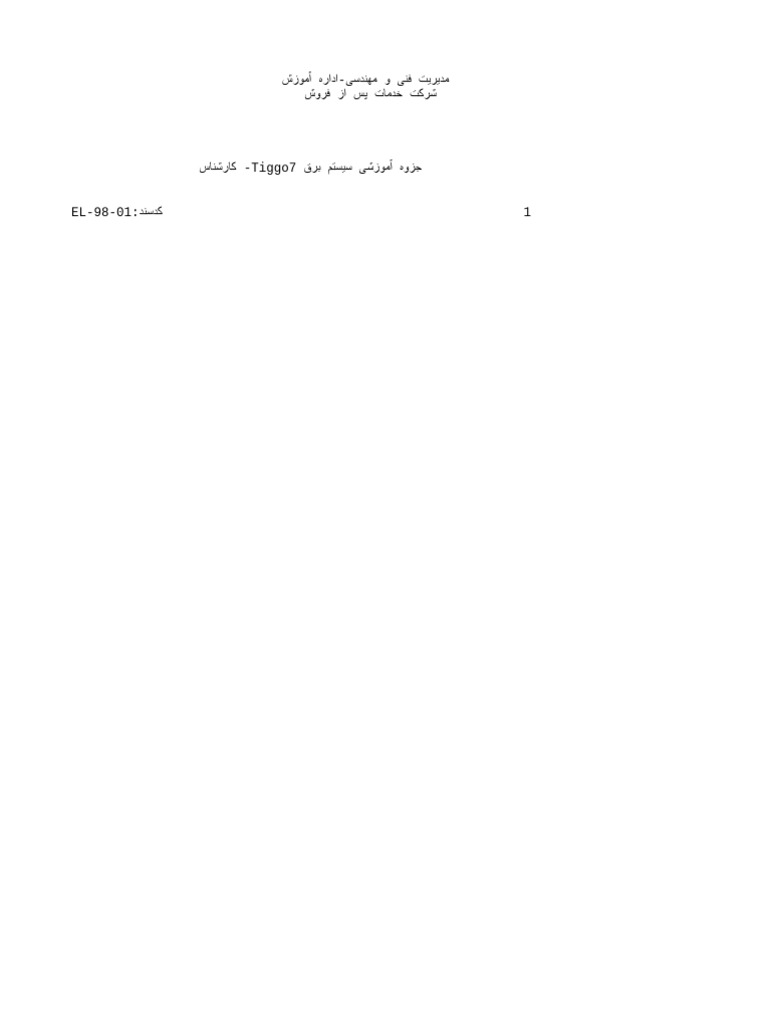

‫مدیریت فنی و مهندسی‪-‬اداره آموزش‬

‫شرکت خدمات پس از فروش‬

‫ﺟﺰوه آﻣﻮزﺷﻰ ﺳﯿﺴﺘﻢ ﺑﺮق ‪ -Tiggo7‬ﮐﺎرﺷﻨﺎس‬

‫ﮐﺪﺳﻨﺪ‪EL-98-01:‬‬ ‫‪1‬‬
By M.Ghanaatian 2
Whole Car Network Communication System
Network System overview
The whole car electrical
modules of
Tiggo 7 is of high
integration, which
Electronic Automatic air
realizes the functions
through mutual
Engine system stability conditioning
module system cooperation of modules, the
data
information interchange of
whole car
electrical modules is
realized by the
Combination
instrumentation Airbag
Body control
system
communication system
composed by
system
following communication
methods.
 Network communication
method of
Tire pressure Anti-lock
Tiggo 7
Keyless start monitoring
system braking system
system
• P-CAN
• B-CAN
• LIN

By M.Ghanaatian
3
Whole Car Network Communication System
P-CAN network structure of Tiggo 7

BCM Body Computer Module

Bcm2-3 Bcm2-16
Can-L Can-H
PEPS
Passive Entry
Passive Start
BSD System
Blind Spot Diagnosis
System

SAS
Steering Front
Angle Sensor
ESP
Electronic Stability Program

ABM
EPS Air Bag
Module
Electric Power Steering

DLC
Data Link
Connector
TCU
Transmission Control Unit

Ecu2-A2 Ecu2-A1
ECU
Engine Control Unit

By M.Ghanaatian
4
Whole Car Network Communication System
B-CAN network structure of Tiggo 7

BCM Body Computer Module

Bcm2-2 Bcm2-15
Can-L Can-H
AUDIO
Audio Infotainment

DLC
Data Link Connector

RADAR
Reversing Radar
A/C AUTO
Automatic Air conditioning

AVM
Around View Monitor

A/C PANEL
Air Conditioning Panel

Icm-29 Icm-30
ICM instrument

By M.Ghanaatian
5
Whole Car Network Communication System
LIN Network Structure of Tiggo 7

BCM Body Computer Module

Bcm1-3 Bcm1-16

Lin1 Lin2

RSM
Rain sensor module

SHIFT LEVER
Shift lever module

OBD-8 OBD-12
DLC Data Link Connector

By M.Ghanaatian 6
Whole Car Network Communication System
Car Model Communication Network
Pin 16: Positive pole voltage
Diagnosis socket introduction
Pin 4: Negative
Pin 5: Negative
Pin 6: High speed CAN1-H
Pin 14: High speed CAN1-L
Pin 3: High speed CAN2-H
Pin 11: High speed CAN2-L
Pin 8: LIN1
Pin 12: LIN2

By M.Ghanaatian 7
Whole Car Network Communication System
CAN bus information structure
CAN network checking
Measure terminal resistance: total resistance is around 60Ω
Measure equivalent voltage

Disconnect doubtful module or sensor, connector

Shake the module or wire connectors

By M.Ghanaatian 8
Whole Car Network Communication System
Common faults of CAN network
The fault has following features:
1) Open circuit: no voltage on bus
2) Short circuit to positive pole: no voltage change on bus, bus voltage U=U
accumulator
3) Short circuit to ground: no voltage change on bus, bus voltage U=0V

The reasons may be:

1) Wire breaks.
2) Wire wears concentrated.
3) Connector connection damage/contact
damage/dirt, rusting
4) Wire burned.
5) Power supply of control unit fails.
6) Control unit damage.
