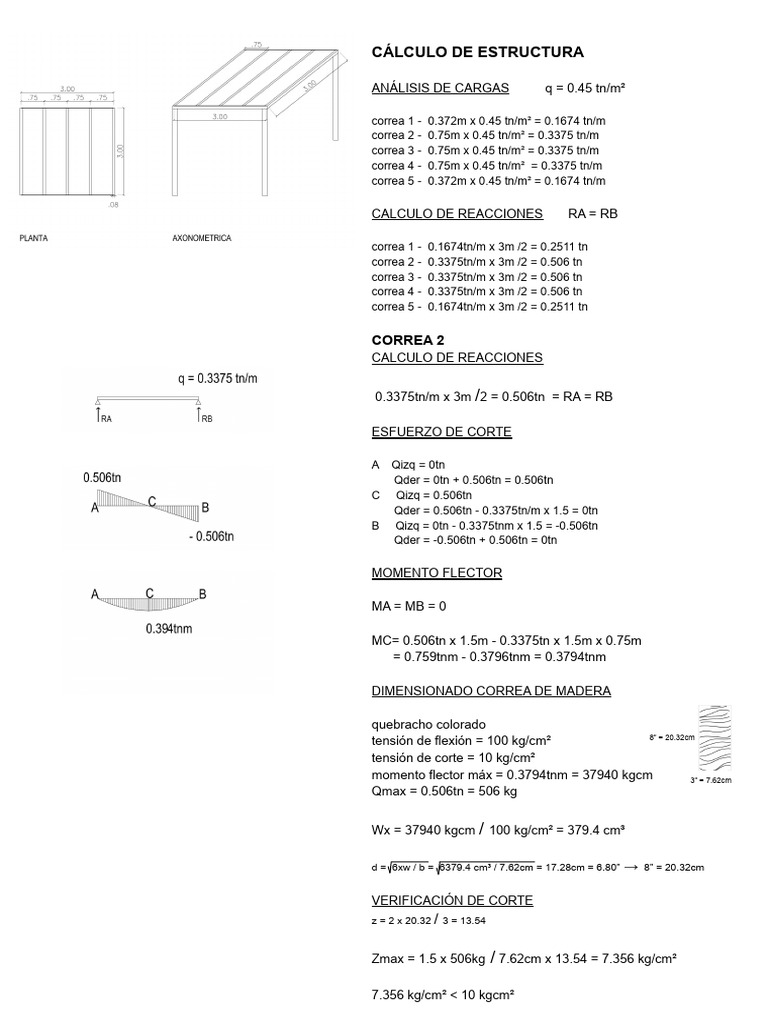

    CÁLCULO DE ESTRUCTURA

    ANÁLISIS DE CARGAS q = 0.45 tn/m²

    correa 1 - 0.372m x 0.45 tn/m² = 0.1674 tn/m


    correa 2 - 0.75m x 0.45 tn/m² = 0.3375 tn/m
    correa 3 - 0.75m x 0.45 tn/m² = 0.3375 tn/m
    correa 4 - 0.75m x 0.45 tn/m² = 0.3375 tn/m
    correa 5 - 0.372m x 0.45 tn/m² = 0.1674 tn/m

    CALCULO DE REACCIONES RA = RB

    correa 1 - 0.1674tn/m x 3m /2 = 0.2511 tn


    correa 2 - 0.3375tn/m x 3m /2 = 0.506 tn
    correa 3 - 0.3375tn/m x 3m /2 = 0.506 tn
    correa 4 - 0.3375tn/m x 3m /2 = 0.506 tn
    correa 5 - 0.1674tn/m x 3m /2 = 0.2511 tn

    CORREA 2
    CALCULO DE REACCIONES

    0.3375tn/m x 3m /2 = 0.506tn = RA = RB

    ESFUERZO DE CORTE

    A Qizq = 0tn
    Qder = 0tn + 0.506tn = 0.506tn
    C Qizq = 0.506tn
    Qder = 0.506tn - 0.3375tn/m x 1.5 = 0tn
    B Qizq = 0tn - 0.3375tnm x 1.5 = -0.506tn
    Qder = -0.506tn + 0.506tn = 0tn

    MOMENTO FLECTOR

    MA = MB = 0

    MC= 0.506tn x 1.5m - 0.3375tn x 1.5m x 0.75m


    = 0.759tnm - 0.3796tnm = 0.3794tnm

    DIMENSIONADO CORREA DE MADERA

    quebracho colorado
    8” = 20.32cm
    tensión de flexión = 100 kg/cm²
    tensión de corte = 10 kg/cm²
    momento flector máx = 0.3794tnm = 37940 kgcm 3” = 7.62cm
    Qmax = 0.506tn = 506 kg

    Wx = 37940 kgcm / 100 kg/cm² = 379.4 cm³

    d = 6xw / b = 6379.4 cm³ / 7.62cm = 17.28cm = 6.80” → 8” = 20.32cm

    VERIFICACIÓN DE CORTE
    z = 2 x 20.32 / 3 = 13.54

    Zmax = 1.5 x 506kg / 7.62cm x 13.54 = 7.356 kg/cm²

    7.356 kg/cm² < 10 kgcm²


    VIGA DE METAL
    CALCULO DE REACCIONES

    EMA = 0.506tn x 0.75tn + 0.506tn x 1.5m + 0.506tn x 2.25m - RB x 3m


    RB = 2.27tnm /3m = 0.759tn

    EME = -0.506tn x 0.75m - 0.506tn x 1.5m - 0.506tn x 2.25m + RA x 3m


    RA = -2.277tnm / 3m = 0.759tn

    ESFUERZO DE CORTES

    A Qizq = 0tn
    Qder = 0tn + 0.759tn = 0.759tn
    B Qizq = 0.759tn
    Qder = 0.759tn - 0.506tn = 0.253tn
    C Qizq = 0.253tn
    Qder = 0.253tn - 0.506tn = -0.253tn
    D Qizq = -0.253tn
    Qder = -0.253tn - 0.506tn = -0.759tn
    E Qizq = -0.759tn + 0.759tn = 0tn

    MOMENTO FLECTOR

    MA = ME = 0tnm
    ME = 0.759tn x 0.75m = 0.569tnm
    MC = 0.759tn x 1.5m - 0.506tn x 0.75m = 0.759tnm
    MD = 0.759tn x 2.25m - 0.506tn x 1.5m - 0.506tn x 0.75m = 0.569tnm

    DIMENSIONADO VIGA METÁLICA

    Mfmax = 0.759tnm = 75900 kgcm

    Wx = 759000kgcm / 1400kg/cm² = 54.214cm³ → 54.214/ 2 = 27.10cm³ =

    2 IPN Nº 100

    INTRODUCCION A LAS ESTRUCTURAS / Lozada, Mion, Ramos Panzeri, Viramonte
