  • Crane Configuration Details
  • Tower Location Details
  • Assembly View

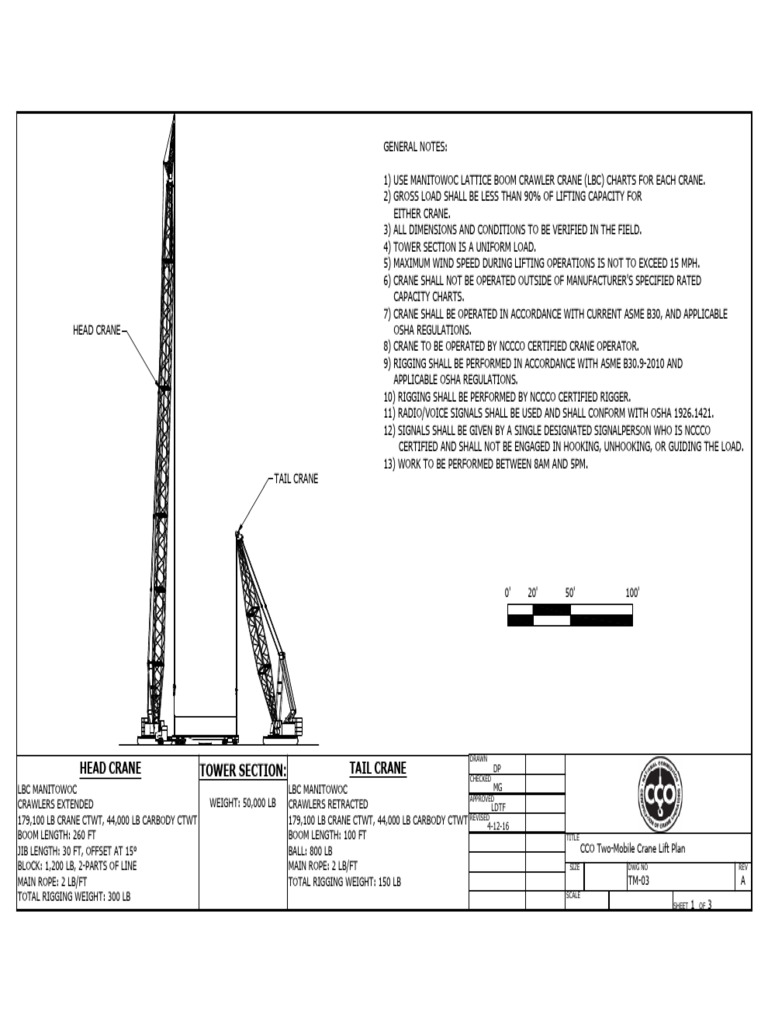

GENERAL NOTES:

1) USE MANITOWOC LATTICE BOOM CRAWLER CRANE (LBC) CHARTS FOR EACH CRANE.
2) GROSS LOAD SHALL BE LESS THAN 90% OF LIFTING CAPACITY FOR
EITHER CRANE.
3) ALL DIMENSIONS AND CONDITIONS TO BE VERIFIED IN THE FIELD.
4) TOWER SECTION IS A UNIFORM LOAD.
5) MAXIMUM WIND SPEED DURING LIFTING OPERATIONS IS NOT TO EXCEED 15 MPH.
6) CRANE SHALL NOT BE OPERATED OUTSIDE OF MANUFACTURER'S SPECIFIED RATED
CAPACITY CHARTS.
7) CRANE SHALL BE OPERATED IN ACCORDANCE WITH CURRENT ASME B30, AND APPLICABLE
HEAD CRANE OSHA REGULATIONS.
8) CRANE TO BE OPERATED BY NCCCO CERTIFIED CRANE OPERATOR.
9) RIGGING SHALL BE PERFORMED IN ACCORDANCE WITH ASME B30.9-2010 AND
APPLICABLE OSHA REGULATIONS.
10) RIGGING SHALL BE PERFORMED BY NCCCO CERTIFIED RIGGER.
11) RADIO/VOICE SIGNALS SHALL BE USED AND SHALL CONFORM WITH OSHA 1926.1421.
12) SIGNALS SHALL BE GIVEN BY A SINGLE DESIGNATED SIGNALPERSON WHO IS NCCCO
CERTIFIED AND SHALL NOT BE ENGAGED IN HOOKING, UNHOOKING, OR GUIDING THE LOAD.
13) WORK TO BE PERFORMED BETWEEN 8AM AND 5PM.
TAIL CRANE

0' 20' 50' 100'

DRAWN
HEAD CRANE TOWER SECTION: TAIL CRANE CHECKED
DP

LBC MANITOWOC LBC MANITOWOC MG


APPROVED
CRAWLERS EXTENDED WEIGHT: 50,000 LB CRAWLERS RETRACTED LDTF
179,100 LB CRANE CTWT, 44,000 LB CARBODY CTWT 179,100 LB CRANE CTWT, 44,000 LB CARBODY CTWT REVISED4-12-16
BOOM LENGTH: 260 FT BOOM LENGTH: 100 FT TITLE
JIB LENGTH: 30 FT, OFFSET AT 15° BALL: 800 LB CCO Two-Mobile Crane Lift Plan
BLOCK: 1,200 LB, 2-PARTS OF LINE MAIN ROPE: 2 LB/FT SIZE DWG NO REV
MAIN ROPE: 2 LB/FT TOTAL RIGGING WEIGHT: 150 LB TM-03 A
TOTAL RIGGING WEIGHT: 300 LB SCALE
SHEET 1 OF 3
FINAL TOWER LOCATION

0' 20' 50' 100'

R80'

TAIL CRANE
HEAD CRANE

R60'

R50'

DRAWN
DP
CHECKED
MG
APPROVED
LDTF
REVISED
4-12-16
TITLE
CCO Two-Mobile Crane Lift Plan
SIZE DWG NO REV
TM-03 A
SCALE
SHEET 2 OF 3
DRAWN
DP
CHECKED
MG
APPROVED
LDTF
REVISED
4-12-16
TITLE
CCO Two-Mobile Crane Lift Plan
SIZE DWG NO REV
TM-03 A
SCALE
SHEET 3 OF 3

DRAWN DP CHECKED MG REVISED APPROVED 4-12-16 LDTF TITLE CCO Two-Mobile Cran
DRAWN DP CHECKED MG REVISED APPROVED 4-12-16 LDTF TITLE CCO Two-Mobile Cran
DRAWN DP CHECKED MG REVISED APPROVED 4-12-16 LDTF TITLE CCO Two-Mobile Cran
