Single Aisle TECHNICAL TRAINING MANUAL

POWER PLANT LEVEL 2 (2)


SYSTEM OVERVIEW (continued)

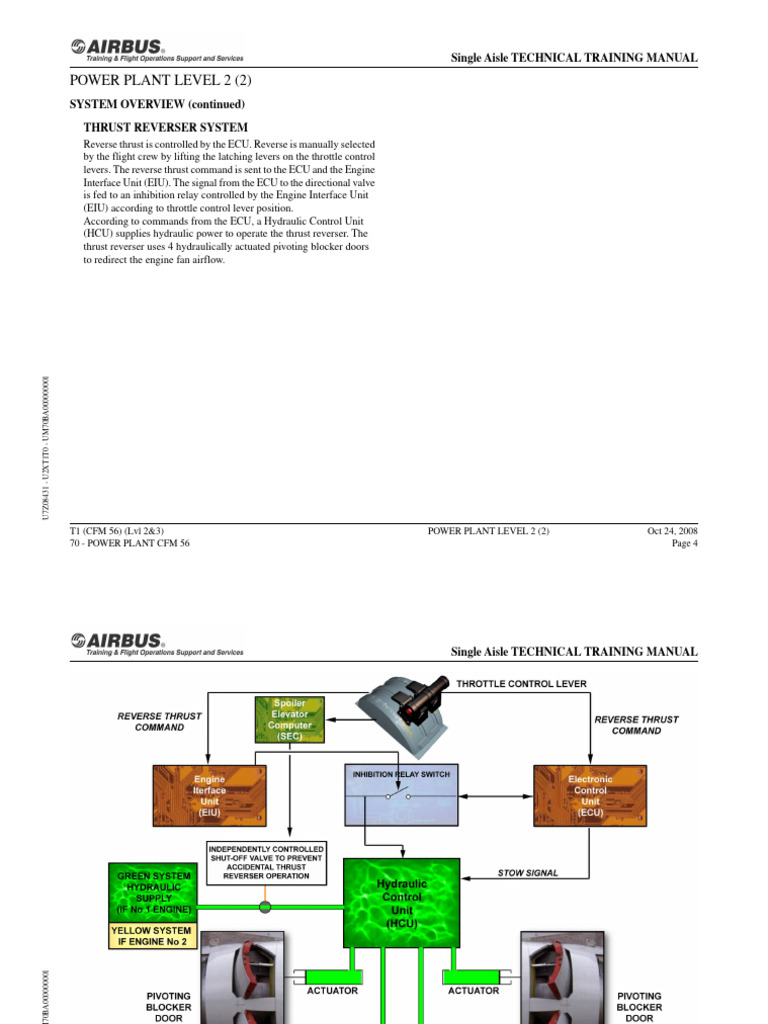

THRUST REVERSER SYSTEM
Reverse thrust is controlled by the ECU. Reverse is manually selected
by the flight crew by lifting the latching levers on the throttle control
levers. The reverse thrust command is sent to the ECU and the Engine
Interface Unit (EIU). The signal from the ECU to the directional valve
is fed to an inhibition relay controlled by the Engine Interface Unit
(EIU) according to throttle control lever position.
According to commands from the ECU, a Hydraulic Control Unit
(HCU) supplies hydraulic power to operate the thrust reverser. The
thrust reverser uses 4 hydraulically actuated pivoting blocker doors
to redirect the engine fan airflow.
U7Z08431 - U2XT1T0 - UM70BA000000001

T1 (CFM 56) (Lvl 2&3) POWER PLANT LEVEL 2 (2) Oct 24, 2008
70 - POWER PLANT CFM 56 Page 4
Single Aisle TECHNICAL TRAINING MANUAL
U7Z08431 - U2XT1T0 - UM70BA000000001

SYSTEM OVERVIEW - THRUST REVERSER SYSTEM

T1 (CFM 56) (Lvl 2&3) POWER PLANT LEVEL 2 (2) Oct 24, 2008
70 - POWER PLANT CFM 56 Page 5
