Single Aisle TECHNICAL TRAINING MANUAL

ENGINE FUEL SYSTEM D/O (3)

SERVO FUEL

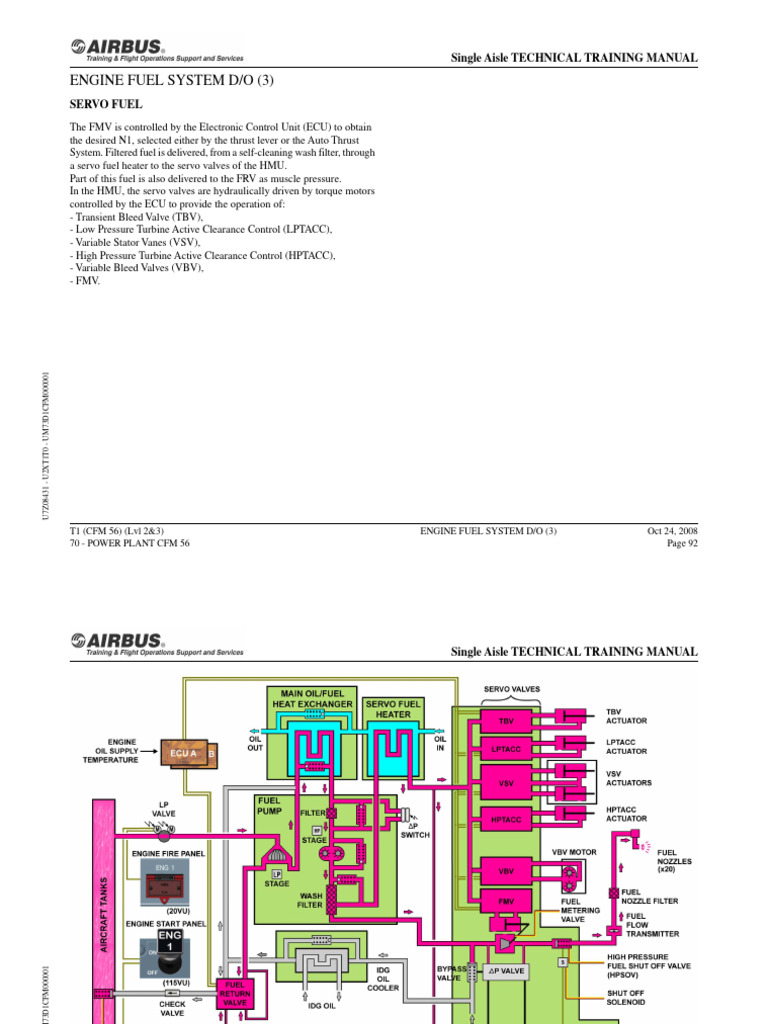

The FMV is controlled by the Electronic Control Unit (ECU) to obtain
the desired N1, selected either by the thrust lever or the Auto Thrust
System. Filtered fuel is delivered, from a self-cleaning wash filter, through
a servo fuel heater to the servo valves of the HMU.
Part of this fuel is also delivered to the FRV as muscle pressure.
In the HMU, the servo valves are hydraulically driven by torque motors
controlled by the ECU to provide the operation of:
- Transient Bleed Valve (TBV),
- Low Pressure Turbine Active Clearance Control (LPTACC),
- Variable Stator Vanes (VSV),
- High Pressure Turbine Active Clearance Control (HPTACC),
- Variable Bleed Valves (VBV),
- FMV.
U7Z08431 - U2XT1T0 - UM73D1CFM000001

T1 (CFM 56) (Lvl 2&3) ENGINE FUEL SYSTEM D/O (3) Oct 24, 2008
70 - POWER PLANT CFM 56 Page 92
 Single Aisle TECHNICAL TRAINING MANUAL
U7Z08431 - U2XT1T0 - UM73D1CFM000001

SERVO FUEL

T1 (CFM 56) (Lvl 2&3) ENGINE FUEL SYSTEM D/O (3) Oct 24, 2008
70 - POWER PLANT CFM 56 Page 93
