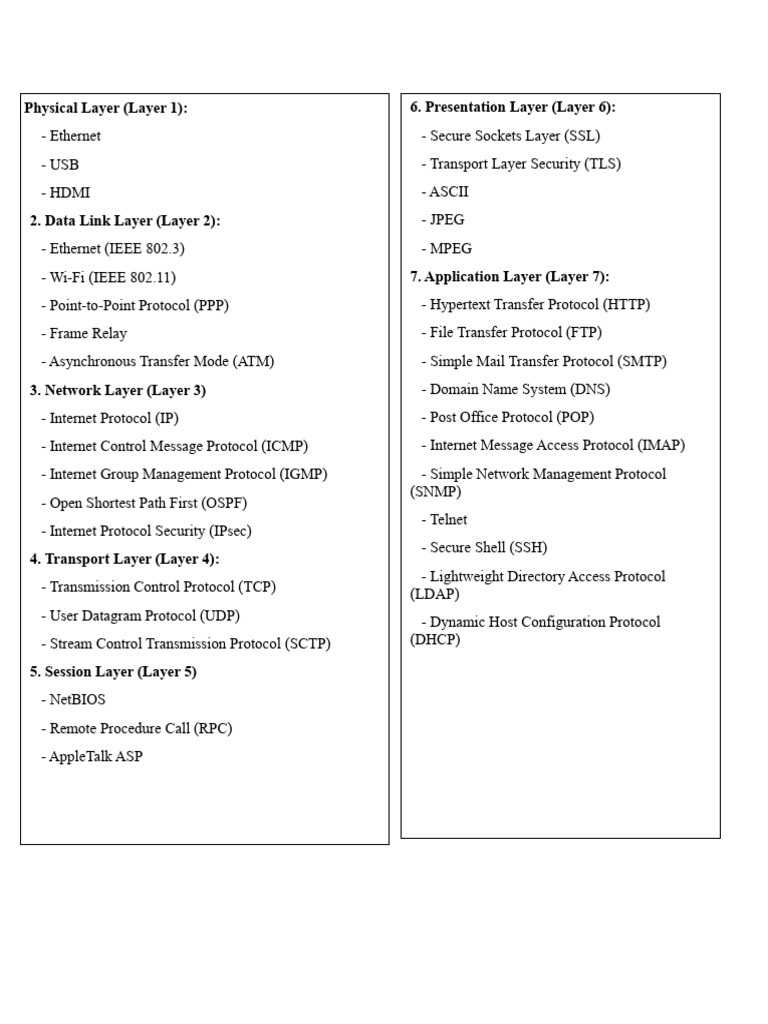

Physical Layer (Layer 1):
Presentation Layer (Layer 6):
- Ethernet
- USB
- HDMI
2. Data Link Layer (Layer 2):
- Ethernet (IEEE 802.3)
- Wi-Fi (IEEE 802.11)
- Point-to-Point Protocol (PPP)
- Frame Relay
- Asynchronous Transfer Mode (ATM)
3. Network Layer (Layer 3)
- Internet Protocol (IP)
- Internet Control Message Protocol (ICMP)
- Internet Group Management Protocol (IGMP)
- Open Shortest Path First (OSPF)
- Internet Protocol Security (IPsec)
4. Transport Layer (Layer 4):
- Transmission Control Protocol (TCP)
- User Datagram Protocol (UDP)
- Stream Control Transmission Protocol (SCTP)
5. Session Layer (Layer 5)
- NetBIOS
- Remote Procedure Call (RPC)
- AppleTalk ASP
6.
- Secure Sockets Layer (SSL)
- Transport Layer Security (TLS)
- ASCII
- JPEG
- MPEG
7. Application Layer (Layer 7):
- Hypertext Transfer Protocol (HTTP)
- File Transfer Protocol (FTP)
- Simple Mail Transfer Protocol (SMTP)
- Domain Name System (DNS)
- Post Office Protocol (POP)
- Internet Message Access Protocol (IMAP)
- Simple Network Management Protocol
(SNMP)
- Telnet
- Secure Shell (SSH)
- Lightweight Directory Access Protocol
(LDAP)
- Dynamic Host Configuration Protocol
(DHCP)
The TCP/IP model is a conceptual framework used for 3. Internet Layer (Layer 2):
describing network protocols. It doesn't directly map to the OSI
model, but it has similar functionalities. Here are some common - Internet Protocol (IP)
protocols along with their corresponding layers in the TCP/IP - Internet Control Message Protocol (ICMP)
model:
- Internet Group Management Protocol (IGMP)
4. Link Layer (Layer 1):
1. Application Layer (Layer 4):
- Ethernet (IEEE 802.3)
- Hypertext Transfer Protocol (HTTP)
- Wi-Fi (IEEE 802.11)
- File Transfer Protocol (FTP)
- Point-to-Point Protocol (PPP)
- Simple Mail Transfer Protocol (SMTP)
- Frame Relay
- Domain Name System (DNS)
- Asynchronous Transfer Mode (ATM)
- Post Office Protocol (POP)
The TCP/IP model is often simplified into four layers:
- Internet Message Access Protocol (IMAP) Application, Transport, Internet, and Link. It's important to
- Simple Network Management Protocol (SNMP) note that the TCP/IP model doesn't have a dedicated session,
presentation, or session layer like the OSI model. Instead,
- Telnet some of the functionalities of these layers are handled at the
application layer in the TCP/IP model.
- Secure Shell (SSH)
- Lightweight Directory Access Protocol (LDAP)
- Dynamic Host Configuration Protocol (DHCP)
2. Transport Layer (Layer 3):
- Transmission Control Protocol (TCP)
- User Datagram Protocol (UDP)
 1. Layer 7: Application Layer
- HTTP (Hypertext Transfer Protocol): Used for transmitting hypertext documents (such as HTML)
over the Internet. It defines how web browsers and web servers communicate.
- FTP (File Transfer Protocol): Used for transferring files between a client and a server on a
computer network. It provides a way to share files efficiently.
- IRC (Internet Relay Chat): Used for real-time text messaging and communication in the form of
channels or private messaging.
- SSH (Secure Shell): Provides secure remote login, command execution, and other network services
over an unsecured network.
- DNS (Domain Name System): Translates domain names into IP addresses, allowing users to access
websites using easy-to-remember domain names instead of numeric IP addresses.
2. Layer 6: Presentation Layer
- SSL (Secure Sockets Layer): Provides secure communication over a computer network by
encrypting data sent between systems.
- SSH (Secure Shell): It operates at both the presentation and application layers. In the presentation
layer, it may handle encryption and decryption of data.
- IMAP (Internet Message Access Protocol): Used by email clients to retrieve emails from a mail
server.
- FTP (File Transfer Protocol): It operates at both the presentation and application layers. In the
presentation layer, it may handle the conversion of data formats.
- MPEG (Moving Picture Experts Group): Defines compression standards for audio and video data.
- JPEG (Joint Photographic Experts Group): Defines compression standards for digital images.
3. Layer 5: Session Layer
- APIs (Application Programming Interfaces): Provide communication between different software
systems or components.
- Sockets: Enable communication between two processes on a network.
- WinSock (Windows Sockets): A programming interface and supporting program used for
developing Windows-based network applications.
4. Layer 4: Transport Layer
- TCP (Transmission Control Protocol): Provides reliable, connection-oriented communication
between devices on a network.
- UDP (User Datagram Protocol): Provides connectionless communication and is used for
applications where speed is more critical than reliability.
5. Layer 3: Network Layer
- IP (Internet Protocol): Provides logical addressing and routing of packets between hosts on a
network.
- ICMP (Internet Control Message Protocol): Used for diagnostic and error messages in IP
networks.
- IPSec (Internet Protocol Security): Provides security services for IP packets, including encryption
and authentication.
- IGMP (Internet Group Management Protocol): Used by IP hosts to report their multicast group
memberships to multicast routers.

6. Layer 2: Data Link Layer

- Ethernet: Defines the methods and rules for packaging data into frames for transmission on a
network.
- PPP (Point-to-Point Protocol): Used to establish a direct connection between two nodes on a
network.
- Switch: A networking device that forwards data packets between devices on a LAN.
- Bridge: Connects multiple network segments and forwards data between them.

7. Layer 1: Physical Layer

- Coax (Coaxial Cable): Used for transmitting data signals, often in cable television and
networking applications.
- Fiber (Fiber Optic Cable): Transmits data using light pulses through optical fibers.
- Wireless: Utilizes radio frequencies for communication without the need for physical cables.
- Hubs: Connect multiple Ethernet devices, allowing them to communicate with each other.
- Repeaters: Regenerates and retransmits signals to extend the range of a network.

Link Layer Security Threats

The link layer, also known as the data link layer, is responsible for node-to-node communication,
providing reliable transit of data frames between two nodes connected by a physical layer. Link
layer security threats encompass attacks targeting this layer, both in wired and wireless network
environments. Let's delve into the listed threats:
1. Wired Data Link Layer Attacks:
a. MAC Attacks (Media Access Control): - Description: MAC spoofing or MAC flooding
attacks involve manipulating or forging the MAC address of a network interface. By doing so, an
attacker can impersonate legitimate devices on a network or overwhelm the switch's MAC
address table, causing a denial of service (DoS) attack.
b. ARP Attacks (Address Resolution Protocol): - Description: ARP spoofing or ARP
poisoning attacks exploit the weaknesses in the ARP protocol to associate the attacker's MAC
address with the IP address of another device on the network. This allows the attacker to
intercept or modify network traffic between the targeted devices.
c. VLAN Hopping Attacks (Optional): - Description: VLAN hopping occurs when an attacker
gains unauthorized access to traffic from different VLANs. This can happen due to
misconfigurations in switch port settings or exploiting weaknesses in VLAN trunking protocols
like Dynamic Trunking Protocol (DTP) or VLAN Trunking Protocol (VTP).
d. Spanning Tree Protocol Attacks (Optional): - Description: Spanning Tree Protocol (STP)
ensures a loop-free topology in Ethernet networks. Attackers may exploit vulnerabilities in STP
implementations to launch denial of service attacks, manipulate network traffic, or gain
unauthorized access to the network.
2. Wireless Data Link Layer Attacks:
a. Default SSID and Password: - Description: Many wireless access points come with default
SSIDs (Service Set Identifiers) and passwords. Attackers can exploit devices with default
settings by attempting to connect to them, gaining unauthorized access to the network.
b. SSID Flaw Attack: - Description: Some wireless access points may broadcast SSIDs in
plaintext, allowing attackers to capture them using tools like packet sniffers. Once obtained,
attackers can use this information to launch further attacks or perform reconnaissance on the
network.
c. Parking Lot Attack: - Description: Attackers may deploy rogue wireless access points in
areas like parking lots near targeted buildings. Unsuspecting users may inadvertently connect to
these rogue access points, allowing attackers to intercept or manipulate their network traffic.
d. Fake Access Point: - Description: Similar to the Parking Lot attack, a fake access point
involves setting up rogue access points with legitimate-sounding SSIDs to trick users into
connecting. Once connected, attackers can eavesdrop on network traffic or launch further attacks.
In networking, "MAC" can refer to two related but distinct concepts: MAC (Media Access
Control) and MAC addresses.

1. **MAC (Media Access Control)**:

- The MAC (Media Access Control) is a sublayer of the data link layer (Layer 2) of the OSI
model. It is responsible for controlling access to the physical network medium and managing the
transmission of data frames between devices on the same local network segment.
- MAC protocols govern how devices on a network share the transmission medium and avoid
data collisions. They define rules for accessing and transmitting data over the network, including
contention-based or deterministic access methods.
- Examples of MAC protocols include CSMA/CD (Carrier Sense Multiple Access with
Collision Detection) used in Ethernet networks, CSMA/CA (Carrier Sense Multiple Access with
Collision Avoidance) used in Wi-Fi networks, and token passing protocols like Token Ring.

2. **MAC Address**:
- A MAC address, also known as a hardware address or physical address, is a unique identifier
assigned to a network interface controller (NIC) for communication on a network.
- MAC addresses are globally unique and are assigned by the manufacturer of the network
interface card. They are typically represented as a series of hexadecimal digits separated by
colons or hyphens, such as "00:1A:2B:3C:4D:5E".
- Every device connected to a network, such as computers, routers, switches, and printers, has
at least one MAC address associated with each of its network interfaces.
- MAC addresses are used by the MAC layer protocols to ensure that data frames are delivered
to the correct destination on a local network segment. When a device wants to send data to
another device, it includes the MAC address of the destination device in the data frame's header.
- Unlike IP addresses, which can change based on network configuration, MAC addresses are
typically hardcoded into the network interface's hardware and remain constant throughout the
device's lifetime.
- MAC addresses operate at the link layer of the OSI model and are used primarily for local
network communication. They are not routable across different network segments and are not
used for communication between devices on different networks.
In summary, MAC (Media Access Control) protocols govern how devices access and transmit
data on a network, while MAC addresses serve as unique identifiers assigned to network
interface controllers for communication within a local network segment.

The MAC address "00:1A:2B:3C:4D:5E" is a unique identifier assigned to a network interface

controller (NIC) for communication on a network. It is typically represented as a series of six
pairs of hexadecimal digits separated by colons or hyphens.

Here's how the MAC address "00:1A:2B:3C:4D:5E" is structured and

derived:

1. **First Half (OUI - Organizationally Unique Identifier)**:

- The first three octets (pairs of hexadecimal digits) of the MAC address represent the
Organizationally Unique Identifier (OUI).
- The OUI is assigned to the manufacturer of the network interface card (NIC) by the Institute
of Electrical and Electronics Engineers (IEEE).
- The manufacturer uses the OUI to uniquely identify its products. In this case, "00:1A:2B"
represents the OUI assigned to a specific manufacturer.

2. **Second Half (NIC Specific)**:

- The last three octets of the MAC address represent the network interface controller (NIC)
specific portion.
- These octets are unique within the context of the manufacturer identified by the OUI.
- The manufacturer assigns these octets to individual NICs during production, ensuring that
each NIC has a globally unique MAC address.

In summary, the MAC address "00:1A:2B:3C:4D:5E" is derived from a combination of an

Organizationally Unique Identifier (OUI), which identifies the manufacturer of the network
interface card (NIC), and a NIC-specific portion assigned by the manufacturer to uniquely
identify each NIC produced. This structure ensures that MAC addresses are globally unique
identifiers for network interfaces on a local network segment.
The attack described is a type of MAC address spoofing attack, commonly known as MAC
address cloning or MAC address impersonation. Let's break down the process in detail:

1. **Changing MAC Address**:

- The attacker alters their own network interface's MAC address to match the MAC address of
a victim's machine on the network. This can be achieved through various means, including
software tools or manual configuration.

2. **Sending Frames to Update Switch's MAC Table**:

- Once the attacker's MAC address is spoofed to match the victim's MAC address, they start
sending network frames onto the local network segment. These frames are typically targeted at
the switch's MAC address table.
- The switch maintains a MAC address table, also known as a MAC address forwarding table
or CAM table, which maps MAC addresses to switch ports. When a frame is received, the switch
updates its MAC table with the source MAC address and the port through which the frame was
received.

3. **Redirecting Traffic**:
- By sending frames with the spoofed MAC address, the attacker tricks the switch into
updating its MAC table entry for the victim's MAC address to point to the attacker's port instead
of the victim's port.
- As a result, when legitimate network traffic intended for the victim's machine is sent to the
switch, the switch forwards it to the port associated with the attacker's spoofed MAC address
instead of the victim's port.
- This redirection of traffic effectively enables the attacker to intercept, modify, or eavesdrop
on the victim's network communication.

4. **Bypassing Security Measures**:

- MAC address spoofing can be employed to bypass security measures implemented by ISPs
(Internet Service Providers) or other network administrators to block or restrict users.
- For example, if an ISP uses MAC address filtering to restrict access to its network, an
attacker could spoof the MAC address of an authorized user to bypass this restriction and gain
unauthorized access to the network.
 - Similarly, MAC address spoofing can be used to circumvent other security controls or access
restrictions based on MAC address authentication.

Regarding the victim's machine being off, it's not necessary for the victim's machine to be turned
off for this attack to work. As long as the attacker's spoofed MAC address is successfully
registered in the switch's MAC table, incoming traffic intended for the victim's machine will be
redirected to the attacker's machine, regardless of whether the victim's machine is online or
offline.

In summary, MAC address spoofing attacks exploit vulnerabilities in network switches' MAC
address learning mechanisms to redirect traffic intended for a victim's machine to the attacker's
machine. This can be used for various malicious purposes, including interception of sensitive
information or bypassing network security measures.

In the MAC address spoofing attack described, the vulnerability lies in the way switches learn
and update their MAC address tables.

Several characteristics of switches make them vulnerable or exploitable

in this attack:

1. **MAC Address Learning**:

- Switches use a process called MAC address learning to populate their MAC address tables.
When a frame enters a switch port, the switch examines the source MAC address of the frame
and associates it with the port through which the frame was received. This information is then
stored in the switch's MAC address table.
- Attackers exploit this characteristic by sending spoofed frames with a forged source MAC
address. When these frames are received by the switch, it updates its MAC address table with the
spoofed MAC address, associating it with the port through which the frame was received.

2. **Dynamic MAC Address Table Updates**:

- Switches dynamically update their MAC address tables as frames are received, allowing them
to adapt to changes in the network topology. However, this dynamic updating process can be
manipulated by attackers to insert false MAC address entries into the table.
 - In the MAC address spoofing attack, attackers send a series of frames with spoofed MAC
addresses to trigger the switch to update its MAC address table. By flooding the switch with
these spoofed frames, attackers can ensure that the false MAC address entry persists in the table.

3. **MAC Address Table Aging**:

- Switches typically employ a mechanism known as MAC address table aging to remove stale
entries from the MAC address table after a certain period of inactivity. However, MAC address
spoofing attacks can prevent the aging process from occurring by continuously sending spoofed
frames to refresh the false MAC address entry.
- By keeping the false MAC address entry active in the switch's MAC address table, attackers
can maintain their ability to intercept or redirect network traffic intended for the victim's
machine.

4. **Lack of Authentication**:
- Switches do not typically perform authentication of MAC addresses before updating their
MAC address tables. This lack of authentication makes it easier for attackers to spoof MAC
addresses and manipulate the switch's behavior.
- In the context of the MAC address spoofing attack, switches blindly accept the forged MAC
address provided by the attacker without verifying its authenticity, allowing the attacker to
redirect network traffic as desired.

These characteristics of switches, particularly their reliance on MAC address learning and
dynamic MAC address table updates, create opportunities for attackers to exploit vulnerabilities
and manipulate network traffic through MAC address spoofing attacks.

MAC flooding attacks exploit the behavior of network switches to overwhelm their MAC
address tables with fake MAC addresses, causing the switch to operate in a less secure mode
called "fail-open" mode. Here are some potential uses of MAC flooding attacks:

1. **ARP Spoofing/MITM Attacks**: By flooding the switch's MAC address table with fake
MAC addresses, an attacker can launch ARP (Address Resolution Protocol) spoofing attacks or
Man-in-the-Middle (MITM) attacks. This enables the attacker to intercept, modify, or eavesdrop
on network traffic passing through the switch.
2. **Denial of Service (DoS) Attacks**: MAC flooding attacks can be used to launch denial of
service (DoS) attacks against network devices. By filling up the switch's MAC address table with
fake entries, legitimate devices may be unable to communicate with the switch, causing network
disruption and service outage.

3. **Network Reconnaissance**: MAC flooding attacks can be employed as part of network

reconnaissance activities to gather information about the network topology and connected
devices. By flooding the switch with fake MAC addresses, an attacker can observe how the
switch handles and forwards network traffic, potentially identifying weaknesses or
misconfigurations in the network infrastructure.

4. **MAC Address Spoofing**: MAC flooding attacks can facilitate MAC address spoofing
attacks by overwhelming the switch's MAC address table with fake MAC addresses. This can be
used to bypass network access controls based on MAC address filtering or to impersonate
legitimate network devices for unauthorized access to the network.

5. **Exploitation of Switch Vulnerabilities**: In some cases, MAC flooding attacks can be used
to exploit vulnerabilities in network switches. By overwhelming the switch's memory or causing
it to operate in fail-open mode, attackers may gain unauthorized access to network resources or
exploit other security weaknesses in the switch's firmware or software.

Overall, MAC flooding attacks pose significant risks to network security by exploiting
vulnerabilities in network switches and enabling various malicious activities, including
eavesdropping, traffic interception, denial of service, and unauthorized access. It is essential for
organizations to implement proper security measures, such as MAC address filtering, port
security, and intrusion detection systems, to mitigate the risks associated with MAC flooding
attacks.

A session, in the context of computing and networking, refers to a temporary and interactive
information exchange between two or more communicating devices, or between a user and a
computer system. It is a way to establish, maintain, and eventually terminate a communication
channel between entities. Sessions can be found in various applications, including web browsing,
remote logins, and database connections. Here are a few key aspects of what sessions entail:
1. **Establishment**: A session begins with a session establishment process, where the
participating entities set up a communication channel. This may involve authentication, where
the identities of the participants are verified, and the negotiation of session parameters like
encryption algorithms or session keys.

2. **Statefulness**: Sessions are often described as "stateful" because they keep track of the
state of interaction between entities. For example, a web server might keep track of which pages
a user has visited during a browsing session. This is contrasted with "stateless" communications,
where each exchange is independent, and no information is retained between communications.

3. **Data Exchange**: Once a session is established, data can be exchanged between entities in
a secure and reliable manner. Depending on the session's parameters, the data may be encrypted
for privacy and integrity.

4. **Management**: Sessions may involve management tasks such as monitoring for inactivity,
handling errors, and ensuring that the session remains secure throughout its life.

5. **Termination**: Sessions are eventually terminated, either by a participant's request or after

a timeout due to inactivity. When a session is terminated, any resources allocated for the session
are released, and any session-specific data is discarded or archived, depending on the application.

Sessions are fundamental to many types of networked and local computing activities, enabling a
coherent, controlled, and secure interaction between users, applications, and data across various
computing environments.

IPsec (Internet Protocol Security) and VPN (Virtual Private Network) are related but distinct
concepts in the realm of network security and privacy. Understanding the difference between
them involves recognizing that IPsec is a protocol suite for securing Internet Protocol (IP)
communications, while a VPN is a broader concept that describes a secure network connection
over a public network. Here’s a closer look at each:

### IPsec
- **Protocol Suite**: IPsec is a suite of protocols designed to secure IP communications by
authenticating and encrypting each IP packet in a data stream. IPsec operates at the network layer
of the OSI model, allowing it to secure all traffic at the IP level, including TCP and UDP traffic.
- **Components**: It includes protocols such as Authentication Headers (AH) for packet
integrity and source authentication, Encapsulating Security Payloads (ESP) for encrypting packet
data, and Internet Key Exchange (IKE) for key management.
- **Use Cases**: IPsec is often used to secure VPN connections, but it can also be used
independently to secure direct connections between network devices, such as between routers or
firewalls.

### VPN

- **Network Overlay**: A VPN is a method used to create a secure, encrypted connection over a
less secure network, typically the Internet. A VPN extends a private network across a public
network, allowing users to send and receive data as if their computing devices were directly
connected to the private network.
- **Technologies and Protocols**: VPNs can use various protocols to secure and tunnel the data
passing through the public network, including IPsec, SSL/TLS (for SSL VPNs), OpenVPN,
L2TP (Layer 2 Tunneling Protocol), and PPTP (Point-to-Point Tunneling Protocol). IPsec is just
one of the protocols that can be used to secure VPN connections.
- **Use Cases**: VPNs are widely used for secure remote access to private networks, privacy
protection when accessing public Wi-Fi, and bypassing internet censorship or geo-restrictions.

### Key Differences

- **Scope**: IPsec is a set of protocols (part of a technology) used to secure IP communication,

particularly at the network layer. A VPN, on the other hand, is a solution or service that creates a
secure, encrypted tunnel for data transmission over the internet or between private networks.
- **Functionality**: IPsec specifically focuses on securing IP packets between participating
devices by authenticating and encrypting them. VPNs, while often employing IPsec for security,
encompass a broader range of functions, including tunneling, access control, and sometimes
bandwidth compression.
- **Application**: IPsec can be used in various scenarios beyond VPNs, such as securing direct
network links. VPNs utilize multiple technologies, including but not limited to IPsec, to provide
secure access to network resources across public networks.
In summary, IPsec is a protocol suite that can be used to secure VPN connections among other
applications, while a VPN is a broader concept that refers to any secure network connection
established over a public network, which can use IPsec as one of its protocols for ensuring
security and privacy.

If both Host A and Host B send gratuitous ARP (Address Resolution Protocol) messages
claiming to be the same IP address (for example, the IP address associated with Host A), the
behavior and outcome of subsequent communication can vary depending on several factors:

1. **Timing of Gratuitous ARP Messages**:

- If Host A sends a gratuitous ARP message before Host B, the ARP cache of other devices on
the network will be updated with the MAC address of Host A. When Host B subsequently sends
its gratuitous ARP message claiming to be Host A, it will not have any effect on the ARP cache
of other devices since they already have the correct MAC address for Host A.

2. **Network Device Behavior**:

- The behavior of network devices, particularly switches and routers, can also impact the
outcome. Some devices may update their ARP cache upon receiving the first gratuitous ARP
message and ignore subsequent gratuitous ARP messages claiming the same IP address. Others
may update their ARP cache based on the most recent gratuitous ARP message received.

3. **ARP Cache Timeout**:

- ARP cache entries in network devices have a timeout period after which they expire and are
removed from the cache. If Host A's gratuitous ARP message is received and accepted by
network devices before Host B's gratuitous ARP message, the ARP cache entry for Host A will
be updated with a longer timeout, potentially delaying the impact of Host B's spoofed ARP
message.

4. **Potential Network Disruption**:

- If both Host A and Host B continuously send gratuitous ARP messages claiming the same IP
address, it can lead to confusion and network disruption. Network devices may constantly update
their ARP caches with conflicting MAC address information, causing intermittent connectivity
issues or packet loss for devices trying to communicate with the affected IP address.
In summary, if Host A has already sent a gratuitous ARP message claiming a specific IP address
before Host B sends its gratuitous ARP message, the impact of Host B's ARP spoofing attempt
may be mitigated. However, the behavior and outcome can vary depending on the timing of the
ARP messages, the behavior of network devices, and the ARP cache timeout settings.

ARP spoofing and ARP poisoning are terms often used interchangeably, but they refer to slightly
different aspects of the same attack. Let's differentiate between the two:

1. **ARP Spoofing**:
- ARP spoofing is a technique used by attackers to impersonate other devices on a local area
network (LAN) by falsifying ARP messages. The attacker sends forged ARP (Address
Resolution Protocol) messages to associate their MAC address with the IP address of another
device on the network.
- By spoofing ARP messages, the attacker can trick other devices on the network into sending
traffic intended for the spoofed IP address to the attacker's machine. This enables the attacker to
intercept, modify, or eavesdrop on network communication, perform man-in-the-middle (MITM)
attacks, or launch other malicious activities.

2. **ARP Poisoning**:
- ARP poisoning is a specific form of ARP spoofing attack where the attacker actively injects
falsified ARP messages into the network to poison the ARP cache of targeted devices. The
attacker sends gratuitous ARP messages claiming to be the IP address of another device on the
network, causing other devices to update their ARP cache entries with the attacker's MAC
address.
- By poisoning the ARP cache of target devices, the attacker can redirect network traffic
intended for the spoofed IP address to their own machine. This allows the attacker to intercept,
modify, or redirect network communication, perform MITM attacks, or gain unauthorized access
to network resources.

In summary, ARP spoofing is a broader term that encompasses various techniques for falsifying
ARP messages to impersonate other devices on a network, while ARP poisoning specifically
refers to the injection of falsified ARP messages into the network to manipulate the ARP cache of
target devices. ARP poisoning is a specific method used within the broader category of ARP
spoofing attacks.

Authentication is a fundamental concept in network security, ensuring that users and devices are
who they claim to be before granting access to resources. There are several methods of
authentication, each with its own strengths and weaknesses. Let's explore three common
authentication methods:

1. **Open Authentication**:
- **Description**: Open authentication, also known as "no authentication," is the simplest
form of authentication. In an open authentication system, access points (APs) do not require any
credentials from connecting devices to grant access to the network. Essentially, any device can
connect to the network without providing any authentication information.
- **Usage**: Open authentication is commonly used in public Wi-Fi networks, such as those
found in cafes, airports, and hotels. It is convenient for users because it does not require any
configuration or authentication process. However, it offers no security, leaving the network
vulnerable to unauthorized access and potential security breaches.

2. **Shared-Key Authentication**:
- **Description**: Shared-key authentication, also known as WEP (Wired Equivalent Privacy),
is an older authentication method that uses a pre-shared key (PSK) or passphrase to authenticate
devices on a network. Devices must provide the correct key or passphrase to access the network.
- **Usage**: Shared-key authentication was widely used in early Wi-Fi networks to provide
basic security. However, it is highly vulnerable to various attacks, such as brute-force attacks and
key recovery attacks. As a result, it has largely been deprecated in favor of more secure
authentication methods, such as WPA (Wi-Fi Protected Access) and WPA2.

3. **EAP (Extensible Authentication Protocol)**:

- **Description**: EAP is an authentication framework that supports multiple authentication
methods, providing flexibility and extensibility. EAP does not specify any specific authentication
method but defines a general framework for transporting authentication protocols over the
network.
- **Usage**: EAP is commonly used in enterprise Wi-Fi networks, where more robust
authentication mechanisms are required. It supports a wide range of authentication methods,
including EAP-TLS (Transport Layer Security), EAP-PEAP (Protected Extensible
Authentication Protocol), EAP-TTLS (Tunneled Transport Layer Security), and more. These
methods provide stronger security and authentication than shared-key authentication and are
better suited for protecting sensitive data and resources.
In summary, open authentication grants access to the network without requiring any
authentication, shared-key authentication uses a pre-shared key or passphrase for authentication
but is insecure, and EAP provides a flexible framework for supporting multiple authentication
methods, including more secure options suitable for enterprise networks.

In the context of Wi-Fi networks, authentication mechanisms can vary in terms of how they
handle the authentication process between network entities (e.g., access points and stations).
Let's explore the two scenarios you mentioned:

1. **Both Parties Authenticate Each Other**:

- In this scenario, both the access point (AP) and the station (client device) authenticate each
other before granting access to the network. This is typically achieved through mutual
authentication protocols such as Extensible Authentication Protocol (EAP) with mutual
authentication methods.
- One example of mutual authentication is EAP-TLS (Transport Layer Security), where both
the AP and the station present digital certificates to each other to verify their identities. The AP
verifies the station's certificate, and the station verifies the AP's certificate.
- Mutual authentication enhances security by ensuring that both parties are who they claim to
be before establishing a connection. It helps prevent attacks where one party (either the AP or the
station) is authenticated without verifying the identity of the other party.

2. **AP Authenticates the Station and Vice Versa**:

- In this scenario, the access point (AP) authenticates the station (client device), and the station
does not necessarily authenticate the AP. This is the typical authentication process in most Wi-Fi
networks, particularly those using pre-shared key (PSK) or WPA/WPA2-PSK (Wi-Fi Protected
Access with Pre-Shared Key).
- With PSK-based authentication, the station authenticates to the AP using the pre-shared key
(passphrase), but the AP does not authenticate the station beyond verifying that the provided key
matches the configured key.
- While the station technically authenticates to the AP, the AP does not undergo a separate
authentication process by the station. Instead, the station trusts that the AP is legitimate based on
factors such as the network's SSID (Service Set Identifier) and security settings.
- This asymmetric authentication model is simpler to implement but may be less secure
compared to mutual authentication methods, as it does not verify the identity of the AP to the
station.
In summary, mutual authentication protocols like EAP-TLS enable both the AP and the station to
authenticate each other, enhancing security. On the other hand, in asymmetric authentication
models such as PSK-based authentication, the AP authenticates the station, but the station does
not necessarily authenticate the AP.

Wireshark is a popular and powerful network protocol analyzer, also known as a packet sniffer or
network sniffer. It is open-source software that allows users to capture, analyze, and display
network traffic in real-time. Wireshark supports a wide range of protocols and can capture
packets on various network interfaces.

Here are some key features and functionalities of Wireshark:

1. **Packet Capture**: Wireshark captures packets traveling over a network interface in real-
time. Users can specify which network interface to capture packets from, allowing them to
monitor traffic on wired or wireless networks.

2. **Protocol Support**: Wireshark supports a vast array of network protocols, ranging from
common ones like TCP, UDP, HTTP, and DNS to more specialized protocols used in various
applications and services.

3. **Packet Analysis**: Wireshark provides detailed packet analysis capabilities, allowing users
to inspect packet headers and payloads. It can decode packet contents, display packet details, and
highlight protocol-specific information.

4. **Filtering**: Wireshark allows users to filter captured packets based on various criteria, such
as protocol, source or destination IP address, port number, packet length, and more. Filters help
users focus on specific types of traffic and isolate relevant packets for analysis.

5. **Statistics**: Wireshark offers statistical tools and features to analyze network traffic
patterns, such as packet counts, traffic volume, protocol distribution, and packet timing. These
statistics can provide insights into network performance and behavior.

6. **Exporting Data**: Wireshark enables users to export captured packets or analysis results in
various formats, including plain text, CSV, XML, and PDML (Packet Description Markup
Language). This allows for further analysis or sharing of captured data with others.
7. **Customization and Extensibility**: Wireshark is highly customizable and extensible
through the use of plugins and scripting languages such as Lua. Users can tailor the interface,
add custom dissectors for proprietary protocols, or automate tasks using scripting.

Wireshark is widely used by network administrators, security professionals, developers, and

students for troubleshooting network issues, analyzing network behavior, debugging protocols,
detecting network attacks, and learning about network communication. Its intuitive graphical
interface, comprehensive features, and broad protocol support make it a valuable tool in network
analysis and diagnostics.

A fake access point attack, also known as a rogue access point attack, is a type of wireless
network attack where an attacker sets up a malicious Wi-Fi access point to mimic a legitimate
access point. The goal of this attack is to deceive users into connecting to the attacker's fake
access point, thereby allowing the attacker to intercept, manipulate, or eavesdrop on their
network traffic.

Here's how a fake access point attack typically works:

1. **Creation of Fake Access Point**:

- The attacker sets up a wireless access point (AP) with a configuration that mimics a
legitimate AP. The fake AP may have a similar SSID (network name) and security settings (e.g.,
WPA2 encryption) to appear legitimate to unsuspecting users.

2. **Broadcasting Fake SSID**:

- The attacker broadcasts the SSID of the fake access point, making it visible to nearby devices
scanning for available Wi-Fi networks. Users looking for a Wi-Fi connection may see the fake
SSID in their list of available networks.

3. **User Connection**:
- Unsuspecting users may inadvertently connect to the fake access point, believing it to be a
legitimate network. This can happen if the fake SSID closely resembles that of a trusted network
or if the user's device automatically connects to networks with familiar names.

4. **Network Traffic Interception**:

 - Once connected, the attacker can intercept and monitor the network traffic passing through
the fake access point. This may include capturing sensitive information such as login credentials,
personal data, or financial information transmitted over the network.

5. **Man-in-the-Middle Attacks**:
- In more advanced scenarios, the attacker may conduct man-in-the-middle (MITM) attacks by
relaying network traffic between the victim's device and the legitimate network or internet. This
allows the attacker to intercept, modify, or inject data packets, potentially compromising the
integrity and confidentiality of the communication.

6. **Data Manipulation or Theft**:

- With access to the victim's network traffic, the attacker can manipulate data packets, inject
malicious code or malware, redirect users to phishing websites, or steal sensitive information
transmitted over the network.

7. **Persistence**:
- Some fake access point attacks involve creating persistent rogue access points that remain
active over an extended period. This allows attackers to continue monitoring and intercepting
network traffic from unsuspecting users.

Fake access point attacks pose significant security risks to users and organizations, as they
exploit the inherent trust users place in Wi-Fi networks. To mitigate the risk of fake access point
attacks, users should exercise caution when connecting to Wi-Fi networks, avoid connecting to
unfamiliar networks, and use additional security measures such as VPNs or network monitoring
tools. Organizations should implement strong Wi-Fi security practices, including network
segmentation, intrusion detection systems, and regular security audits to detect and mitigate
rogue access points.

Certainly! Let's go through each of these attacks along with an explanation and example:

1. **SYN Flooding Attack**:

- **Explanation**: In a SYN flooding attack, the attacker floods the target server with a large
number of TCP SYN (synchronize) packets, overwhelming its capacity to handle incoming
connection requests. This exhausts the server's resources, making it unable to process legitimate
connection requests, resulting in denial of service (DoS) or distributed denial of service (DDoS).
 - **Example**: An attacker sends a flood of TCP SYN packets to a web server. The server
allocates resources for each incoming SYN request but does not complete the connection
establishment process. Eventually, the server's resources are exhausted, causing it to become
unresponsive to legitimate connection attempts.

2. **ICMP Flooding**:
- **Explanation**: ICMP flooding involves sending a high volume of ICMP (Internet Control
Message Protocol) packets to a target network or host. This can overwhelm the target's network
bandwidth or consume its processing resources, leading to network congestion or device
unavailability.
- **Example**: An attacker sends a flood of ICMP echo request packets (ping requests) to a
target router. The router is inundated with incoming ICMP packets, causing it to become slow or
unresponsive to legitimate network traffic.

3. **IP Spoofing Attack**:

- **Explanation**: In an IP spoofing attack, the attacker manipulates the source IP address in
packet headers to impersonate a trusted entity or to hide the origin of the attack. This can be used
to bypass access controls, launch DoS attacks, or conduct network reconnaissance.
- **Example**: An attacker sends packets with forged source IP addresses to a target network,
making it appear as if the packets originated from a legitimate source. This can be used to evade
firewall rules or to conduct DoS attacks while masking the attacker's identity.

4. **TCP RST Attack**:

- **Explanation**: In a TCP reset (RST) attack, the attacker sends forged TCP reset packets to
terminate established TCP connections between network hosts. This disrupts ongoing
communication sessions and can lead to service disruption or denial of service.
- **Example**: An attacker sends spoofed TCP RST packets to both ends of an established
TCP connection, causing the connection to be abruptly terminated. This can disrupt
communication between a client and a server, leading to service unavailability.

5. **Land Attack**:
- **Explanation**: In a land attack, the attacker sends TCP SYN packets with spoofed source
IP and port addresses that match the victim's IP and port. This causes the victim's system to
respond by attempting to establish a connection with itself, consuming its own resources and
potentially leading to a denial of service.
 - **Example**: An attacker sends TCP SYN packets with spoofed source IP and port
addresses matching those of the victim's system. The victim's system responds by sending SYN-
ACK packets back to itself, leading to resource exhaustion and service disruption.

6. **Fragmentation Attack**:
- **Explanation**: A fragmentation attack involves sending fragmented IP packets with
overlapping or invalid fragment offsets, causing target systems to reassemble packets incorrectly
or exhaust their resources processing fragmented packets.
- **Example**: An attacker sends fragmented IP packets with manipulated fragment offsets to
a target system. The target system attempts to reassemble the packets but encounters errors due
to overlapping or invalid fragments, leading to system instability or service disruption.

7. **Teardrop Attack**:
- **Explanation**: In a teardrop attack, the attacker sends IP packets with overlapping
fragments or with invalid offsets, causing the target system to crash or become unstable when
attempting to reassemble the packets.
- **Example**: An attacker sends IP packets with overlapping fragments or with incorrect
fragment offsets to a target system. The target system's attempts to reassemble the packets result
in errors or crashes, leading to denial of service.

8. **Ping of Death**:
- **Explanation**: The ping of death attack involves sending oversized ICMP echo request
packets (ping packets) to a target system. When the target system attempts to process the
oversized packets, it may crash, become unstable, or suffer from other vulnerabilities.
- **Example**: An attacker sends ICMP echo request packets with payloads larger than the
maximum size allowed by the target system. When the target system attempts to process the
oversized packets, it encounters buffer overflow or other vulnerabilities, leading to system
crashes or instability.

9. **Unauthorized State Transition**:

- **Explanation**: In this attack, an attacker manipulates network devices or protocols to force
unauthorized state transitions, such as transitioning a device to an insecure or misconfigured
state. This can lead to security vulnerabilities or service disruptions.
 - **Example**: An attacker exploits a vulnerability in a network device's firmware to
manipulate its configuration and transition it to an unauthorized or insecure state. This could
involve changing firewall rules, disabling security features, or altering routing tables to redirect
traffic.

10. **Routing Algorithms Related Attack**:

- **Explanation**: These attacks target the routing algorithms used by routers and other
networking devices to determine the best path for forwarding packets. Attackers may exploit
vulnerabilities in routing protocols or manipulate routing information to disrupt network traffic
or redirect it to malicious destinations.
- **Example**: An attacker exploits a vulnerability in the Border Gateway Protocol (BGP) to
inject false routing information into the internet's routing tables. This could cause traffic destined
for legitimate destinations to be redirected through the attacker's network, allowing the attacker
to eavesdrop on or modify the traffic.

These examples illustrate various network attacks and the potential impact they can have on
network infrastructure, systems, and services. It's crucial for organizations to implement robust
security measures, such as intrusion detection systems, firewalls, and regular security audits, to
detect and mitigate these types of attacks. Additionally, keeping network devices and software
up-to-date with the latest security patches can help prevent exploitation of known vulnerabilities

Certainly! Let's break down the structure and fields of the IPv4 header and the TCP
(Transmission Control Protocol) header:

### IPv4 Header:

The IPv4 header is a fixed-length header that precedes the data payload of an IPv4 packet. It
contains essential information for routing and delivering the packet across the internet.

1. **Version (4 bits)**: Specifies the version of the IP protocol being used. For IPv4, this field
typically has a value of 4.

2. **Header Length (4 bits)**: Indicates the length of the IPv4 header in 32-bit words. Since the
IPv4 header can vary in length due to optional fields, this field is used to determine where the
data payload begins.
3. **Type of Service (8 bits)**: Specifies the quality of service (QoS) requested for the packet,
including precedence, delay, throughput, and reliability.

4. **Total Length (16 bits)**: Indicates the total length of the IPv4 packet, including the header
and data payload, in bytes.

5. **Identification (16 bits)**: A unique identifier assigned to the packet to assist in reassembly
of fragmented packets at the destination.

6. **Flags (3 bits)**: Contains control flags for packet fragmentation and reassembly. Includes
fields such as "Don't Fragment" (DF) and "More Fragments" (MF).

7. **Fragment Offset (13 bits)**: Indicates the offset of the current fragment relative to the
original unfragmented packet.

8. **Time to Live (TTL) (8 bits)**: Specifies the maximum number of hops (routers) the packet
is allowed to traverse before being discarded. Decremented by one at each hop.

9. **Protocol (8 bits)**: Specifies the protocol used in the data payload, such as TCP (6), UDP
(17), ICMP (1), etc.

10. **Header Checksum (16 bits)**: Provides error detection for the IPv4 header by verifying
the integrity of the header contents.

11. **Source IP Address (32 bits)**: Specifies the IP address of the sender (source) of the
packet.

12. **Destination IP Address (32 bits)**: Specifies the IP address of the intended recipient
(destination) of the packet.
13. **Options (Variable length)**: Optional fields used for various purposes, such as security,
debugging, or timestamping. Rarely used due to limited support and potential security concerns.

### TCP Header:

The TCP header is a fixed-length header that follows the IPv4 header (if IPv4 is used) and
precedes the data payload of a TCP segment. It contains control information for establishing,
maintaining, and terminating TCP connections.

1. **Source Port (16 bits)**: Specifies the port number of the sender (source) of the TCP
segment.

2. **Destination Port (16 bits)**: Specifies the port number of the intended recipient
(destination) of the TCP segment.

3. **Sequence Number (32 bits)**: Indicates the sequence number of the first data byte in the
current TCP segment. Used for sequencing and reordering segments at the receiver.

4. **Acknowledgment Number (32 bits)**: Used in acknowledgment (ACK) packets to indicate

the next sequence number expected by the sender. Enables reliable data transfer and flow control.

5. **Data Offset (4 bits)**: Specifies the length of the TCP header in 32-bit words. Indicates
where the data payload begins.

6. **Reserved (6 bits)**: Reserved for future use. Must be set to zero.

7. **Flags (6 bits)**: Contains control flags for various TCP functions, including SYN
(Synchronize), ACK (Acknowledgment), FIN (Finish), RST (Reset), PSH (Push), and URG
(Urgent).

8. **Window Size (16 bits)**: Indicates the size of the receive window, specifying the amount of
data that the sender can transmit before receiving an acknowledgment.
9. **Checksum (16 bits)**: Provides error detection for the TCP header and data payload by
verifying the integrity of the TCP segment.

10. **Urgent Pointer (16 bits)**: Used when the URG flag is set to indicate the offset from the
current sequence number of the last urgent data byte in the segment.

11. **Options (Variable length)**: Optional fields used for various purposes, such as maximum
segment size (MSS) negotiation, timestamping, selective acknowledgment (SACK), and window
scaling. May include padding to align the header to a 32-bit boundary.

These headers provide essential control and addressing information for transmitting data across
networks using the IPv4 and TCP protocols. Understanding their structure and fields is crucial
for network administrators, developers, and security professionals involved in network protocol
analysis, troubleshooting, and optimization.

TCP intercept, also known as TCP Intercept Mode, is a security feature implemented in some
network devices, particularly in firewalls and routers, to protect against TCP-based attacks, such
as SYN flooding attacks and TCP session hijacking.

### How TCP Intercept Works:

1. **Connection Monitoring**: TCP intercept continuously monitors incoming TCP connection

requests (SYN packets) destined for protected servers or services.

2. **SYN Flood Protection**: When a SYN packet is received, TCP intercept temporarily holds
the connection in a pending state, allowing the device to validate the legitimacy of the
connection attempt.

3. **Verification Process**: TCP intercept verifies the source IP address and port, destination IP
address and port, sequence number, and other parameters of the connection request to ensure it
conforms to expected behavior.
4. **Timeout Mechanism**: If the connection request passes validation, TCP intercept forwards
the packet to the destination server and establishes the connection. However, if the verification
process takes too long, TCP intercept terminates the connection attempt to mitigate the risk of
SYN flooding attacks.

5. **Connection Establishment**: Once the connection is established, TCP intercept steps aside,
allowing data to flow freely between the client and the server.

### Benefits of TCP Intercept:

1. **Protection Against SYN Floods**: TCP intercept helps mitigate SYN flooding attacks by
ensuring that only legitimate connection attempts are allowed to establish TCP connections with
protected servers.

2. **Security Enhancement**: By validating TCP connection requests, TCP intercept helps

prevent unauthorized access, session hijacking, and other TCP-based attacks.

3. **Resource Conservation**: TCP intercept conserves server resources by preventing them

from being overwhelmed by a flood of illegitimate connection requests.

### Considerations:

1. **Performance Impact**: TCP intercept can introduce latency and delay in the establishment
of TCP connections, particularly during periods of high traffic or when dealing with a large
number of connection requests.

2. **Configuration Flexibility**: Administrators must carefully configure TCP intercept

parameters, such as timeout values and connection thresholds, to balance security requirements
with performance considerations.

3. **Compatibility**: TCP intercept may not be compatible with all network devices and
protocols. Administrators should verify compatibility and test thoroughly before implementing
TCP intercept in production environments.
Overall, TCP intercept is a valuable security feature that enhances network security by protecting
against TCP-based attacks and unauthorized access attempts. However, administrators should
carefully consider its impact on performance and compatibility when deploying TCP intercept in
their network infrastructure.

Google employs a multi-layered approach to defend itself against DoS (Denial of Service) and
DDoS (Distributed Denial of Service) attacks. While Google does not publicly disclose all
specifics of its defense mechanisms, it's known that they employ a combination of proactive and
reactive measures to mitigate the impact of such attacks. Some of these measures include:

1. **Global Network Infrastructure**: Google operates one of the largest and most robust
network infrastructures in the world, consisting of numerous data centers distributed across the
globe. This distributed architecture helps to absorb and mitigate the impact of DDoS attacks by
distributing traffic across multiple locations and data centers.

2. **Anycast Technology**: Google uses Anycast routing to direct incoming traffic to the
nearest data center or server location. Anycast helps to optimize network performance and
resilience by automatically routing traffic to the closest available server, reducing latency and
minimizing the impact of DDoS attacks.

3. **Traffic Filtering and Scrubbing**: Google employs sophisticated traffic filtering and
scrubbing techniques to identify and filter out malicious traffic from legitimate requests. This
includes analyzing traffic patterns, detecting anomalies, and applying filtering rules to block or
mitigate malicious traffic at the network edge.

4. **Machine Learning and AI**: Google utilizes machine learning and artificial intelligence
(AI) algorithms to continuously analyze network traffic, detect patterns indicative of DDoS
attacks, and automatically adapt mitigation strategies in real-time. These AI-driven systems help
to improve the efficiency and effectiveness of DDoS mitigation efforts.

5. **Content Delivery Networks (CDNs)**: Google leverages content delivery networks

(CDNs) to cache and serve static content closer to end-users, reducing the load on origin servers
and improving the resilience of web services against DDoS attacks. CDNs help to distribute and
scale content delivery while providing additional layers of protection against malicious traffic.
6. **Rate Limiting and Traffic Shaping**: Google implements rate limiting and traffic shaping
policies to control the flow of incoming requests and prevent overload of backend systems
during periods of high traffic or DDoS attacks. These policies help to ensure the availability and
reliability of Google's services under heavy load conditions.

7. **Collaboration with ISPs and Peering Partners**: Google collaborates with internet service
providers (ISPs) and peering partners to share threat intelligence, coordinate response efforts,
and implement traffic filtering and mitigation strategies upstream in the network. This
collaborative approach helps to mitigate the impact of DDoS attacks closer to their source.

Overall, Google employs a combination of advanced network infrastructure, traffic management

techniques, machine learning algorithms, and collaborative partnerships to defend against DoS
and DDoS attacks and ensure the availability and reliability of its services for users worldwide.

A Smurf attack is a type of distributed denial-of-service (DDoS) attack that involves exploiting
the Internet Control Message Protocol (ICMP) to flood a victim's network with a large volume of
ICMP echo request (ping) packets. This attack relies on amplification and spoofing techniques to
overwhelm the target network's bandwidth and disrupt its normal operation.

Here's how a Smurf attack typically works:

1. **Spoofing Source IP Address**: The attacker spoofs the source IP address in ICMP echo
request packets to make them appear as if they originated from the victim's IP address.

2. **Broadcast Address Targeting**: The attacker sends these spoofed ICMP echo request
packets to the broadcast address of a network, typically using a smurf amplifier, such as an
improperly configured network router with IP directed broadcast enabled. When a packet is sent
to the broadcast address, it is forwarded to all hosts on the subnet.

3. **Amplification Effect**: Since the ICMP echo request packets are sent to the broadcast
address, each host on the subnet that receives the packet replies with an ICMP echo reply (ping
response) to the spoofed source IP address, which is the victim's IP address. This amplifies the
volume of traffic directed at the victim's network.
4. **Network Congestion**: As a result of the amplification effect, the victim's network
becomes inundated with ICMP echo reply packets, consuming available bandwidth,
overwhelming network devices, and disrupting legitimate network communication. This can lead
to a denial-of-service condition, making services or resources unavailable to legitimate users.

Smurf attacks are particularly effective because they exploit the broadcast nature of ICMP echo
request packets and the amplification effect of multiple hosts responding to those requests.
Additionally, the use of source IP address spoofing makes it difficult to trace the origin of the
attack back to the actual attacker.

To defend against Smurf attacks, network administrators can take several measures, including:

- Disabling IP directed broadcasts on routers and network devices to prevent them from
forwarding ICMP echo request packets to broadcast addresses.
- Configuring routers and network devices to block or rate-limit ICMP traffic at the network
perimeter.
- Implementing filtering rules on network devices to block incoming ICMP traffic with spoofed
or invalid source IP addresses.
- Employing intrusion detection and prevention systems (IDS/IPS) to detect and mitigate Smurf
attack traffic in real-time.
- Educating network users and administrators about security best practices, including the
importance of securing network devices and configuring them to prevent abuse.

By implementing these measures, organizations can reduce the risk of falling victim to Smurf
attacks and enhance the resilience of their networks against DDoS threats.

Using a VPN (Virtual Private Network) can be somewhat similar to IP spoofing in the sense that
both techniques involve manipulating the apparent source IP address of network traffic.
However, there are significant differences between the two methods and their intended purposes:

1. **IP Spoofing**:
- IP spoofing involves altering the source IP address of outgoing packets to make them appear
as if they originated from a different source. This technique is often used for malicious purposes,
such as disguising the true origin of an attack or bypassing access controls.
 - IP spoofing typically requires access to low-level networking capabilities and is often
associated with illicit activities, such as launching DDoS attacks or evading network security
measures.
- IP spoofing is generally not recommended or permitted on the public internet due to its
potential for abuse and the risk of disrupting network communication.

2. **VPN (Virtual Private Network)**:

- A VPN creates a secure encrypted tunnel between the user's device and a remote VPN server.
All network traffic passing through this tunnel is encrypted and routed through the VPN server
before reaching its destination.
- When using a VPN, the user's true IP address is hidden from the destination server, and
instead, the server sees the IP address of the VPN server. This helps to protect the user's privacy
and anonymity online.
- Unlike IP spoofing, which involves deception and manipulation of packet headers, using a
VPN is a legitimate and widely used method for enhancing online privacy, security, and
anonymity.
- VPNs are commonly used by individuals and organizations to encrypt their internet traffic,
bypass geo-restrictions, access restricted content, and secure connections over untrusted
networks, such as public Wi-Fi hotspots.

In summary, while both IP spoofing and using a VPN involve altering the source IP address of
network traffic, they serve different purposes and have distinct implications. IP spoofing is
generally associated with malicious activities and is discouraged, whereas using a VPN is a
legitimate and widely accepted method for enhancing online privacy and security.

If you make a number of "ICMP Echo request" (ping) requests to the target host before initiating
blind spoofing, you are essentially performing reconnaissance or probing the target network.
This activity can have several implications:

1. **Discovery of Live Hosts**: By sending ICMP Echo requests to the target host, you can
determine if the host is alive and responsive on the network. If the target host responds to the
ICMP Echo requests, it indicates that the host is active and reachable.

2. **Network Topology Mapping**: By sending ICMP Echo requests to multiple hosts within
the target network, you can map out the network topology and identify active hosts, routers, and
other network devices. This information can be valuable for understanding the layout and
structure of the target network.

3. **Latency and Round-Trip Time Measurement**: ICMP Echo requests and responses include
timing information, such as the round-trip time (RTT) between the sender and the target host. By
analyzing the RTT values, you can assess network latency and performance characteristics.

4. **Potential Footprinting**: Continuously sending ICMP Echo requests to the target host may
alert network administrators to your presence or suspicious activity. This could lead to increased
scrutiny or defensive measures being implemented to protect the network.

5. **Risk of Detection**: Excessive or repeated ICMP Echo requests may trigger intrusion
detection systems (IDS) or network monitoring tools, leading to detection and potential
countermeasures being taken against your probing activity.

Overall, while sending ICMP Echo requests to the target host can provide valuable information
about the target network, it also carries the risk of detection and may alert network administrators
to your presence. It's essential to approach reconnaissance activities responsibly and ethically,
following legal and ethical guidelines, and obtaining appropriate authorization if necessary.
Additionally, consider using stealthier reconnaissance techniques or leveraging automated
scanning tools to minimize the risk of detection while gathering information about the target
network.

Yes, if an attacker sends an ACK flood attack while utilizing IP spoofing, it would still be
considered an ACK flood attack. The use of IP spoofing does not change the nature of the attack;
it only obscures the true source of the packets.

In an ACK flood attack, the attacker sends a flood of TCP ACK (Acknowledgment) packets to
the target server, overwhelming its resources and disrupting its ability to process legitimate
connections. This flooding of ACK packets can consume the server's processing capacity,
exhaust its available memory, and potentially cause it to become unresponsive to legitimate
traffic.

The use of IP spoofing in this context involves forging the source IP addresses of the ACK
packets to make them appear as if they are coming from legitimate sources or multiple sources
across the internet. This can make it more difficult for the target server to distinguish between
legitimate and malicious traffic and to identify the true source of the attack.

If the attacker successfully guesses the right ACK number to include in the spoofed packets, it
does not change the fact that the attack is still an ACK flood attack. However, guessing the
correct ACK number may allow the attacker to better mimic legitimate TCP connections and
potentially evade certain detection mechanisms. Nonetheless, the attack remains a flooding
attack aimed at overwhelming the target server with a large volume of ACK packets, regardless
of the accuracy of the guessed ACK numbers or the use of IP spoofing.

Blind spoofing, also known as blind TCP spoofing, involves sending TCP packets with forged
source IP addresses without receiving responses from the target host. This technique is often
used in DDoS (Distributed Denial of Service) attacks, including ACK flooding attacks.

In an ACK flooding attack using blind spoofing:

1. The attacker sends a flood of TCP ACK (Acknowledgment) packets with forged source IP
addresses to the target server.

2. Since the attacker does not receive responses from the target server, it is considered blind
spoofing.

3. The goal of the ACK flooding attack is to overwhelm the target server's resources by sending a
large volume of spoofed ACK packets, consuming its processing capacity, and potentially
causing it to become unresponsive to legitimate traffic.

4. The attacker may continue the blind spoofing ACK flood until it successfully guesses the
correct ACK numbers or until it achieves its desired impact on the target server's availability.

Therefore, while blind spoofing is a technique commonly associated with ACK flooding attacks,
the primary focus of the attack is still on flooding the target server with spoofed TCP ACK
packets, rather than specifically on obtaining the correct ACK numbers. The success of the attack
depends on overwhelming the target server's resources rather than on the accuracy of the guessed
ACK numbers.
ACK flooding and IP spoofing are two distinct techniques used in network attacks, each with its
own purpose and methodology:

1. **ACK Flooding**:
- ACK flooding is a type of denial-of-service (DoS) or distributed denial-of-service (DDoS)
attack that targets the Transmission Control Protocol (TCP) protocol.
- In an ACK flooding attack, the attacker sends a flood of TCP ACK (Acknowledgment)
packets to the target server, overwhelming its resources and disrupting its ability to process
legitimate connections.
- The goal of an ACK flooding attack is to consume the target server's processing capacity,
exhaust its available memory, and potentially cause it to become unresponsive to legitimate
traffic.
- ACK flooding attacks do not necessarily involve IP spoofing, although they can be combined
with spoofing techniques to obscure the true source of the attack.

2. **IP Spoofing**:
- IP spoofing involves altering the source IP address of network packets to make them appear
as if they originated from a different source.
- IP spoofing can be used for various purposes, including evasion of network security
measures, disguising the true origin of an attack, or bypassing access controls.
- In the context of DDoS attacks, IP spoofing is often used to mask the identity of the attacker
or to amplify the impact of the attack by leveraging multiple compromised or spoofed IP
addresses.
- While IP spoofing can be used in conjunction with various types of network attacks,
including DDoS attacks, it is not inherently synonymous with ACK flooding. IP spoofing can be
employed in different types of attacks, such as SYN flooding, UDP flooding, or ICMP flooding,
in addition to ACK flooding.

In summary, ACK flooding and IP spoofing are two distinct techniques used in network attacks.
ACK flooding specifically targets the TCP protocol by flooding the target server with spoofed
TCP ACK packets, while IP spoofing involves altering the source IP address of packets to
obfuscate the true origin of the traffic. While these techniques can be used independently, they
can also be combined to enhance the effectiveness and stealthiness of network attacks.
Blind spoofing and ACK flooding are two different concepts often associated with TCP-based
attacks, but they serve different purposes and involve distinct techniques:

1. **Blind Spoofing**:
- Blind spoofing, also known as blind TCP spoofing, involves sending TCP packets with forged
source IP addresses without receiving responses from the target host.
- This technique is commonly used in DDoS (Distributed Denial of Service) attacks, where the
attacker sends a flood of TCP packets with spoofed source IP addresses to overwhelm the target
server's resources.
- Blind spoofing does not involve establishing a full TCP connection or completing the TCP
handshake process. Instead, the attacker sends spoofed TCP packets without expecting responses,
making it a one-way communication.
- The goal of blind spoofing is to consume the target server's processing capacity and disrupt its
operations without establishing legitimate connections or engaging in bidirectional
communication.

2. **ACK Flooding**:
- ACK flooding is a specific type of TCP-based DDoS attack that targets the Transmission
Control Protocol (TCP) protocol.
- In an ACK flooding attack, the attacker sends a flood of TCP ACK (Acknowledgment)
packets to the target server, overwhelming its resources and disrupting its ability to process
legitimate connections.
- The ACK packets sent in an ACK flooding attack typically contain valid TCP headers,
including the acknowledgment number (ACK) field, but the source IP address may be spoofed to
obscure the true origin of the attack.
- The goal of an ACK flooding attack is to consume the target server's processing capacity and
exhaust its available memory by flooding it with a high volume of spoofed TCP ACK packets.

In summary, blind spoofing and ACK flooding are both techniques used in TCP-based DDoS
attacks, but they operate differently and serve different purposes. Blind spoofing involves
sending spoofed TCP packets without receiving responses, while ACK flooding specifically
floods the target server with TCP ACK packets to overwhelm its resources. Both techniques aim
to disrupt the target server's operations, but they employ distinct methodologies to achieve this
goal.
Source routing is a networking technique that allows the sender of a packet to specify the route it
should take through the network. In the context of IP spoofing, source routing can be used to
manipulate the path that a packet takes from its source to its destination.

In traditional IP routing, routers along the path determine the next hop for a packet based on the
destination IP address and their routing tables. However, with source routing, the sender of the
packet can specify the complete route that the packet should take, including intermediate hops.

Source routing works by including a "source route" option in the packet header. This option
contains a list of IP addresses representing the intermediate routers or network segments that the
packet should traverse. When a router receives a packet with a source route option, it follows the
specified route rather than determining the next hop based on its routing table.

In the context of IP spoofing, an attacker may use source routing to disguise the true origin of a
packet by specifying a route that bypasses certain network security measures or conceals the
attacker's identity. By specifying a source route that includes legitimate intermediate routers or
network segments, the attacker can make the packet appear as if it originated from a trusted
source, even though the true source IP address may be spoofed.

It's important to note that source routing is generally disabled or restricted in many networks and
devices due to security concerns. Allowing source routing can introduce vulnerabilities, such as
IP address spoofing, packet tampering, and bypassing of network security controls. As a result,
source routing is often considered a security risk and is typically not used in modern network
configurations.

Egress filtering and Ingress filtering are two complementary network security measures aimed at
preventing unauthorized or malicious traffic from entering or leaving a network. They are
commonly employed by network administrators to enhance the security posture of their networks
and mitigate various types of attacks, including IP spoofing.

1. **Egress Filtering**:
- Egress filtering involves inspecting and controlling outgoing traffic leaving a network or
subnet.
- The primary goal of egress filtering is to ensure that only legitimate and authorized traffic is
allowed to exit the network, while blocking or restricting unauthorized or malicious traffic.
 - Egress filtering policies are typically implemented at network egress points, such as routers,
firewalls, or border gateways.
- Common egress filtering techniques include:
- Filtering outbound traffic based on source IP address, destination IP address, port numbers,
and protocol types.
- Blocking outbound traffic originating from reserved or private IP address ranges (e.g., RFC
1918 addresses).
- Applying access control lists (ACLs) or firewall rules to restrict outbound traffic to known
and trusted destinations.

2. **Ingress Filtering**:
- Ingress filtering involves inspecting and controlling incoming traffic entering a network or
subnet.
- The primary goal of ingress filtering is to prevent unauthorized or spoofed traffic from
entering the network and to enforce security policies at the network perimeter.
- Ingress filtering policies are typically implemented at network ingress points, such as routers,
firewalls, or border gateways.
- Common ingress filtering techniques include:
- Filtering inbound traffic based on source IP address, destination IP address, port numbers,
and protocol types.
- Blocking inbound traffic with spoofed or invalid source IP addresses, such as packets
originating from within the network but claiming to be from external sources (IP spoofing).
- Applying ingress filtering rules to drop or reject traffic that violates established security
policies or known attack signatures.

How Egress and Ingress Filtering can be used to partially mitigate IP Spoofing:

- **Ingress Filtering**: By implementing ingress filtering at network ingress points, network

administrators can block or drop incoming traffic with spoofed or invalid source IP addresses.
This helps prevent IP spoofing attacks from entering the network and reduces the risk of
malicious traffic exploiting vulnerabilities or launching attacks from within the network.
- **Egress Filtering**: Egress filtering can be used to enforce security policies and restrict
outbound traffic leaving the network to known and trusted destinations. While egress filtering
may not directly prevent IP spoofing attacks, it can help detect and mitigate the impact of
compromised hosts within the network attempting to spoof their source IP addresses and launch
attacks against external targets. By blocking outbound traffic with spoofed or unauthorized
source IP addresses, egress filtering can limit the ability of attackers to use IP spoofing as a
vector for launching attacks against external networks.

Overall, while Egress and Ingress Filtering cannot fully eliminate the risk of IP spoofing attacks,
they can help mitigate the impact and reduce the attack surface by enforcing security policies and
preventing unauthorized or malicious traffic from entering or leaving the network.

Sure, here are the common port numbers associated with the protocols listed for each layer of the
OSI model:

Layer 7: Application Layer

- HTTP (Hypertext Transfer Protocol): Port 80 (HTTP) or Port 443 (HTTPS)
- FTP (File Transfer Protocol): Port 20 (FTP Data) and Port 21 (FTP Control)
- IRC (Internet Relay Chat): Port 6667 (typically)
- SSH (Secure Shell): Port 22
- DNS (Domain Name System): Port 53

Layer 6: Presentation Layer

- SSL (Secure Sockets Layer) / TLS (Transport Layer Security): Port 443 (HTTPS)
- IMAP (Internet Message Access Protocol): Port 143 (IMAP) or Port 993 (IMAPS)
- FTP (File Transfer Protocol): Port 20 (FTP Data) and Port 21 (FTP Control)
- MPEG (Moving Picture Experts Group): Various ports, often associated with streaming
services
- JPEG (Joint Photographic Experts Group): No specific port, typically transferred over HTTP or
other application layer protocols

Layer 5: Session Layer

- APIs (Application Programming Interfaces): No specific port, used internally within
applications
- Sockets: No specific port, managed by the operating system for network communication
- WinSock (Windows Sockets): No specific port, managed by the operating system for network
communication

Layer 4: Transport Layer

- TCP (Transmission Control Protocol): No specific port, used with various applications
- UDP (User Datagram Protocol): No specific port, used with various applications

Layer 3: Network Layer

- IP (Internet Protocol): No specific port, used for routing and addressing
- ICMP (Internet Control Message Protocol): No specific port, used for network diagnostics and
error reporting
- IPSec (Internet Protocol Security): No specific port, operates at the IP layer for secure
communication
- IGMP (Internet Group Management Protocol): No specific port, used for managing multicast
group membership

Layer 2: Data Link Layer

- Ethernet: No specific port, operates at the data link layer for local network communication
- PPP (Point-to-Point Protocol): No specific port, used for serial communication between
network nodes
- Switch: No specific port, operates at the data link layer for forwarding frames within a network
- Bridge: No specific port, operates at the data link layer for connecting network segments

Layer 1: Physical Layer

- Coax: No specific port, used for analog transmission over coaxial cables
- Fiber: No specific port, used for optical transmission over fiber optic cables
- Wireless: No specific port, used for wireless communication over radio frequencies
- Hubs: No specific port, operates at the physical layer for connecting network devices
- Repeaters: No specific port, operates at the physical layer for amplifying signals in a network

These port numbers are common defaults for each protocol, but they can be configured
differently based on network configurations and applications.

IP fragmentation is a process used in computer networking when a packet is too large to be

transmitted over a network in a single piece. It breaks down large packets into smaller fragments
that can traverse the network individually and then reassembles them at the destination. This
process is necessary because different networks may have different maximum transmission unit
(MTU) sizes, which is the maximum size of a packet that can be transmitted over the network
without fragmentation.

When a packet is fragmented, the original packet's data is divided into smaller fragments, each
with its own IP header. These fragments are then transmitted separately across the network. At
the destination, the receiving device reassembles the fragments into the original packet based on
information in the IP headers.

The fields responsible for fragmentation in the IP header include:

1. **Total Length**: This field indicates the total length of the IP packet, including both the
header and the data, in bytes. It is a 16-bit field, allowing a maximum value of 65,535 bytes. If
the total length exceeds the MTU of the network, fragmentation may occur.

2. **Identification**: This field is used to identify the fragments of a single original packet. Each
fragment of a packet contains the same identification value, allowing the receiving device to
identify and reassemble the fragments belonging to the same packet.

3. **Flags**: The Flags field consists of three 1-bit flags:

- **Reserved (Bit 0)**: Reserved for future use and must be set to 0.
- **Don't Fragment (DF, Bit 1)**: If set to 1, indicates that the packet should not be
fragmented. If the packet's size exceeds the MTU and this flag is set, the packet will be dropped.
- **More Fragments (MF, Bit 2)**: If set to 1, indicates that more fragments follow the current
fragment. If set to 0, indicates that the current fragment is the last fragment of the original
packet.
4. **Fragment Offset**: This field indicates the position of the fragment's data relative to the
beginning of the original packet. It specifies the offset in units of 8-byte blocks (or 64 bits). The
first fragment has an offset of 0, and subsequent fragments are offset by the size of the preceding
fragments.

These fields work together to facilitate the fragmentation and reassembly of IP packets across
networks with varying MTU sizes. Proper handling of these fields ensures that data can be
transmitted reliably across networks while adhering to size constraints.

RFC 791, titled "Internet Protocol" (IP), is one of the fundamental documents defining the
specifications for the Internet Protocol (IP). It was published in September 1981 by the Internet
Engineering Task Force (IETF) as part of the Request for Comments (RFC) series.

Here is an overview of RFC 791 and its significance:

1. **Purpose**: RFC 791 defines the basic specifications for the Internet Protocol (IP), which is
a core protocol of the TCP/IP protocol suite. IP provides the fundamental mechanism for
addressing, routing, and forwarding packets across interconnected networks on the internet.

2. **Key Concepts**: The document covers key concepts and features of IP, including packet
format, addressing, routing, fragmentation, error handling, and protocol versioning.

3. **Packet Format**: RFC 791 specifies the format of an IP packet header, including fields
such as version, header length, type of service (TOS), total length, identification, flags, fragment
offset, time-to-live (TTL), protocol, header checksum, source IP address, and destination IP
address.

4. **Addressing**: The document defines the structure of IP addresses, including the distinction
between IPv4 and IPv6 address formats. It also describes the role of subnetting and routing in IP
address assignment and communication.

5. **Routing**: RFC 791 outlines the basic principles of routing in IP networks, including the
use of routing tables, routing algorithms, and the forwarding of packets between network
segments.
6. **Fragmentation and Reassembly**: The document describes the mechanism for IP packet
fragmentation, which allows large packets to be divided into smaller fragments for transmission
across networks with different Maximum Transmission Unit (MTU) sizes. It also specifies how
fragmented packets are reassembled at the destination.

7. **Error Handling**: RFC 791 defines various error conditions and specifies how IP handles
errors such as packet loss, corruption, and time-to-live (TTL) expiration.

8. **Protocol Versioning**: The document introduces the concept of IP versioning and specifies
the format of the IP version field, which allows for the identification of different versions of the
IP protocol.

RFC 791 is a seminal document in the history of networking and has played a foundational role
in the development and evolution of the Internet. It serves as the basis for the IPv4 protocol,
which remains widely used today, alongside its successor, IPv6. The specifications outlined in
RFC 791 have been instrumental in enabling the global connectivity and interoperability that
characterize the modern internet.

The "Ping of Death" and IP spoofing are two distinct techniques used in network attacks, but
they can be combined to conceal the attacker's identity and amplify the impact of the attack.
Here's how this combination might work:

1. **Ping of Death**:
- The Ping of Death is a type of Denial of Service (DoS) attack where an attacker sends
malformed or oversized ICMP Echo Request (ping) packets to a target device.
- These oversized packets can cause buffer overflow or other vulnerabilities in the target
device's networking stack, leading to crashes, freezes, or other disruptions in its operation.
- The name "Ping of Death" originates from the fact that the attack exploits vulnerabilities in
the ICMP Echo Request (ping) functionality, causing the target device to "die" or become
unresponsive.

2. **IP Spoofing**:
 - IP spoofing involves altering the source IP address of network packets to make them appear
as if they originated from a different source.
- By spoofing their IP address, attackers can mask their true identity and make it more difficult
for defenders to trace the source of the attack back to them.
- IP spoofing can also be used to impersonate trusted or legitimate IP addresses, allowing
attackers to bypass network security measures or gain unauthorized access to network resources.

Combining Ping of Death with IP Spoofing:

1. **Concealing the Attacker's Identity**:

- By spoofing their IP address, attackers can make it appear as if the Ping of Death packets
originated from a different source than their own.
- This can make it more challenging for defenders to identify and trace the true source of the
attack back to the attacker, as the spoofed IP address may belong to a legitimate entity or be
difficult to attribute.

2. **Amplifying the Impact of the Attack**:

- IP spoofing can be used to amplify the impact of the Ping of Death attack by distributing the
attack traffic across multiple spoofed source IP addresses.
- By spoofing multiple IP addresses, attackers can increase the volume of attack traffic directed
at the target device, potentially overwhelming its resources and causing more significant
disruption.

3. **Evasion of Defense Mechanisms**:

- IP spoofing can also be used to evade defense mechanisms such as IP-based access controls,
firewalls, or intrusion detection systems (IDS).
- By spoofing trusted IP addresses or distributing attack traffic across multiple IP addresses,
attackers can bypass network filtering or detection mechanisms that are based on IP address
whitelisting or blacklisting.

In summary, combining the Ping of Death attack with IP spoofing allows attackers to conceal
their identity, amplify the impact of the attack, and evade defense mechanisms, making it more
challenging for defenders to detect and mitigate the attack effectively.
Yes, that's correct.

- The Teardrop attack is a type of fragmentation attack that targets the IP header by sending
fragmented packets with overlapping fragment offsets. When the victim's operating system
attempts to reassemble these overlapping fragments, it may encounter errors or crashes due to the
improper handling of the fragmented packets. This attack exploits vulnerabilities in the
reassembly process of the victim's TCP/IP stack.

- On the other hand, the Ping of Death attack is a type of Denial of Service (DoS) attack that
specifically targets the ICMP (Internet Control Message Protocol) header by sending malformed
or oversized ICMP Echo Request (ping) packets to the victim's system. These oversized packets
exploit vulnerabilities in the ICMP handling routines of the victim's operating system or network
devices, leading to crashes or freezes.

In summary, while both attacks involve fragmentation, they target different protocols and headers
within the TCP/IP stack. The Teardrop attack targets the IP header, while the Ping of Death
attack targets the ICMP header.

Hash functions like MD5 (Message Digest Algorithm 5), SHA (Secure Hash Algorithm), and
Blowfish are cryptographic algorithms used for various purposes, including data integrity
verification, password hashing, and digital signatures. Each of these algorithms has its own
specific design and characteristics, but they generally follow similar principles when it comes to
their algorithmic structure. Here's a simplified overview of the algorithmic structure of hash
functions:

1. **Initialization**:
- The hash function typically begins by initializing its internal state to a predetermined initial
value. This state serves as the starting point for processing the input data.

2. **Message Padding (Optional)**:

- In some hash functions, such as SHA, the input message may be padded to ensure that its
length is a multiple of a certain block size. This padding is necessary to handle messages of
arbitrary lengths.
3. **Message Processing**:
- The input message is processed in blocks of fixed size. Each block undergoes a series of
transformations within the hash function's compression function.
- During message processing, the internal state of the hash function is updated iteratively based
on the current block of input data and the current state.

4. **Compression Function**:
- The compression function is a core component of the hash function that combines the current
state of the hash function with the input block to produce a new state.
- The compression function typically involves a series of bitwise operations, modular
arithmetic, and nonlinear transformations, designed to introduce diffusion and confusion
properties to the hash function.
- The compression function may use constants, derived from the hash function's design, as well
as round-specific constants to ensure the algorithm's security properties.

5. **Finalization**:
- Once all input blocks have been processed, the hash function performs finalization steps to
produce the final hash value.
- Depending on the hash function's design, finalization may involve additional processing of
the internal state, appending additional data to the message, or applying post-processing steps to
the hash value.

6. **Output**:
- The final output of the hash function is a fixed-size hash value, often represented as a
hexadecimal or binary string.
- This hash value serves as a unique fingerprint or digest of the input message, allowing for
efficient data integrity verification, password hashing, or other cryptographic applications.

It's important to note that the specific details and cryptographic properties of each hash function,
such as collision resistance, preimage resistance, and resistance to cryptographic attacks, are
determined by the algorithm's design choices, including the choice of compression function,
round constants, and internal state size. Additionally, modern cryptographic hash functions like
SHA-256 and SHA-3 employ more sophisticated designs and security features compared to older
algorithms like MD5 and SHA-1, which are now considered broken and insecure for many
cryptographic purposes.

In cryptographic systems, hashing and encryption/decryption are distinct processes performed at

different stages and for different purposes.

1. **Hashing**:
- Hashing is a one-way process that converts input data into a fixed-size hash value using a
cryptographic hash function.
- Hashing is primarily used for data integrity verification, digital signatures, and password
hashing.
- Hashing is typically done on the sender's side or at the source of the data.
- Hashing does not involve decryption or the recovery of the original data from the hash value.

2. **Encryption/Decryption**:
- Encryption is a reversible process that converts plaintext data into ciphertext using an
encryption algorithm and a secret key.
- Decryption is the reverse process that converts ciphertext back into plaintext using the same
encryption algorithm and key.
- Encryption and decryption are used to protect the confidentiality of data during transmission
or storage.
- Encryption is typically done on the sender's side to protect data before transmission, while
decryption is performed on the recipient's side to recover the original plaintext.
- Encryption and decryption involve cryptographic keys, which must be kept secret and
securely exchanged between authorized parties.

In summary, hashing is used for data integrity verification and password hashing, while
encryption and decryption are used for protecting the confidentiality of data. Hashing is typically
done at the source of the data, while encryption and decryption are performed at both the sender's
and recipient's ends to protect and recover data during transmission or storage.
DNS cache poisoning, also known as DNS spoofing, is a malicious attack that exploits
vulnerabilities in the Domain Name System (DNS) to redirect DNS queries to malicious or
unauthorized IP addresses. The goal of DNS cache poisoning is to corrupt the DNS cache of a
DNS resolver (such as a DNS server or a client's DNS cache) with false DNS information,
leading to the redirection of legitimate domain name resolutions to malicious websites or servers
controlled by the attacker.

Here's how DNS cache poisoning typically works:

1. **Understanding DNS Caching**:

- DNS caching is a mechanism used to speed up the process of domain name resolution by
storing previously resolved DNS queries and their corresponding IP addresses in a cache.
- DNS resolvers, such as DNS servers or client devices, maintain a cache of DNS records
obtained from authoritative DNS servers to avoid repeated lookups for frequently accessed
domain names.

2. **Injection of False DNS Data**:

- In a DNS cache poisoning attack, the attacker sends forged DNS responses containing false
DNS information to the target DNS resolver.
- These forged responses may include incorrect mappings between domain names and IP
addresses, effectively "poisoning" the DNS cache with malicious or unauthorized data.

3. **Exploiting DNS Protocol Weaknesses**:

- DNS cache poisoning attacks often exploit weaknesses in the DNS protocol, such as lack of
authentication and inadequate randomness in transaction IDs.
- By guessing or predicting the transaction ID of a DNS query, the attacker can send a forged
DNS response with the same transaction ID before the legitimate DNS server responds,
effectively tricking the DNS resolver into accepting the forged response as valid.

4. **Redirecting Traffic to Malicious Servers**:

- Once the DNS cache has been poisoned, subsequent DNS queries for the affected domain
names will be resolved to the malicious IP addresses provided by the attacker.
 - This can result in users being redirected to phishing websites, malware distribution servers, or
other malicious destinations controlled by the attacker.
- The attacker can then intercept and manipulate the traffic between the victim and the
malicious server, potentially stealing sensitive information or launching further attacks.

DNS cache poisoning is a serious security threat that can have far-reaching consequences,
including data theft, financial loss, and reputational damage. To mitigate the risk of DNS cache
poisoning, network administrators should implement security best practices such as using
DNSSEC (Domain Name System Security Extensions), implementing source port
randomization, deploying DNS firewall solutions, and regularly monitoring DNS traffic for
suspicious activity. Additionally, keeping DNS resolver software up to date and patching known
vulnerabilities can help prevent DNS cache poisoning attacks.

### Authoritative DNS Server

An authoritative DNS server is a type of server on the Internet that provides authoritative
answers to queries about domains. It is the ultimate source of information for all the domains it is
responsible for. When a DNS resolver queries an authoritative server for a domain's records, the
server responds with answers that have been configured by the domain owner. These answers are
considered definitive, and the authoritative server does not need to query other servers to resolve
the domain name.

There are two types of authoritative DNS servers:

1. **Primary DNS Server**: This server holds the original read-write version of all zone records
for a domain. It is the definitive source for information about that domain and can make changes
to its records.

2. **Secondary DNS Server**: This server holds a read-only copy of the zone records for a
domain. It gets its data from the primary server through a process known as zone transfer.
Secondary servers increase the availability of DNS information by providing redundancy and
load balancing.

### Iterative and Recursive Queries

In the context of DNS, queries can be resolved through either iterative or recursive methods, and
understanding the difference is crucial for grasping how DNS queries are processed.

1. **Iterative Query**:
- In an iterative DNS query, when a DNS resolver receives a query from a client (such as a
user's web browser), the resolver asks the root DNS servers for the address of a domain. The root
server responds not with the address itself but with a referral to a TLD (Top-Level Domain)
server (such as .com, .net, or .org) that is more likely to know the address.
- The resolver then queries this TLD server, which, in turn, responds with a referral to the
authoritative nameserver for the specific domain being requested.
- Finally, the resolver queries the authoritative nameserver. If all goes well, it receives the IP
address of the domain in question. Each step requires the resolver to perform a new query based
on the referral from the last server.
- In iterative resolution, the DNS resolver is responsible for making each subsequent query
until it finds the answer.

2. **Recursive Query**:
- In a recursive DNS query, the client asks a DNS resolver for the IP address of a domain. If the
resolver does not already have the domain’s IP address in its cache, it takes upon itself to find the
address by making a series of DNS queries on behalf of the client.
- Unlike iterative queries, where the resolver returns referrals to the client, in recursive queries,
the resolver does not return to the client until it has either an error message or the requested IP
address.
- This process involves querying root servers, TLD servers, and authoritative servers in
sequence, similar to the iterative process, but the resolver performs all steps transparently,
presenting only the final result to the client.
- Recursive queries are often seen as more convenient from the client's perspective, as the
client does not have to perform multiple queries; the resolver handles all the work.

Each method has its use cases, and DNS resolvers may support one or both types of queries
depending on their configuration and the specific needs of the network or system they serve.
