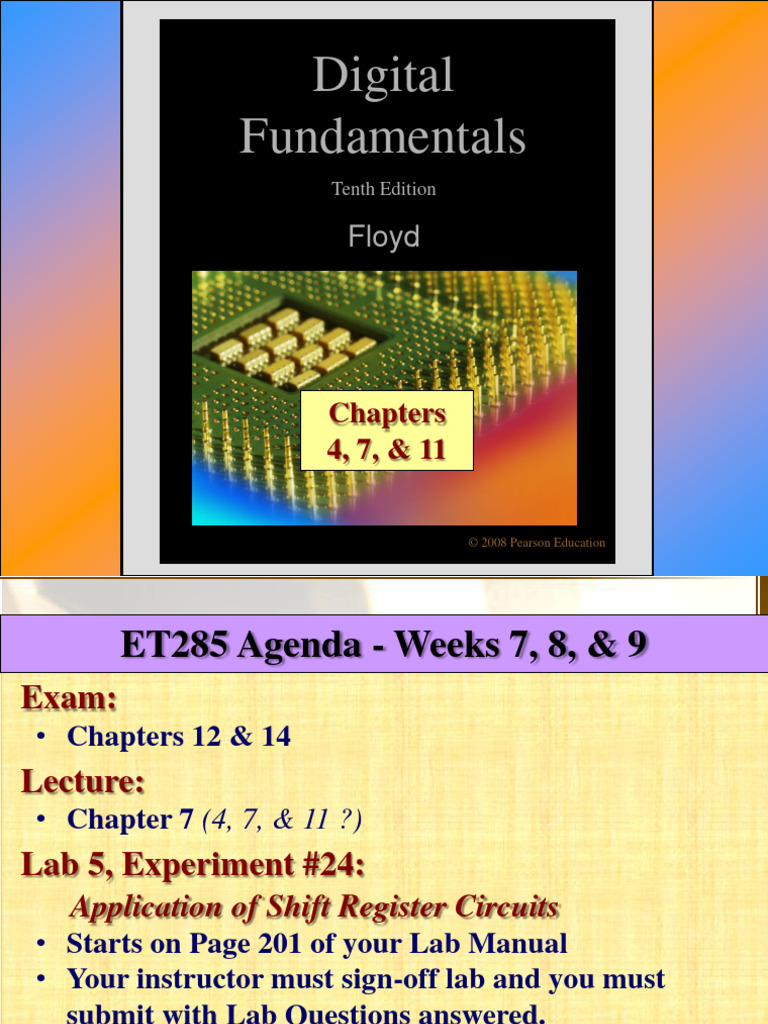

Fundamentals
Tenth Edition
Floyd
Chapters
4, 7, & 11
Chapters 4 & 7
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
PAL implementation of a sum-of-products expression.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
PAL implementation of a sum-of-products expression.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 4-47 (Example 4-35) Page 216
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure x.x
General block diagram of a PAL or GAL.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 4-49
Basic types of PAL/GAL macrocells for
combinational logic.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure x.x
Logic block diagram of a PAL16V8 and typical SPLD
package.
An I/O pin is
counted as both an
input and an output.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
The GAL22V10
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7-1
GAL22V10 block diagram.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.9
Block diagram of the GAL22V10 and typical
SPLD package.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
GAL22V10 – Output Logic Macros
Output Logic Macrocells (OLMC) contain
programmable logic circuits that can be configured for
either combinational output/input or registered Output.
The OLMCs of the GAL22V10 are configured as follows:
• Two have eight product terms
(lines from the AND array to the OR gate)
• Two have ten product terms
• Two have twelve product terms
• Two have fourteen product terms
• Two have sixteen product terms
Each OLMC can be programmed for either active high or
active low output or as an input.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--3
The GAL22V10 OLMC.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--4
OLMC combinational mode.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--5
Tristate output buffer operation.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--6
OLMC combinational output and input configurations.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--7
Determine the output expression of the following OLMC
for the product terms from the AND array as shown.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
The GAL22V10 Array
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--8
GAL22V10 array diagram.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--9
Organization of the programmable array showing one OLMC
portion.
The example OLMC below has 8 product terms that
can be used in a Sum Of Product function.
Notice: 8 AND gates going to OLMC.
Also, up to 10 separate SOP functions can be programmed.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 7--10
See Example 7-2, page 370 in text
Programming a cell to the ON state simply connects
the input line to the product term line.
Below, X = ON
How many more product terms can be added to the
SOP example below?
Thomas L.
Floyd, Floyd Fundamentals,
Digital 10th ed © 2009 Pearson Education, Upper Saddle River, NJCopyright
07458.©2003
All Rights
by PearsonReserved
Education, Inc.
Digital Fundamentals, 8e Upper Saddle River, New Jersey 07458
All rights reserved.
Figure 7--11
GAL16V8 block diagram and packaging.
Eight dedicated
inputs and eight
I/O’s
Thomas L.
Floyd, Floyd Fundamentals,
Digital 10th ed © 2009 Pearson Education, Upper Saddle River, NJCopyright
07458.©2003
All Rights
by PearsonReserved
Education, Inc.
Digital Fundamentals, 8e Upper Saddle River, New Jersey 07458
All rights reserved.
Figure 7--12
OLMC configurations in the simple mode.
Thomas L.
Floyd, Floyd Fundamentals,
Digital 10th ed © 2009 Pearson Education, Upper Saddle River, NJCopyright
07458.©2003
All Rights
by PearsonReserved
Education, Inc.
Digital Fundamentals, 8e Upper Saddle River, New Jersey 07458
All rights reserved.
Figure 7--13
OLMC configurations in the complex mode.
Thomas L.
Floyd, Floyd Fundamentals,
Digital 10th ed © 2009 Pearson Education, Upper Saddle River, NJCopyright
07458.©2003
All Rights
by PearsonReserved
Education, Inc.
Digital Fundamentals, 8e Upper Saddle River, New Jersey 07458
All rights reserved.
GAL16V8 OLMC’s
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
GAL16V8 Example
• To implement a parallel in/serial out shift register
in a GAL16V8 you need to use the registers in the
OLMCs for the register function.
• Each input may go straight to the registers
without using any product terms or creating any
SOPs.
• The GAL16V8 has only 8 registers which limits
the size of the total shift register to the number of
OLMCs.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.11
Basic block diagram of the Altera MAX 7000 series
CPLD.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.12
Simplified diagram of a macrocell in a MAX 7000
series CPLD.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.13
Example of how a shared expander can be used in a
macrocell to increase the number of product terms.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.14
Simplified illustration of
using a shared
expander term from
another macrocell to
increase an SOP
expression. The red
Xs and lines represent
the connections
produced in the
hardware by the
software compiler
running the
programmed design.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.15
Basic concept of the parallel expander.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.16
Simplified
illustration of using
parallel expander
terms from another
macrocell to
increase an SOP
expression.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.18
MAX II CPLDs have LUT logic. Classic CPLDs
have AND/OR arrays.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.20
Comparison of a basic PLA to a basic PAL.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.24
Commonly used symbol for a multiplexer.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.25
A macrocell in the Altera MAX 7000 family of
CPLDs.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.26
A macrocell configured for generation of an
SOP logic function.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.27
A macrocell configured for generation of a
registered logic function.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.29
A macrocell configured for generation of an
SOP logic function.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.30
A macrocell configured for generation of a
registered logic function.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.31
Basic structure of an FPGA.
CLB is configurable logic block.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.32
Basic configurable logic blocks (CLBs) within the
global row/column programmable interconnects.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.33
Basic block diagram of a logic module in an
FPGA.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.34
The basic concept of an LUT programmed for a
particular SOP output.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.39
Simplified diagram of a Stratix II adaptive logic
module (ALM).
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.41
Expansion of an ALM to produce a 7-variable
SOP function in the extended LUT mode.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.42
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.45
Example of using cascade chains for expansion
of an SOP function.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.46
Implementation of a 16-input AND gate to
produce a product term with sixteen variables.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Weeks 8 Agenda
Exam:
• Chapters 12 & 14
Lecture:
• Chapter 7 (4, 7, & 11 ?)
Lab 5, Experiment #24:
Application of Shift Register Circuits
• Starts on Page 201 of your Lab Manual
• Your instructor must sign-off lab and you must
submit with Lab Questions answered.
Assignment:
• Review these topics!
• PROJECTS!
th
Floyd, Digital Fundamentals, 10 ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
To Be Continued
Next Week
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Weeks 9 Agenda
Lecture:
• Chapter 11 ?
Lab 5, Experiment #24:
Application of Shift Register Circuits
• Starts on Page 201 of your Lab Manual
• Your instructor must sign-off lab and you must
submit with Lab Questions answered.
Assignment:
• Obtain Assignment sheet from your instructor.
• PROJECTS DUE!
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Programmable Logic Arrays
Programming with ABEL
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
ABEL
Advanced Boolean Expression Language
• Allows logic designs to be implemented in programmable
logic devices
• Can be used to program any type of SPLD (device-
independent).
• Run on a computer connected to a language-independent
device programmer to which the SPLD is inserted.
• Logic entry can be in the form of equations, truth tables,
and state diagrams.
• A design can be simulated using test vectors to make sure
there are no errors.
• Logic Synthesis is the means of converting the logic entry
to a standard JEDEC file format required to actually
implement the design in©an
th
Floyd, Digital Fundamentals, 10 ed
SPLD.
2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
ABEL
Advanced Boolean Expression Language
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Boolean Operations used for Logic
Expressions
To write a boolean expression in ABEL special
characters must be used as follows:
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.50
Essential elements for programming an SPLD,
CPLD, or FPGA.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.51
Examples of text and schematic entry screens.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.57
Example of logic optimization during
synthesis.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
Figure 11.60
Downloading a design to the target device.
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
ET285 Agenda - Weeks 7, 8, & 9
Lecture:
• Chapter 11 ?
Lab 5, Experiment #24:
Application of Shift Register Circuits
• Starts on Page 201 of your Lab Manual
• Your instructor must sign-off lab and you must
submit with Lab Questions answered.
Assignment:
• Obtain Assignment sheet from your instructor.
• PROJECTS DUE!
Floyd, Digital Fundamentals, 10th ed © 2009 Pearson Education, Upper Saddle River, NJ 07458. All Rights Reserved
