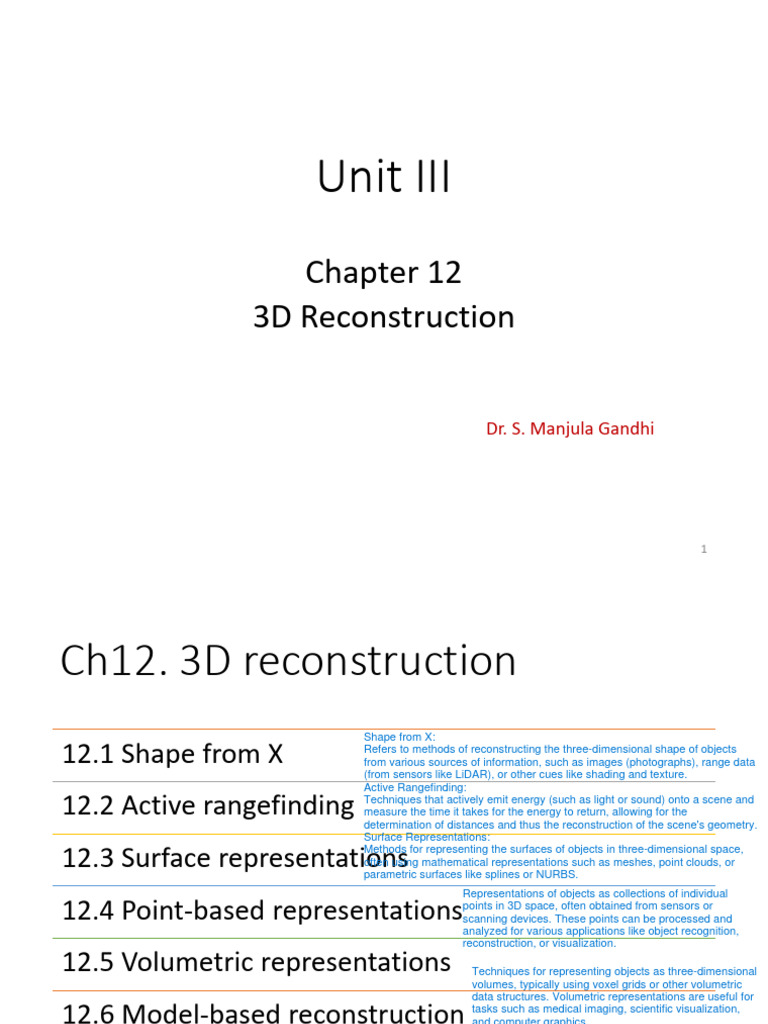

Unit III

Chapter 12
3D Reconstruction

Dr. S. Manjula Gandhi

1
 Ch12. 3D reconstruction
Shape from X:
12.1 Shape from X Refers to methods of reconstructing the three-dimensional shape of objects
from various sources of information, such as images (photographs), range data
(from sensors like LiDAR), or other cues like shading and texture.
Active Rangefinding:

12.2 Active rangefinding Techniques that actively emit energy (such as light or sound) onto a scene and
measure the time it takes for the energy to return, allowing for the
determination of distances and thus the reconstruction of the scene's geometry.
Surface Representations:

12.3 Surface representations
12.4 Point-based representations
Methods for representing the surfaces of objects in three-dimensional space,
often using mathematical representations such as meshes, point clouds, or
parametric surfaces like splines or NURBS.
Representations of objects as collections of individual
points in 3D space, often obtained from sensors or
scanning devices. These points can be processed and
analyzed for various applications like object recognition,
reconstruction, or visualization.

12.5 Volumetric representations Techniques for representing objects as three-dimensional

volumes, typically using voxel grids or other volumetric
data structures. Volumetric representations are useful for

12.6 Model-based reconstruction tasks such as medical imaging, scientific visualization,

and computer graphics.

12.7 Recovering texture maps and albedos

Model-based Reconstruction:
Reconstruction methods that use predefined models or templates of objects to guide the reconstruction process. These models may be geometric
(describing the shape of the object) or physical (describing material properties).
Recovering Texture Maps and Albedos:
2
Refers to the process of recovering the surface texture and reflectance properties of objects from image or range data. Texture maps provide
detailed surface appearance, while albedos represent the object's inherent reflectivity independent of lighting conditions.
3
12.1 Shape from X
• The study of how shape can be inferred from such
cues like shading, texture, focus is sometimes called
shape from X
• Shape from shading
• Shape from texture
• Shape from focus

4
12.1.1 Shape from shading and
photometric stereo photometric stereo offers a powerful and non-contact
method for reconstructing the three-dimensional shape of
objects from multiple images captured under controlled
lighting conditions.

5
12.1.1 Shape from shading and
photometric stereo
The surface normal at a point on a surface is a vector that is
perpendicular to the surface at that point.In other words, it points
• How is this possible? directly away from the surface, indicating the direction that the surface
is facing locally.

The answer is that as the surface normal changes across

the object, the apparent brightness changes as a
function of the angle between the local surface
orientation and the incident illumination.
• shape from shading
The problem of recovering the shape of a surface from
this intensity variation is known as shape from shading.

6
7
12.1.1 Shape from shading and
photometric stereo

8
12.1.1 Shape from shading and
photometric stereo
Assumption:
Uniform albedo refers to a property of a surface where the
reflectivity or brightness of the surface remains constant or
consistent across its entire area

• Most shape from shading algorithms assume that the

surface under consideration is of a uniform albedo and
reflectance, and that the light source directions are
either known or can be calibrated by the use of a
reference object. The irradiance equation relates the observed intensity of light (image intensity) to the
local surface orientation of an object. It describes how light is reflected or absorbed by
the surface and captured by a camera or sensor.

• The variation in intensity (irradiance equation)

become purely a function of the local surface
orientation,
I(x; y) = R(p(x; y); q(x; y));
where (p; q) = (zx; zy) are the depth map derivatives
and R(p; q) is called the reflectance map.

9
12.1.1 Shape from shading and
photometric stereo
• For example, a diffuse (Lambertian) surface has a reflectance map that
is the (non-negative) dot product between the surface normal:

and the light source direction:

reflectance map:

where is the surface reflectance factor (albedo)

Albedo: Reflection Coefficient

10
12.1.1 Shape from shading and
photometric stereo
• Lambertian Surface
Light falling on it is scattered such that the apparent
brightness of the surface to an observer is the same
regardless of the observer's angle of view.

• Perfect Reflecting Diffuser

A Perfect (Reflecting) Diffuser (PRD) is a theoretical
perfectly white surface with Lambertian Distance (its
brightness appears the same from any angle of view). It
does not absorb light, giving back 100% of the light it
receives.

11
12
12.1.1 Shape from shading and
photometric stereo
• smoothness constraint:
The smoothness constraint encourages smoothness in the reconstructed surface by penalizing abrupt changes or discontinuities in
surface orientation.
It assumes that neighboring points on the surface should have similar surface orientations to avoid surface irregularities or artifacts.

2 denotes the Laplacian operator, which measures the curvature or

smoothness of the surface.
2 represents the squared Euclidean norm.

• integrability constraint
The integrability constraint ensures that the reconstructed surface is integrable, meaning that its surface normals are consistent with
the surface's depth or height field.
It imposes a relationship between surface gradients and surface curvature to ensure that the reconstructed surface is physically
plausible.

13
Smoothness Constraint

14
12.1.1 Shape from shading and
photometric stereo
• Photometric stereo
Another way to make shape from shading more
reliable is to use multiple light sources that can be
selectively turned on and off.

15
16
12.1.2 Shape from texture
•Shape from texture
The foreshortening of regular patterns as the
surface slants or bends away from the camera.

17
12.1.2 Shape from texture

18
19
12.1.3 Shape from focus
• Shape from focus
A strong cue for object depth is the amount of blur,
which increases as the object’s surface moves away
from the camera’s focusing distance.
• The amount of blur increases in both directions as
you move away from the focus plane. Therefore, it
is necessary to
1. use two or more images captured with different focus
distance settings
2. or to translate the object in depth and look for the
point of maximum sharpness.

20
21
12.1.3 Shape from focus
• The magnification of the object can vary as the
focus distance is changed or the object is moved.
This can be modeled either explicitly (making
correspondence more difficult) or using telecentric
optics, which approximate an orthographic camera
and require an aperture in front of the lens.

22
23
12.1.3 Shape from focus
• The amount of defocus must be reliably estimated.
A simple approach is to average the squared
gradient in a region but this suffers from several
problems, including the image magnification
problem mentioned above. A better solution is to
use carefully designed rational filters.

24
http://www.cs.columbia.edu/CAVE/projects/depth_defocus/ 25
12.2 Active Range finding

26
12.2 Active Range finding
• Kinect
• Azure Kinect DK

27
12.2 Active Range finding
• Tango
• ARCore

28
12.2 Active Range finding

29
SPIE: Society of Photo-Optical Instrumentation Engineers
12.2 Active Range finding

30
12.2 Active Range finding
• NBA 2K15
• Bad face scan
• NBA 2K19 face scan

31
12.2.1 Range Data Merging
• Range data merging
The registration (alignment) of partial 3D surface
models and their integration into coherent 3D
surfaces. https://www.youtube.com/watch?v=ii2vHBwlmo8

• Iterated Closest Point (ICP)

Which alternates between finding the closest point
matches between the two surfaces being aligned
and then solving a 3D absolute orientation problem

32
12.2.1 Range Data Merging

33
12.2.1 Range Data Merging
• Sparse Iterative Closest Point(video)
• Sparse Iterative Closest Point (introduction)

34
12.2.1 Range Data Merging

35
Stereolithography (SLA)
Technology
• Stereolithography

36
12.2.2 Application: Digital Heritage
• Active range finding technologies, combined with
surface modeling and appearance modeling
techniques (Section 12.7), are widely used in the
fields of archeological and historical preservation,
which often also goes under the name digital
heritage (MacDonald 2006).
• In such applications, detailed 3D models of cultural
objects are acquired and later used for applications
such as analysis, preservation, restoration, and the
production of duplicate artwork

37
12.2.2 Application: Digital Heritage
• The Digital Michelangelo project
laser scan of the David

38
12.2.2 Application: Digital Heritage

39
40
12.3 Surface Representations
• Surface representations
- Triangle Meshes
- Splines (Farin 1992, 1996)
- Subdivision Surfaces (Stollnitz, DeRose, and
Salesin 1996; Zorin, Schr¨oder, and Sweldens 1996;
Warren and Weimer 2001; Peters and Reif 2008)

41
Triangle Meshes

42
12.3 Surface Representations
• Introduction to subdivision surfaces

43
12.3 Surface Representations
• It enables not only the creation of highly detailed
models but also processing operations, such as
interpolation (Section 12.3.1), fairing or smoothing,
and decimation and simplification (Section 12.3.2).

44
12.3.1 Surface Representations
• One of the most common operations on surfaces is
their reconstruction from a set of sparse data
constraints, i.e. scattered data interpolation

45
12.3.1 Surface Representations

46
 Radial Basis Functions (RBFs) are a popular method for interpolating data in multiple dimensions. They are particularly useful for
approximating a function based on scattered data points. The basic idea is to represent the unknown function f(x) as a sum of radially
symmetric basis functions, each centered at different data points.

12.3.1 Surface Representations

• Radial basis (or kernel) functions (Boult and Kender
1986; Nielson 1993)
• To interpolate a field f(x) through (or near) a number of
data values di located at xi, the radial basis function
approach uses

• where the weights, euclidean distance

are computed using a radial basis (spherically

symmetrical) function K(r).
47
12.3.2 Surface Simplification
• Once a triangle mesh has been created from 3D
data, it is often desirable to create a hierarchy of
mesh models, for example, to control the displayed
Level Of Detail (LOD) in a computer graphics
application
• LOD

48
12.3.2 Surface Simplification
• To approximate a given mesh with one that has
subdivision connectivity, over which a set of
triangular wavelet coefficients can then be
computed. (Eck, DeRose, Duchamp et al. 1995)
• To use sequential edge collapse operations to go
from the original fine-resolution mesh to a coarse
base-level mesh (Hoppe 1996)

49
12.3.2 Surface Simplification

50
12.3.3 Geometry Images
• To make meshes more easy to compress and store
in a cache-efficient manner.
• To create geometry images by cutting surface
meshes along well chosen lines and “flattening” the
resulting representation into a square.(Gu, Gortler,
and Hoppe (2002))

51
12.3.3 Geometry Images

52
The concept of point-based representations in computer graphics provides an alternative to traditional polygonal mesh structures,
particularly triangle meshes. This approach relies on using points or particles as the primary means of representing surfaces. Each point in
the representation carries additional attributes to effectively render the surface without needing to connect the points into triangles.

12.4 Point-based Representations

• To dispense with an explicit triangle mesh
altogether and to have triangle vertices behave as
oriented points, or particles, or surface elements
(surfels) (Szeliski and Tonnesen 1992)
### 1. Local Dynamic Triangulation Heuristics
Local dynamic triangulation involves creating a mesh from point clouds dynamically, adjusting the connectivity of the mesh as the viewpoint or the
density of the points changes. This method is particularly useful when dealing with scattered data that dynamically changes, either through
movement or when new data points are added.
In this technique, points are not just static; they act as vertices that are dynamically connected based on their proximity and the viewer's
perspective. The triangulation is typically local and adapts to ensure that the surface appears smooth and artifacts typically associated with fixed
triangulations (like popping or cracking) are minimized. This method leverages the fact that a dynamically adjusted triangulation can more
accurately represent surface details with fewer artifacts during rendering.
### 2. Direct Surface Element Splatting
Direct surface element splatting is a technique where each point in the point cloud is treated as a surfel, which is essentially a small, oriented disk
or ellipse. These surfels are "splatted" directly onto the screen, overlapping each other to form a continuous surface. This method often involves
blending the edges of each surfel to ensure a smooth transition between overlapping elements.
The key benefit of surfel splatting is that it can handle very dense data sets efficiently, as the complexity of the rendering process is related more
to the screen space (number of pixels to be rendered) rather than the complexity of the underlying geometric representation. Splatting also
handles overlapping and occlusion naturally, as closer surfels will simply be rendered on top of more distant ones.
### 3. Moving Least Squares (MLS)
Moving Least Squares is a more sophisticated technique that involves fitting a smooth surface to a set of points in a way that minimizes the
squared error. This method is particularly robust in handling noisy data sets. In the context of point-based graphics, MLS is used to define a
smooth surface that passes as close as possible to all the points in the dataset.
When rendering, an MLS surface is not explicitly formed. Instead, for each point on the intended screen, an implicit surface evaluation is done
based on the nearby points and their local properties (like normals and curvature). This results in a very smooth and nicely antialiased surface
rendering, which adapts dynamically as points move or as the viewing parameters change. 53
12.4 Point-based Representations
• How to render the particle system as a continuous
surface :
- local dynamic triangulation heuristics
(Szeliski and Tonnesen 1992)
- direct surface element splatting
(Pfister, Zwicker, van Baar et al. 2000)
- Moving Least Squares (MLS)
(Pauly, Keiser,Kobbelt et al. 2003)

54
12.4 Point-based Representations

55
12.5 Volumetric Representations
• A third alternative for modeling 3D surfaces is to
construct 3D volumetric inside–outside functions
• Implicit (inside–outside) functions to represent 3D
shape

56
12.5.1 Implicit Surfaces and Level
Sets
• implicit surfaces
which use an indicator function (characteristic
function) F(x; y; z) to indicate which 3D points are
inside F(x; y; z) < 0 or outside F(x; y; z) > 0 the
object
The surface itself is represented by the set of points where F(x,y,z)=0, known as the zero set or level set.

57
12.5.1 Implicit Surfaces and Level
Sets
• Implicit (inside-outside) functions of superquadrics:

The values of control the extent of

model along each (x; y; z) axis, while the
values of control how “square” it is.

58
Conics (2D Curve)

59
Quadric

60
Superquadrics

61
12.5.1 Implicit Surfaces and Level
Sets
• A different kind of implicit shape model can be
constructed by defining a signed distance function
over a regular three-dimensional grid, optionally
using an octree spline to represent this function
more coarsely away from its surface (zero-set)
(Lavall´ee and Szeliski 1995 Szeliski and Lavall´ee
1996; Frisken, Perry, Rockwood et al. 2000; Ohtake,
Belyaev, Alexaet al. 2003)
A signed distance function (SDF) provides a particularly useful form of implicit function:

At any point in space, the value of the SDF indicates the shortest distance to the surface.
The sign of the value indicates whether the point is inside (<0) or outside (>0) the object.
On the surface itself, the SDF equals zero.
These functions can be stored directly on a regular grid or more efficiently using hierarchical structures like octrees. Octrees allow for
more coarse representations far from the surface and more detailed representations near the surface, improving both memory efficiency
and computational speed

62
12.5.1 Implicit Surfaces and Level
Sets
• Examples of signed distance functions being used
- distance transforms (Section 3.3.3)
- level sets for 2D contour fitting and tracking
(Section 5.1.4)
- volumetric stereo (Section 11.6.1)
- range data merging (Section 12.2.1)
- point-based modeling (Section 12.4)
Distance Transforms: Compute the minimum distance from each point in a space (e.g., pixels in an image) to a set of features
(e.g., edges).
Level Sets for 2D Contour Fitting and Tracking: Level set methods dynamically evolve contours in images, useful for object
tracking and shape recovery.
Volumetric Stereo: Use in 3D reconstruction from multiple stereo images, leveraging the consistency of distance measures across
views.
Range Data Merging: Combine multiple 3D scans into a single model, smoothing out noise and filling gaps in data.
Point-Based Modeling: Convert point clouds to more smooth and continuous surface models using implicit surface techniques.
63
 12.6 Model-based Reconstruction
• 12.6.1 Architecture
• 12.6.2 Heads and faces
• 12.6.3 Application: Facial animation
• 12.6.4 Whole body modeling and tracking
Model-based reconstruction is a sophisticated approach in computer graphics and computer vision where models of objects (often human
bodies or faces) are used to reconstruct shapes and movements from visual data. This approach is particularly prevalent in applications
such as facial animation and whole-body tracking, due to its efficiency and the high quality of results it can achieve.

64
 12.6.1 Architecture
In the context of model-based reconstruction, "architecture" typically refers to the computational and algorithmic frameworks used to support
the reconstruction process. This includes the data structures, algorithms, and interfaces designed to handle specific types of models and the
data acquired from sensors or images.

65
12.6.1 Architecture
• Architectural interior modeling
• Lumion 9

66
12.6.1 Architecture
• Automated line-based reconstruction

67
12.6.2 Heads and Faces
Modeling heads and faces involves creating detailed 3D models that can accurately represent the unique features and
expressions of individual faces.

68
12.6.2 Heads and Faces

69
12.6.2 Model-based Reconstruction
3D head model applications
• head tracking
• face transfer, i.e., replacing one person’s face with
another in a video
• face beautification by warping face images toward
a more attractive “standard”
• face de-identification for privacy protection
• face swapping

70
3D Head Model Applications
• face swap from Microsoft
• deepfake damage
• Mrdeepfakes
• Fake videos of real people -- and how to spot them

71
12.6.3 Application: Facial Animation

(a) Original 3D face model with the addition of shape and

texture variations in specific direction: deviation from the
mean (caricature), gender, expression, weight, and nose 72
shape
12.6.3 Application: Facial Animation
Facial animation is a prominent application of model-based reconstruction, where detailed facial models are animated to show expressions,
speech, and other dynamic activities.

73
12.6.3 Application: Facial Animation

(c) another example of a 3D reconstruction along with a different set of 3D

manipulations such as lighting and pose change.
74
12.6.3 Application: Facial Animation
• Morphable Face: Automatic 3D Reconstruction and
Manipulation from Single Data-Set Reference Face
• https://www.youtube.com/watch?v=fu7bTemvEKk

75
12.6.3 Application: Facial Animation
• Photoreal Digital Actor
• https://www.youtube.com/watch?v=piJ4Zke7EUw
• Tomb Raider

76
12.6.4 Whole Body Modeling and
Tracking
• Background subtraction
• Initialization and detection
• Tracking with flow
• 3D kinematic models
• Probabilistic models
• Adaptive shape modeling
• Activity recognition

77
12.6.4 Whole Body Modeling and
Tracking
• Background Subtraction
- One of the first steps in many (but certainly not
all) human tracking systems is to model the
background in order to extract the moving
foreground objects (silhouettes) corresponding to
people.
- Once silhouettes have been extracted from one or
more cameras, they can then be modeled using
deformable templates or other contour models

78
12.6.4 Whole Body Modeling and
Tracking
• Initialization and Detection
- In order to track people in a fully automated
manner, it is necessary to first detect (or re-acquire)
their presence in individual video frames.
- This topic is closely related to pedestrian
detection, which is often considered as a kind of
object recognition (Mori, Ren, Efros et al. 2004;
Felzenszwalb and Huttenlocher 2005; Felzenszwalb,
McAllester, and Ramanan 2008
• pedestrain detection

79
12.6.4 Whole Body Modeling and
Tracking
• 3D Kinematic Models
- which specifies the length of each limb in a
skeleton as well as the 2D or 3D rotation angles
between the limbs or segments

80
12.6.4 Whole Body Modeling and
Tracking

Realtime Multi-Person 2D Human Pose Estimation using Part Affinity Fields 81

12.6.4 Whole Body Modeling and
Tracking
• Probabilistic Models
- Because tracking can be such a difficult task,
sophisticated probabilistic inference techniques are
often used to estimate the likely states of the
person being tracked

82
12.6.4 Whole Body Modeling and
Tracking
• Adaptive Shape Modeling
- Another essential component of whole body
modeling and tracking is the fitting of
parameterized shape models to visual data

83
12.6.4 Whole Body Modeling and
Tracking

84
12.6.4 Whole Body Modeling and
Tracking
• Estimating Human Shape and Pose From a Single
• Original
• 3D Human Pose and Shape from a Single Image

85
12.6.4 Whole Body Modeling and
Tracking
• Activity Recognition
- The final widely studied topic in human modeling
is motion, activity, and action recognition (Bobick
1997; Hu, Tan, Wang et al. 2004; Hilton, Fua, and
Ronfard 2006)
- Examples of actions that are commonly
recognized include walking and running, jumping,
dancing, picking up objects, sitting down and
standing up, and waving

86
12.7 Recovering Texture Maps
and Albedos Recovering texture maps and albedos is a crucial step in the process of rendering
realistic 3D models in computer graphics. This process allows the model to not only
have an accurate shape but also display realistic surface details like color, patterns,
and other characteristics that are vital for photorealistic rendering.

• After a 3D model of an object or person has been

acquired, the final step in modeling is usually to
recover a texture map to describe the object’s
surface appearance

87
 12.7 Recovering Texture Maps
and Albedos Texture Mapping
Texture mapping is a method for adding detail, surface texture, or color to a 3D
model. A texture map is an image applied (mapped) to the surface of a shape or
polygon. This technique is used to add details without having to increase the
polygon count of the model.
The albedo of an object refers to the diffuse reflectance property of the material, independent of lighting. Albedo maps are a type of texture
map that solely represents the color information of the material's surface.

88
12.7 Recovering Texture Maps
and Albedos

89
12.7.1 Estimating BRDFs

90
