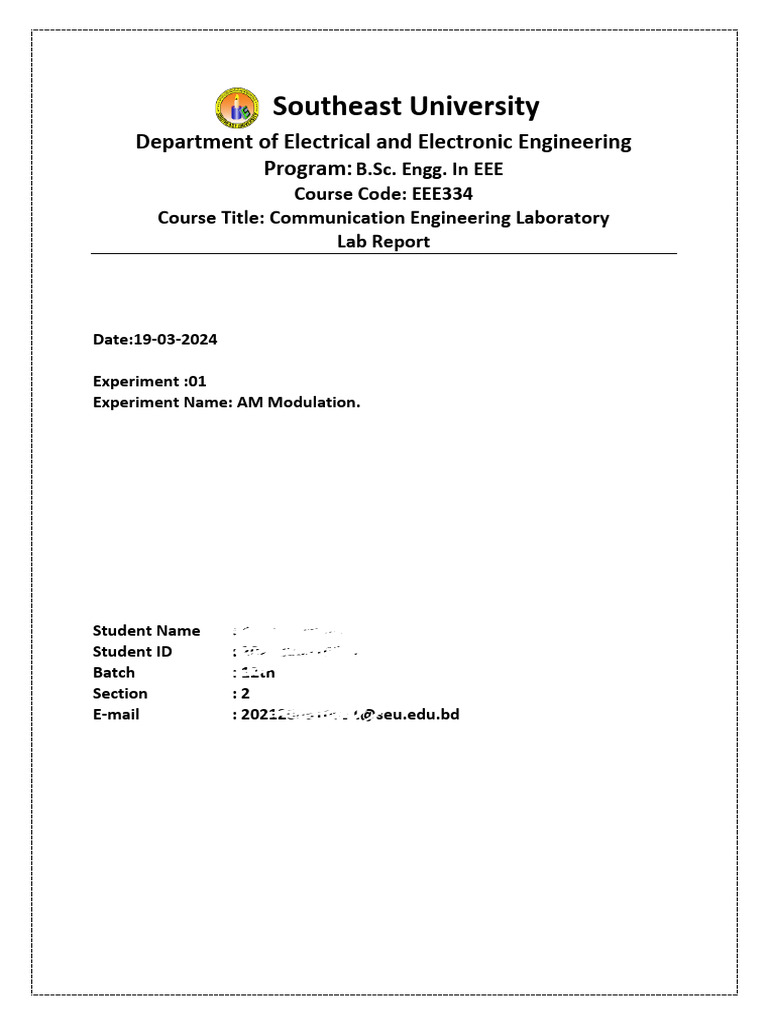

Southeast University

Department of Electrical and Electronic Engineering

Program: B.Sc. Engg. In EEE
Course Code: EEE334
Course Title: Communication Engineering Laboratory
Lab Report

Date:19-03-2024

Experiment :01
Experiment Name: AM Modulation.

Student Name : Azharul Islam

Student ID : 2021200510011
Batch : 12th
Section :2
E-mail : 2021200510011@seu.edu.bd
Experiment Name: AM Modulation.

Objective

1. To understand the characteristics of amplitude modulation ( AM ).

2. To study AM modulation index and its effects on the system performance.

Theory:

Modulation : Modulation is the process whereby some characteristics of one

wave is varied in accordance with characteristics of another wave. In other words
we can say that modulation is the process of mixing or addition of information
signal with an electronic or optical carrier.

Carrier: The sinusoidal signal that is used in the modulation is known as carrier
signal or carrier. A carrier wave or carrier is a waveform that is modulated with an
input signal for the purpose of conveying information. This carrier wave is usually
a much higher frequency

Mathematical Expression for Amplitude Modulation:

Let us consider a modulating signal m(t), which is given by,

m(t) = Am cos ωmt

and the carrier signal c(t), given by the expression

c(t) = Ac cos ωct

Now, when the amplitude of the carrier is changed according to the message
signal, an amplitude modulated wave is generated which is given by

y(t) = A0 cos ωct

Here, A0 = Ac + m(t)

Thus, modulated wave is given as,

y(t) = (Ac + Am cos ωmt) cos ωct…………………Equation-1

Simulink Diagram:

Output:
When modulating frequency 2*pi and carrier frequency 2*pi*25 .And sample
time 0.0002 s ,Amplitude 1 output is
Modulating frequency 2*pi and carrier frequency 2*pi*20 .And sample time 0.001
Amplitude 1 output is

Modulating frequency 2*pi and carrier frequency 2*pi*15 .And sample time 0.001
Amplitude 1 output is
 Discussion : Here two sine waves are used first we have Message signal or main
signal and second as carrier signal. Here a product is used by multiplying the main
signal and carrier signal and a scope is used we see three signals main signal,
carrier signal and modulated signal.
