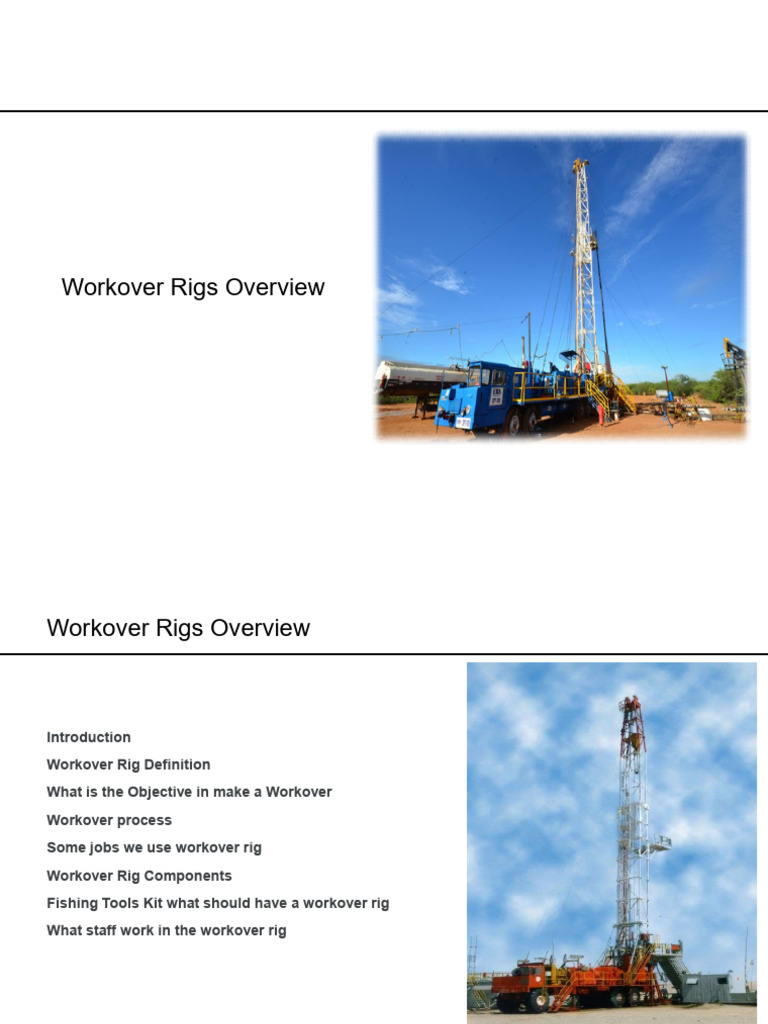

Workover Rigs Overview

Workover Rigs Overview

Introduction
Workover Rig Definition
What is the Objective in make a Workover
Workover process
Some jobs we use workover rig
Workover Rig Components
Fishing Tools Kit what should have a workover rig
What staff work in the workover rig
 Introduction

With the pass the time the activities of well

workover acquire each be important, is not equal
drill a well where the economic investment of the
project is biggest, where at the same time be
need approval of exploration and production
permits as well as environmental permits and the
complexity that means drill a well itself, that carry
out the workover of one.

No way I want that you interpret that the workover

operation is easy, no, this operation is complex
and a lot diverse, but however in cost is minor
Workover Rig Definition (Key Terms)

Workover Rig: Is a rig used to perform one or variety of

operations on a producing oil and/or gas well to try increase
production.

Tongs: Large wrenches used to make up or break out drill

pipe, casing, tubing or other pipe.

Tubing Job: Is the act of the pulling tubing out of and

running in back into well

Rod Job: Is the act pulling rods into and out of the wellbore.
Workover Rig Definition (Key Terms)

Workover: Solve internal damage in the process after a

certain period of useful life of the well or production, after
completion.

Rehabilitation: Improve production and/or injection capacity

Recompletion: Abandon a current deposit that has become

unproductive or has declined in useful life, completing the
well in another productive area that is more attractive than
the previous one.

Production to Injection: When the deposit enters a stage

of secondary recovery and it is required to give an energy
boost to the deposit.
 Workover Rig Definition (Basic)

Conventional Drilling Rig Hydraulic Drilling Rig

Transportable Drilling and Workover Rig

The workover rigs also are known as

services rigs, generally these rigs are self-
transportable
Workover Rig Definition (Basic)

Transportable Workover Rig:

 Have more uses

 Come in different sizes

 Can be used in Onshore and Onshore

Workover Rig Definition (Sizes)

 Up to 240 hp  Up to 365 hp  Up to 550 hp  Up to 1000 hp

 60 to 100 ft Tall  100 to 110 ft Tall  110 to 116 ft Tall  112 to 118 ft Tall
 3 Crew Members  3-4 Crew Members  4 Crew Members  5 Crew Members
What is the Objective in make a Workover

What are the stages of a well after of the drilling?

Completions
Primary Repair
Secondary Repair workover
Interventions and
Abandonment

What's the fundamental reason for doing a workover?

 Increase or restore hydrocarbon oil and gas production

 Decrease water production
 Repair mechanical failures

The workover operations is an activity that day for day

achieve more important inside of the oil and gas
recuperation.
Workover Process

 Ideally Robb's and Tubing would be perfectly straight

but they are not.

 Rod jobs and Chewing Jobs are both examples

ongoing well maintenance, both the rod and tubing
reached to the bottom of the well which could be
thousand of feet deep as the pump jack moves it lifts
the rod up on down anywhere from 5 to 25 feet

 This movement may cause wearing to the rods or the

tubing including broken or unscrewed rods and in
holes in the tubing
Some jobs we use workover rig

Why do we need Workover Rigs?

Primary Secondary
Drilling Completion Interventions Abandonment
Repair Repair

Can be use Drilling Rig Can be use Workover Rig

 Perforating
 Squeeze Cementing
2 Primary  Stimulations
Workover Jobs  Interventions
 Re-Completions
 Plug Back
 Rod repair
 Deeping
 Tubing Maintenance
 Installation of artificial lift
 Scale paraffin removal
Drilling Rig Workover Rig  Well Repair
 Some jobs we use workover rig (Rod Jobs)
Description: Run rods out of the wellbore 3 rod at a time,
then run back in after maintenance or repair.

When are rod jobs needed?

 Pump breaks
 Rod string wears against side of tubing, and needs to be
replaced
 Connection failure between rods
 Some jobs we use workover rig (Tubing Jobs)
Description: Act of running tube into and out of a well for
replacement and maintenance.
Tubing Tools
When are tubing jobs needed?

 Hole in the tubing

 Need to move anchor (Weight used to hold tubing string
in place)
 When zones depletes, tubing is pulled out new
perforation, fracking or acidizing job.
Workover Rig Components

Workover Rig Type Workover Rig Components

 Depending on the power source  Power generating system

 According to the load capacity to be  Lifting System

supported
 Rotation System
 Depending on the tube used
 Circulation system
 According to the rotation method
 Safety equipment system
 According to the position of the mast
 Workover Parameter Monitoring
System
Workover Rig Components

Workover Rig Components

 Power generating system

 Lifting System

 Rotation System

 Circulation system

 Safety equipment system

 Workover Parameter
Monitoring System
Workover Companies

Workover Companies

Oil Operators Workover Contractors Well Services Companies

Well
Onshore Control
State Oil Oil
Company Company Fishing
Tools
Offshore

Wireline

Rig Move
Fishing Tools - Workover Rig - Well Services
The recovery operation for a stuck pipe, packers, and loose equipment in a well is generally termed fishing. Any
mechanical equipment run into a well, if operated under heavy stress, may fail sooner or later despite care of
manufacture, handling, and installation.

The stuck pipe in general represent a risk for the operation success, increase non-productive time (NPT) and
cost of the operation and the possibility of loss the well in some cases.

The fishing tools more common and used in the market are:
 Over-Shot  Wireline Spear  Flotation Collar Reamer Shoes
 Taper Tap and Die Collars  Junk Mills  Casing Scraper and
 Grapple Spear  Junk Sub  Casing Anchor
 Releasing Spear and Accessories  Washover Pipe and Accessories
 Reversing Spear  Mechanical Internal and External Cutter
 Cable Fishing Hook  Multi String Cutter
 Internal and External Hook  Section Mill
 Junk Basket  Bumper Sub
 Integral Blade Stabilizers  Impression Block
 Fishing Magnet  Under Reamer
Fishing Tools Kit what should have a workover rig

The fishing tools more common and used in the market are:  Grapple Spear
 Over-Shot
Fishing Tools Kit what should have a workover rig
The fishing tools more common and used in the market are:
 Taper Tap and Die Collars Releasing Spear and Accessories
Fishing Tools Kit what should have a workover rig
The fishing tools more common and used in the market are:
 Internal and External Hook Junk Basket:

Reverse
Circulation

Accessories

Direct Circulation
Fishing Tools Kit what should have a workover rig
The fishing tools more common and used in the market are:
 Fishing Magnet Wireline Spear:

Section Mill:
Fishing Tools Kit what should have a workover rig
The fishing tools more common and used in the market are:
 Junk Mills Washover pipe and Accessories:

Impression Block :
What staff work in the workover rig

Workover Superintendent

Workover Engineer

Workover Supervisor

Tool Pusher

Derrick man Floorhand Floorhand Trainee

 What staff work in the workover rig
 On a workover site there is typically a 3-5 man crew
 These crew consists of an Tool Pusher / Operator, Derrickman and Floorhands
A Operator must be able to:
 Supervise daily operations
 Run machinery and equipment
 Speak with job coordinators

A Derrickman must be able to:

 Count Rods and Tubing
A 5 man Crew can either have:
 Use tally tape and tank gauge
3 Floorhands or 2 Floorhands more
1 trainee  Calculate figures amount

Derrickman work more than 50 feet above ground

A Floorhand must be able to:

 Monitor and Analyzes Operations
 Use tongs, pumps and other
equipment
 Clean and maintenance equipment
Conclusion
Workover Rig: Is a rig used to perform one or variety of operations on a producing oil and/or gas well to try
increase production.

What are the stages of a well after of the drilling: Completions, Primary Repair, Secondary Repair,
Interventions and Abandonment.

What's the fundamental reason for doing a workover: Increase or restore hydrocarbon oil and gas
production, Decrease water production, Repair mechanical failures

Workover Rig are used for: Rod Repair, Tubing Maintenance, Perforating, Squeeze Cementing, Stimulations,
Re-Completions, Plug Back, Deeping, Installation of Artificial Lift, Scale Paraffin Removal and Well Repair.

Operator Duties include: Supervise daily operations, Run Machinery and Equipment, Speak with job
coordinators
Derrickman duties include: Count Rods and Tubing, Use tally tape and tank gauge and Calculate figures
amount
Floorhand duties include: Monitor and Analyzes Operations, Use tongs, pumps and other equipment and
Clean and maintenance equipment
Thanks a lot for you Time
