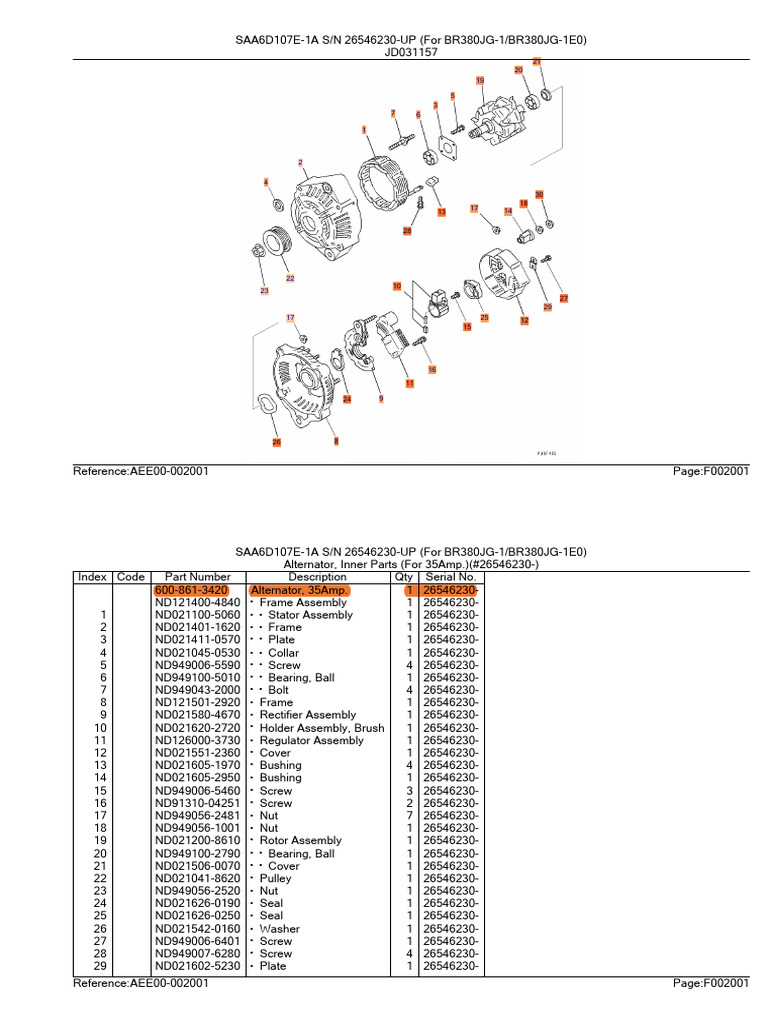

SAA6D107E-1A S/N 26546230-UP (For BR380JG-1/BR380JG-1E0)

JD031157
21
20
19

5
3
7 6

4
30
18
17 14
13

28

22
10
23
27
29
17 25 12
15

16

11

24 9

26 8

Reference:AEE00-002001 Page:F002001

SAA6D107E-1A S/N 26546230-UP (For BR380JG-1/BR380JG-1E0)

Alternator, Inner Parts (For 35Amp.)(#26546230-)
Index Code Part Number Description Qty Serial No.
600-861-3420 Alternator, 35Amp. 1 26546230-
ND121400-4840 Frame Assembly 1 26546230-
1 ND021100-5060 Stator Assembly 1 26546230-
2 ND021401-1620 Frame 1 26546230-
3 ND021411-0570 Plate 1 26546230-
4 ND021045-0530 Collar 1 26546230-
5 ND949006-5590 Screw 4 26546230-
6 ND949100-5010 Bearing, Ball 1 26546230-
7 ND949043-2000 Bolt 4 26546230-
8 ND121501-2920 Frame 1 26546230-
9 ND021580-4670 Rectifier Assembly 1 26546230-
10 ND021620-2720 Holder Assembly, Brush 1 26546230-
11 ND126000-3730 Regulator Assembly 1 26546230-
12 ND021551-2360 Cover 1 26546230-
13 ND021605-1970 Bushing 4 26546230-
14 ND021605-2950 Bushing 1 26546230-
15 ND949006-5460 Screw 3 26546230-
16 ND91310-04251 Screw 2 26546230-
17 ND949056-2481 Nut 7 26546230-
18 ND949056-1001 Nut 1 26546230-
19 ND021200-8610 Rotor Assembly 1 26546230-
20 ND949100-2790 Bearing, Ball 1 26546230-
21 ND021506-0070 Cover 1 26546230-
22 ND021041-8620 Pulley 1 26546230-
23 ND949056-2520 Nut 1 26546230-
24 ND021626-0190 Seal 1 26546230-
25 ND021626-0250 Seal 1 26546230-
26 ND021542-0160 Washer 1 26546230-
27 ND949006-6401 Screw 1 26546230-
28 ND949007-6280 Screw 4 26546230-
29 ND021602-5230 Plate 1 26546230-
Reference:AEE00-002001 Page:F002001
 SAA6D107E-1A S/N 26546230-UP (For BR380JG-1/BR380JG-1E0)
Alternator, Inner Parts (For 35Amp.)(#26546230-)
Index Code Part Number Description Qty Serial No.
30 ND92150-06061 Nut 1 26546230-

Reference:AEE00-002001 Page:F002001
