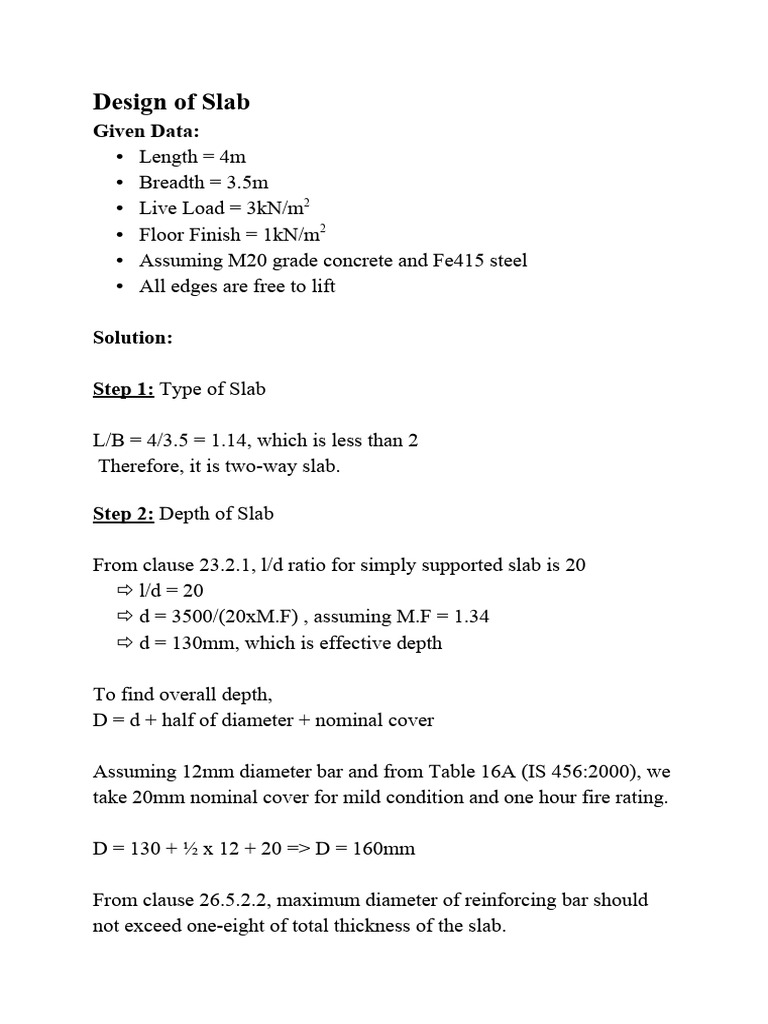

Design of Slab

Given Data:
• Length = 4m
• Breadth = 3.5m
• Live Load = 3kN/m2
• Floor Finish = 1kN/m2
• Assuming M20 grade concrete and Fe415 steel
• All edges are free to lift

Solution:

Step 1: Type of Slab

L/B = 4/3.5 = 1.14, which is less than 2


Therefore, it is two-way slab.

Step 2: Depth of Slab

From clause 23.2.1, l/d ratio for simply supported slab is 20


 l/d = 20
 d = 3500/(20xM.F) , assuming M.F = 1.34
 d = 130mm, which is effective depth

To find overall depth,


D = d + half of diameter + nominal cover

Assuming 12mm diameter bar and from Table 16A (IS 456:2000), we
take 20mm nominal cover for mild condition and one hour fire rating.

D = 130 + ½ x 12 + 20 => D = 160mm

From clause 26.5.2.2, maximum diameter of reinforcing bar should


not exceed one-eight of total thickness of the slab.
1/8 x 160 = 20mm, which is less than 12mm. Hence OK.

Step 3: Effective Span

Leff = Clear Span + d


Lx = 3.5 + 0.13 = 3.63m
Ly = 4 + 0.13 = 4.13m
Or
Leff = Clear Span + c/c distance btw supports
Lx = 3.5 + 0.23 = 3.73m
Ly = 4 + 0.23 = 4.23m
So, we consider, Lxeff = 3.63m and Lyeff = 4.13m.

Step 4: Load Calculation

Assuming for 1m2 area of slab


Dead Load = 1m x1m x 0.16m x 25
= 4kN/m2
Live Load = 3kN/m2
Floor Finish = 1kN/m2
Total Load = 8kN/m2

Now by multiplying with partial safety factor, we get design load


Wu = 1.5 x 8 = 12kN/m2

Step 5: Calculation of Design Forces

Mux = α x x Wu x Lx2
Muy = α y x Wu x Lx2
W u X Lx
Vux = 2
Referring Table 27 and interpolating, we get
α x = 0.0839
α y = 0.0584
Mux = 13.12kN/m
Muy = 9.17kN/m
Vux = 21.78kN
Vuy = 24.78kN

Check for Mulim, = 0.138 x fck x bd2 = 46.6kN/m


d = √ Mu /(0.138 X 20 X 1000) => d = 68.94mm < dassumed
Hence it is safe against bending action

Step 6: Calculation of Reinforcement

0.5 fck 4.6 X Mu


Ast = fy X [1-√ 1− fck X b X d 2 ] x bd
Astx = 293.40mm2
Asty = 201.97mm2
0.12
Astmin = 100 x1000x160 = 192mm2
Assuming 12mm diameter bars,
π
Spacing, Sx = ( 4 x122x1000)/293.4 = 385mm
π
Sy = = ( 4 x122x1000)/201.9 = 560mm

Maximum spacing should be least of,


• 3d
• 300mm
So, we provide 12mm diameter bars at 300mm c/c along both
direction (x and y)

Step 7: Check for Shear


Vux
τ ux = bd = 0.17N/mm2

Vu y
τ uy = bd = 0.19N/mm2

From Table 19, τ u = 0.28N/mm2, so shear reinforcement is not


required.

Step 8: Reinforcement Details

• Astx = 12mm diameter bars at 300mm c/c


• Asty = 12mm diameter bars at 300mm c/c
• No torsional reinforcement because all edges are free to lift

AutoCAD Drawing:
