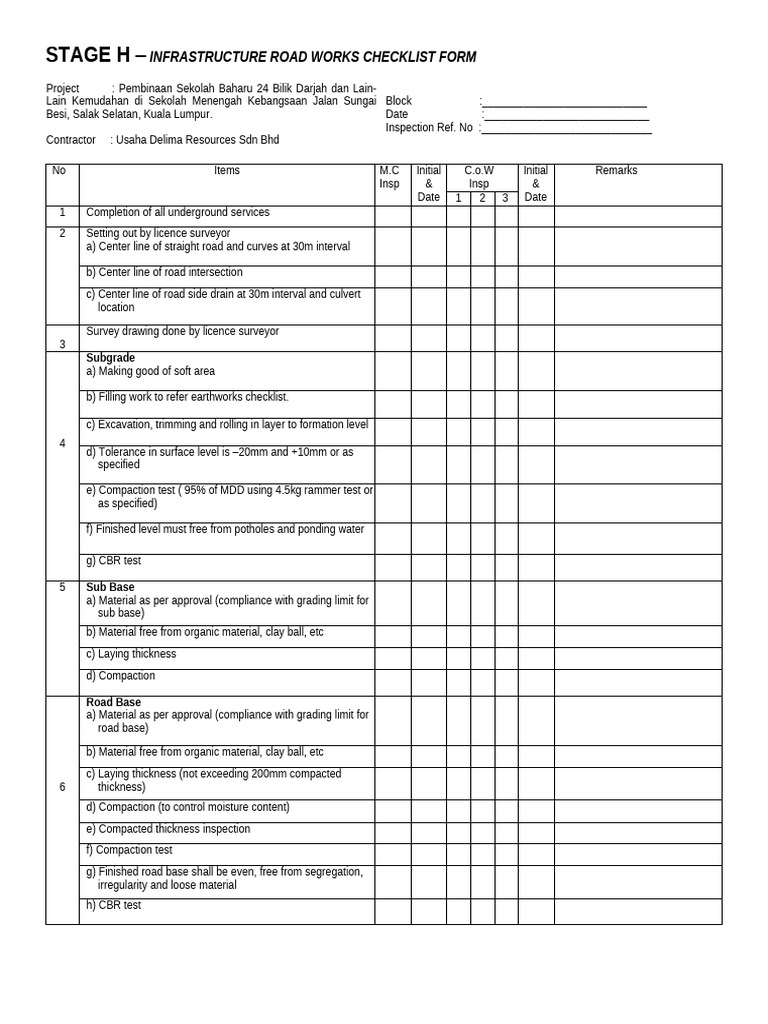

STAGE H – INFRASTRUCTURE ROAD WORKS CHECKLIST FORM
Project : Pembinaan Sekolah Baharu 24 Bilik Darjah dan Lain-
Lain Kemudahan di Sekolah Menengah Kebangsaan Jalan Sungai Block :____________________________
Besi, Salak Selatan, Kuala Lumpur. Date :____________________________
Inspection Ref. No :_____________________________
Contractor : Usaha Delima Resources Sdn Bhd
No Items M.C Initial C.o.W Initial Remarks
Insp & Insp &
Date 1 2 3 Date
1 Completion of all underground services
2 Setting out by licence surveyor
a) Center line of straight road and curves at 30m interval
b) Center line of road intersection
c) Center line of road side drain at 30m interval and culvert
location
Survey drawing done by licence surveyor
3
Subgrade
a) Making good of soft area
b) Filling work to refer earthworks checklist.
c) Excavation, trimming and rolling in layer to formation level
4
d) Tolerance in surface level is –20mm and +10mm or as
specified
e) Compaction test ( 95% of MDD using 4.5kg rammer test or
as specified)
f) Finished level must free from potholes and ponding water
g) CBR test
5 Sub Base
a) Material as per approval (compliance with grading limit for
sub base)
b) Material free from organic material, clay ball, etc
c) Laying thickness
d) Compaction
Road Base
a) Material as per approval (compliance with grading limit for
road base)
b) Material free from organic material, clay ball, etc
c) Laying thickness (not exceeding 200mm compacted
6 thickness)
d) Compaction (to control moisture content)
e) Compacted thickness inspection
f) Compaction test
g) Finished road base shall be even, free from segregation,
irregularity and loose material
h) CBR test
No Items M.C Initial C.o.W Initial Remarks
Insp & Insp &
Date Date
Prime Coat
a) Material as per approval
7 b) Surface shall be clean and dry (to remove all dirt, dust and
other objectionable material)
c) Spraying temperature ( cut back bitumen 50 C- 70 C and
bitumen emulsion 25 C-45 C or as specified. Overheated
more than 10 hours to be rejected or as specified.
d) Application rate (0.5 to 1.0 Liter/m2 or 0.5mm to 1.0mm or
as specified)
e) Left undisturbed for curing and opening to traffic (at least
24 hours or as specified)
Binder Course
a) Design mix approval
b) Trial mix compliance (including trial lay)
c) Laying and rolling temperature (rolling temperature not less
8 than 110 C or as per trial lay)
d) Number of compaction passes as per trial lay
e) Laying thickness as per trial lay (spreading evenly and
without segregation)
f) Tolerance in surface level (±5mm or as specified)
g) Coring for compacted thickness test (number of coring and
tolerance 5mm or as specified)
Tack Coat
9 a) Material as per approval
b) Surface shall be clean and dry ( to remove all dirt, dust
and other objectionable material)
c) Spraying temperature (25C- 45C or as specified)
d) Application rate (0.25 to 0.55 Liter/m2 or 0.25mm to
0.55mm or as specified)
e) Next layer to be laid until the coat achieve a satisfactory
degree of tackiness
Wearing Course
(CAN BE DIFFRED FOR S&P BILLING)
a) Design mix approval
b) Trial mix compliance (including trial lay)
c) Laying and rolling temperature (rolling temperature not less
than 110 C or as per trial lay)
10 d) Number of compaction passes as per trial lay
e) Laying thickness as per trial lay (spreading evenly and
without segregation)
f) Tolerance in surface level (±5mm or as specified)
g) Coring for compacted thickness test (number of coring and
tolerance ±5mm or as specified)
h) Ensure all the cover of underground services to flush with
road finish level
i) Surface condition (no rough surface and no longitudinal
and transverse irregularities/ depression exceeding 15mm
or as specified)
j) Opening to traffic (not less than 4 hours or as specified)
k) Finished level must free from ponding water
No Items M.C Initial C.o.W Initial Remarks
Insp & Insp &
Date Date
Road kerbs, island and scupper drain
(CAN BE DIFFRED FOR S&P BILLING)
11 (Type/Alignment/Position)
Road Marking
(CAN BE DIFFRED FOR S&P BILLING)
12 Type/Thickness/Size)
Road sign and road name
(CAN BE DIFFRED FOR S&P BILLING)
13 Type/Position
* NA- If not applicable
Comment :
Checked by, Verified by,
…………………. ………………….
Site Manager Civil C.o.W
Distribution :
Original to : □ Structural Engineer Copy to : □ Client □ Contractor □ Site Joint Filing
* Legend : M.C – Main Contractor
Note : In the event of discrepancies between this document and specification of contract,
the written specification of the contract shall prevail.
