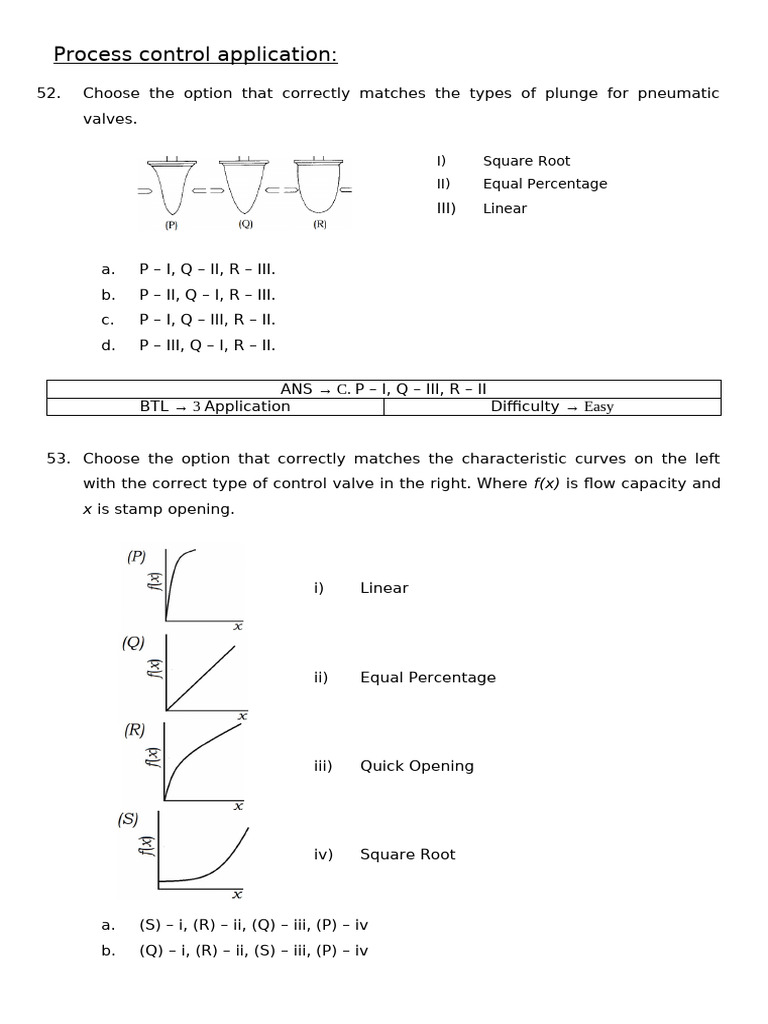

Process control application:
52. Choose the option that correctly matches the types of plunge for pneumatic
valves.
I) Square Root
II) Equal Percentage
III) Linear
a. P – I, Q – II, R – III.
b. P – II, Q – I, R – III.
c. P – I, Q – III, R – II.
d. P – III, Q – I, R – II.
ANS → C. P – I, Q – III, R – II
BTL → 3 Application Difficulty → Easy
53. Choose the option that correctly matches the characteristic curves on the left
with the correct type of control valve in the right. Where f(x) is flow capacity and
x is stamp opening.
i) Linear
ii) Equal Percentage
iii) Quick Opening
iv) Square Root
a. (S) – i, (R) – ii, (Q) – iii, (P) – iv
b. (Q) – i, (R) – ii, (S) – iii, (P) – iv
c. (Q) – i, (S) – ii, (R) – iii, (P) – iv
d. (Q) – i, (S) – ii, (P) – iii, (R) – iv
ANS → D. (Q) – i, (S) – ii, (P) – iii, (R) – iv
BTL → 2 Understand Difficulty → Moderate
54. Which of the following don’t have secondary loop?
a. Cascade control
b. Override control
c. Auctioneering control
d. Adaptive control
ANS → C. Auctioneering control
BTL → 2 Understand Difficulty → Easy
55. Cascade controller have
a. More than one manipulated variable and one measurement
b. More than one manipulated variable and more than one measurement
c. One manipulated variable and more than one measurement
d. One manipulated variable and one measurement
ANS → C. One manipulated variable and more than one measurement
BTL → 2 Understand Difficulty → Easy
56. REMOVED
57. Cascade control means
a. Feed forward control.
b. More than one feed-back loop.
c. On – off control.
d. One feed-back loop.
ANS → B. More than one feed-back loop
BTL → 2 Understand Difficulty → Easy
58. Read the following statements and then decide which of the answers is correct.
i) Close loop response of primary loop is influenced by the dynamics of the
secondary loops.
i) In chemical process, flow rate control loops are almost always cascaded with
other control loops.
a. Statement (i) is false but statement (ii) is true.
b. Statement (i) is true but statement (ii) is false.
c. Both statement (i) and statement (ii) are true.
d. Both statement (i) and statement (ii) are false.
ANS → C. Both statement (i) and statement (ii) are true
BTL → 2 Understand Difficulty → Hard
59. Which one of the following is part of selective control system?
a. On – off Control.
b. Ratio Control
c. Cascade control
d. Auctioneering control
ANS → D. Auctioneering control
BTL → 1 Knowledge Difficulty → Easy
60. Choose the option that correctly matches the types of controller mention in left
with their application in right.
P. Auctioneering control i) Protect Boiler system.
Q. Override Control ii) Tubular catalytic reactor.
R. Split Range Control iii) Steam header.
iv) Heat exchanger.
a. P – i, Q – ii, R – iii.
b. P – ii, Q – i, R – iv.
c. P – ii, Q – i, R – iii.
d. P – ii, Q – iv, R – i.
ANS → C. P – ii, Q – i, R – iii
BTL → 3 Application Difficulty → Moderate
61. Choose the option that correctly matches the types of controller mention in left
with their characteristics in right.
S. Cascade control i) LSS and HSS Switch.
T. Override Control ii) Multiple loops.
U. Split Range Control iii) Feed Forward.
V. Ratio Control iv) Only one measurement.
a. S – i, T – ii, U – iii, V – iv.
b. S – iii, T – i, U – iv, V – ii.
c. S – ii, T – iii, U – iv, V – i.
d. S – ii, T – i, U – iv, V – iii.
ANS → D. S – ii, T – i, U – iv, V – iii
BTL → 2 Understand Difficulty → Moderate
62. In equal percentage characteristic valve
a. stem movement is directly proportional to the flow rate.
b. stem movement is directly proportional to the percentage opening.
c. stem movement is inversely proportional to the flow rate.
d. stem movement is inversely proportional to the percentage opening.
ANS → A. stem movement is directly proportional to the flow rate
BTL → 2 Understand Difficulty → Easy
63. Removed
64. Read the following statements and then decide which of the answers is correct.
i) Liner opening valve is used for Pressure control
ii) Quick opening valve is used for level control
a. Statement (i) is false but statement (ii) is true.
b. Statement (i) is true but statement (ii) is false.
c. Both statement (i) and statement (ii) are true.
d. Both statement (i) and statement (ii) are false.
ANS → C. Both statement (i) and statement (ii) are true
BTL → 3 Application Difficulty → Hard
