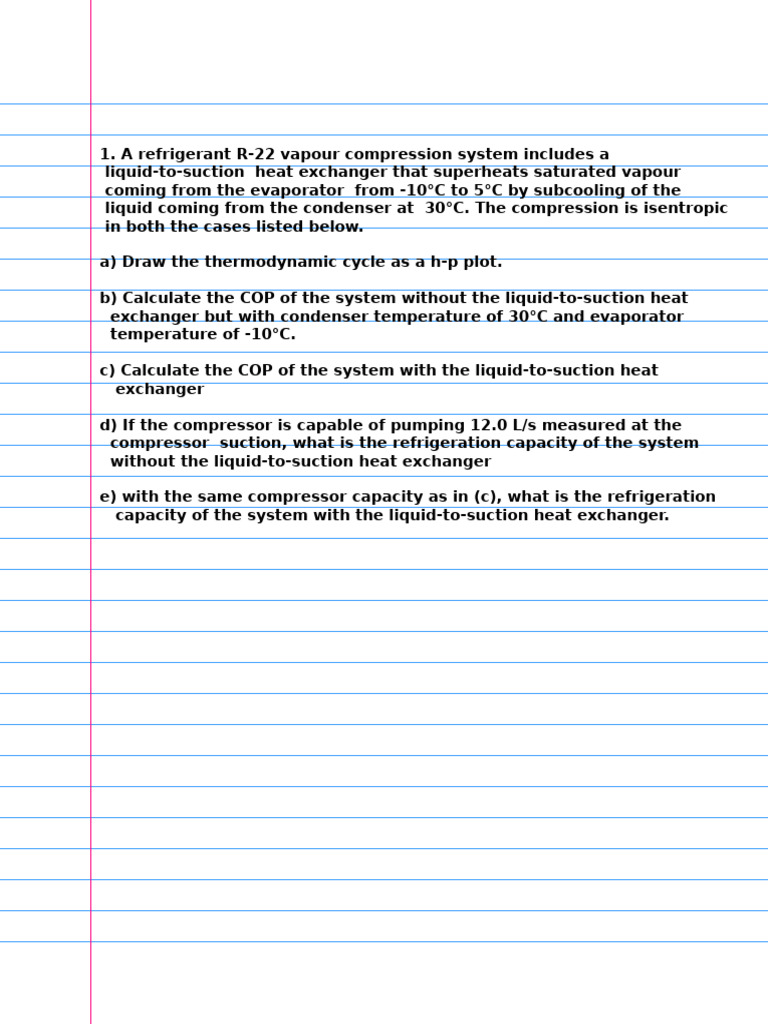

1.
A refrigerant R-22 vapour compression system includes a
liquid-to-suction heat exchanger that superheats saturated vapour
coming from the evaporator from -10°C to 5°C by subcooling of the
liquid coming from the condenser at 30°C. The compression is isentropic
in both the cases listed below.
a) Draw the thermodynamic cycle as a h-p plot.
b) Calculate the COP of the system without the liquid-to-suction heat
exchanger but with condenser temperature of 30°C and evaporator
temperature of -10°C.
c) Calculate the COP of the system with the liquid-to-suction heat
exchanger
d) If the compressor is capable of pumping 12.0 L/s measured at the
compressor suction, what is the refrigeration capacity of the system
without the liquid-to-suction heat exchanger
e) with the same compressor capacity as in (c), what is the refrigeration
capacity of the system with the liquid-to-suction heat exchanger.
R-22 Refrigerant
Ans (4)
a) 236.664-226.369=411.85-401.555
3 3 30 c 2 2 1-2-3-4 without HE
1191.9 kPa
1'-2'-3'-4' with HE
444 kJ/kg
-10 c
5c
4 4 354.3 kPa 1
1 431.5 kJ/kg
236.664 kJ/kg 411.85 kJ/kg, 70.27 L/kg, 1.8052 kJ/kg.K
401.555 kJ/kg, 65.34 L/kg, 1.767 kJ/kg.K
226.369 kJ/kg
(b) COP (w/o H.E.) = (401.555 - 236.664) / (431.5 - 401.555) = 5.506 5.51
(c) COP (with H.E.) = (401.555 - 226.369) / (444 - 411.85) = 5.45
12 L/s
(d) m (w/o H.E.) = = 0.18365 kg/s
65.34 L/kg
Refrigeration capacity = 0.18365 kg/s x (401.555 - 236.664) kJ/kg
= 30.28 kW
12 L/s
(e) m (with H.E.) = = 0.1708 kg/s
70.27 L/kg
Refrigeration capacity = 0.1708 kg/s x (401.555 - 226.369) kJ/kg
= 29.92 kW
2.The catalogue of a refrigerant R-22, 4-cylinder, hermetic compressor
operating at 29 r/s, with a condensing temperature of 40°C, and a
evaporating temperature of -4°C shows a refrigerating capacity of
115 kW. At this operating point the motor (whose efficiency shows
90%) draws 34.5kW. The bore diameter of the cylinder is 87mm and
the piston stroke 70mm. The performance data are based on
8°C subcooling of the liquid leaving the condenser.
Compute the following
a) the amount of superheating in °C
b) the actual volumetric efficiency
c) the isentropic work of the compressor
d) isentropic compression efficiency η
R-22 Refrigerant
Ans (5) 435 kJ/kg, 17.3 L/kg, 60 C
3 40 C
p 32 C 2 2'
1533.5kPa No H.E. Cycle 1-2-3-4
with H.E. Cycle 1'-2'-3-4
4 -4 C 11 C 450 kJ/kg, 19 L/kg, 77 C
435.84kPa 1 1'
239.23 kJ/kg 414.37 kJ/kg, 1.8 kJ/kg.K, 60 L/kg, 11 C
249.7 kJ/kg 403.9 kJ/kg, 1.758 kJ/kg.K, 53.6 L/kg
Compressor displacement = (4 cyl) x (29 r/s) x [ (.087) m /cyl.r] x (.070 m)
4
= 0.04827 m /s = 48.27 L/s
Assume No Heat Exchanger: Cycle 1-2-3-4
(a) superheat at suction of compressor is 0 C
superheat at outlet of compressor is 20 C
115 kW
(b) m = = 0.6984 kg/s
(403.9 - 239.23) kJ/kg
vol. flow rate = (0.6984 kg/s) x (.0536 m /kg) = 37.43 L/s
37.43 L/s
= x 100 = 77.5 %
48.27 L/s
(c) isentropic work of compressor = (0.6984 kg/s) x (435 - 403.9) kJ/kg
= 21.72 kW
21.72 kW
(d) compressor efficiency = x 100 = 69.15 %
34.9 x 0.9 kW
OR The Other solucion is
With Heat Exchanger: Cycle 1'-2'-3-4
(a) h 1' - 403.9 kJ/kg = (249.7 - 239.23) kJ/kg
h
1' = 414.37 kJ/kg
superheat at suction of compressor is 15 C
superheat at outlet of compressor is 37 C
115 kW
(b) m = = 0.6984 kg/s
(403.9 - 239.23) kJ/kg
vol. flow rate = (0.6984 kg/s) x (0.06 m /kg) = 41.9 L/s
41.9 L/s
= x 100 = 86.8 %
48.27 L/s
(c) isentropic work of compressor = (0.6984 kg/s) x (450 - 414.37) kJ/kg
= 24.88 kW
24.88 kW
(d) compressor efficiency = x 100 = 64.16 %
34.9 x 0.9 kW
