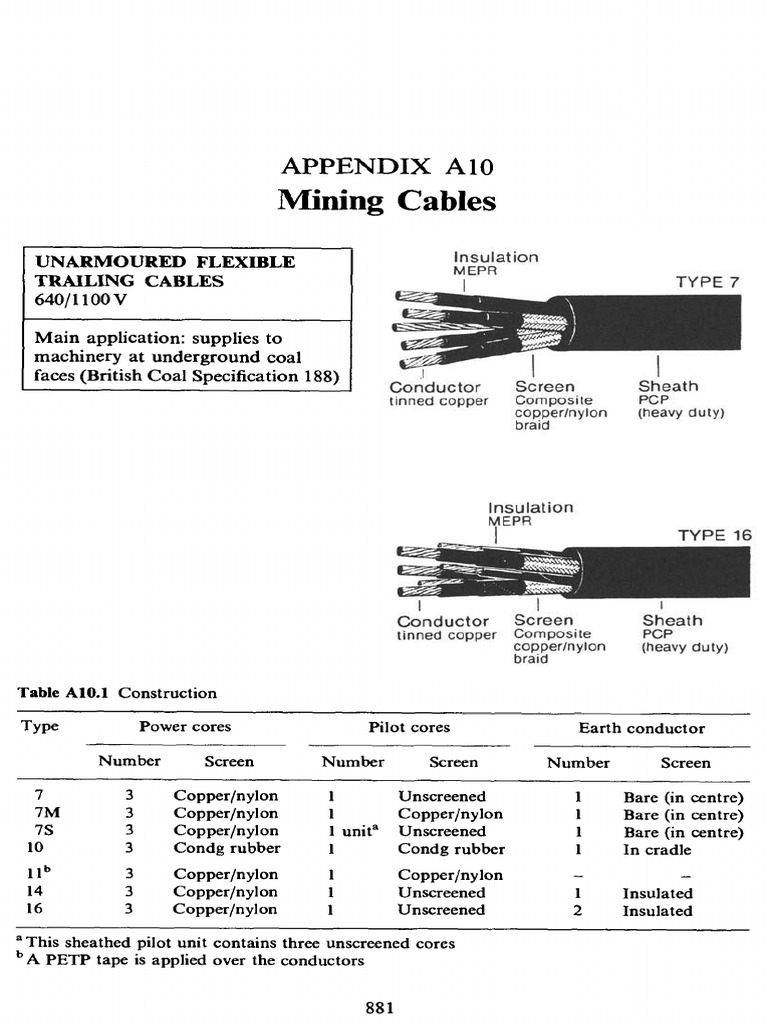

APPENDIX A10

Mining Cables
UNARMOURED FLEXIBLE Insulation
MEPR
TRAILING CABLES TYPE 7
640/11 O0 V

M a i n application: supplies to
m a c h i n e r y at u n d e r g r o u n d coal
faces (British Coal Specification 188) .I I I
Conductor Screen Sheath
tinned copper Composite PCP
copper/nylon (heavy duty)
braid

Insulation
MEPR
I TYPE 16

I I I
Conductor Screen Sheath
tinned copper Composite PCP
copper/nylon (heavy duty)
braid

Table AIO.I Construction

Type Power cores Pilot cores Earth conductor

Number Screen Number Screen Number Screen

7 3 Copper/nylon 1 Unscreened 1 Bare (in centre)

7M 3 Copper/nylon 1 Copper/nylon 1 Bare (in centre)
7S 3 Copper/nylon 1 uniP Unscreened I Bare (in centre)
10 3 Condg rubber 1 Condg rubber 1 In cradle
11b 3 Copper/nylon 1 Copper/nylon - - _

14 3 Copper/nylon 1 Unscreened 1 Insulated

16 3 Copper/nylon 1 Unscreened 2 Insulated

a This sheathed pilot unit contains three unscreened cores

b A PETP tape is applied over the conductors

881
882 Electric Cables Handbook

UNARMOURED FLEXIBLE
T R A I L I N G CABLES
640/1100 V

Table AI0.2 Current ratings

Power Continuous Intermittent

conductor size rating rating
(mm 2) (A) (A)

16 85 90
25 110 120
35 135 150
50 170 190
70 205 235
95 250 295
120 295 350

Ambient temperature
The ratings are based on an ambient temperature o f 25°C.

Intermittent rating
The ratings assume cyclic operation with conditions not more severe than

full current for 40 minutes

no current for 10-15 minutes
half current for 40 minutes
no current for 10-15 minutes
and repetitive cycles o f the above

Rating factors for ambient temperature

Ambient temperature (°C) 30 35 40 45 50 55 60
Rating factor 0.93 0.87 0.80 0.73 0.66 0.57 0.48

Note
The above ratings are not applicable to cables in coils or on drums or where
circumstances reduce heat dissipation f r o m the cable.
 UNARMOURED FLEXIBLE
TRAILING CABLES
640/1100 V, 3800/6600 V and 6350/11000 V

Table A10.3 Range and dimensions

Power Conductor formation Diameter Approximate

conductor weight
size Power Pilot Earth Minimum Maximum (kg/km)
(mm2) (number/diameter) (number/diameter) (number/diameter) (mm) (mm)

640/1100 V
Type 7
16 126/0.40 126/0.40 126]0.40 35.8 38.6 2310
25 196/0.40 126/0.40 126]0.40 39.7 42.6 2960
35 276/0.40 126/0.40 147]0.40 43.1 46.3 3550
50 396/0.40 196/0.40 196]0.40 48.5 51.8 4600
70 360•0.40 276]0.40 276]0.40 55.1 58.8 6040
95 475/0.50 396/0.40 396/0.40 62.4 66.1 7880
120 608/0.50 360/0.50 396/0.40 68.0 72.5 10500

Type 7M
16 126/0.40 126/0.40 126/0.40 35.8 38.6 2548
25 196/0.40 196/0.40 126/0.40 39.7 42.9 3163
35 276/0.40 276/0.40 147/0.40 43.1 46.3 3841
50 396/0.40 396/0.40 196/0.40 48.5 51.8 5019
70 360/0.50 360/0.50 276/0.40 55.1 58.8 6498
95 475/0.50 475/0.50 396/0.40 62.4 66.1 8222
120 608/0.50 608/0.50 396.0.50 68.0 72.5 9951

Type 7S
50 396/0.40 56/0.30 196/0.40 48.5 51.8 4551
70 360/0.50 84/0.30 276/0.40 55.1 58.8 5916
95 475/0.50 84/0.30 396/0.40 62.4 66.1 7576
120 608/0.50 80/0.40 396/0.40 68.0 72.5 9099
(cont.)
 UNARMOURED FLEXIBLE
TRAILING CABLES
640/1100 V, 3800/6600 V and 6350/11000 V

Table A10.3 continued

Power Conductor formation Diameter Approximate

conductor weight
size Power Pilot Earth Minimum Maximum (kg/km)
(mm2) (number/diameter) (number/diameter) (number/diameter) (ram) (mm)
Type 11
16 126/0.40 126/0.40 30.9 33.0 1958
Type 14
25 196/0.40 126/0.40 196/0.40 43.2 46.5 3450
35 276/0.40 126/0.40 276/0.40 47.3 50.7 4210
50 396/0.40 196/0.40 396/0.40 53.7 57.6 5550
70 360/0.50 276/0.40 360/0.50 61.2 65.0 7270
95 475/0.50 396/0.40 475/0.50 69.3 73.9 9560
Type 16
25 196/0.40 80/0.40 80/0.40 36.5 39.2 2700 g
35 276/0.40 80/0.40 80/0.40 39.5 42.7 3170
50 396/0.40 126/0.40 126/0.40 43.9 47.0 4120
70 360/0.50 196/0.40 196/0.40 49.6 53.3 5490
95 475/0.50 276/0.40 276/0.40 56.2 63.0 8200
3800/6600V
Type730
35 276/0.40 57.5 60.5
50 396/0.40 62.0 65.0
70 360/0.50 67.6 71.4
95 475/0.50 73.1 76.9
120 608/0.50 76.9 80.9
150 758/0.50 82.1 86.1
6350/11000 V
Type 830
396/0.40 75.0 83.0
50
360/0.50 80.6 86.0
70
475/0.50 85.9 91.0
95
608/0.50 89.9 96.5
120
756/0.50 93.3 103.0
150
886 Electric Cables Handbook

PLIABLE ARMOURED Conductor Inner sheath

tinned copper PCP
FLEXIBLE TRAILING CABLES TYPE
320/550 V to 3800/6600 V I I 71

Main application: supplies to

underground services and
equipment moved occasionally
~LI V e i l I 1,3~-'LI
(British Coal Specification 504) Insulation steel strands
MEPR (includes some TYPE
I copper strands).
I 201

Core screen I
Composite Sheath
copper/nylon PCP
braid

Table AI0.4 Construction

Type Voltage Insulation Number Number and screen Earth core

of cores on power cables

62 640/I 100 MEPR 2 2, copper/nylon -

63 640/1100 MEPR 3 3, copper/nylon -
64 640/1100 MEPR 4 4, copper/nylon -
70 320/550 MEPR 4 3, unscreened Unscreened
71 320/550 MEPR 5 4, unscreened Unscreened
201 640/1100 MEPR 3 3, copper/nylon -
211 640/1 I00 MEPR 4 3, copper/nylon Unscreened
321 1900/3300 MEPR 4 3, unscreened Unscreened
331 1900/3300 MEPR 4 3, copper/nylon Unscreened
631 3800/6600 MEPR 4 3, copper/nylon Unscreened

Table AI0.5 Current ratings

Conductor size (mm2) 10 16 25 35 50 70 95 120

Continuous rating (A) 63 85 110 135 170 205 250 295

Note
These ratings do not apply to types 62-71 which are control and lighting cables with a
rating of 28 A. For rating factors for ambient temperature see table A10.2.
 Mining Cables 887

P L I A B L E ARMOURED
F L E X I B L E T R A I L I N G CABLES
320/550 V to 3800/6600 V

Table A10.6 Range and dimensions

Power Conductor formation Armour a Diameter Approxi-

conductor (number/ram) mate
size Power Earth Minimum Maximum weight
(mm2) (number/mm) (number/mm) (mm) (mm) (kg/km)

Type 62
4 56/0.30 7/0.45 23.9 26.4 1070
Type 63
4 56/0.30 7/0.45 24.8 27.3 1230
Type 64
4 56/0.30 7/0.45 26.4 28.9 1430
Type 70
4 56/0.30 7•0.45 23.5 26.0 1060
Type 71
4 56/0.30 7/0.45 24.9 27.4 1220
Type 201
10 80/0.40 7/0.71 37.3 39.8 2780
16 126/0.40 7/0.71 40.6 43.4 3310
25 196/0.40 7/0.71 44.6 47.4 4050
35 276/0.40 7/0.71 48.3 51.1 4780
50 396/0.40 7/0.71 53.6 57.4 6080
70 360/0.50 7/0.90 60.7 64.5 7740
95 475/0.50 7/1.25 71.8 75.8 10940
120 608/0.50 7/1.25 76.7 81.0 12690
Type 211
10 80/0.40 80/0.40 7]0.71 39.8 42.3 3160
16 126/0.40 126/0.40 7/0.71 44.0 46.8 3860
25 196/0.40 126/0.40 7/0.71 48.5 51.3 4680
35 276/0.40 196/0.40 7/0.71 52.7 56.5 5590
50 396/0.40 276/0.40 7/0.90 59.7 63.5 7330
70 360/0.50 396/0.40 7/0.90 68.8 72.8 9620
95 475/0.50 360/0.50 7/1.25 80.6 84.9 13450
120 608]0.50 360]0.50 7/1.25 86.2 90.5 16460
Type 321
35 276/0.40 196/0.40 7/0.90 60.3 64.1 6860
50 396/0.40 276/0.40 7/0.90 68.3 72.3 8700
70 360/0.50 396/0.40 7/0.90 74.4 78.4 10400
95 475/0.50 360/0.50 7/1.25 84.9 89.2 14950
120 608/0.50 360/0.50 7/1.25 89.4 93.7 15950
(cont.)
888 Electric Cables Handbook

PLIABLE ARMOURED
FLEXIBLE TRAILING CABLES
320/550 V to 3800/6600 V

Table A10.6 continued

Power Conductor formation Armour a Diameter Approxi-

conductor (number/ram) mate
size Power Earth Minimum Maximum weight
(mm2) (number/mm) (number/mm) (mm) (mm) (kg/km)

Type 331
25 196/0.40 126/0.40 7/0.90 57.8 61.6 6440
35 276/0.40 196/0.40 7/0.90 64.6 68.4 8010
50 396/9.40 276/0.40 7/0.90 69.8 73.8 9170
70 360/0.50 396/0.40 7/1.25 80.3 84.6 12740
95 475/0.50 360/0.50 7/1.25 86.4 90.7 14800
120 608/0.50 360/0.50 7/1.25 90.9 95.2 16850

Type 631
50 396/0.40 276/0.40 7/1.25 86.7 91.0 13830
70 360/0.50 396/0.40 7/1.25 92.8 97.1 16220

a Some sizes have copper wires in the armour.

 PLIABLE ARMOURED
FLEXIBLE M U L T I C O R E
AUXILIARY CABLES
320/550 V

~,onductors Screen 3liable

Finned copper Finned copper armour
Main application: interconnections tvire ,,,ire braid 3alvanised
between sections of large mining ;teel wire
machines or between machine
sections and associated auxiliary Insulation 3edding 3heath
=_TFE ~cP ~cP
equipment (British Coal iordinary duty) heavy duty)
Specification 653)

rable A10.7 Range and dimensions

Cable Conductor Number Armour 9iameter kpproximate

type of cores [number/mm) weight
Area Formation Minimum Maximum (kg/km)
(mm2) (number/mm) (mm) (mm)

~06 1.34 19/0.30 6 7/0.45 21.1 23.6 876

512 1.34 19/0.30 12 7/0.45 21.1 23.6 960
518 1.34 19/0.30 18 7/0.45 22.8 25.3 [136
524 0.93 19/0.25 ~.4 7/0.45 24.2 26.7 [219
890 Electric Cables Handbook

UNARMOURED FLEXIBLE
CABLES
600/1000 V

Main application: highly flexible

and robust cables for supply to
portable equipment
(British Coal Specification 505)

Conductor Sheath Conductor

Tinned copper PCP Tinned Sheath
copper
I I PE,3 , PCP I TYPE 44

Insulation Collective screen Insulation Power core

MEPR conducting rubber compound EPR: screen
(also used on earth pilot core: Copper/nylon
conductor and rubber centre) EPR/CSP

CURRENT RATINGS

These cables normally carry currents below their thermal capacity. Where applicable
the current rating for types 43 and 44 is 46 A.

TaMe AI0.8 Range and dimensions

Conductor Diameter Approximate

weight
Size Formation Minimum Maximum (kg/km)
(mm2) (number/mm) (mm) (mm)

Type 43 (conducting rubber screen)

6 84/0.30 25.6 27.6 967

Type44(copper/ny~n screen)
6 84/0.30 24.7 26.7 1180
 Mining Cables 891

PLIABLE ARMOURED Conductor Outer sheath

Tinned copper PCP (heavy duty)
F L E X I B L E CABLES
600/1000V to 3800/6600V to
BS 6708:1991

Main application: trailing cables for

power supply in open-cast and
miscellaneous mines and quarries
Insulation Pliable armour
EPR Galvanised steel wires

CONSTRUCTION

P E T P tape is applied over the conductors for all sizes of type 321 cable and all sizes of
types 20 and 21 except 2.5 and 4 m m 2 which are not taped. Type 621 cables have a
semiconducting tape. The a r m o u r consists of bunches o f seven wires.

Table AI0.9 Current ratings

Conductor Continuous rating a Conductor Continuous rating ~

size size
(mm 2) D.C. or 3-phase a.c. (mm 2) D.C. or 3-phase a.c.
single-phase a.c. (A) single-phase a.c. (A)
(A) (A)

2.5 31 27 35 145 125

4 40 35 50 185 160
6 51 44 70 225 195
10 70 60 95 270 235
16 93 81 120 305 270
25 120 105 150 355 305

a Not applicable to cables in coils or on drums

Rating factors for ambient temperature

Ambient temperature (°C) 30 35 40 45 50 60 70
Rating factor 1.0 0.93 0.86 0.80 0.72 0.54 0.31
892 Electric Cables Handbook

PLIABLE ARMOURED
FLEXIBLE CABLES
600/1000 V to 3800/6600 V

Table AIO.IO Range and dimensions

Conductor Armour Diameter Approximate

wires weight
Size Formation (number/mm) Minimum Maximum (kg/km)
(mm2) (number/mm) (mm) (mm)

Type 20, 600/I000 V 3-core

2.5 50/0.25 7/0.45 24.5 26.9 1060
4 56/0.30 7/0.45 25.8 28.2 1200
6 84/0.30 7/0.71 34.3 36.5 2130
10 80/0.40 7/0.71 36.2 38.4 2450
16 126/0.40 710.71 38.6 40.8 2930
25 196/0.40 7/0.90 43.6 48.4 3960
35 276/0.40 7/0.90 46.6 50.6 4660
50 396/0.40 7/0.90 51.3 56.7 5740
70 360/0.50 7/0.90 56.6 62.7 7060
95 475/0.50 7/0.90 68.4 72.1 9200
120 608/0.50 7/0.90 72.2 77.0 10750
150 756/0.50 7/1.25 83.3 87.3 14240
Type 21, 600/lO00V4-core
2.5 50/0.25 7/0.45 26.2 28.6 1210
4 56/0.30 7/0.45 27.7 30.1 1380
6 84/0.30 7/0.71 36.7 38.8 2440
10 80/0.40 7/0.71 38.8 41.0 2820
16 126/0.40 7/0.71 41.5 44.0 3430
25 196/0.40 7/0.71 46.1 49.8 4310
35 276/0.40 7/0.90 51.0 56.1 5560
50 396/0.40 7/0.90 56.1 61.8 6900
70 360/0.50 7/0.90 64.8 71.4 9150
95 475/0.50 7/0.90 74.9 78.6 11090
120 608•0.50 7/1.25 83.8 89.0 14880
150 756/0.50 7/1.25 91.4 95.3 17230
Type 321, 1900[3300 V 4-core
16 126/0.40 7/0.71 51.5 55.8 4640
25 196/0.40 7/0.90 56.7 60.1 5810
35 276/0.40 7/0.90 60.7 64.1 6852
50 396/0.40 7/0.90 68.6 72.3 8790
70 360/0.50 7/0.90 74.7 78.4 10390
95 475/0.50 7/1.25 85.3 89.2 14040
120 608/0.50 7/1.25 88.5 93.7 15950
150 756/0.50 7/1.25 95.4 99.3 18280
(cont.)
 Mining Cables 893

P L I A B L E ARMOURED
F L E X I B L E CABLES
600/1000 V to 3800/6600 V

Table AIO.IO continued

Conductor Armour Diameter Approximate

wires weight
Size Formation (number/mm) Minimum Maximum (kg/km)
(mm 2) (number/mm) (mm) (mm)

Type 621, 3800/6600 V 4-core

16 126/0.40 7/0.90 67.2 70.4 7460
25 196/0.40 7/0.90 71.4 74.6 8410
35 276/0.40 7/0.90 75.4 78.6 9570
50 396/0.40 7/1.25 85.1 88.6 12920
70 360/0.50 7/1.25 91.2 94.6 14880
95 475/0.50 7/1.25 97.4 100.9 17120
120 608/0.50 7/1.25 100.5 105.2 19000
150 756/0.50 7/1.25 107.5 111.0 21390
894 Electric Cables Handbook

PVC INSULATED 600/1000V

ARMOURED MINING POWER
CABLES
635/1000V to 6.35/11 kV I Insulation Arr~our I
PVC Galvanised Sheath
steel wire ~' PVC
Main application: fixed cables for Conductor Bedding
power distribution in coal mines Plain copper PVC
(British Coal Specification 295)
Insulation Hessian 1 -9/3-3 kV screened
PVC I Binder tape
I Tape ~ I =

coW eTi; I 1 l I
Beddin~ T Oversheath
PVC , PVC
Conductor Armour
Copper or Galvanised
aluminium steel wire ~'
~'The armour may contain copper wires
and may be SWA or DWA

Specification
British Coal Specifications: 295 for 635/1000 V and 1.9/3.3kV cables and 656 for
3.8/6.6 kV and 6.35/11 kV cables.

Number of cores
635/1000V: 2-, 3- and 4-core.
Other voltages: 3-core only.

Conductors
All conductors are stranded. For voltages up to and including 3.8/6.6 kV conductors
are shaped except as indicated in the tables. For 6.35/11 kV all conductors are circular.

Insulation
PVC for 635/1000V and 1.9/3.3 kV cables.
EPR for 3.8/6.6kV and 6.35/11 kV cables.

Core screens
1.9/3.3 kV cables may be screened or unscreened.

3.8]6.6k V and 6.35111 k V cables

These cables have conductor and core screens. Conductor screens consist of extruded
semiconducting compound. Insulation screens comprise a layer of semiconducting
material plus a copper tape.
 Mining Cables 895

PVC I N S U L A T E D
ARMOURED MINING POWER
CABLES
635/1000Vto6.35/llkV

Table AI0.11 Current ratings

Conductor 635/1100 V (copper) 1.9/3.3 kV a 3.8/6.6kV and 6.35/11 kV

size
(mm 2) 2-core 3- and 4-core Copper Aluminium Copper Aluminium
(A) (A) (A) (A) (A) (A)

1.5 24 21
2.5 33 28
4 44 38
6 56 48
10 77 66
16 102 87 90 94 73
25 116 118 125 96
35 142 143 150 115
50 172 173 175 135
70 218 217 155 220 170
95 268 266 190 265 205
120 308 305 240
150 351 250 345 270
185 403 290 390 310
240 474 460 365
300 540 520 415
400 620

a Applies to screened and unscreened

Note
These ratings are based on an a m b i e n t t e m p e r a t u r e of 25°C and a m a x i m u m continuous
c o n d u c t o r temperature of 70°C.

Rating factors for ambient temperature

A m b i e n t temperature (°C) 25 30 35 40 45
Rating factor 1.0 0.94 0.88 0.82 0.75
896 Electric Cables Handbook

PVC INSULATED
ARMOURED MINING POWER
CABLES
635/1000V

Table A10.12 Range and dimensions(635/1000Vcables, SWA and D W A w i t h copper conductors)

Conductor Armour Approximate Approximate

size diameter weight
(ram 2) Wire diameter Copper wires (mm) (kg/km)
(mm) (number)

2-core SWA
1.5 0.9 0 11.7 280
2.5 0.9 0 13.1 350
4 0.9 0 15.1 450
6 0.9 2 16.5 545
10 1.25 1 20.1 870
16 1.25 4 21.9 980

3-core SWA
1.5 0.9 0 12.3 310
2.5 0.9 0 13.6 390
4 0.9 0 15.8 510
6 1.25 0 18.0 720
10 1.25 1 21.2 1000
16 1.25 4 23.1 1130
25~ 1.6 4 25.0 1650
35~ 1.6 7 27.3 2050
50a 1.6 11 30.5 2600
70a 2.0 10 35.0 3610
95 ~ 2.0 15 39.3 4750

4-core SWA
1.5 0.9 0 13.0 350
2.5 0.9 0 14.5 445
4 1.25 0 17.8 715
6 1.25 0 19.2 855
10 1.25 1 22.8 1190
16 1.6 1 26.3 1520
25a 1.6 4 27.8 2050
35a 1.6 6 30.5 2540
50a 2.0 5 35.4 3480
70a 2.0 9 39.2 4490
95a 2.0 14 44.3 5890
(cont.)
 Mining Cables 897

PVC INSULATED
ARMOURED MINING POWER
CABLES
635/1000V

Table A10.12 continued

Conductor Armour Approximate Approximate

size diameter weight
(mm2) Wire diameter Copper wires (mm) (kg/km)
(mm) (number)

3-core D WA
1.5 0.9 17.0 690
2.5 0.9 18.3 795
4 0.9 20.6 985
6 1.25 23.4 1380
10 1.25 26.5 1760

4-core D WA
1.5 0.9 17.6 745
2.5 0.9 19.1 870
4 1.25 23.2 1360
6 1.25 24.8 1550
10 1.25 28.2 2110

a Shaped conductors
898 Electric Cables Handbook

P V C INSULATED
ARMOURED MINING POWER
CABLES
1.9/3.3V

Table AI0.13 Range and dimensions (3-core 1.9/3.3 kV cables)

Conductor Armour Approximate Approximate

size diameter weight
(mm 2) Wire diameter Copper wires (mm) (kg/km)
(mm) (number)

Unscreened, copper conductor, D WA

16a 1.6 0 37.2 3210
25a 1.6 0 40.1 3420
35 1.6 0 39.1 3900
50 2.0 1 43.8 5090
70 2.0 5 47.0 6140
95 2.0 11 50.4 7220
120 2.5 7 56.4 9370
150 2.5 12 59.2 10570
185 2.5 17 62.5 12020
240 2.5 25 67.9 14540
300 2.5 35 73.4 17060
400 2.5 48 79.7 20790

Unscreened, aluminiumconductor, DWA

70 2.0 47.0 4780
95 2.0 50.4 5410
150 2.5 59.2 7710
185 2.5 62.5 8450

Unscreened, aluminium conductor, SWA

70 2.0 41.8 3270
95 2.0 45.2 3710
150 2.5 52.8 5230
185 2.5 56.1 5480

Screened, copper conductor, D WA

16a 1.6 0 38.1 3400
25a 1.6 0 40.9 3630
35 1.6 0 39.9 4140
50 2.0 0 44.6 5400
70 2.0 5 47.9 6390
95 2.0 10 51.3 7520
120 2.5 7 57.2 9720
150 2.5 11 60.0 10900
185 2.5 17 63.4 12370
240 2.5 25 68.8 14920
(cont.)
 Mining Cables 899

PVC I N S U L A T E D
ARMOURED MINING POWER
CABLES
1.9/3.3V

Table AI0.13 continued

Conductor Armour Approximate Approximate

size diameter weight
(mm2) Wire diameter Copper wires (mm) (kg/km)
(mm) (number)

300 2.5 35 74.2 17520

400 2.5 48 80.6 21170

Screene~ aluminiumconductor, DWA

70 2.0 0 47.9 5090
95 2.0 0 51.3 5720
150 2.5 1 60.0 8100
185 2.5 4 63.4 8860

Screened, aluminium conductor, SWA

70 2.0 2 42.7 3380
95 2.0 5 46.1 3900
150 2.5 6 53.6 5470
185 2.5 9 57.0 6090

a Circular conductor; remainder shaped

900 Electric Cables Handbook

EPR INSULATED
ARMOURED MINING POWER
CABLES
3.8/6.6V

Table AI0.14 Range and dimensions (3.8/6.6 kV cables)

Conductor Armour wire Copper wires Approximate Approximate

size diameter in armour diameter weight
(mm 2) (mm) (number) (mm) (kg/km)

Copper conductor, DWA

16~ 2.0 0 47.7 4830
25 ~ 2.0 0 50.8 5450
35 a 2.0 0 53.4 6030
50a 2.0 0 57.0 6660
70 2.5 0 58.4 8580
95 2.5 1 61.6 9790
120 2.5 5 65.3 11150
150 2.5 9 68.1 12570
185 2.5 14 71.4 14120

Alum~iumconductor, DWA
50a 2.0 0 57.0 5780
70 2.5 0 58.4 7230
95 2.5 0 61.6 8660
120 2.5 0 65.3 8890
150 2.5 0 68.1 9760
185 2.5 1 71.4 10580

Copper conductor, SWA

16a 2.0 0 44.0 3130
25 ~ 2.0 0 47.0 3620
35a 2.0 0 50.0 4140
50 2.0 2 53.0 4660
70 2.5 3 52.0 5970
95 2.5 6 55.2 7050
120 2.5 10 58.9 8080
150 2.5 13 61.7 9440
185 2.5 18 65.0 10810

Alum~iumconductor, SWA
50a 2.0 0 53.0 3760
70 2.5 0 52.0 4660
95 2.5 1 55.2 5230
120 2.5 3 58.9 5760
150 2.5 5 61.7 6610
185 2.5 7 65.0 7260

a Circular conductors; remainder shaped

 Mining Cables 901

EPR INSULATED
ARMOURED MINING POWER
CABLES
6.35/11 kV

Table A10.15 Range and dimensions (6.35/11 kV cables)

Conductor Armour wire Copper wires Approximate Approximate

sizea diameter in armour diameter weight
(mm2) (mm) (number) (mm) (kg/km)

Copper conductor, DWA

25 2.0 0 53.1 5600
35 2.5 0 58.6 7340
50 2.5 0 60.9 7995
70 2.5 0 64.5 9090
95 2.5 0 68.5 10365
120 2.5 2 72.7 11770
150 2.5 6 75.9 13240
185 2.5 12 79.9 15090
Aluminium conductor, D WA
25 2.0 0 52.8 5120
35 2.5 0 58.3 6580
50 2.5 0 60.9 7100
70 2.5 0 64.5 7805
95 2.5 0 68.5 8580
120 2.5 0 72.7 9515
150 2.5 0 75.9 10460
185 2.5 0 79.9 11610
Copper conductor, SWA
25 2.0 0 47.9 3755
35 2.5 0 52.2 4785
50 2.5 0 54.7 5380
70 2.5 2 58.3 6315
95 2.5 5 62.3 7440
120 2.5 8 66.5 8600
150 2.5 12 69.5 9715
185 2.5 16 73.5 11145
Aluminium conductor, SWA
25 2.0 0 47.6 3275
35 2.5 0 51.9 4125
50 2.5 0 54.7 4490
70 2.5 0 58.3 5025
95 2.5 0 62.2 5650
120 2.5 2 66.5 6345
150 2.5 3 69.5 6935
185 2.5 6 73.5 7665

a Conductors are circular
