Product: QUARRY TRUCK
Model: 777E QUARRY TRUCK KDP
Configuration: 777E Off-Highway Truck KDP00001-UP (MACHINE) POWERED BY C32 Engine
Operation and Maintenance Manual
777E Off-Highway Truck
Media Number -SEBU9388-06 Publication Date -01/07/2015 Date Updated -19/02/2018
i06704864

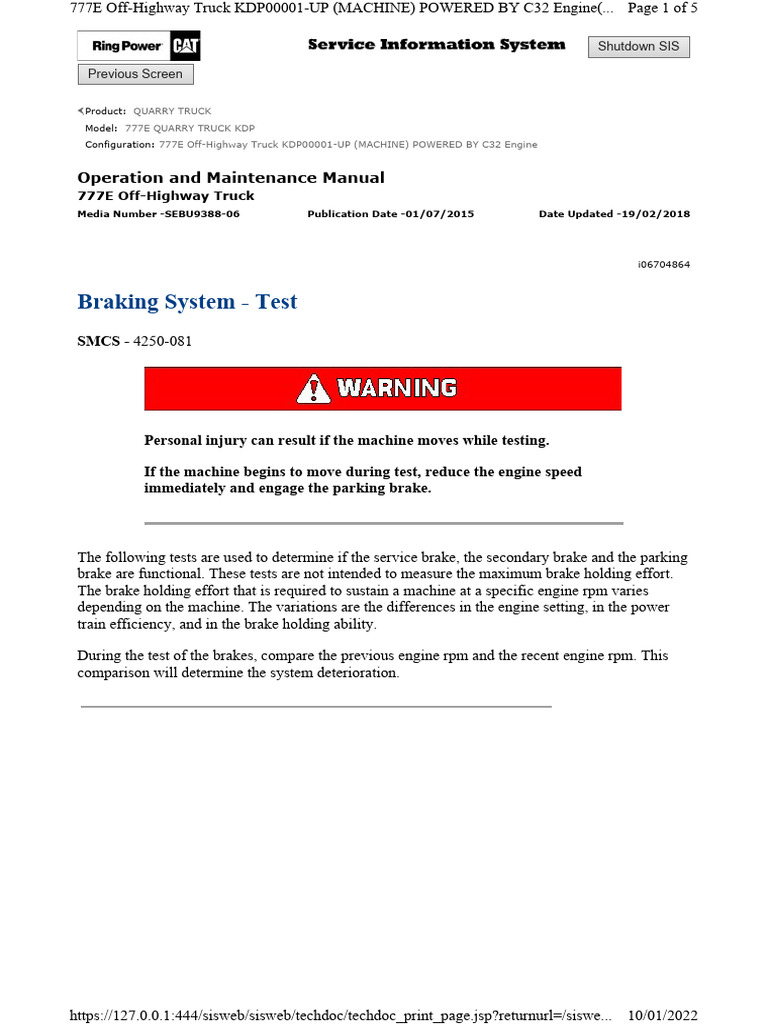

Braking System - Test
SMCS - 4250-081
Personal injury can result if the machine moves while testing.
If the machine begins to move during test, reduce the engine speed
immediately and engage the parking brake.
The following tests are used to determine if the service brake, the secondary brake and the parking
brake are functional. These tests are not intended to measure the maximum brake holding effort.
The brake holding effort that is required to sustain a machine at a specific engine rpm varies
depending on the machine. The variations are the differences in the engine setting, in the power
train efficiency, and in the brake holding ability.
During the test of the brakes, compare the previous engine rpm and the recent engine rpm. This
comparison will determine the system deterioration.
https://127.0.0.1:444/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/siswe... 10/01/2022
777E Off-Highway Truck KDP00001-UP (MACHINE) POWERED BY C32 Engine(... Page 2 of 5
Illustration 1 g06090068
Service Brake Holding Ability Test
1. Fasten the seat belt before you test the brakes.
2. Check the area around the machine. Make sure that the machine is clear of personnel and
clear of obstacles.
3. Test the brakes on a dry, level surface.
4. Start the engine. Allow the air system to build up to the operating pressure.
5. Fully depress service brake control (2) to apply the service brakes.
6. Depress the parking brake reset valve (5).
7. Move the shift control lever (4) to the D position.
8. Use accelerator pedal (3) to increase the engine speed gradually to 1200 rpm. The machine
should not move.
9. Reduce the engine speed to idle. Move the shift control lever to the P position. Stop the
engine.
NOTICE
If the machine moved while testing the brakes, contact your
Caterpillar dealer.
https://127.0.0.1:444/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/siswe... 10/01/2022
777E Off-Highway Truck KDP00001-UP (MACHINE) POWERED BY C32 Engine(... Page 3 of 5
Have the dealer inspect and, if necessary, repair the service brake
before returning the machine to operation.
Secondary Brake Holding Ability Test
1. Fasten the seat belt before you test the brakes.
2. Check the area around the machine. Make sure that the machine is clear of personnel and
clear of obstacles.
3. Test the brakes on a dry, level surface.
4. Start the engine and allow the air system to build up to the operating pressure.
5. Fully depress secondary brake control (1) to apply the secondary brakes.
6. Depress the parking brake reset valve.
7. Move the shift control lever to the D position.
8. Use accelerator pedal (3) to increase the engine speed gradually to 1200 rpm. The machine
should not move.
9. Reduce the engine speed to idle. Move the shift control lever to the P position. Stop the
engine.
NOTICE
If the machine moved while testing the brakes, contact your
Caterpillar dealer.
Have the Caterpillar dealer inspect and, if necessary, repair the
parking/secondary brakes before returning the machine to operation.
Parking Brake Holding Ability Test
1. Fasten the seat belt before you test the brakes.
2. Check the area around the machine. Make sure that the machine is clear of personnel and
clear of obstacles.
3. Test the brakes on a dry, level surface.
4. Start the engine and allow the air system to build up to the operating pressure.
https://127.0.0.1:444/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/siswe... 10/01/2022
777E Off-Highway Truck KDP00001-UP (MACHINE) POWERED BY C32 Engine(... Page 4 of 5
Illustration 2 g06089909
5. Depress button (26A) and depress button (26B) at the same time.
6. While both buttons are depressed, depress button (26C) to unlock the shift control lever
(26). Move the shift control lever to the D position.
Note: The buttons can now be released and the parking brake will remain on.
7. Use accelerator pedal (3) to increase the engine speed gradually to 1200 rpm. The machine
should not move.
8. Reduce the engine speed to idle. Move the shift control lever to the P position. Stop the
engine.
NOTICE
If the machine moved while testing the brakes, contact your
Caterpillar dealer.
Have the dealer inspect and, if necessary, repair the parking brakes
before returning the machine to operation.
Parking Brake Reset Valve Test
1. Fasten the seat belt before you test the brakes.
2. Check the area around the machine. Make sure that the machine is clear of personnel and
clear of obstacles.
3. Test the brakes on a dry, level surface.
4. Purge the air from the air system at the air tanks.
5. Make sure that the parking brake reset valve is engaged. The valve will pop up to the
engaged position.
https://127.0.0.1:444/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/siswe... 10/01/2022
777E Off-Highway Truck KDP00001-UP (MACHINE) POWERED BY C32 Engine(... Page 5 of 5
6. Start the engine and allow the air system to build up to the operating pressure.
7. Move the shift control lever to the D position.
8. Use accelerator pedal (3) to increase the engine speed gradually to 1200 rpm. The machine
should not move.
9. Reduce the engine speed to idle. Move the shift control lever to the P position. Stop the
engine.
10. To disengage the parking brake reset valve, push down the knob.
NOTICE
If the machine moved while testing the brakes, contact your
Caterpillar dealer.
Have the dealer inspect and, if necessary, repair the parking brakes
before returning the machine to operation.
