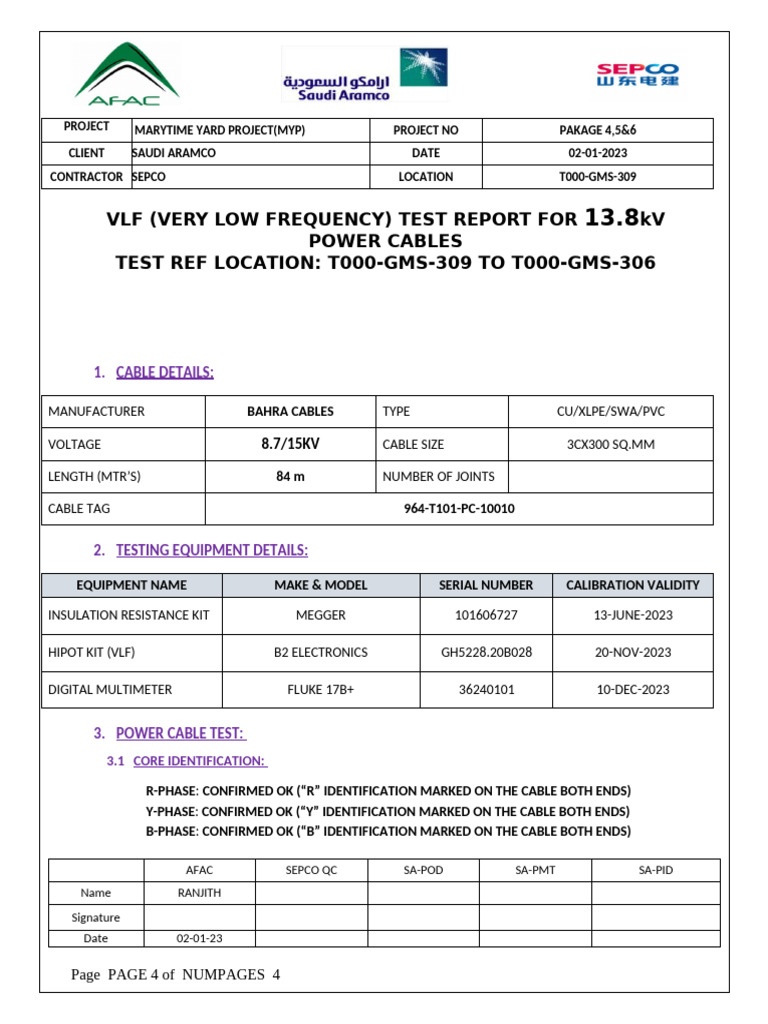

PROJECT MARYTIME YARD PROJECT(MYP) PROJECT NO PAKAGE 4,5&6
CLIENT SAUDI ARAMCO DATE 02-01-2023
CONTRACTOR SEPCO LOCATION T000-GMS-309
VLF (VERY LOW FREQUENCY) TEST REPORT FOR 13.8kV
POWER CABLES
TEST REF LOCATION: T000-GMS-309 TO T000-GMS-306
1. CABLE DETAILS:
MANUFACTURER BAHRA CABLES TYPE CU/XLPE/SWA/PVC
VOLTAGE 8.7/15KV CABLE SIZE 3CX300 [Link]
LENGTH (MTR’S) 84 m NUMBER OF JOINTS
CABLE TAG 964-T101-PC-10010
2. TESTING EQUIPMENT DETAILS:
EQUIPMENT NAME MAKE & MODEL SERIAL NUMBER CALIBRATION VALIDITY
INSULATION RESISTANCE KIT MEGGER 101606727 13-JUNE-2023
HIPOT KIT (VLF) B2 ELECTRONICS GH5228.20B028 20-NOV-2023
DIGITAL MULTIMETER FLUKE 17B+ 36240101 10-DEC-2023
3. POWER CABLE TEST:
3.1 CORE IDENTIFICATION:
R-PHASE: CONFIRMED OK (“R” IDENTIFICATION MARKED ON THE CABLE BOTH ENDS)
Y-PHASE: CONFIRMED OK (“Y” IDENTIFICATION MARKED ON THE CABLE BOTH ENDS)
B-PHASE: CONFIRMED OK (“B” IDENTIFICATION MARKED ON THE CABLE BOTH ENDS)
AFAC SEPCO QC SA-POD SA-PMT SA-PID
Name RANJITH
Signature
Date 02-01-23
Page PAGE 4 of NUMPAGES 4
PROJECT MARYTIME YARD PROJECT(MYP) PROJECT NO PAKAGE 4,5&6
CLIENT SAUDI ARAMCO DATE 02-01-2023
CONTRACTOR SEPCO LOCATION T000-GMS-309
3.1 INSULATION RESISTANCE TEST
INSULATION RESISTANCE
MEASURED REF.
BEFORE VLF TEST AFTER VLF TEST INJ. TIME DC VOLTAGE
R- PHASE TO Y+B+E 335 GΩ 271 GΩ 1 MIN. 5000 V
Y- PHASE TO R+B+E 310 GΩ 210 GΩ 1 MIN. 5000 V
B- PHASE TO R+Y+E 292 GΩ 222 GΩ 1 MIN. 5000 V
R-PHASE TO Y-PHASE 1.47 TΩ 998 GΩ 1 MIN. 5000 V
Y-PHASE TO B-PHASE 1.38 TΩ 1.01 TΩ 1 MIN. 5000 V
B-PHASE TO R-PHASE 1.17 TΩ 981 GΩ 1 MIN. 5000 V
3.2 VLF (VERY LOW FREQUENCY) TEST:
R-PHASE TO Y-PHASE + B-PHASE + EARTH:
DESIRED VOLTAGE 24 kV CAPACITANCE 22.5 nF STATUS PASSED/ FAILED/ NA
MEASURED VOLTAGE 24 kV RESISTANCE >20 GΩ
Passed & Satisfactory
MEASURED CURRENT 240 μA TEST TIME 60 min
FREQUENCY 0.10 Hz
Y-PHASE TO R-PHASE + B-PHASE + EARTH:
DESIRED VOLTAGE 24 kV CAPACITANCE 22.2 nF STATUS PASSED/ FAILED/ NA
MEASURED VOLTAGE 24 kV RESISTANCE >20 GΩ
Passed & Satisfactory
MEASURED CURRENT 238 μA TEST TIME 60 min
AFAC SEPCO QC SA-POD SA-PMT SA-PID
Name RANJITH
Signature
Date 02-01-23
Page PAGE 4 of NUMPAGES 4
PROJECT MARYTIME YARD PROJECT(MYP) PROJECT NO PAKAGE 4,5&6
CLIENT SAUDI ARAMCO DATE 02-01-2023
CONTRACTOR SEPCO LOCATION T000-GMS-309
FREQUENCY 0.10 Hz
B-PHASE TO R-PHASE + Y-PHASE + EARTH:
DESIRED VOLTAGE 24 kV CAPACITANCE 22.4 nF STATUS PASSED/ FAILED/ NA
MEASURED VOLTAGE 24 kV RESISTANCE >20 GΩ
Passed & Satisfactory
MEASURED CURRENT 240 μA TEST TIME 60 min
FREQUENCY 0.10 Hz
4. REMARKS / OBSERVATIONS:
PERFORMED VLF TEST IN 13.8kV CABLES AND TEST RESULTS FOUND SATISFACTORY.
CORE IDENTIFICATION MARK SHALL BE PROVIDED IN CABLE CORES (SUBSTATION END).
CABLE SHEATH SHALL BE GROUNDED IN SUBSTATION END.
COMMENTS:
