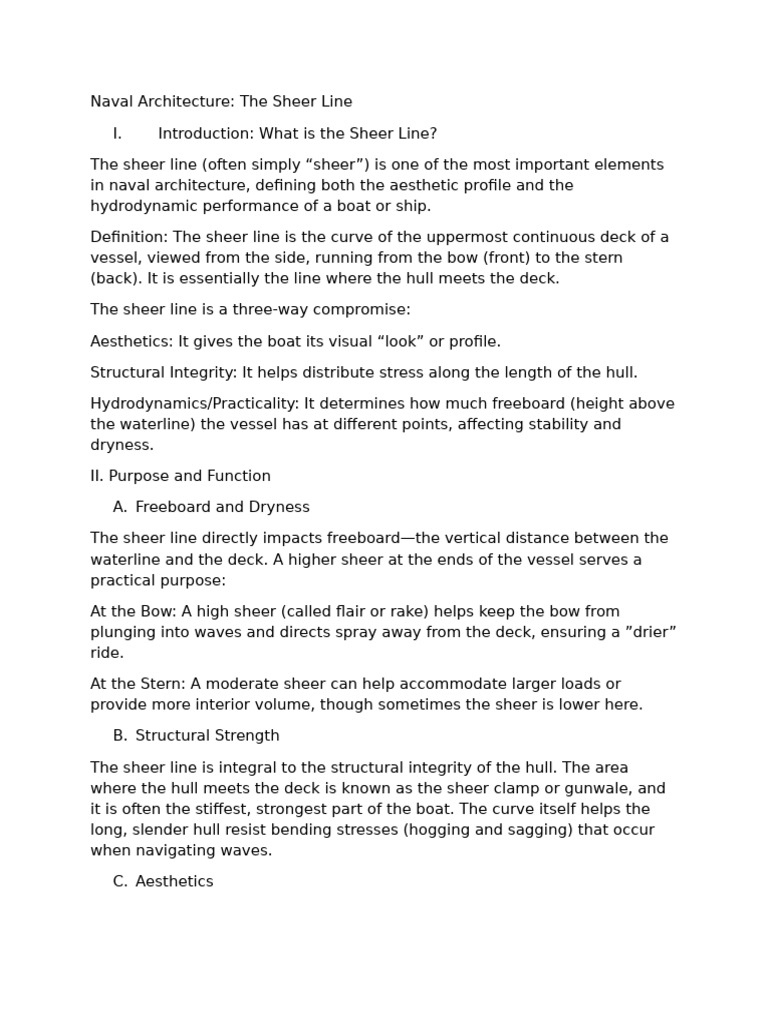

Naval Architecture: The Sheer Line
I. Introduction: What is the Sheer Line?
The sheer line (often simply “sheer”) is one of the most important elements
in naval architecture, defining both the aesthetic profile and the
hydrodynamic performance of a boat or ship.
Definition: The sheer line is the curve of the uppermost continuous deck of a
vessel, viewed from the side, running from the bow (front) to the stern
(back). It is essentially the line where the hull meets the deck.
The sheer line is a three-way compromise:
Aesthetics: It gives the boat its visual “look” or profile.
Structural Integrity: It helps distribute stress along the length of the hull.
Hydrodynamics/Practicality: It determines how much freeboard (height above
the waterline) the vessel has at different points, affecting stability and
dryness.
II. Purpose and Function
A. Freeboard and Dryness
The sheer line directly impacts freeboard—the vertical distance between the
waterline and the deck. A higher sheer at the ends of the vessel serves a
practical purpose:
At the Bow: A high sheer (called flair or rake) helps keep the bow from
plunging into waves and directs spray away from the deck, ensuring a ”drier”
ride.
At the Stern: A moderate sheer can help accommodate larger loads or
provide more interior volume, though sometimes the sheer is lower here.
B. Structural Strength
The sheer line is integral to the structural integrity of the hull. The area
where the hull meets the deck is known as the sheer clamp or gunwale, and
it is often the stiffest, strongest part of the boat. The curve itself helps the
long, slender hull resist bending stresses (hogging and sagging) that occur
when navigating waves.
C. Aesthetics
The sheer line is the design element that often gives a vessel its character,
conveying speed, stability, or grace. A pleasing sheer line is often the mark
of an experienced boat designer.
II. Types of Sheer
The sheer line can be described by its curvature:
1. Straight or Level Sheer
Description: The deck line runs flat and parallel to the waterline.
Pros: Maximizes interior volume and headroom, and is the simplest and
cheapest to build.
Cons: Aesthetically bland; the bow and stern are more prone to taking on
water in rough seas due to low freeboard at the ends.
Found On: Many commercial barges, utility boats, and modern, volume-
focused sailboats.
2. Concave Sheer (Traditional or Classic Sheer)
Description: The sheer rises sharply at both the bow and stern, creating a
shallow dip or concave curve in the middle of the boat.
Pros: Excellent functional characteristics—high freeboard at the ends to fight
waves, and the curve is visually pleasing and traditional.
Cons: Reduces headroom slightly in the middle of the boat; more complex to
build.
Found On: Classic wooden yachts, fishing trawlers, and most traditionally
designed vessels.
3. Convex Sheer (Reversed or Hogged Sheer)
Description: The sheer is highest in the middle of the boat and drops toward
the bow and stern, creating a convex curve.
Pros: Maximizes interior space and adds rigidity to the main body of the hull.
Cons: Visually controversial (sometimes described as “hogged” or ugly);
offers minimal freeboard at the critical ends, making the vessel prone to
being wet.
Found On: Modern motor yachts, some high-speed military vessels, and
specialized boats like tugboats, where stability in the middle is prioritized.
III. Design Considerations
When designing a sheer line, the naval architect must consider:
Intended Use: A fishing boat operating in rough coastal waters needs a
strong concave sheer (high bow) for safety and dryness. A calm-water
commuter vessel can get away with a straighter sheer.
L-B-D Ratio (Length, Beam, Draft): Longer, narrower boats often have a more
pronounced sheer to enhance their appearance of speed and grace.
Historical Context: Traditional sailing vessels used pronounced sheer lines
both for utility and because the curved structure was easier to build with
traditional materials like wood.
