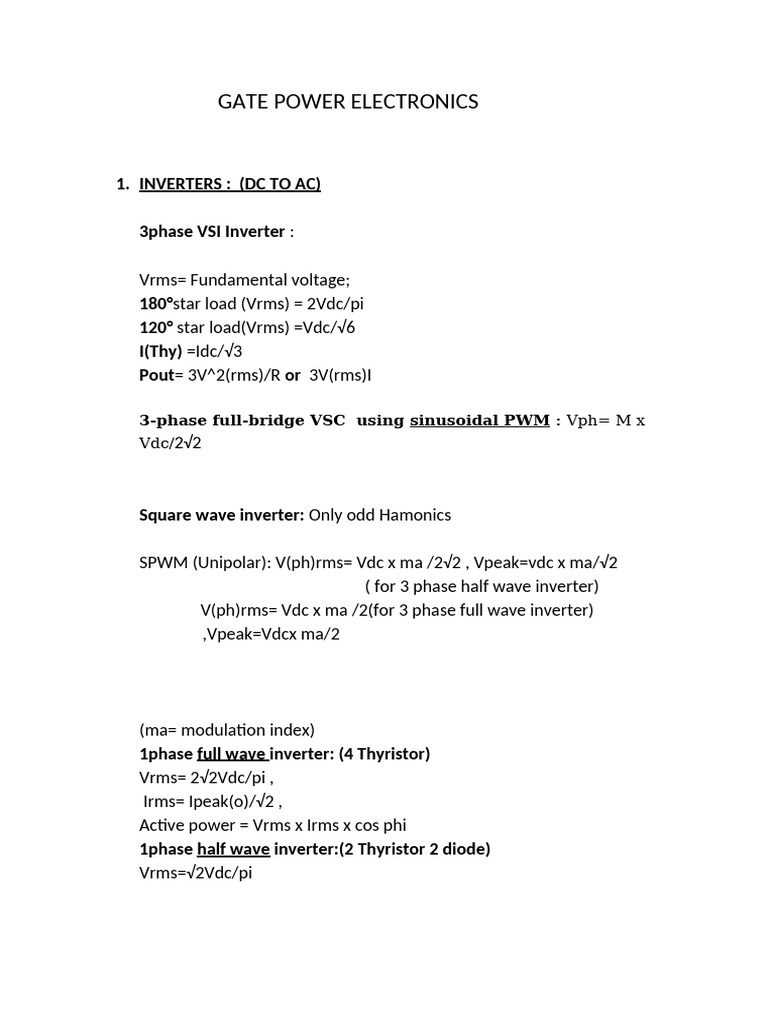

GATE POWER ELECTRONICS

1. INVERTERS : (DC TO AC)

3phase VSI Inverter :

Vrms= Fundamental voltage;


180°star load (Vrms) = 2Vdc/pi
120° star load(Vrms) =Vdc/√6
I(Thy) =Idc/√3
Pout= 3V^2(rms)/R or 3V(rms)I

3-phase full-bridge VSC using sinusoidal PWM : Vph= M x


Vdc/2√2

Square wave inverter: Only odd Hamonics

SPWM (Unipolar): V(ph)rms= Vdc x ma /2√2 , Vpeak=vdc x ma/√2


( for 3 phase half wave inverter)
V(ph)rms= Vdc x ma /2(for 3 phase full wave inverter)
,Vpeak=Vdcx ma/2

(ma= modulation index)


1phase full wave inverter: (4 Thyristor)
Vrms= 2√2Vdc/pi ,
Irms= Ipeak(o)/√2 ,
Active power = Vrms x Irms x cos phi
1phase half wave inverter:(2 Thyristor 2 diode)
Vrms=√2Vdc/pi
DC-DC Converter :

S L (buck – salad)

D
L D (Boost-leads)

SDL

CATEGORY BUCK—BOOST BUCK CONVERTER BOOST CONVERT

Mode 1:
I= i1 – i2 Vs t1/L ( Vs-Vo)t1/L Vs t1/L
MODE 2:
I= i1 – i2 -Vo t2/L Vo t2/L (Vo-Vs)t2/L
Vout: Vs D/(1-D) Vs D Vs/(1-D)
Lcritical (D-1)^2R/2f (1-D)R/2Df RD(1-D)^2/2f
Vc IoD/fC VsD(1-D)/8f^2LC IoD/fC
(capacitor ripple voltage)

IL VsD/Lf DVs(1-D)/Lf VsD/Lf


(peak ripple inductor current)

IL(peak/max) Vin(DT)/L Is + Vs t1/L Iout+(Vs-Vo)t1/L


(ILavg/s= Iout/1-D = i1+i2 /2)

GATE EE 2024 | Choppers and Commutation Techniques Question 2 | Power Electronics | GATE EE -
ExamSIDE.com

INVERTERS :

1. A single-phase full bridge voltage source inverter (VSI) feeds a


purely inductive load. The inverter output voltage is a square
wave in 180° conduction mode. The fundamental frequency of the
output voltage is 50 Hz. If the DC input voltage of the inverter is
100 V and the value of the load inductance is 20 mH, the peak-to-
peak load current in amperes is ________ (rounded off to the
nearest integer)
Del I1 = (di/dt)xt1 Del I2 = (di/dt)xt2

Peak to peak =Del I1 - Del I2

2. Consider an ideal full-bridge single-phase DC-AC inverter with a


DC bus voltage magnitude of 1000 V. The inverter output voltage
v(t) shown below, is obtained when diagonal switches of the
inverter are switched with 50% duty cycle. The inverter feeds a
load with a sinusoidal current given by, i(t)=10sin(ωt−π/3)A,
where ω=2πT. The active power, in watts, delivered to the load is
__________. (round off to nearest integer).

Answer :

3. A 3-phase grid-connected voltage source converter with DC link


voltage of 1000 V is switched using sinusoidal Pulse Width
Modulation (PWM) technique. If the Grid phase current is 10 A and
the 3-phase complex power supplied by the converter is given by
(−4000 − j3000) VA, then the modulation index used in sinusoidal
PWM is _________. (round off to two decimal places).
3-phase full-bridge VSC using sinusoidal PWM : Vph= M x
Vdc/2√2
2 Voltage sources so Vdc=500root2
5.

V dc= 250 x 2
7.

I = 70/5=
12
