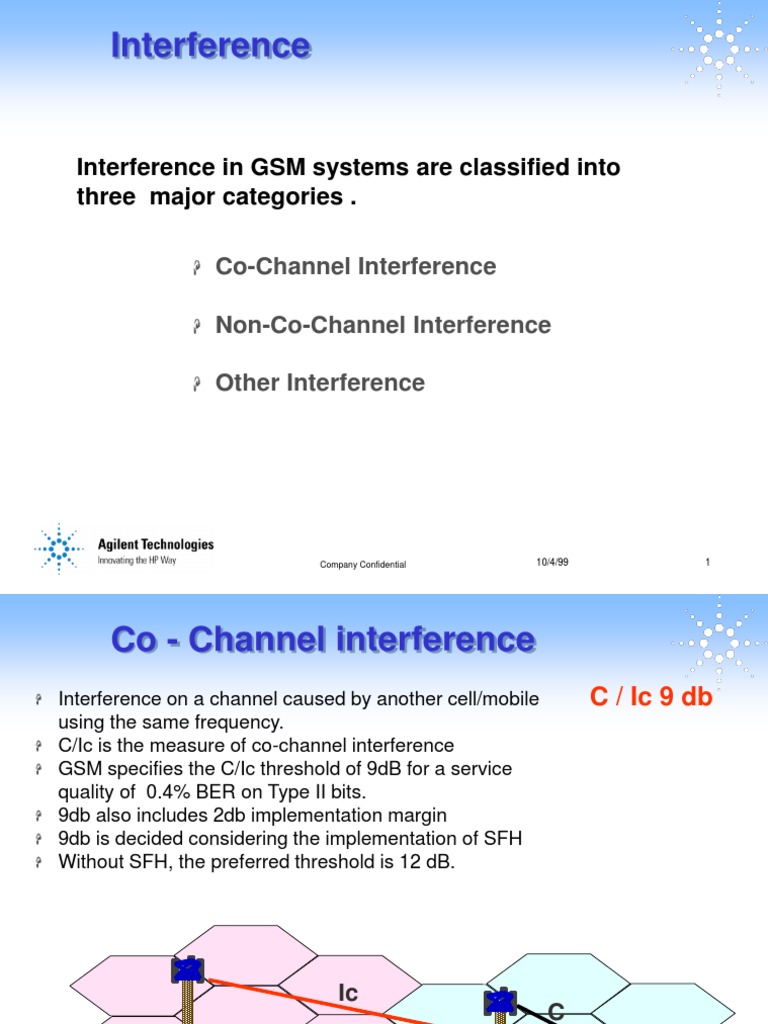

Interference
Interference in GSM systems are classified into three major categories .
Co-Channel Interference
Non-Co-Channel Interference Other Interference
Company Confidential
10/4/99
Co - Channel interference
Interference on a channel caused by another cell/mobile using the same frequency. C/Ic is the measure of co-channel interference GSM specifies the C/Ic threshold of 9dB for a service quality of 0.4% BER on Type II bits. 9db also includes 2db implementation margin 9db is decided considering the implementation of SFH Without SFH, the preferred threshold is 12 dB.
C / Ic 9 db
Ic
Company Confidential
10/4/99
Co-Channel Interference
Co-Channel Interference can be Downlink as well as Uplink
Downlink
If caused by BCH carrier, will be present always. Non_BCH carrier interference will be traffic dependent. During peak traffic hours, the interference will be high.
Uplink Interference
Uplink Co-Channel Interference , will never be continuos for a long period, since Mobiles always have bursted transmission. So interference will be high during peak traffic hours.
Company Confidential
10/4/99
Co-Channel Interference
Noise
Ic
ARFCN "N"
ARFCN "N"
Causes
Distant Cells due to tight frequency re-use patterns. Distant Cells due to errors in frequency planning. Mulitpath from Distant cells( strong reflector, Water). C/Ic will degrade the Ec/No, so if Noise floor itself is high, then even a high value of C/Ic can deteriorate quality.
Company Confidential
10/4/99
Adjacent Channel Interference
Interference caused when wanted and unwanted GSM RF channels co-exist.
Ia C
GSM receivers are designed for an Adjacent Channel Suppression of minimum 18db at an offset of 200 Khz, 50db at 400 Khz and 58db at 600 Khz.
Company Confidential
10/4/99
Adjacent Channel Interference
ACS = 18db & C/c = 9db This means if Ia is 9db above C, then with 18db ACS, it equals C/Ic.
Thresholds
C/ Ia1 = - 9 db C/ Ia2 = - 41 db C/ Ia3 = - 49 db
49 db 41 db 9db
N-3
N-2
N-1
N+1
N+2
N-3
Company Confidential
10/4/99
Adjacent Channel Interference
Causes
Adjacent ARFCN's in same cells Adjacent ARFCN's in adjacent cells Distant Cells due to tight frequency re-use patterns. Distant Cells due to errors in frequency planning. Mulitpath from Distant cells( strong reflector, Water). Improper Receiver filters ( low ACS ) C/Ia will degrade the Ec/No, so if Noise floor itself is high, then even a low value of C/Ia can deteriorate quality.
Company Confidential
10/4/99
Other Interference
Interference coming on a GSM signal from an undesired source, i.e neither a co/adj channel cell or MS.
Sources
Malfunctioning or Maladjusted Transmitters
Base station malfunction, rogue mobile
Paging, broadcast, etc. Intermodulation Products
Strong signals in adjacent channels
Harmonics from Other Bands
Company Confidential
10/4/99
Other Interference
Sources
Radar
Big problem near harbors
Industrial
Lumber dryers, welders
Illegal Transmissions
Common in developing world ( Cordless Phones, etc)
Company Confidential
10/4/99
Other Interference
Malfunctioning or Maladjusted Transmitters
GSM has ARFCN of 200 KHz bandwidth
0.3 GMSK gross modulation bandwidth is 270 KHz
This means there is some spill of energy into adjacent channel This leakage is 30 dbc for the 1st adjacent channel* If this spill is not within specs, then this will result into co-channel interference to other cell using this adjacent ARFCN ( next page ). Broken Transmitters may also cause similar problems , but the effect will only be present , when the Mobile goes on call, which is not a continuos process. But malfunctioning of a batch or a particular model can pose serious issues.
Company Confidential
10/4/99
10
Other Interference
BTS broken Transmitter
43 dbm 200 KHz : 20 dbm 39 dbm
ARFCN 1
ARFCN 4
ARFCN 2
A
39 dbm
D
ARFCN 3
C/Ia1 = - 9 db C/I = 9 db
10/4/99 11
Company Confidential
Other Interference
Spurious Emissions
GSM has a spec of -36dbm for generation of spurs
High level spurs when generated from the transmitter will result into interference.
The interference may not that severe to the cells of the same network since the level of spurs would be quite low and propagation loss will be large Spurs generated by a BTS of one Operator can very well become quite serious to other Operator BTS cell in the same area.
Company Confidential
10/4/99
12
Other Interference
Spurious Emissions
Operator "A"
925 - 940 MHz
Operator "B"
940 - 955MHz
Spur of -20 dbm at 942.0 MHz
ARFCN 35 ( 942.0 MHz )
Company Confidential
10/4/99
13
Other Interference
Intra-cell Intermodulation
Non-linearities in the combiner can result into intermods Intermods as GSM spec should be higher than -70dbc or -36dBm
TRX f1 TRX f2
C O M B
2f1-f2
f1
f2
2f2-f1
Company Confidential
10/4/99
14
