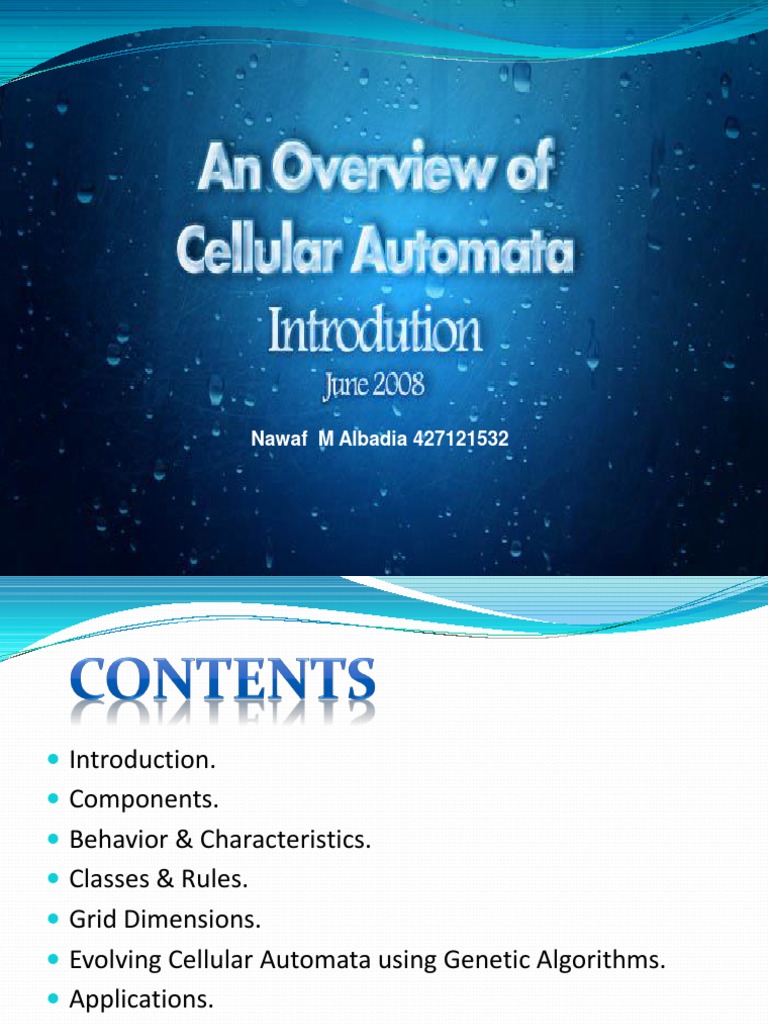

Nawaf M Albadia 427121532

Introduction.
Components.
Behavior & Characteristics.
Classes & Rules.
Grid Dimensions.
Evolving Cellular Automata using Genetic Algorithms.
Applications.
Conclusion.
References.

2


Some of the contents of this presentation is assembled
and adopted from multifarious resources, see the
references for more details
3
What are Cellular Automata?
A cellular automaton (plural: cellular automata) is a discrete model studied
in computability theory, mathematics, theoretical biology and
microstructure modeling

CA are discrete dynamic systems.
CA's are said to be discrete because they operate in finite space and
time and with properties that can have only a finite number of
states.
CA's are said to be dynamic because they exhibit dynamic behaviors.
Basic Idea: Simulate complex systems by interaction of cells following
easy rules.

4
Original concept of CA is most strongly associated with John von
Neumann.

von Neumann was interested in the connections between biology
and the new study of automata theory

Stanislaw Ulam suggested that von Neumann use a cellular
automata as a framework for researching these connections.

The original concept of CA can be credited to Ulam, while the early
development of the concept is credited to von Neumann.

Ironically, although von Neumann made many contributions and
developments in CA, they are commonly referred to as non-von
Neumann style, while the standard model of computation (CPU,
globally addressable memory, serial processing) is know as von
Neumann style.

5
Grid
Mesh of cells.
Simplest mesh is one dimensional.
Cell
Basic element of a CA.
Cells can be thought of as memory elements that store
state information.
All cells are updated synchronously according to the
transition rules.
Rules
6
Local interaction leads to global dynamics.
One can think of the behavior of a cellular automata like
that of a wave at a sports event.
Each person reacts to the state of his neighbors (if they
stand, he stands).
7
Rule Application
Next state of the core cell is related to the states of the
neighborhood cells and its current state.
An example rule for a one dimensional CA: 011->x0x
All possible states must be described.
Next state of the core cell is only dependent upon the
sum of the states of the neighborhood cells.
For example, if the sum of the adjacent cells is 4 the state of
the core cell is 1, in all other cases the state of the core cell is
0.
8
9
John H. Conway developed the Game of
Life in the 1970s.

00 01 02 03 04
10 11 12 13 14
20 21 22 23 24
10
First Generation
00 01 02 03 04
10 11 12 13 14
20 21 22 23 24
11
Second Generation
Discrete lattice of cells.
Homogeneity all of the cells of the lattice are
equivalent.
Discrete states each cell takes on one of a finite
number of possible discrete states.
Local interactions each cell interacts only with cells that
are in its local neighbourhood.
12
CA typically fall into 4 classes:
Class 1: system freezes into a fixed state after a short time.
Class 2: system develops periodic behaviours, which
repeat continuously.
Class 3: system becomes a periodic, in which it
continuously changes in unpredictable ways.
Class 4: system can develop in highly patterned but
unstable ways.
13
14
A computational Model with discrete cells
updated synchronously.
..
output
Input
Combination
al Logic
Clock
From Left
Neighbor
From Right
Neighbor
0/1
2 State, 2-
Neighborhood,
3 -CA Cells
Combinational Logic can be of 256 types
each type is called a rule
Each cell can have 256 different rules
..
98 236 226 107
4 cell CA with different rules at each cell
15
16
17
18
von Neumann neighborhood
Moore neighbourhood.

19
The cyclic cellular automaton is a
cellular automaton rule developed
by David Griffeath
20
Melanie Mitchell, working on sophisticated micro level
structures designed at network. Inspired by complex
natural systems like insect colonies.

Mitchell and collaborators have applied Genetic
Algorithms to evolve patterns in cellular automata.

In their results they were able to show that the GA
discovered rules that gave rise to sophisticated
emergent computational strategies.
Cryptography use, Rule 30
Simulations
Gas behaviour.
Forest fire propagation.
Urban development.
Traffic flow.
Air flow.
Crystallization process.
Alternative to differential equations
21
Natural biotic types.
Chemical types.
Computer processors CAM-6
Error correction coding

22
Discrete dynamical system simulator.
Allow for a systematic investigation of complex
phenomena.
Original models of fundamental physics.
Instead of looking at the equations of fundamental physics,
consider modelling them with CA.
Can mimic complex operations
Problem How to find the exact CA rules which will
model a particular application

23
Introduction to Cellular automata,
http://www.rennard.org/alife/english/acintrogb01.html
Derek Horton Cellular Automata, April 14, 2003
Jean-Philippe Rennard Ph.D. " Introduction to Cellular automata",
12/2000
Wikipedia, Cellular automaton
http://en.wikipedia.org/wiki/Cellular_automata
Wikipedia Rule 30, http://en.wikipedia.org/wiki/Rule_30
Wikipedia Rule 110 ,
http://en.wikipedia.org/wiki/Rule_110_cellular_automaton
