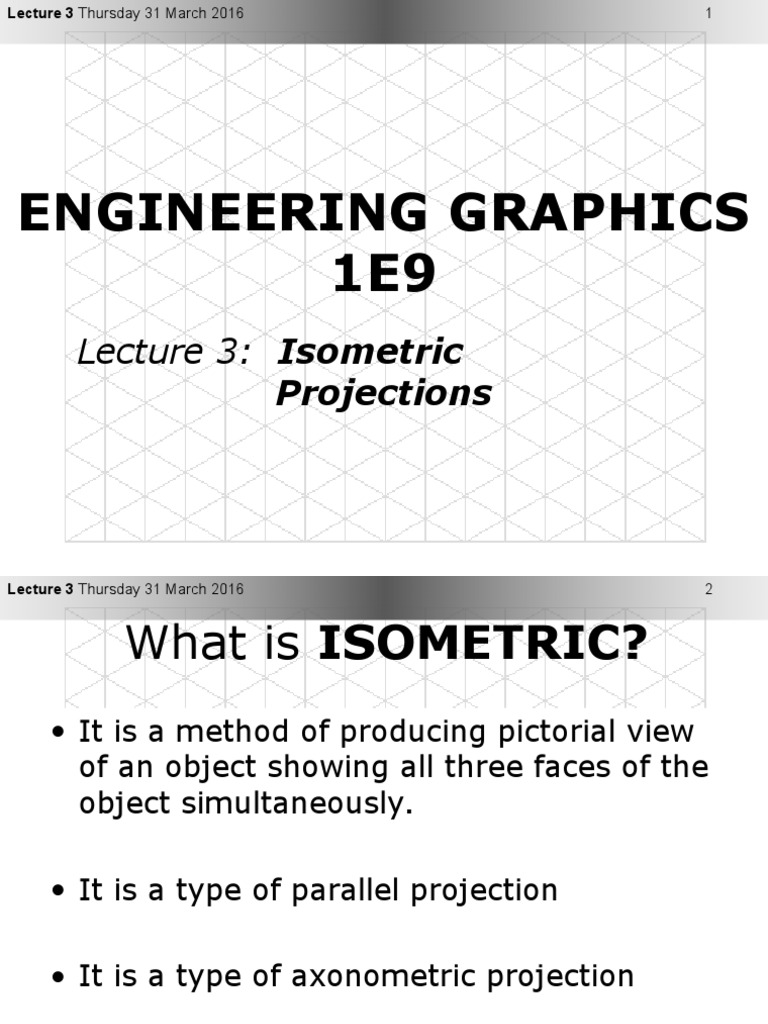

Lecture 3 Thursday 31 March 2016
ENGINEERING GRAPHICS
1E9
Lecture 3: Isometric
Projections
Lecture 3 Thursday 31 March 2016
What is ISOMETRIC?
It is a method of producing pictorial view
of an object showing all three faces of the
object simultaneously.
It is a type of parallel projection
It is a type of axonometric projection
Lecture 3 Thursday 31 March 2016
Axonometric Projections
Observer at infinity
Projectors parallel to each other and perpendicular
to projection plane
Object is inclined with respect to projection plane
Lecture 3 Thursday 31 March 2016
Types of Axonometric
Projections
Isometric Projection
Dimetric Projection
Trimetric Projection
Lecture 3 Thursday 31 March 2016
Isometric Projections
All angles between axonometric axes are
equal
The three coordinate axes of the object
appear equally foreshortened (about 3/4th
of true length)
The angles between any two of the
three coordinate axes is 120
Lecture 3 Thursday 31 March 2016
Isometric Terminology
The three coordinate axes are called isometric
axes
Any line parallel to isometric axes is called
isometric line
A non-isometric line is a line not parallel
any one of the three isometric axis
to
In isometric projection of cube, the faces of the
cube and any plane parallel to them is called
isometric planes
Lecture 3 Thursday 31 March 2016
Isometric Scale
True lengths of the edges of the object are
equally foreshortened
Correct isometric projection can be drawn
using an isometric scale (always smaller
than ordinary scale)
Lecture 3 Thursday 31 March 2016
Isometric Drawing
Isometric Projection:
Drawing prepared
with isometric scale on
isometric axes
Isometric Drawing:
Drawing prepared
with ordinary scale
on isometric axes
Lecture 3 Thursday 31 March 2016
Steps:
Step 1
Isometric sketches begin with defining
isometric axes, three lines, one vertical
and two drawn at 30 from the horizontal.
Lecture 3 Thursday 31 March 2016
10
Steps:
Step 2
Three lines of the isometric axes represent
the three primary dimensions of the
object: width, height, and depth
Lecture 3 Thursday 31 March 2016
11
Steps:
Step 3
Draw the font face of the isometric block.
Lecture 3 Thursday 31 March 2016
12
Steps:
Step 4
Draw the rest of the isometric block.
Lecture 3 Thursday 31 March 2016
13
Steps:
Step 5
Add details to the block starting from the
front face. Then add details to the other
faces.
Lecture 3 Thursday 31 March 2016
14
Steps:
Step 6
Darken all visible lines to complete the
isometric sketch. (make sure that
construction lines are light)
Lecture 3 Thursday 31 March 2016
15
Axonometric projection shows all 3 dimensions, length, width
and height.
The isometric lines are only drawn to scale. Objects
composed entirely of isometric lines can be drawn by taking
all measurements parallel to main edges of the enclosing box.
Non-isometric lines are drawn by transferring the ordinates
(which are on isometric lines) of the end of the lines
Inclined and oblique surfaces are drawn using end
coordinates. Box construction and offset measurements are
common methods
In an isometric drawing, an angle never appears in its true
size. Angles, irregular curves require special techniques
Lecture 3 Thursday 31 March 2016
16
Objects with Normal Surfaces
Make an Isometric Drawing with corner A
at the bottom
Lecture 3 Thursday 31 March 2016
Objects with Normal Surfaces
17
Lecture 3 Thursday 31 March 2016
18
Objects with Oblique Surfaces
Make an Isometric Drawing with corner A
at the bottom
NON-ISOMETRIC LINE
Lecture 3 Thursday 31 March 2016
Objects with Oblique Surfaces
19
Lecture 3 Thursday 31 March 2016
20
Objects with Non-isometric
Lines
Make an Isometric Drawing with apex A
facing front
Lecture 3 Thursday 31 March 2016
Objects with Non-isometric Lines
Non-isometric lines are drawn with box construction
and offset measurements
Non-isometric lines are not drawn in true length in
isometric drawing (BA is shorter than CA in this
drawing)
21
Lecture 3 Thursday 31 March 2016
22
Irregular Objects
Make an Isometric Drawing of the following
irregular object (pyramid)
Lecture 3 Thursday 31 March 2016
Irregular Objects
OA and OB offsets help to locate apex O
Complete box construction may not be
needed in each case
23
Lecture 3 Thursday 31 March 2016
24
Objects with Circular Geometry
A circle in a orthographic projection will appear as
an ellipse in an isometric drawing.
Instead of actual ellipses often approximate ellipses
are drawn for isometric drawing.
Four-centre ellipses are used to approximate ellipses
on isometric planes.
How to draw four-centre ellipse???
Lecture 3 Thursday 31 March 2016
25
Approximate Ellipse
Draw the isometric centre lines of the circle. Using the
centre lines, draw an isometric square with sides equal to the
diameter of the circle.
From the near corners of the box, draw two large arcs with
radius R, using the two red points as centres.
Draw the two smaller arcs with radius r, using two green points
as centres.
Lecture 3 Thursday 31 March 2016
26
Cylinder
Lecture 3 Thursday 31 March 2016
Objects with Circular Geometry
27
Lecture 3 Thursday 31 March 2016
28
Objects with Non-Circular Curved
Surfaces
Make an Isometric Drawing of the following
curved object
Lecture 3 Thursday 31 March 2016
29
Objects with Non-Circular Curved Surfaces
A line that appears as a noncircular curve in a normal
orthographic view of an object appears as a non-isometric line
in an isometric drawing.
Curves may be drawn using a series of points by measuring
along the normal lines in the orthographic view (offset
measurements) and transferring these points on isometric
drawing. Accuracy increases with number of points.
