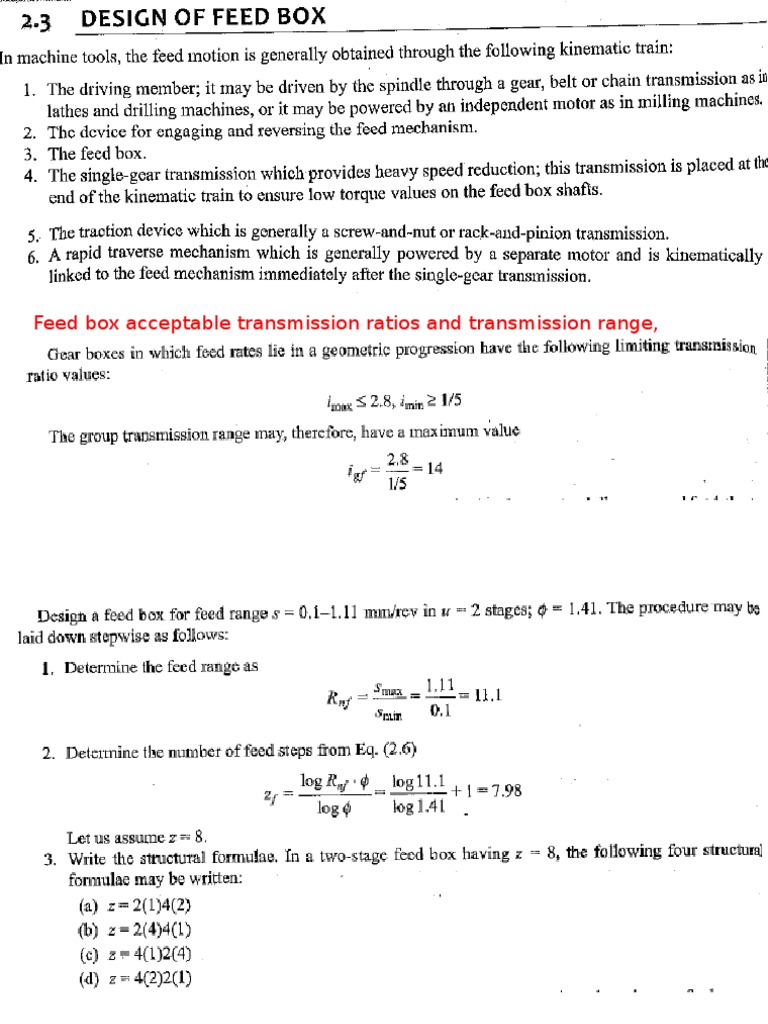

Feed box acceptable transmission ratios and transmission range,

From motor

To carriage

m=4; i = 1/50; Z=12

Module m is the mm of pitch circle diameter (p.c.d.) per tooth i.e. (PCD/ no. of teeth)
addendum = 1m dedundum=1.25m

Multiply each time 1.41 () from minimum to maximum

feed rate
Revolutions of shaft III per spindle
revolution are as follows:

Number of teeth to
drive shaft I from
motor will be given
