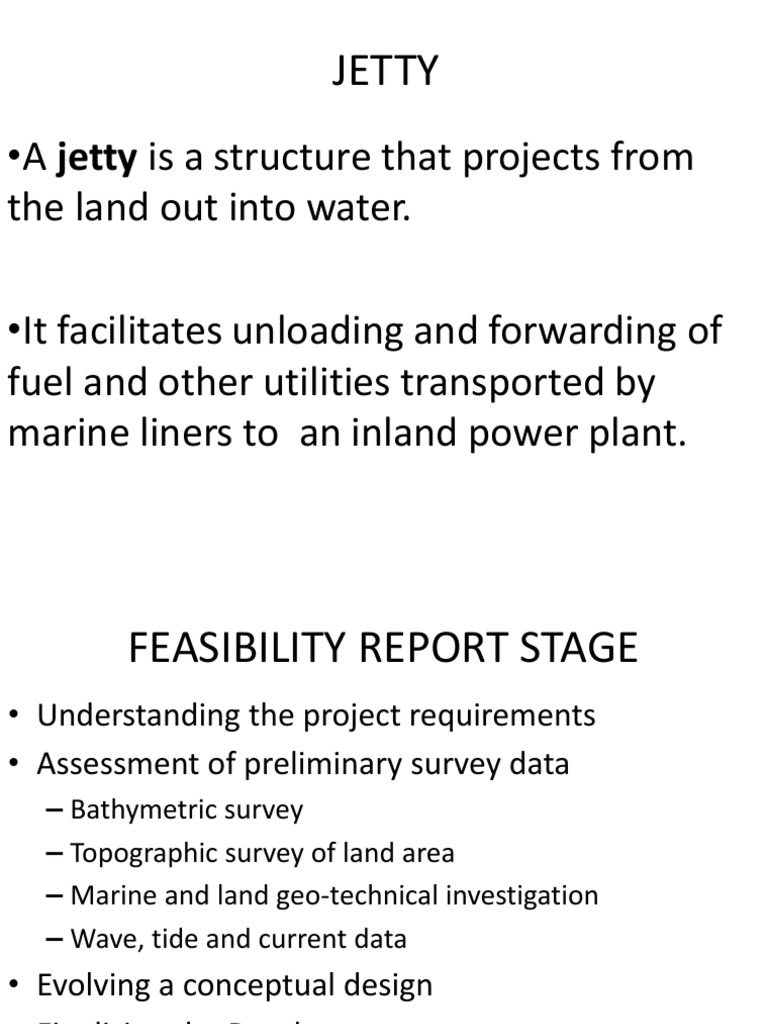

JETTY

A jetty is a structure that projects from


the land out into water.

It facilitates unloading and forwarding of


fuel and other utilities transported by
marine liners to an inland power plant.
FEASIBILITY REPORT STAGE
Understanding the project requirements
Assessment of preliminary survey data
Bathymetric survey
Topographic survey of land area
Marine and land geo-technical investigation
Wave, tide and current data
Evolving a conceptual design
Finalizing the Port layout
Evaluating suitable design and construction
methodology.
DETAILED PROJECT REPORT STAGE
Review of the existing reports prepared
by other agencies on the project.
Review of various Surveys and
Investigation Reports prepared by other
agencies.
Carry out additional surveys, if any.
Carry out preliminary vessel size analysis
and traffic analysis. [Contd]
DETAILED PROJECT REPORT STAGE
Conduct Mathematical Model Studies for
Wave tranquillity to finalize the layout.

Shore line evaluation.

Assess facility requirements and coal handling


equipment, conveyor system and their design
capabilities along with project mechanical
engineer. [Contd]
DETAILED PROJECT REPORT STAGE
Depending on the location, environmental features and other
requirements prepare various possible alternate layouts for
the location of coal jetty.

Preliminary engineering design for pipe conveyor system,


shore unloader, jetty and approach, operation and
maintenance along with project mechanical engineer.

Preliminary engineering design of electrical/instrumentation


and control facilities along with project electrical /
instrumentation engineer.
[Contd]
DETAILED PROJECT REPORT STAGE
Study environmental aspects through review of
existing reports and prepare emergency evacuation
plan along with safety engineer.

Prepare cost estimate and project implementation


schedule.

Prepare and Submit Draft/Final Detailed Project


Report.
DETAILED ENGINEERING STAGE
Design Criteria:
Geometry Data
Length, width, height above chart datum based on maximum
water level including surge condition and free board.
Environmental Data
Tidal Data
Spring tide
Neap tide
Mean sea level
Highest High water level
Lowest Low water level
[Contd]
DETAILED ENGINEERING STAGE
Environmental Data
Wave & Current
Wave height & Period
Normal condition
Extreme condition
Current speed
Marine Growth
Cyclone Data
Tsunami.

[Contd]
DETAILED ENGINEERING STAGE
Load Data:
Dead
Live
For berth
Stacking load
Vehicle load
IRC loading
Equipment load
Grab type continuous shore unloader
Conveyor columns
For approach bridge
Vehicle load
IRC loading
Conveyor columns
Wind
Temperature & Shrinkage
Seismic
Berthing forces
Mooring forces.
[Contd]
DETAILED ENGINEERING STAGE
Material
Concrete
Grade M35/M40 with Slag cement
Steel reinforcement
Corrosion resistant steel
Pre stressing tendons
Low relaxation grade steel
Life of structure
Design life is to be planned based on frequency of inspection and repair works
Deflection/Crack width
Based on codes
Super structure
combination of precast/pre-stressed and cast-in-situ structures
Foundation
Well foundation
Caisson
Piles

JETTY •A jetty is a structure that projects from the land out into water. •It facilitates unloading and forwarding of fuel
FEASIBILITY REPORT STAGE • Understanding the project requirements • Assessment of preliminary survey data – Bathymetric surve
DETAILED PROJECT REPORT STAGE • Review of the existing reports prepared by other agencies on the project. • Review of variou
DETAILED PROJECT REPORT STAGE • Conduct Mathematical Model Studies – for Wave tranquillity to finalize the layout. • Shore l
DETAILED PROJECT REPORT STAGE • Depending on the location, environmental features and other requirements prepare various pos
DETAILED PROJECT REPORT STAGE • Study environmental aspects through review of existing reports and prepare emergency evacuat
DETAILED ENGINEERING STAGE Design Criteria: • Geometry Data Length, width, height above chart datum based on maximum water l
DETAILED ENGINEERING STAGE • Environmental Data – Wave & Current • Wave height & Period – Normal condition – Extreme conditio
DETAILED ENGINEERING STAGE • Load Data: – Dead – Live • For berth – Stacking load – Vehicle load » IRC loading – Equipment lo
DETAILED ENGINEERING STAGE • Material – Concrete • Grade M35/M40 with Slag cement – Steel reinforcement • Corrosion resista
