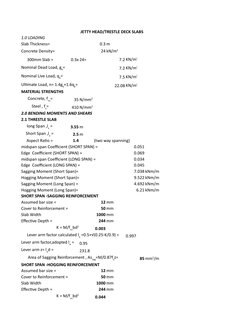

JETTY HEAD/TRESTLE DECK SLABS

1.0 LOADING
Slab Thickness= 0.3 m
Concrete Density= 24 kN/m3
300mm Slab = 0.3x 24= 7.2 KN/m2
Nominal Dead Load, gk= 7.2 KN/m2
Nominal Live Load, qk= 7.5 KN/m2
Ultimate Load, n= 1.4gk+1.6qk= 22.08 KN/m2
MATERIAL STRENGTHS
Concrete, fcu= 35 N/mm2
Steel , fy= 410 N/mm2
2.0 BENDING MOMENTS AND SHEARS
2.1 THRESTLE SLAB
long Span ,lx = 3.55 m
Short Span ,ly = 2.5 m
Aspect Ratio = 1.4 (two way spanning)
midspan span Coefficient (SHORT SPAN) = 0.051
Edge Coefficient (SHORT SPAN) = 0.069
midspan span Coefficient (LONG SPAN) = 0.034
Edge Coefficient (LONG SPAN) = 0.045
Sagging Moment (Short Span)= 7.038 kNm/m
Hogging Moment (Short Span)= 9.522 kNm/m
Sagging Moment (Long Span) = 4.692 kNm/m
Hogging Moment (Long Span)= 6.21 kNm/m
SHORT SPAN -SAGGING REINFORCEMENT
Assumed bar size = 12 mm
Cover to Reinforcement = 50 mm
Slab Width 1000 mm
Effective Depth = 244 mm
K = M/fcubd2 0.003
Lever arm factor calculated la =0.5+√(0.25-K/0.9) = 0.997
Lever arm factor,adopted la = 0.95
Lever arm z= lad = 231.8
Area of Sagging Reinforcement , Assag=M/0.87fyz= 85 mm2/m
SHORT SPAN -HOGGING REINFORCEMENT
Assumed bar size = 12 mm
Cover to Reinforcement = 50 mm
Slab Width 1000 mm
Effective Depth = 244 mm
K = M/fcubd 2
0.044
Lever arm factor calculated la =0.5+√(0.25-K/0.9) = 0.948
Lever arm factor,adopted la = 0.948
Lever arm z= lad = 231.312
Area of Sagging Reinforcement , Assag=M/0.87fyz= 115 mm2/m
LONG SPAN -SAGGING REINFORCEMENT
Assumed bar size = 12 mm
Cover to Reinforcement = 50 mm
Slab Width 1000 mm
Effective Depth = 244 mm
K = M/fcubd 2
0.002
Lever arm factor calculated la =0.5+√(0.25-K/0.9) = 0.998
Lever arm factor,adopted la = 0.95
Lever arm z= lad = 231.8
Area of Sagging Reinforcement , Assag=M/0.87fyz= 57 mm2/m
SHORT SPAN -HOGGING REINFORCEMENT
Assumed bar size = 12 mm
Cover to Reinforcement = 50 mm
Slab Width 1000 mm
Effective Depth = 232 mm
K = M/fcubd 2
0.115
Lever arm factor calculated la =0.5+√(0.25-K/0.9) = 0.85
Lever arm factor,adopted la = 0.85
Lever arm z= lad = 197.2
Area of Sagging Reinforcement , Assag=M/0.87fyz= 88 mm2/m
