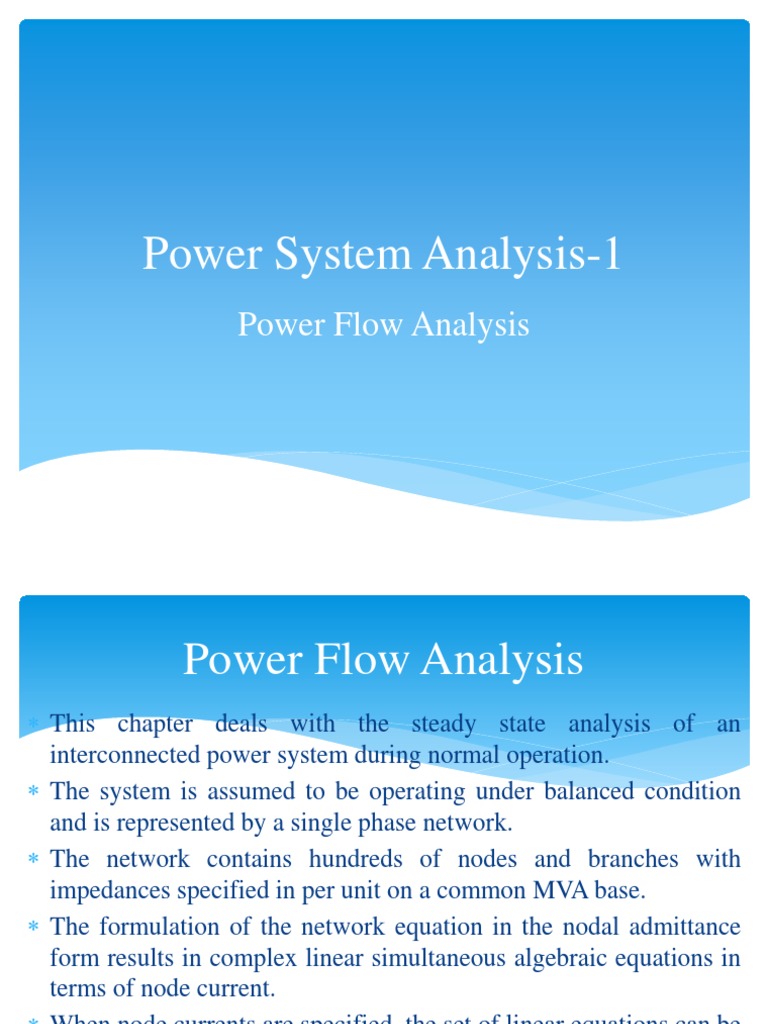

Power Flow Analysis This chapter deals with the steady state analysis of an interconnected power system during normal operation. The system is assumed to be operating under balanced condition and is represented by a single phase network. The network contains hundreds of nodes and branches with impedances specified in per unit on a common MVA base. The formulation of the network equation in the nodal admittance form results in complex linear simultaneous algebraic equations in terms of node current. When node currents are specified, the set of linear equations can be solved for the node voltages. However, in a power system, powers are known rather than the currents. Thus , the resulting equations in terms of power, known as the power flow equations, become non linear and must be solved by iterative techniques. Power flow studies, commonly referred to as Load flow, are the back bone of power system design and analysis. A power-flow study usually uses simplified notation such as a one-line diagram and per-unit system, and focuses on various aspects of AC power parameters, such as voltages, voltage angles, real power and reactive power. It analyzes the power systems in normal steady-state operation. Power-flow or load-flow studies are important for planning future expansion of power systems as well as in determining the best operation of existing systems. The principal information obtained from the power-flow study is the magnitude and phase angle of the voltage at each bus, and the real and reactive power flowing in each line. In addition, power flow analysis is required for many other analysis such as transient stability and contingency studies. Bus Admittance Matrix
Find the bus
admittance matrix The admittance diagram for system The diagonal elements of each node is the sum of admittances connected to it. It is also known as the Self-admittance or driving-point admittance.
The off-diagonal element is equal to the negative of the admittance between
the nodes. It is known as the mutual admittance or transfer admittance . The inverse of the bus admittance matrix is known as the bus impedance matrix. Solution of Non Linear Equations
The most common techniques used for the iterative solution of
non linear algebraic equations are Gauss-Siedel, Newton Raphson and Quasi-Newton methods. The Gauss-Siedel and Newton Raphson methods are discussed for one-dimensional equation and are then extended to n- dimensional equations. Gauss-Siedel Method Newton Raphson Method
